Description

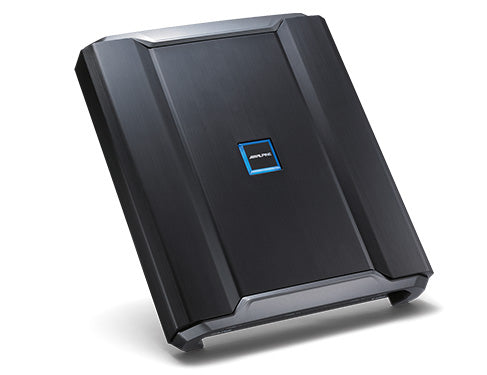

R-Series 6/5/3 Channel Power Amplifier with Staggered Power
Product Overview
Experience your music in Hi-Res with the versatile R-A90S 6-Channel Amplifier for hair-raising details that puts you in the center of the performance.
Features
6-Channel Amp with 5-Channel Power– With double the power on the last two channels, the R-A90S’s 5th and 6th channels can be bridged to provide up to 500-watts at 4Ω to a subwoofer system such as a pair of S-SB12Vs.
An Amp that Grows with You– When you’re ready to upgrade your Alpine system, use the R-A90S to amplify a 3-way active system with enough mid-bass power to create the up-front bass impact you crave.
Accurate Sound Reproduction– With incredibly low phase shift and hi-resolution frequency response, the R-A90S can reproduce sound with incredible accuracy that stays true to the artist’s intention.
Tech Specs
Dimensions:12.75" x 10.75" x 2"
Hi-Resolution Audio Compliant (40k Hz)
Alpine’s Class D Amplifier Circuit
75W x 4 + 150W x 2 (4Ω, 14.4V, < 1% THD +N)
100W x 4 + 250W x 2 (2Ω, 14.4V, < 1% THD +N)
Bridged: 200W x 2 + 500W x 1 (4Ω, 14.4V, < 1% THD +N)
S/N > 85dB (ref. 1W into 4Ω)
THD + N < 0.03% (ref. 10W into 4Ω)
Frequency response: 10-45kHz (0/-3dB)
Damping factor > 500
CTA-2006
6-Channel Amp with 5-Channel Power
The R-A90S has a unique staggered power channel layout that has double the power on the last two channels. When looking to power a dual subwoofer configuration, the R-A90S’s 5th and 6th channels can be bridged to provide up to 500-watts at 4Ω. The R-A90S is matched in power and performance for the Dual 10-inch Alpine Halo S-Series Preloaded Subwoofer Enclosures with ProLink™.
An Amp the Grows with You
Thanks to the unique staggered power channel layout, the R-A90S can host different levels of power on each channel, compared to traditional, multi-channel amplifiers. This allows the R-A90S to grow with you as it can effectively function as both a 3-way active amplifier and a 5-channel amplifier by delivering the power you need to the channels where you need it the most.
