Description

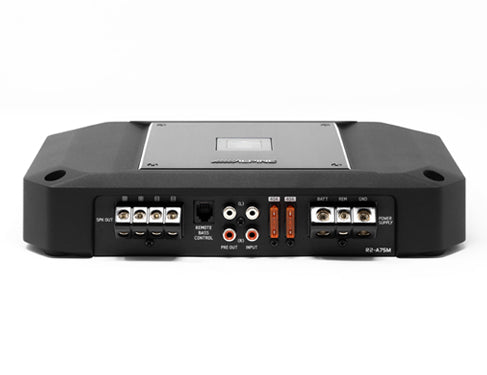

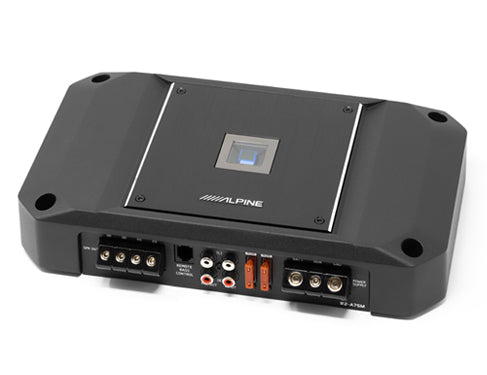

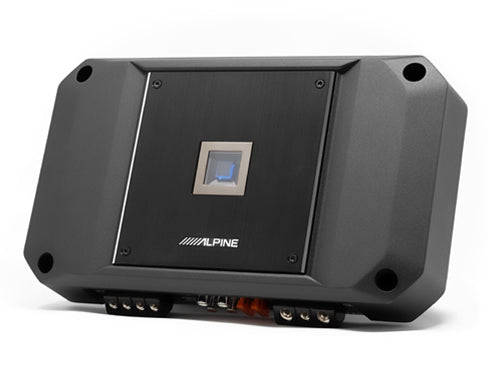

Next-Generation R-Series 750W Mono Amplifier
Product Overview
Experience the impressive power and exceptional performance of the Next-Gen R-Series R2-A75M Mono Amplifier, now featuring a more compact design.
Features
750W Mono Amplifier
Alpine’s Class D Amplifier Circuit
Reduced Footprint (15% smaller compared to the previous R-A75M model)
One-Sided Terminal Layout
Top Panel Sound Controls
Integrated Mounting Feet for Simple Installation
Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)
What's in the Box:
(x1) R2-A75M Mono Amplifier
Owner’s Manual
“Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
(x4) Screws for amplifier mounting to the vehicle
(x3) Allen wrench for amplifier connection and installation (2mm, 2.5mm, 3mm)
Alpine Registration Card
Alpine Limited Warranty Sheet
Installation Guide
Tech Specs
Dimensions:11.1” W x 2.17” H x 6.5” D
Weight:7 lbs, 10 oz
Power Rating:14.4V, ≤ 1% THD +N
Power Output:500W RMS x 1 @ 4Ω, 750W RMS x 1 @ 2Ω
S/N Ratio:>75dB
Frequency Response: 10Hz – 400Hz
Damping Factor:>250
Elevate your Audio
Elevate your audio with the Alpine R2-A75M Mono Amplifier - delivering powerful 750W performance in a sleek, compact design. Built with Alpine's cutting-edge Class D Amplifier Circuit, this next-generation R-Series amp offers exceptional sound quality and efficiency, making it the perfect addition to any car audio system.
