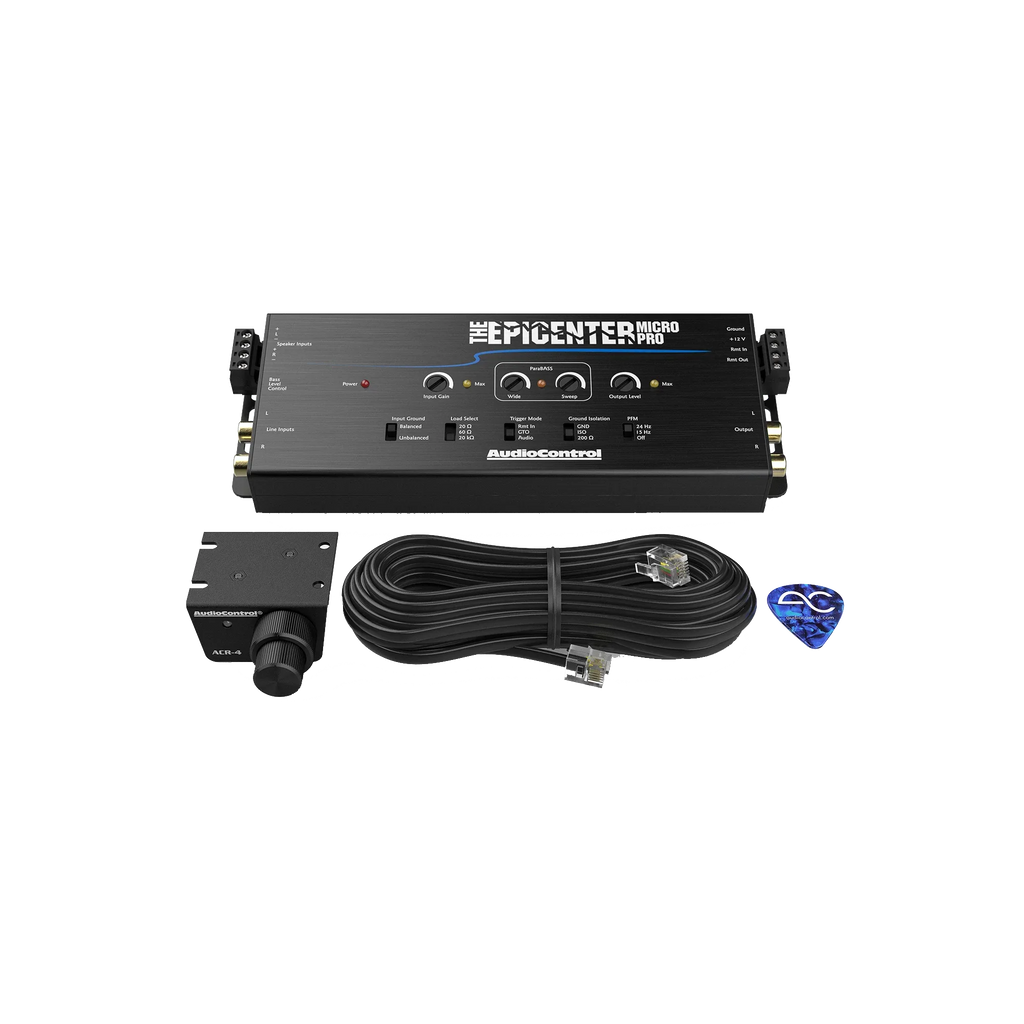

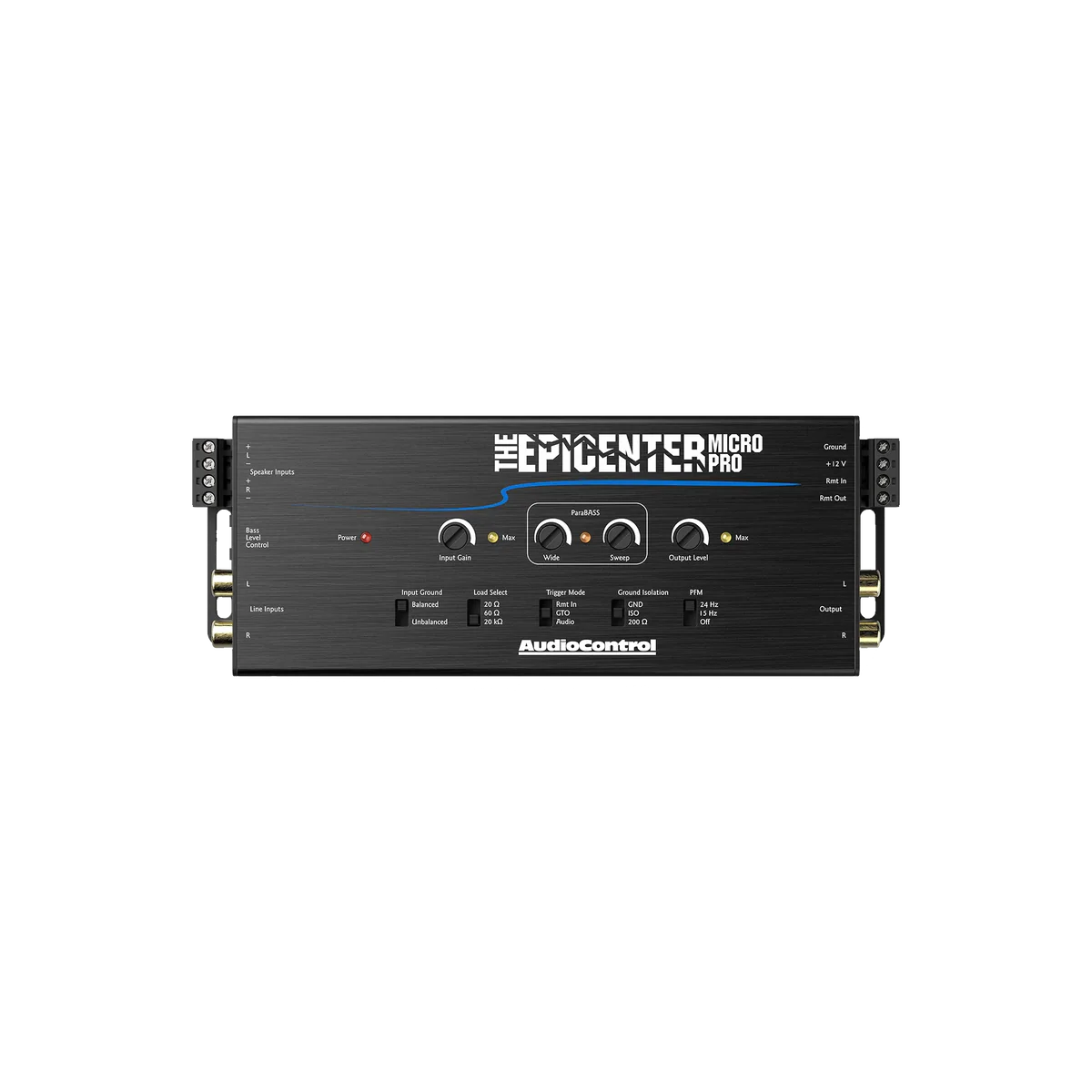

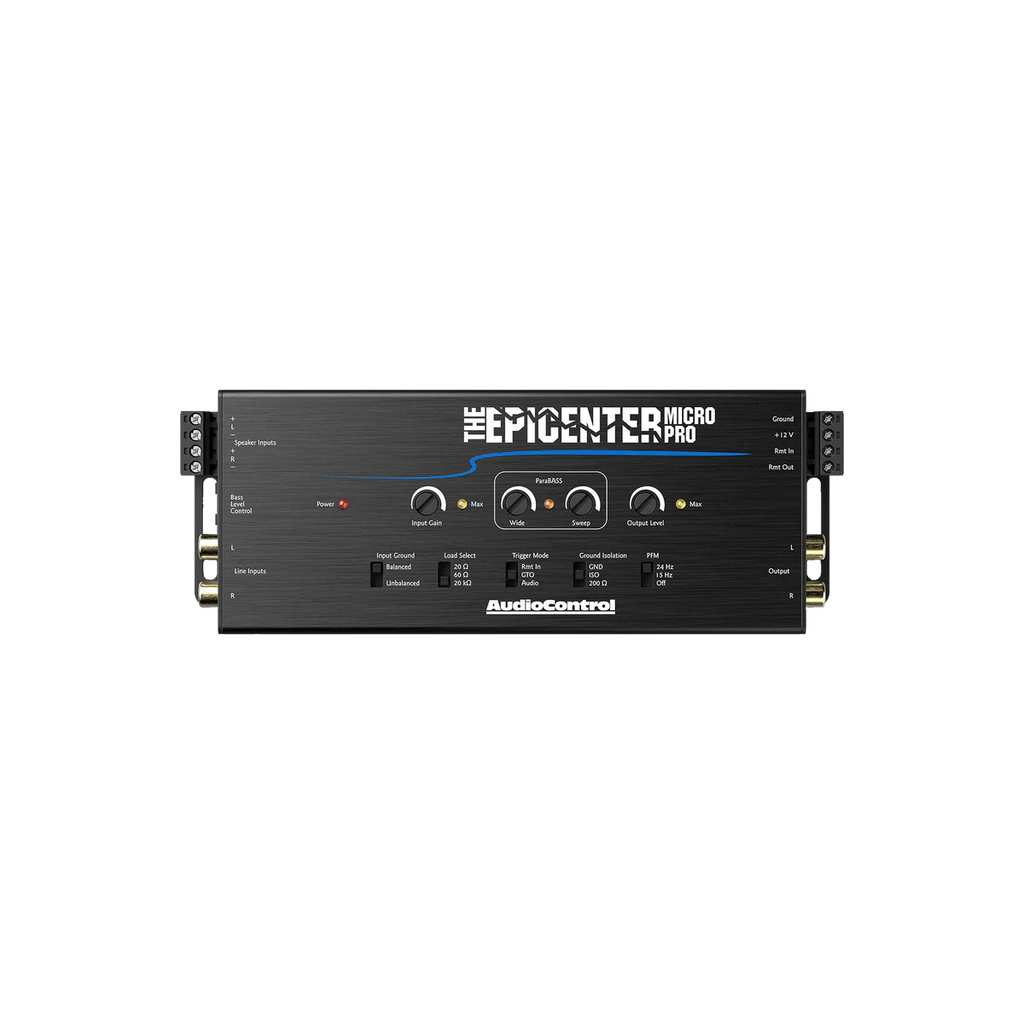

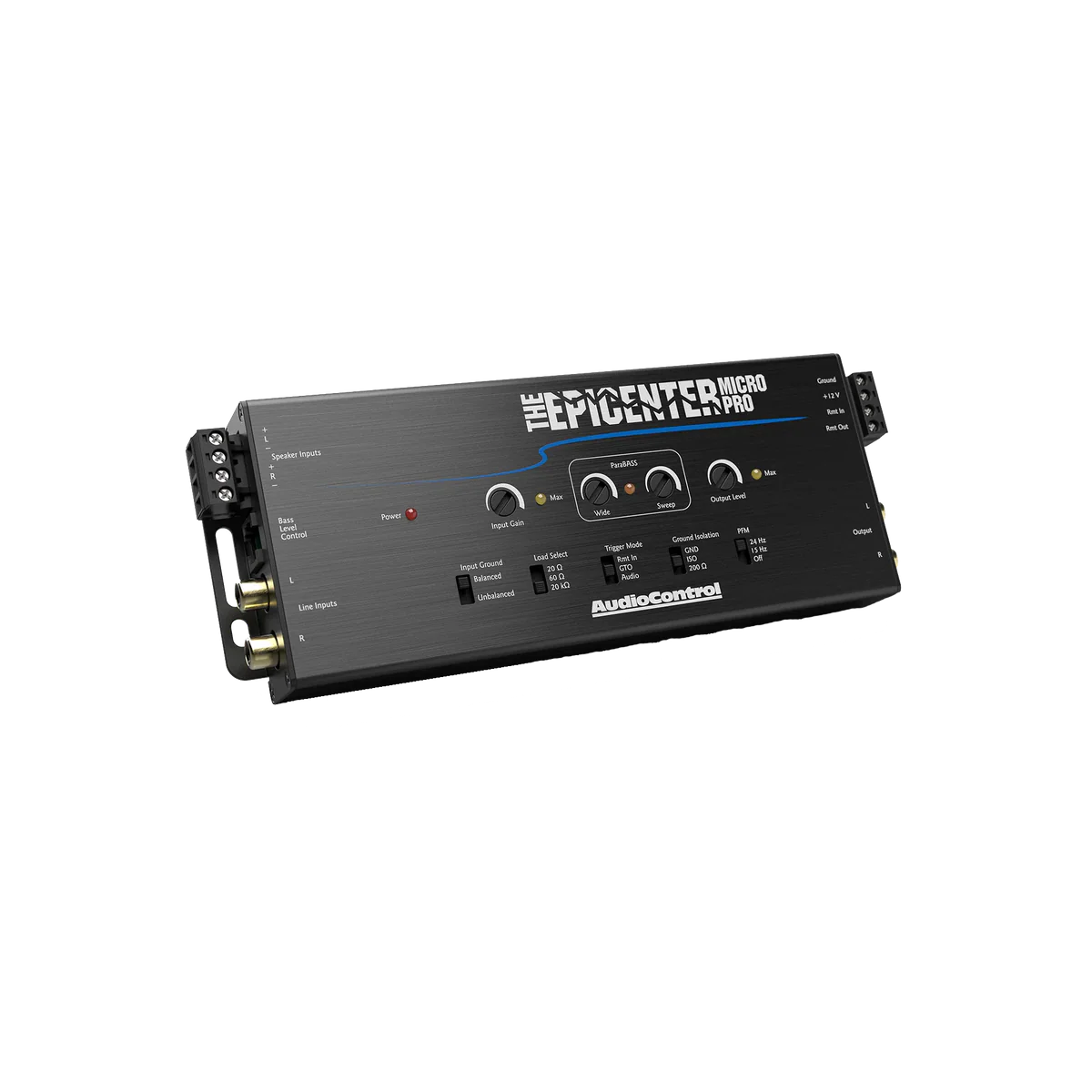

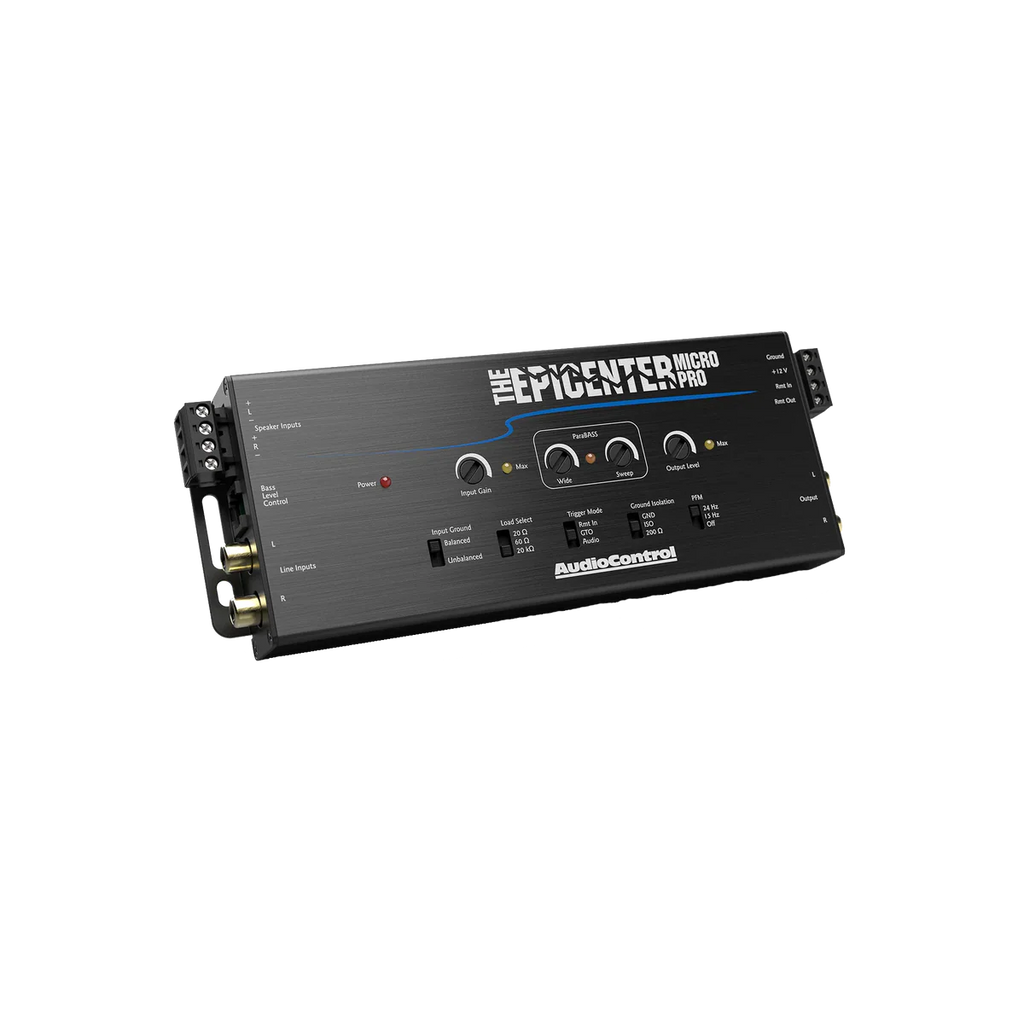

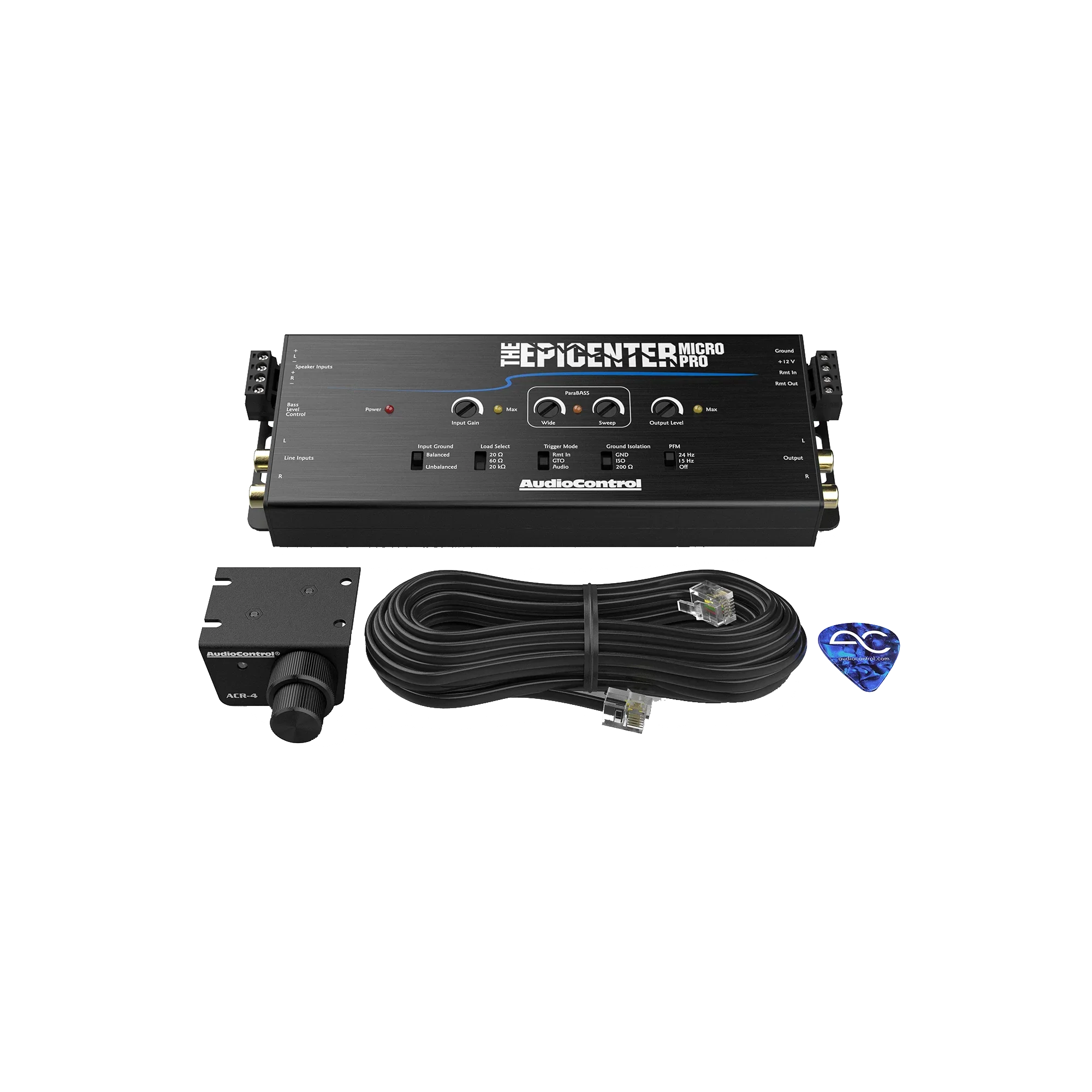

AudioControl Epicenter Micro PRO Bass Restoration Processor & Line Output Converter


Price:
Sale price$229.00
Stock:
In stock

Moon Points Earn 229 Moon Points when you buy this item.

Description

• AudioControl’s Original Digital Bass Restoration Circuit: Restore missing low notes and transform flat audio into rich, powerful bass you can truly feel.
• ParaBASS® Controls for Bass Shaping:
Precisely sculpt and fine-tune your bass to perfectly match your music, vehicle, and personal preference.
• Selectable PFM Subsonic Filter with Bypass:
Protect your speakers and ensure tighter, more controlled bass by filtering out inaudible, power-wasting frequencies.
• Built-in Line Driver for Optimal Output Voltage:
 Boosts your audio signal for a strong, clean path to your amplifiers, minimizing noise and maximizing sound quality.
• Balanced Line Level Inputs:
Helps eliminate electrical interference and hum, delivering crystal-clear sound even in noisy car environments.
• Speaker-Level Inputs:
Seamlessly integrate a factory stereo without needing RCA outputs, saving money and simplifying upgrades.
• Load Selection Switch:
Ensures perfect compatibility with modern factory stereos, preventing issues and guaranteeing a smooth upgrade.
• GTO and Audio Sense Turn On:
Automatically powers up the unit when your stereo is active, making installation simpler and operation seamless.
• 10 Volt Maximum Output Level:
Sends a strong, clean signal to your amplifier, unleashing maximum power and dynamic impact.
• Conformally Coated PCB:
A protective layer against moisture, dust, and temperature swings, improving the durability and reliability of The Epicenter Micro PRO.
• ACR-4 Dual-Knob Remote Level Control Included:
Command your bass instantly from the driver's seat, fine-tuning levels and bass restoration on the fly.

SPECIFICATIONS

INPUTS

  • Maximum Line Level Input: 10Vrms
  • Maximum Speaker Level Input: 40V / 400W (20kΩ setting)
  • Line Level Input Impedance: 7kΩ
  • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

OUTPUTS

  • Maximum Output Level (THD<1%): 9Vrms, 13V peak
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.03%
  • Signal to Noise: >105 dB
  • Frequency Response: 10 Hz – 22 kHz ±1 dB
  • PFM Filter (High Pass): Selectable 24 Hz, 15 Hz, or Bypass

CONTROL

  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Power Supply: High Headroom PWM Switching
  • Current Draw: 300 mA
  • Recommended Fuse Rating: 1 A

WEIGHTS & DIMENSIONS

  • Dimensions: 8″L x 3″D x 1″H
  • Weight: 0.9 lbs
