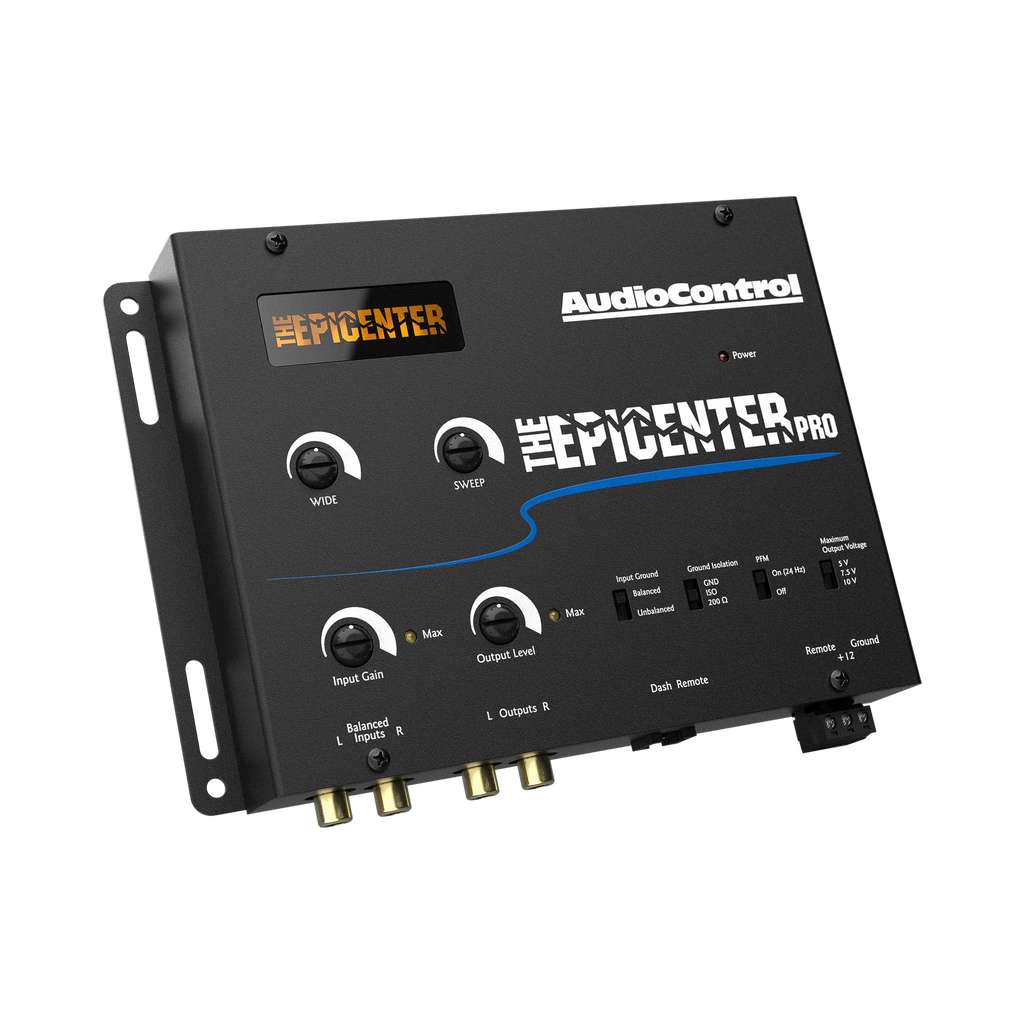

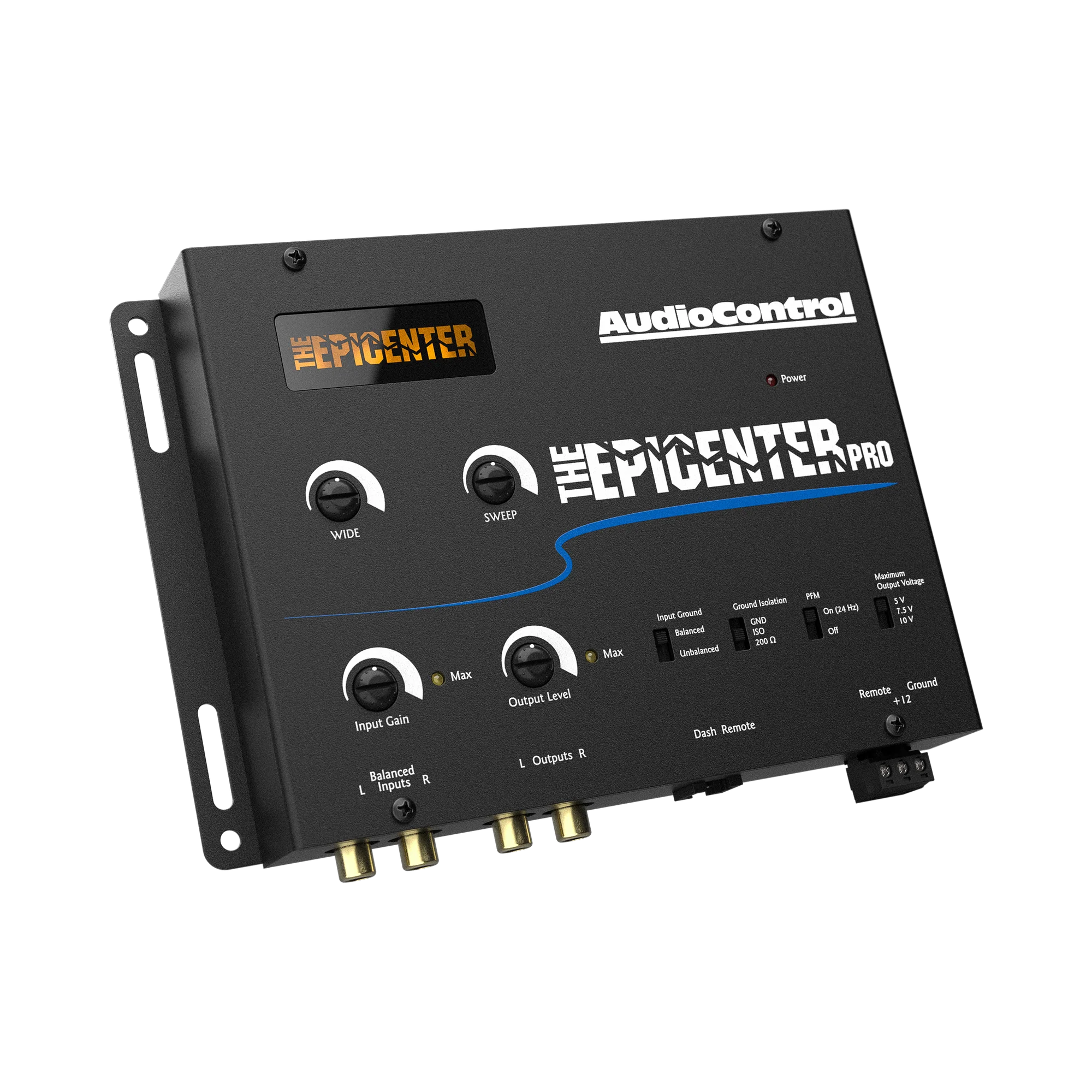

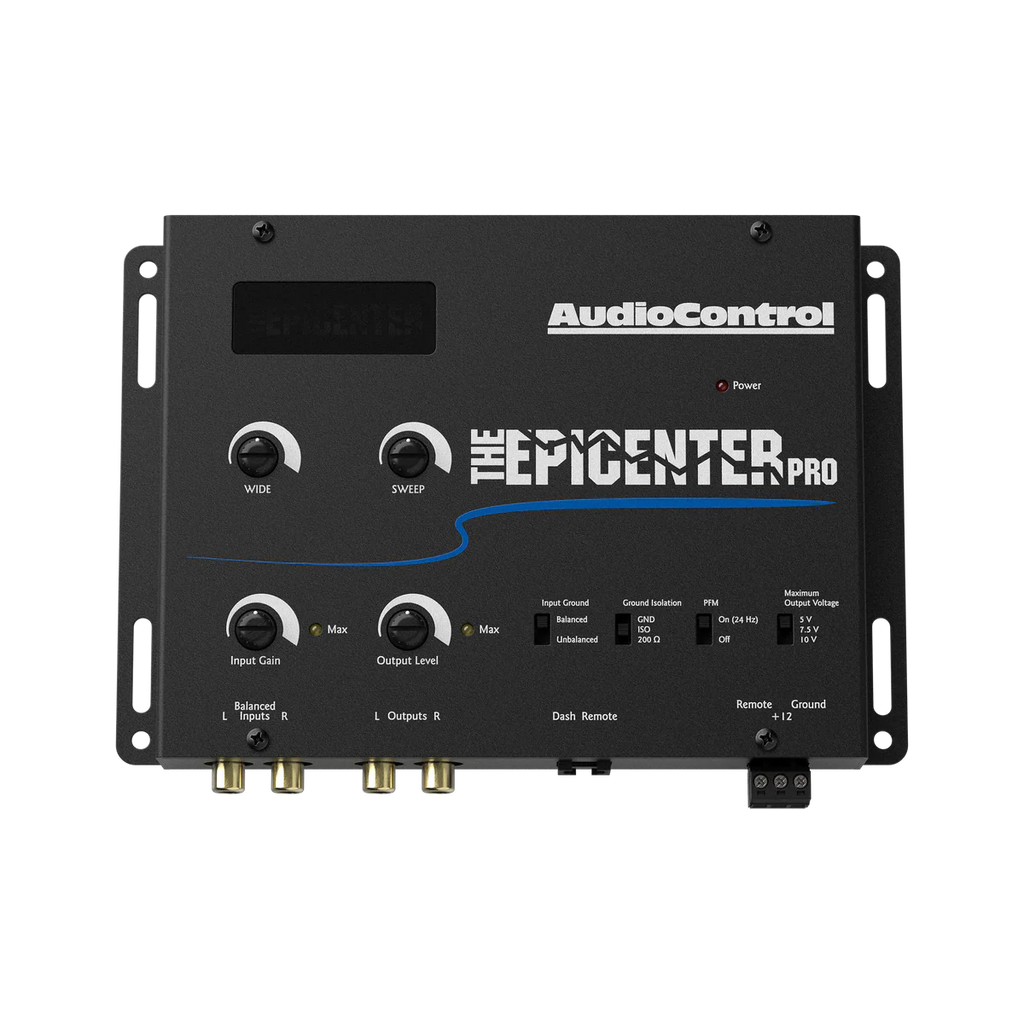

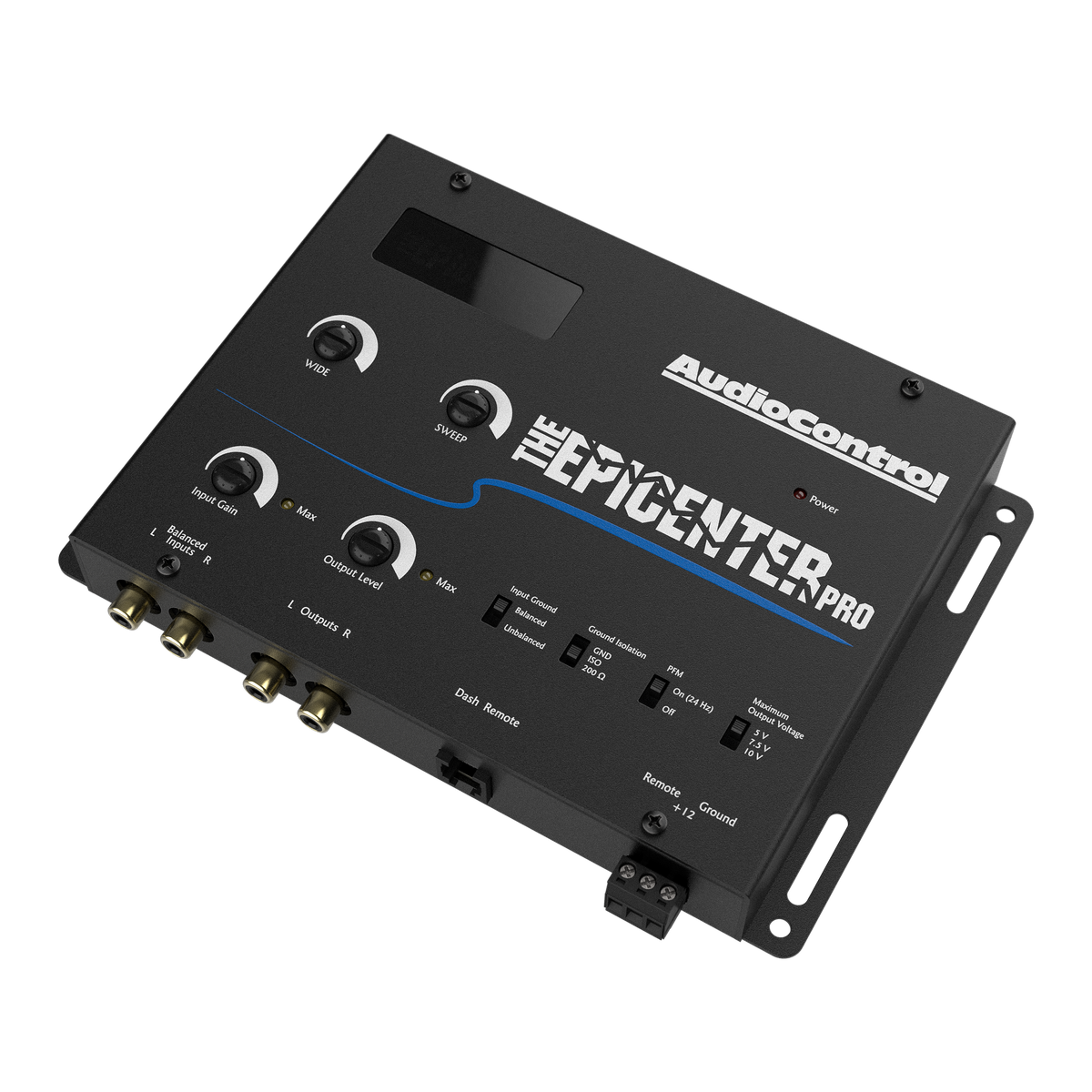

THE ORIGINAL DIGITAL BASS RESTORATION PROCESSOR
Building on the legendary bass processing of The EPICENTER, The EPICENTER PRO delivers enhanced control for serious bass enthusiasts. Balanced inputs with a built-in line driver, a switchable pfm subsonic filter, and selectable output voltage offer unmatched system flexibility. The included ACR-4 remote provides easy adjustment of The EPICENTER effect and subwoofer level—right from the driver’s seat.
FEATURES
• AudioControl’s Original Digital Bass Restoration Circuit: Restore missing low notes and transform flat audio into rich, powerful bass you can truly feel.
• Powerful Line Driver: Provides an ultra-clean, high-voltage signal, eliminating noise and maximizing the performance potential of your aftermarket amplifiers.
• Selectable Output Voltage: Precisely match the signal output to your amplifier's input stage to achieve maximum clean power and optimal gain structure.
• ParaBASS Controls: Gain surgical control over your bass by adjusting the center frequency, width, and level of the bass boost, perfectly tailoring the low-end to your vehicle's acoustics.
• Selectable Subsonic Filter: Protect your subwoofers from damaging, inaudible ultra-low frequencies while focusing amplifier power on the bass you can actually hear and feel.
SPECIFICATIONS
INPUTS
Maximum Line Level Input: 10Vrms
Line Level Input Impedance: 7kΩ
OUTPUTS
Maximum Output Level (THD1%): 9Vrms, 13V peak
Output Impedance: 150Ω
PERFORMANCE
Total Harmonic Distortion: 0.03%
Signal to Noise: 105 dB
Frequency Response: 10 Hz – 22 kHz ±1 dB
PFM Filter (High Pass): Selectable 24 Hz or Bypass
GENERAL
Power Supply: High Headroom PWM Switching
Current Draw: 300 mA
Recommended Fuse Rating: 1 A
WEIGHTS & DIMENSIONS
Dimensions: 8″L x 5.5″D x 1.2″H
Weight: 1.7 lbs

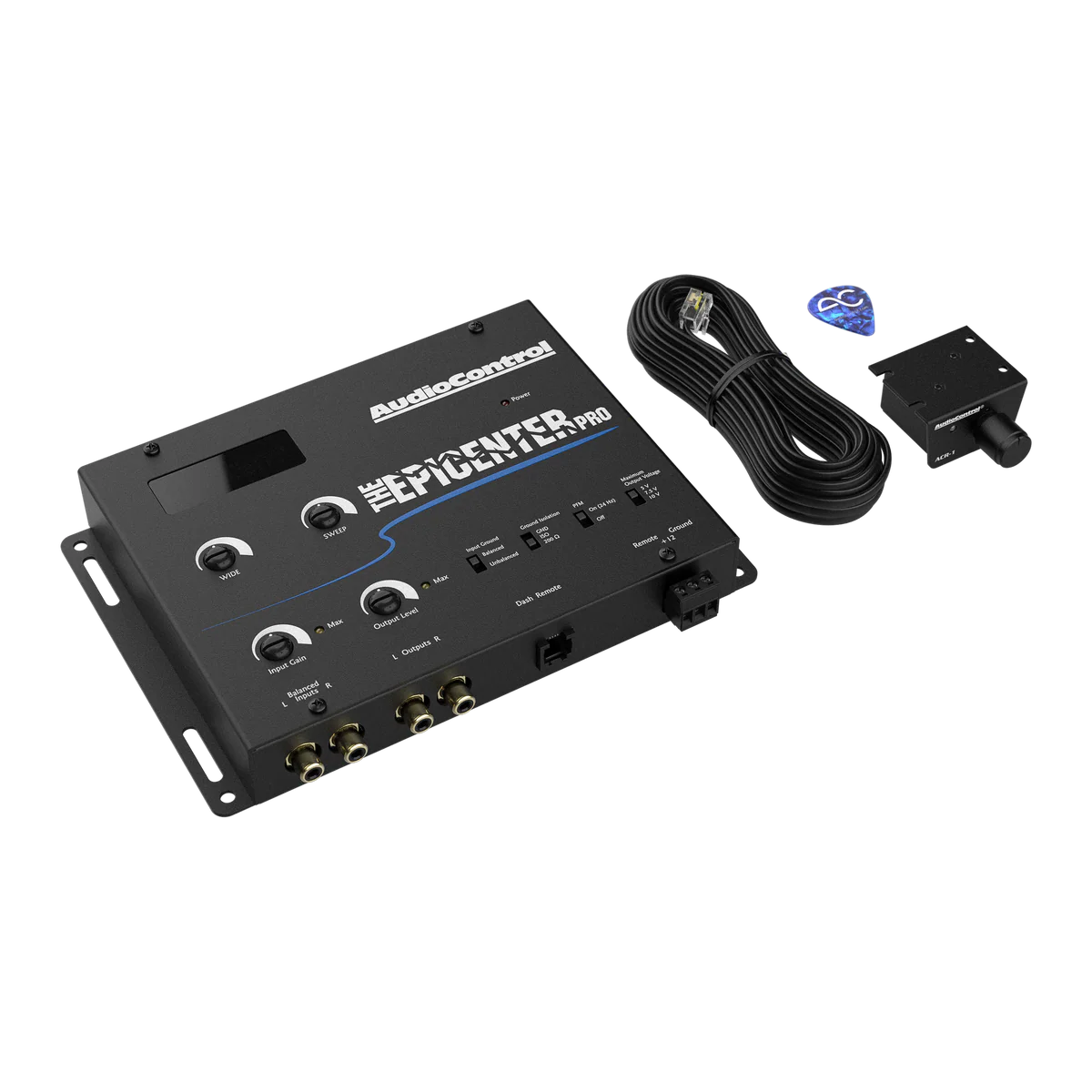

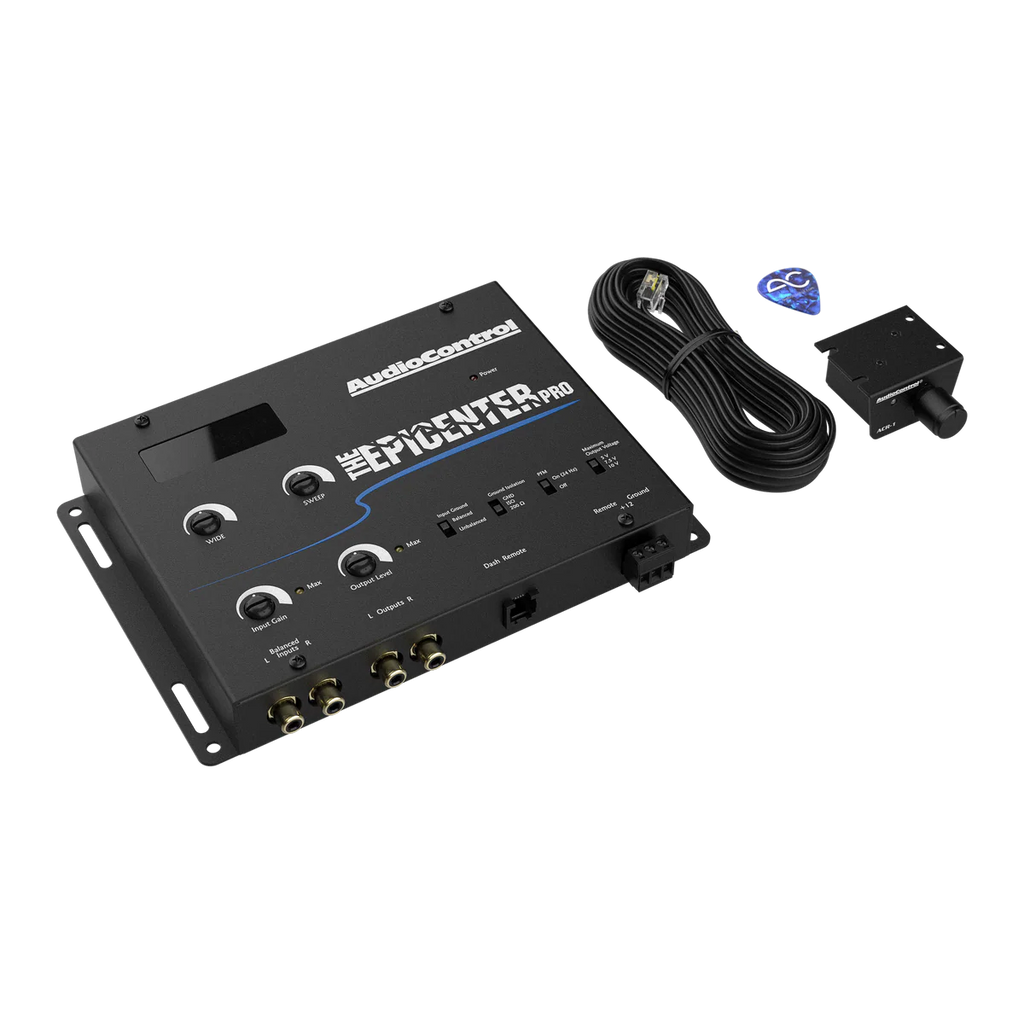

IN THE BOX:The EPICENTER PRO, ACR-4, Remote Cable, User Manual
