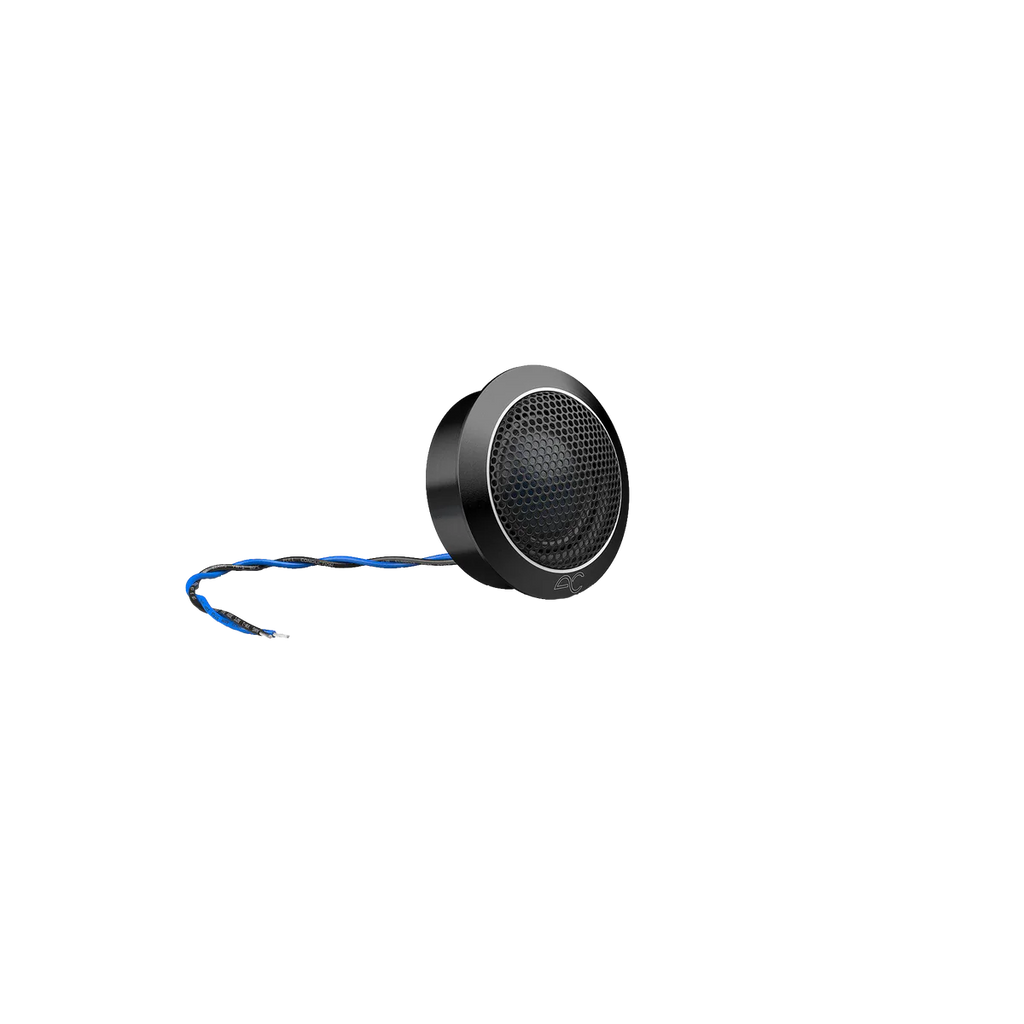

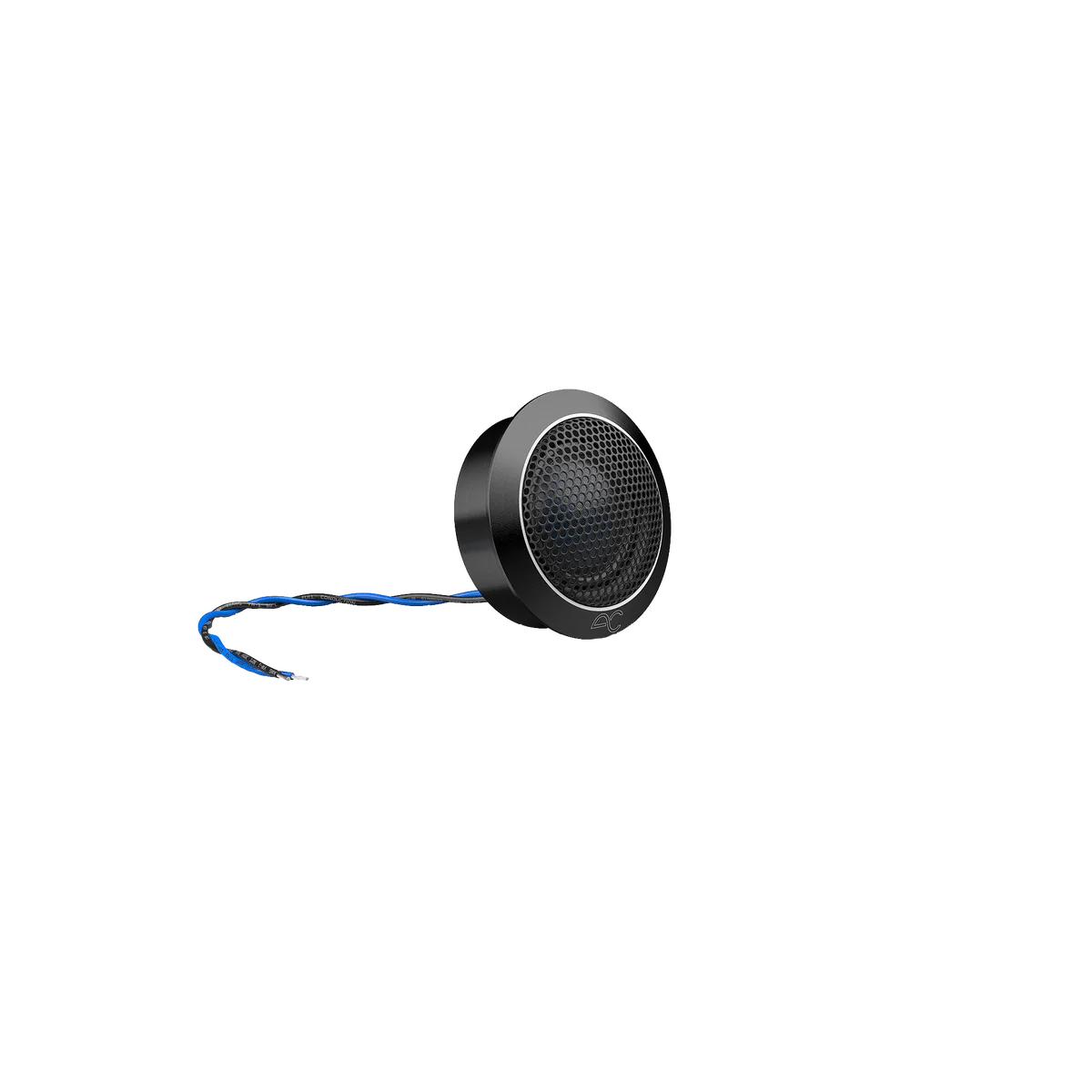

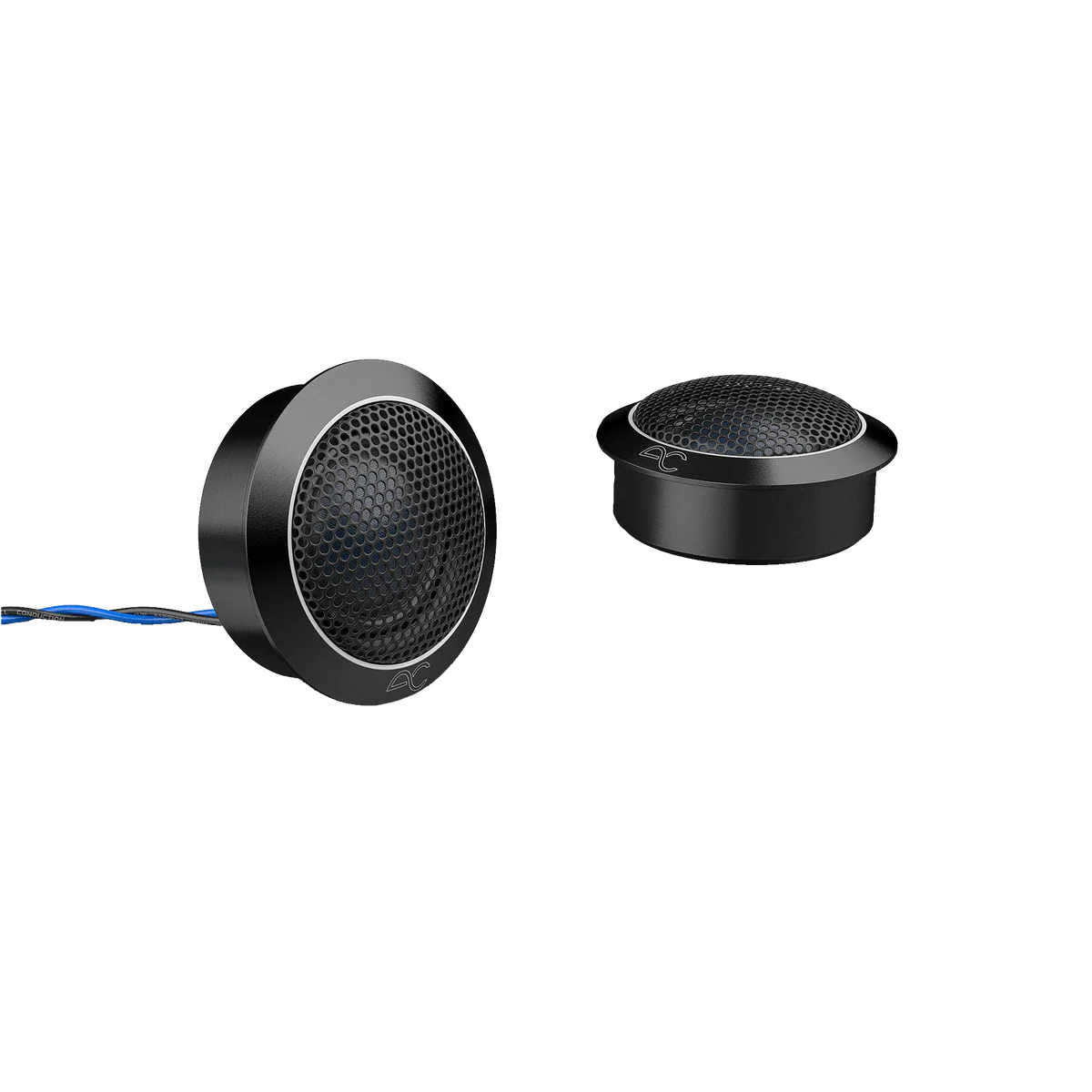

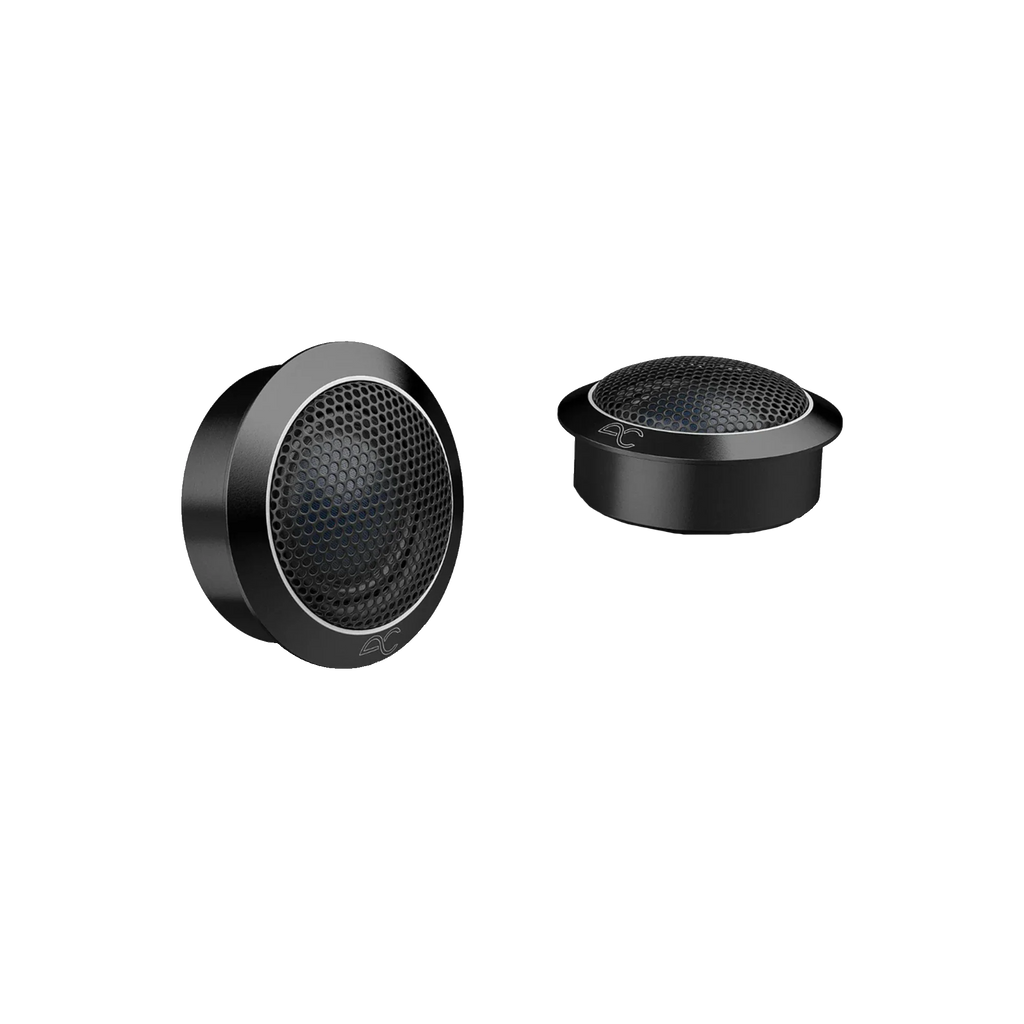

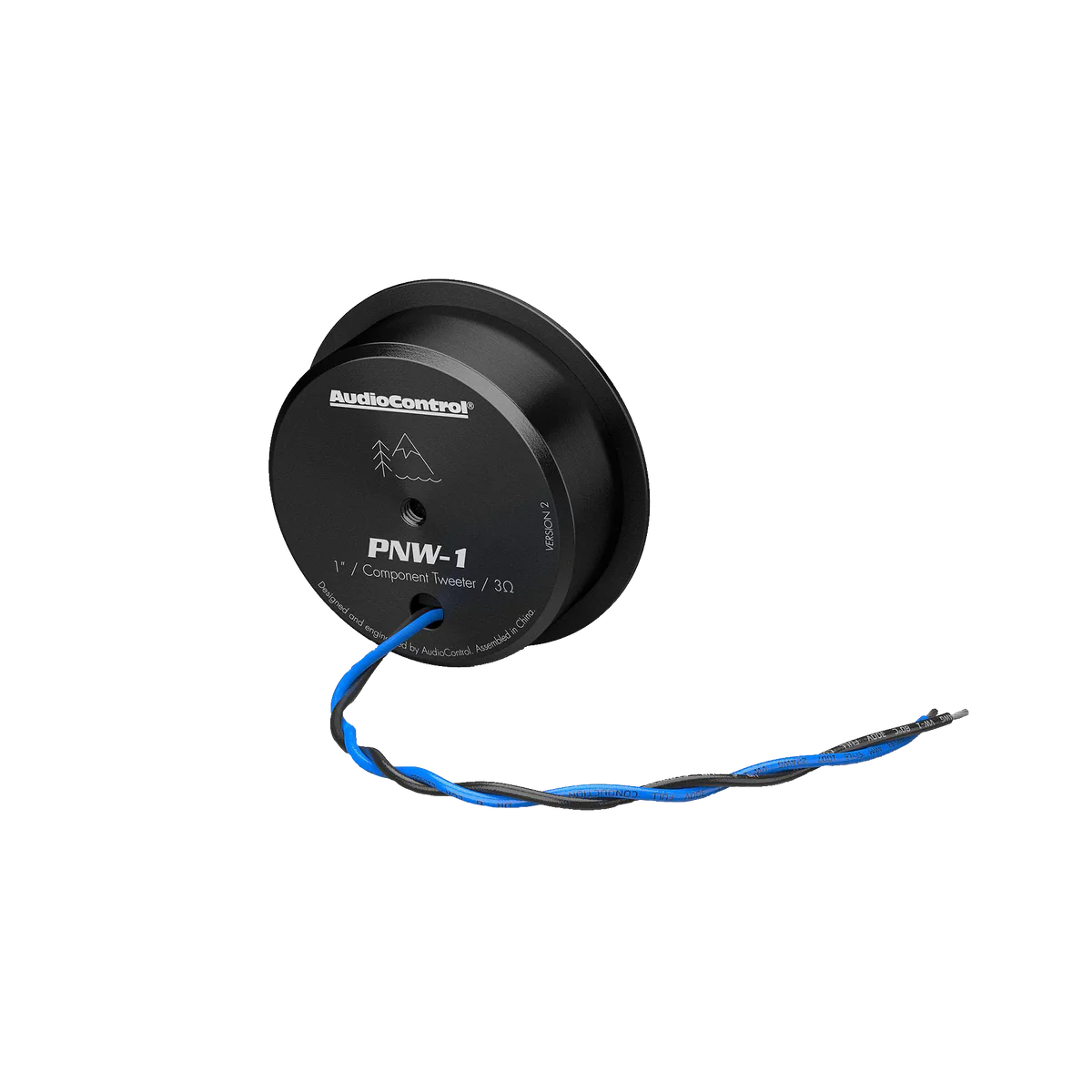

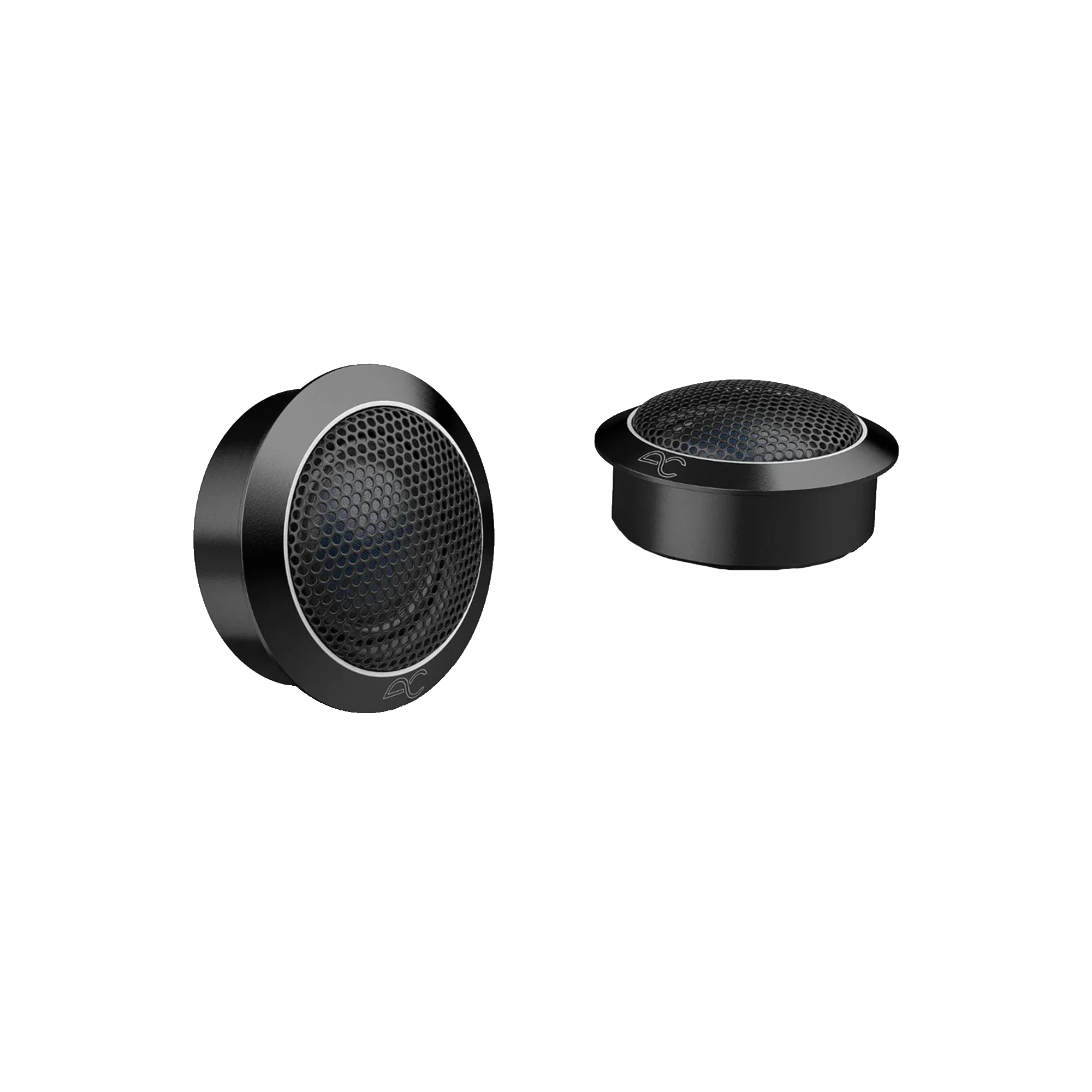

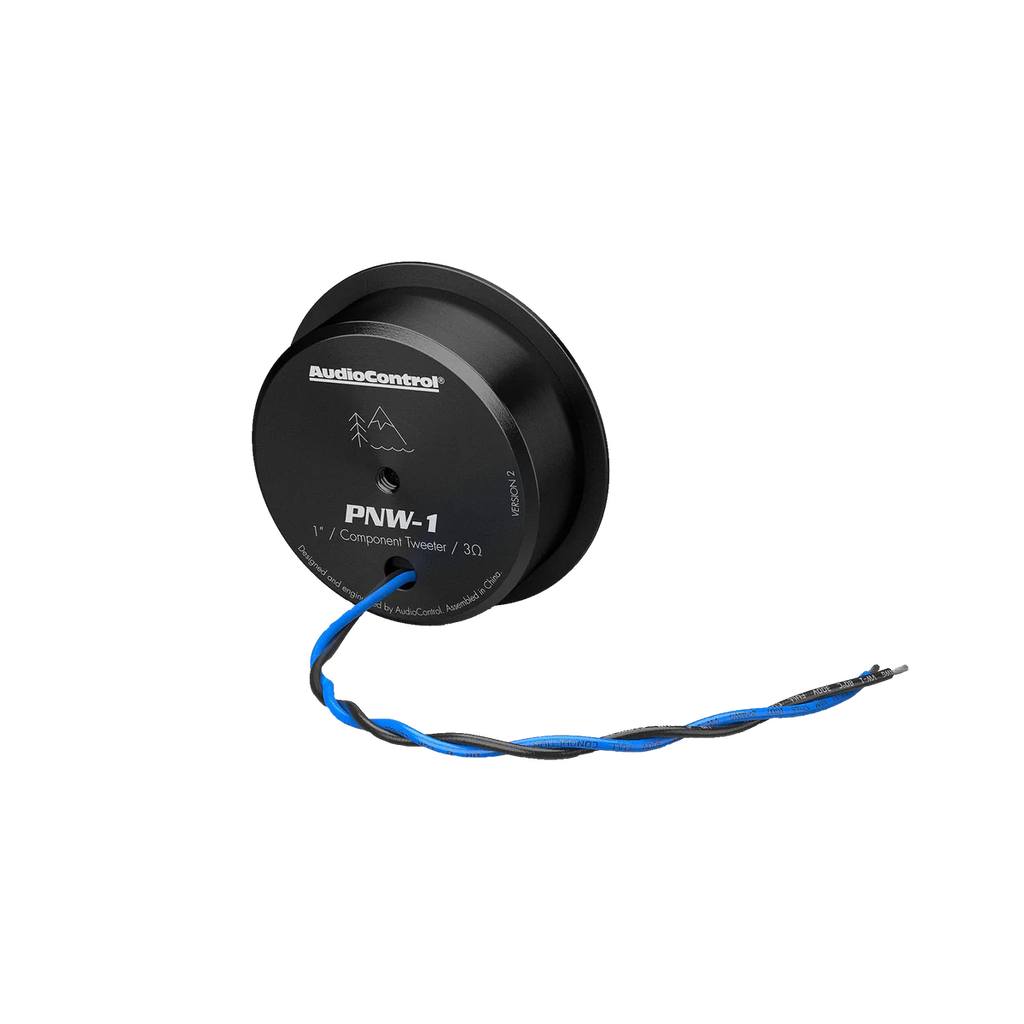

Take your audio experience to the next level with the PNW-1 high-fidelity tweeters from AudioControl! The PNW-1 features a hybrid silk dome tweeter, silk dome diaphragm and aluminum housing so you can experience accurate sound reproduction without distortion.

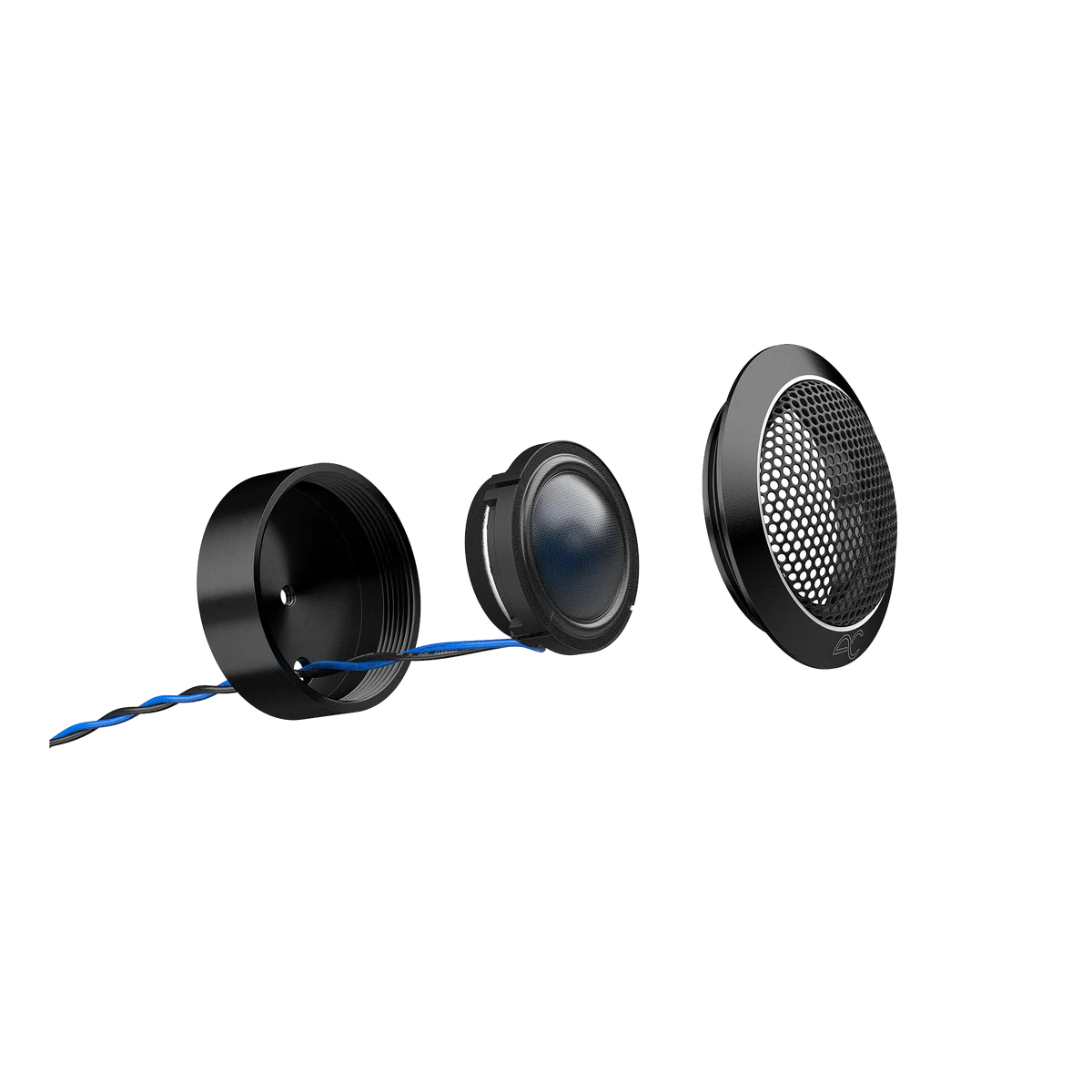

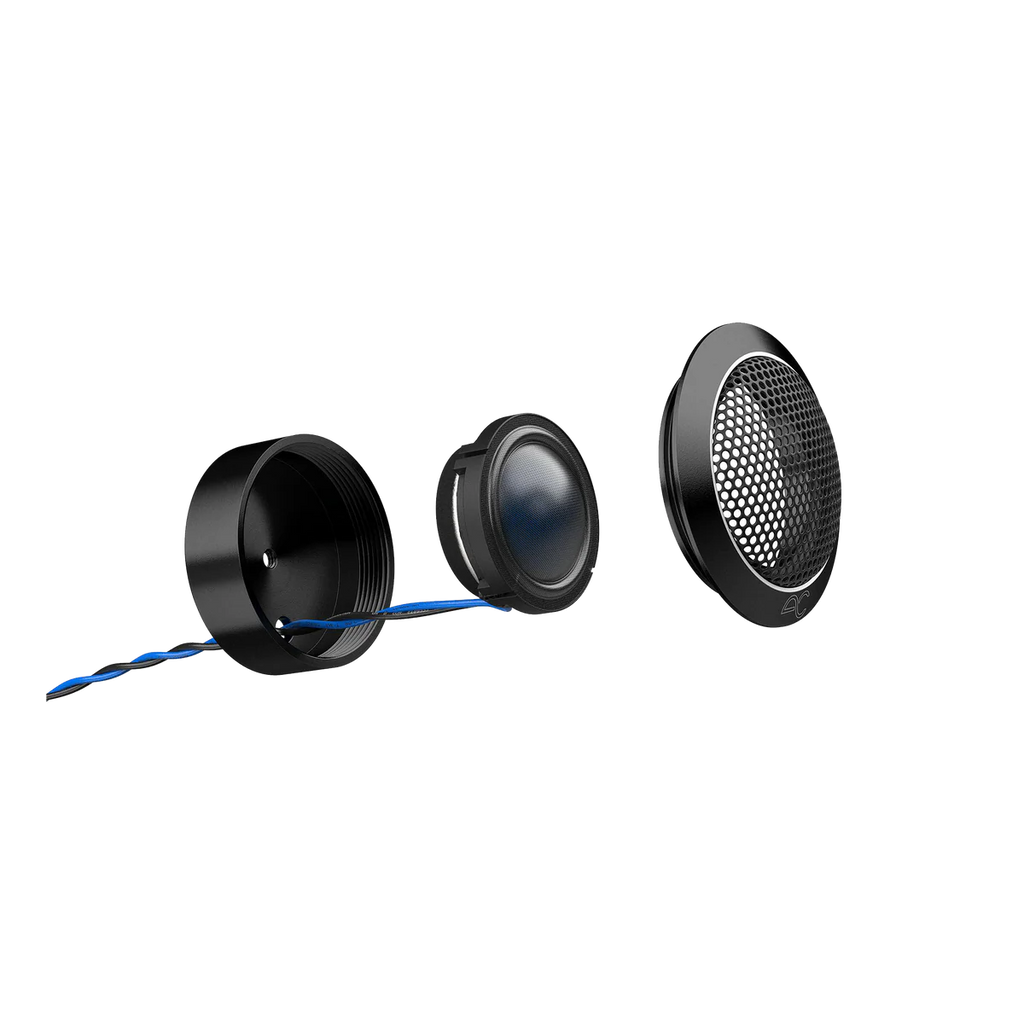

The detachable housing and versatile mounting accessories simplify installation, accommodating various applications seamlessly. The included in-line high-pass filters ensure only the desired frequencies reach the tweeter to maximize your sound and minimize distortion.
Pair PNW-1 tweeters with any of the AudioControl PNW speaker line-up for a truly immersive audio experience!
DC Resistance (Re). 2.3 Ohms
Power 100W RMS / 125W Max
Nominal Impedance (Z) 3 Ohms
Resonance Freq. (Fs) 1.621 kHz
Mechanical Q Factor (Qms) 6.92
Electrical Q Factor (Qes) 2.3091
Total Q Factor (Qts) 1.7314
Frequency Response 1k-20kHz
Tweeter Voice Coil Diameter 25 mm
IN THE BOX: (2) PNW-1, Manual, Warranty
Crossover Type 1st Order Butterworth
Crossover Frequency 3.5 kHz HP
Slope (Octave) -6 dB
