Crescendo Audio C2000.4D
All Concerto D series amplifiers now feature our newly designed 2018 BC/Concerto heatsink case!
4 channel Class D Full Range Amplifier
Capable of over 1040rms bridged x2 @ 4ohm of pure Class D power!
Highpass/Full/Bandpass 100% Custom Designed Active capable Crossover network with x10 multiplier switch
Custom 24db defeatable crossover network with up to 8khz highpass/lowpass settings
2ch/4ch selector switch to eliminate the need for "Y" cables when bridged
Quiet, Variable Speed Fan for Efficient Cooling
Individual Clipping Indicator for each channel located on side panel

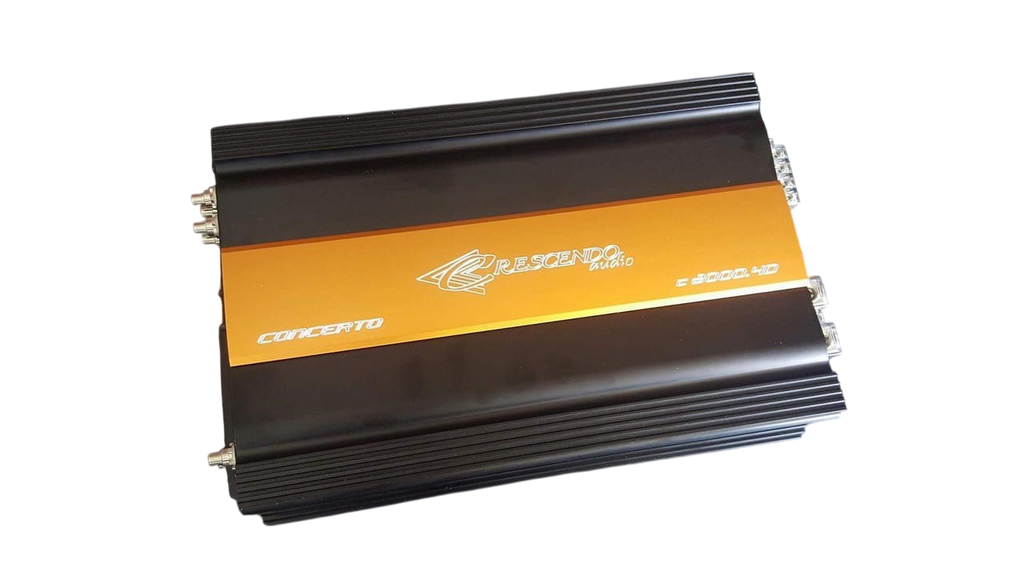

Custom tooled, proprietary Multi-piece Thermal optimized Heatsink with patent pending interlocking slide-out CNC engraved top plate.
2 stage copper anodized removable top plate.
Silver plated high end hard-wired Tiffany RCA inputs for optimal signal fidelity for both Inputs and Outputs

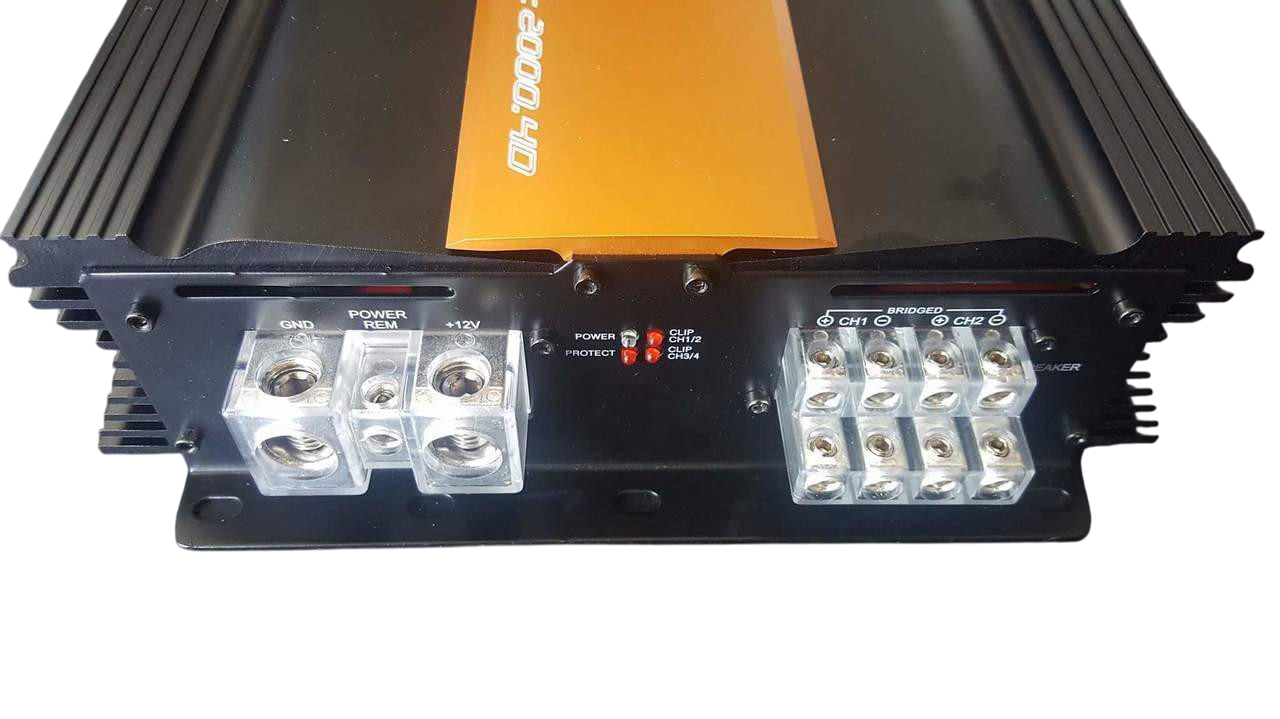

1/0 Power/Ground Inputs for efficient current transfer.

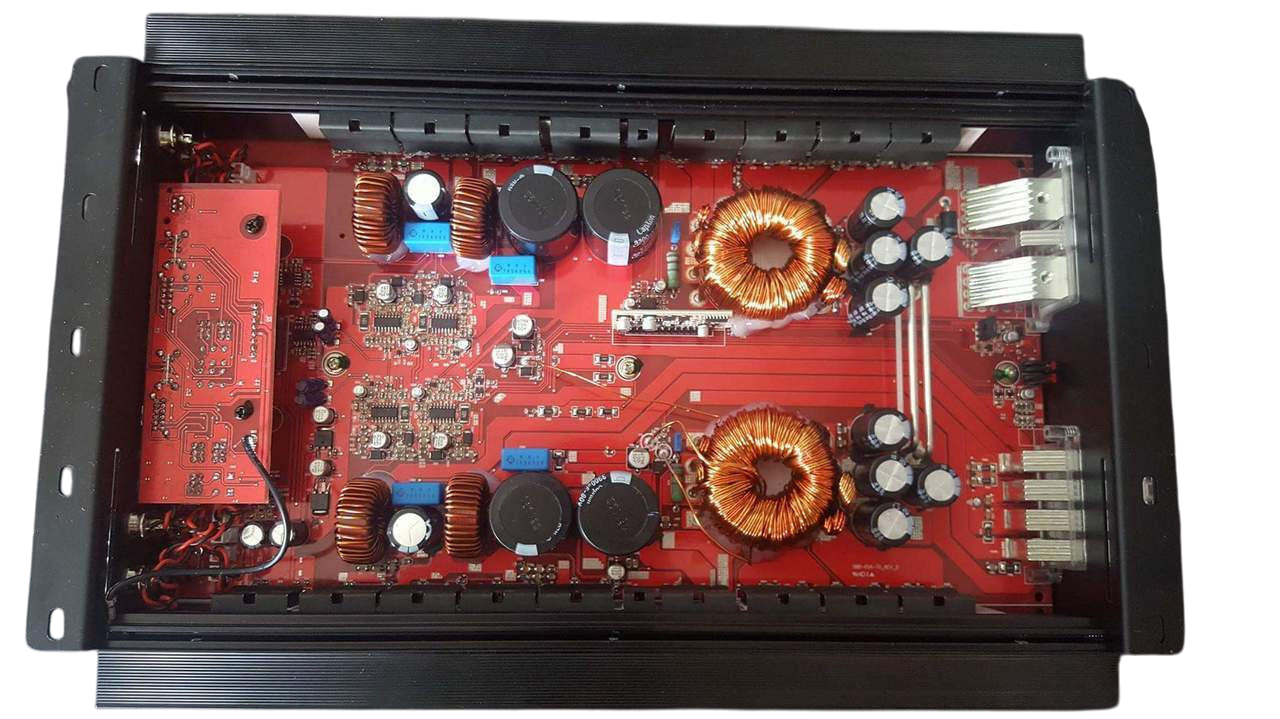

Overbuilt Power supply with heavy copper traces and Military spec PCB/heavy duty standoffs for extreme vibration resistance.
Manufactured using some of the highest quality and most reliable electrical components, with many 3% tolerance components throughout.
C2000.4 Rated Power Output(RMS)
Clean RMS power on 13.8v standard electrical system:
300w x4 @ 4ohm
520w x4 @ 2ohm
1040w x2 @4ohm Bridged
Incredibly compact footprint!
Dimensions : 15" x 2.75" x 9.5"
