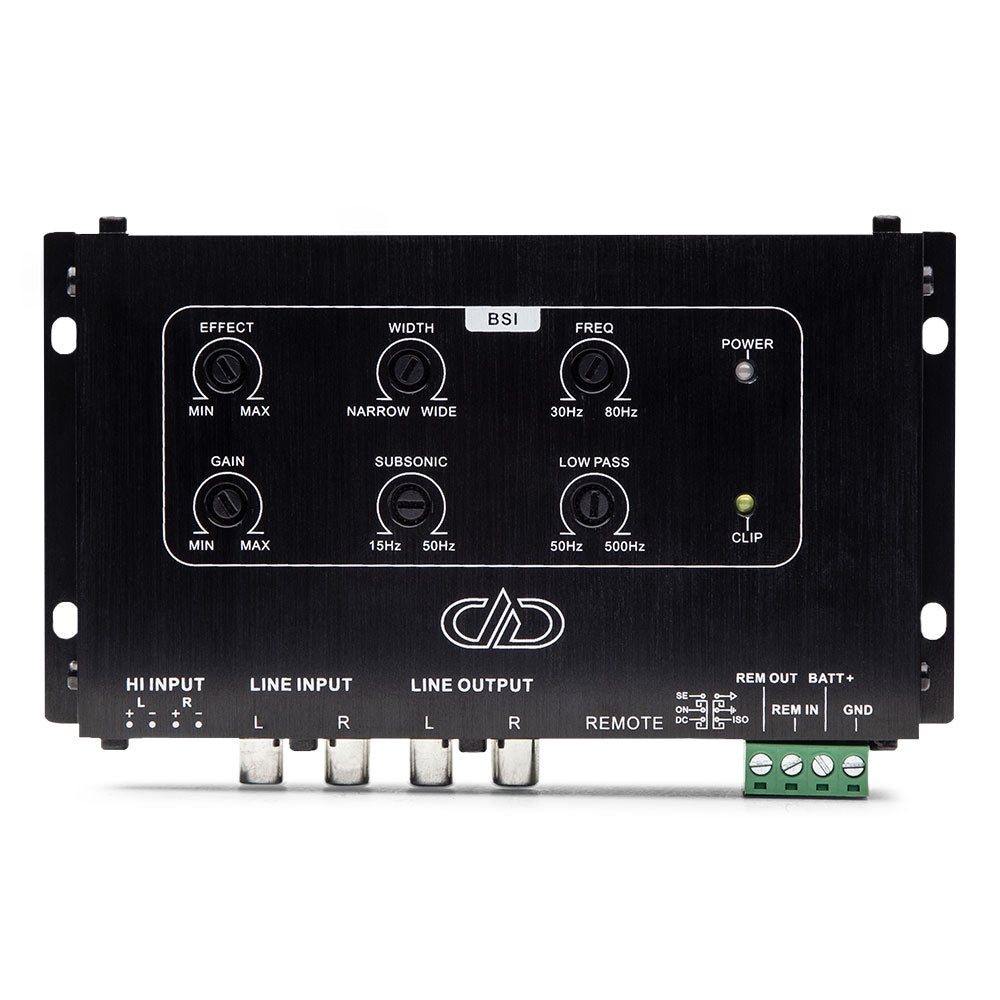

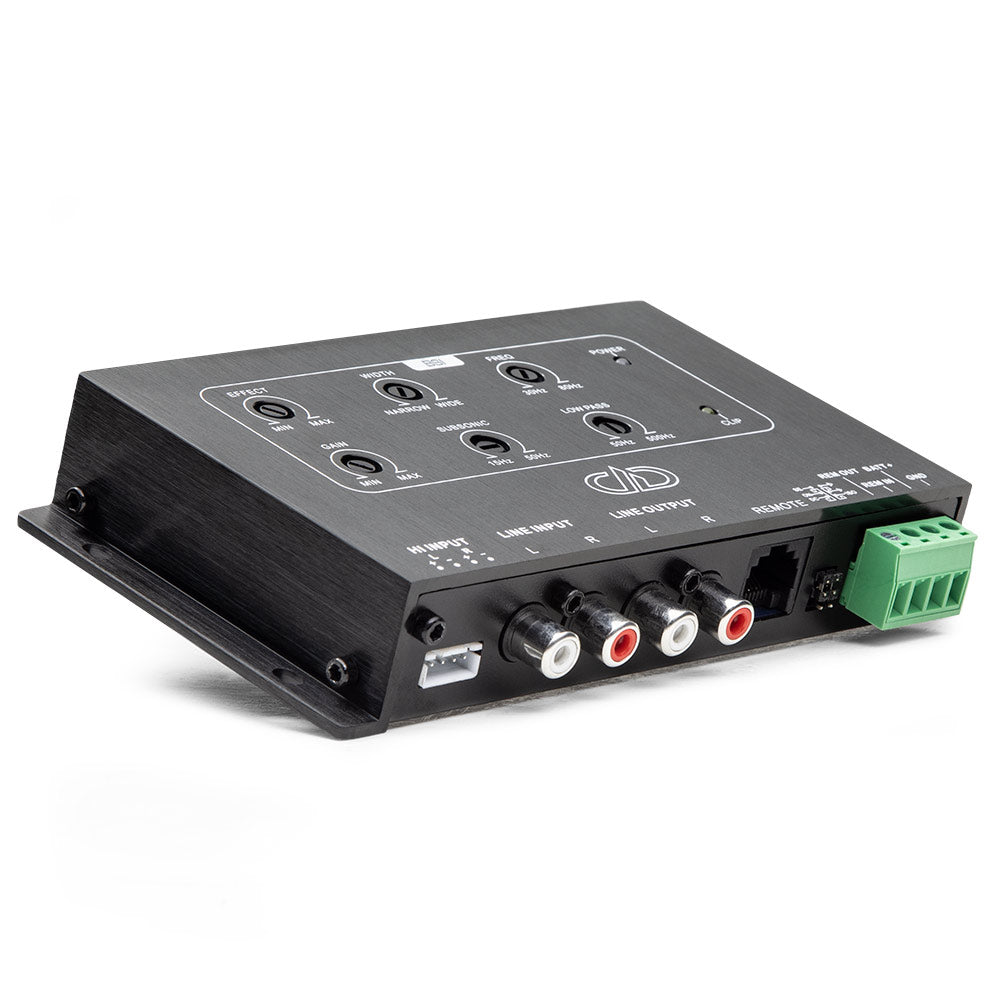

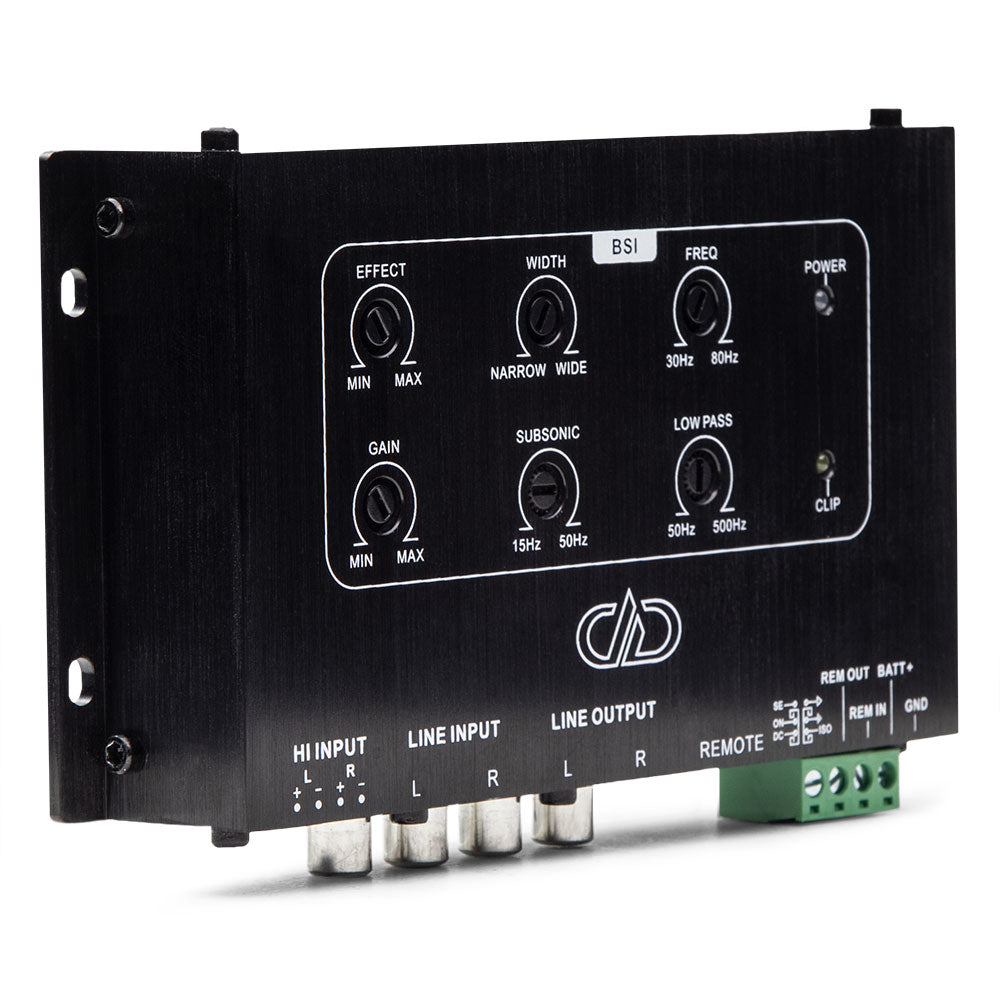

DD Audio BSI Bass Signal Interface

Specification	Details
Frequency Response	15 Hz–20 kHz
Operating Voltage	10–14.4 V
Input Channels	2
Output Channels	2
RCA Input Voltage Sensitivity	0.5–5 V / 1–10 V
High-Level Input Voltage Sensitivity	2–20 V / 4–40 V
RCA Input Signal-to-Noise Ratio	≥105 dBA
High-Level Input Signal-to-Noise Ratio	≥106 dBA
Total Harmonic Distortion (THD)	0.05%
Subsonic Filter	15–50 Hz, 24 dB/octave
Low-Pass Filter	50–500 Hz, 24 dB/octave
Remote Controller	Included
RCA Output Impedance	≥50 Ω
Remote Output	12 V, >500 mA
Boost Level	0–18 dB (0–30 Hz)
RCA Input Impedance	≥20 kΩ
High-Level Input Impedance	180 Ω
Dimensions (Inches)	6 × 3.4 × 1″
Dimensions (Millimeters)	155 × 87.4 × 27 mm

• Variable Parametric Bass Processing
• Variable 24dB/Oct Subsonic and Low Pass Filter

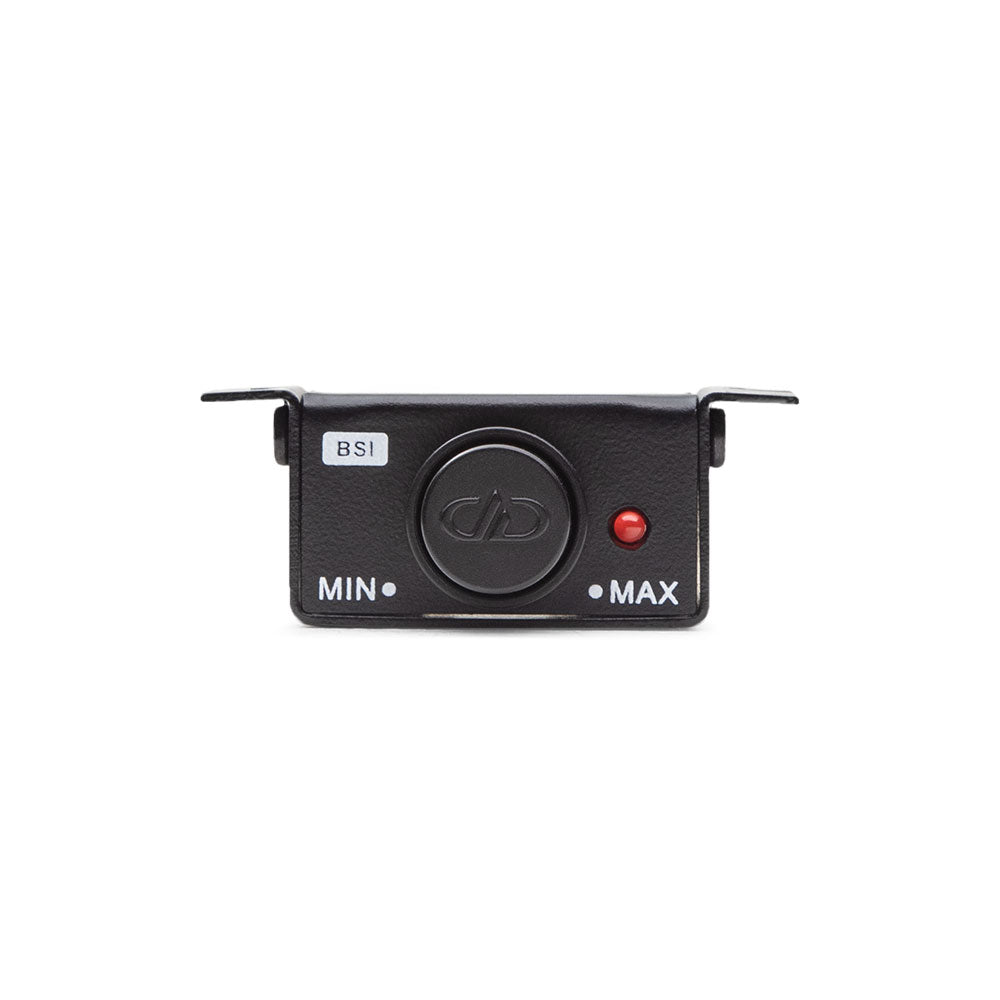

• Multifunction Remote Control
• 2ch Differential Balanced RCA & Speaker Level Inputs
• Selectable Input Voltage Sensitivity Range
• Signal Sens, 12v, and DC Offset Turn On
• Variable Gain Adjustment with Output Clip Indicator
• Selectable Ground Isolation
• Aluminum Chassis
