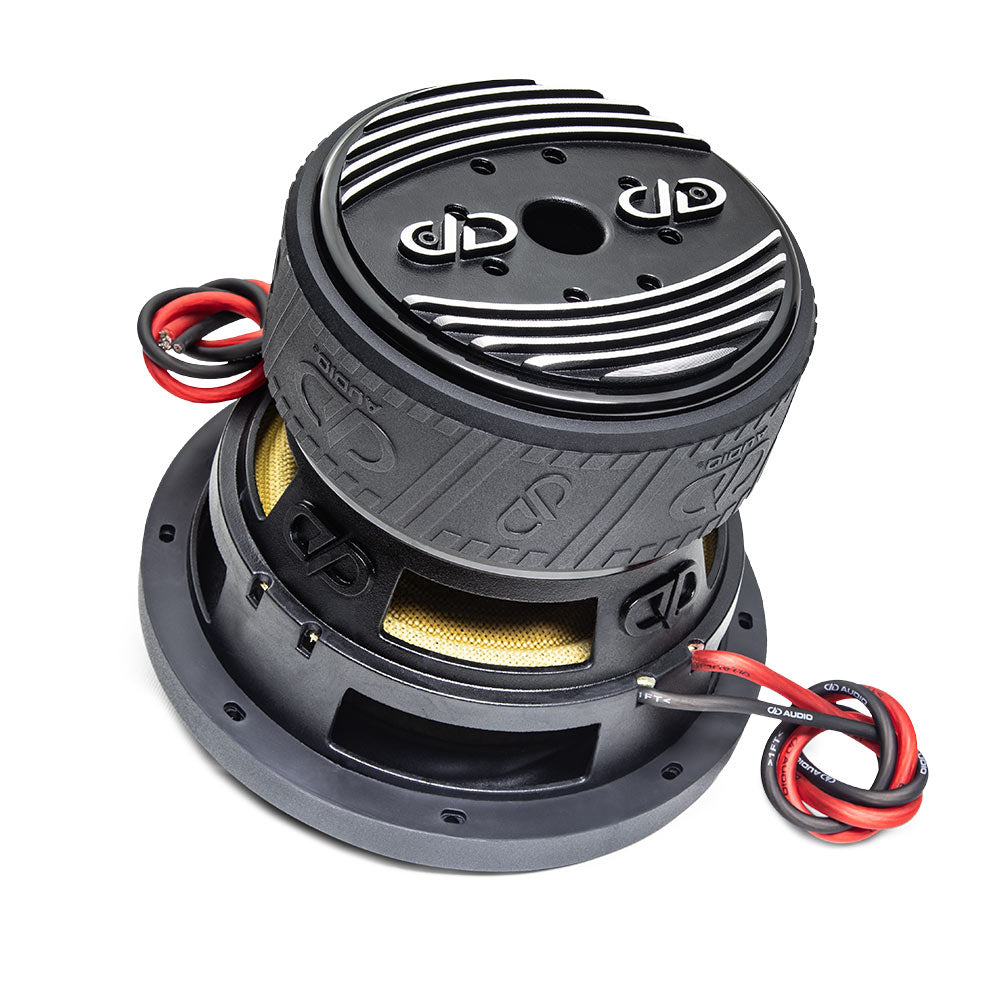

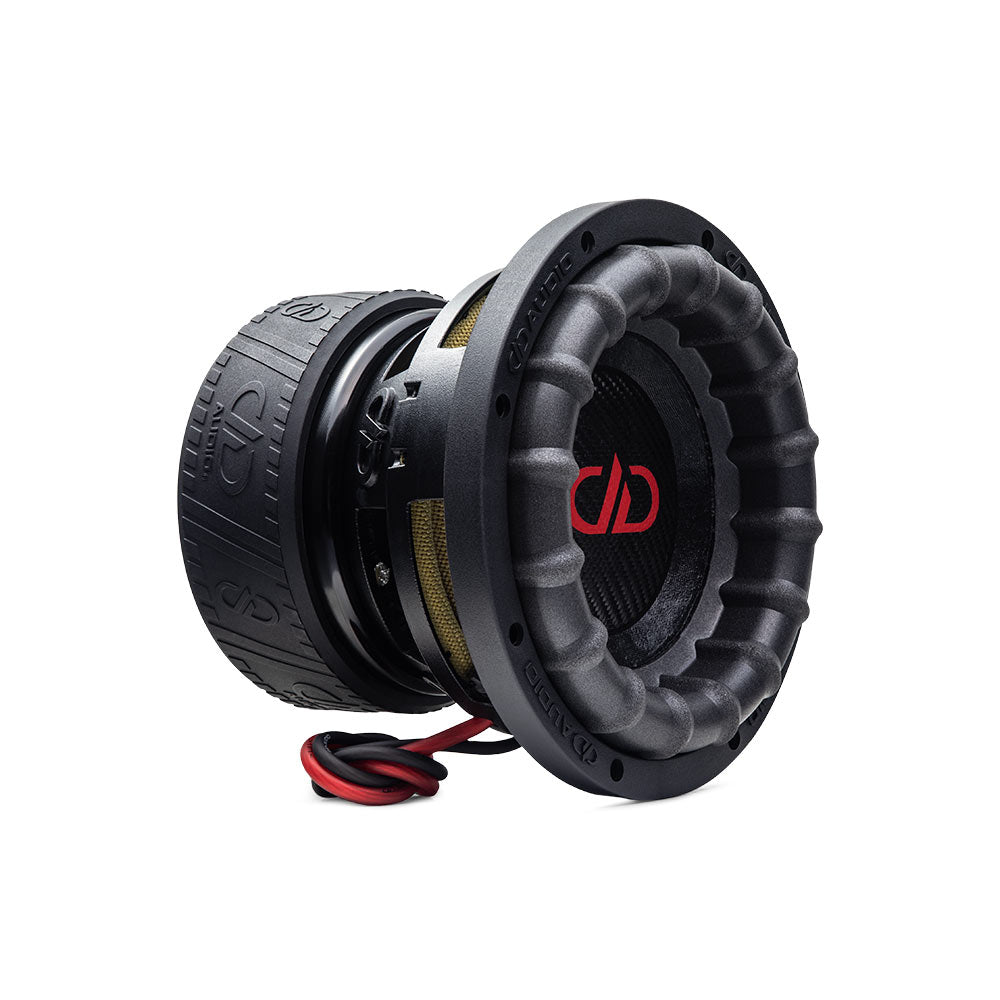

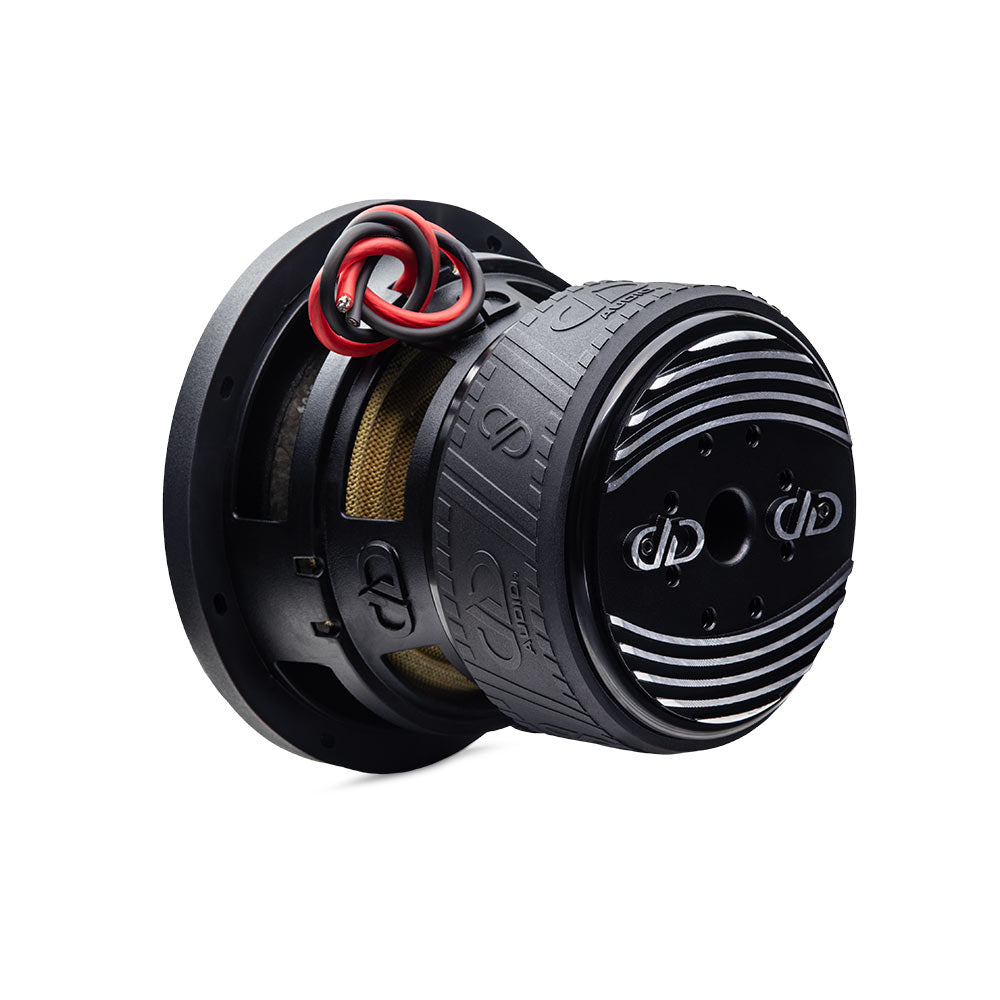

DD Audio 2508G 8" 1200W RMS Subwoofer DVC

Specification	Details
Speaker Size	8″
RMS Power	1,200 watts
Peak Power	3,600 watts
Voice Coil Diameter	2.5″
Voice Coil Options	Dual 2-ohm / Dual 4-ohm
Piston Diameter	7.25″
Fs	42 Hz
Qms	5.88
Qes	0.62
Qts	0.56
Vas	4.64 liters
Xmech	57 mm
Xmax	20 mm
Frame Outside Diameter	8.95″
Frame Diameter with Gasket	9.25″
Mounting Cutout Diameter	8″
Mounting Depth	6.69″
Motor Diameter	7″
Motor Depth	3.25″
Subwoofer Displacement	0.08 cu. ft.
Recommended Sealed Enclosure	0.4–0.8 cu. ft.
Recommended Ported Enclosure	0.75–1.25 cu. ft.
Weight	29 lbs

• New Aluminum 2 Stage Heatsink
• 7.0 Inch Diameter Motor
• 20mm Top Plate
• New 2nd Gen V-ROM surround
• New Ironcloth Double Spider System
• Hand Laid Carbon Fiber Dust Cap
• DD ESP Cast Frame
• Carbon Fiber Loaded, Non-Pressed Pulp Cone
• Direct Leads
• Laminated Tinsel Leads
• Embossed DDesign Magnet Boot
