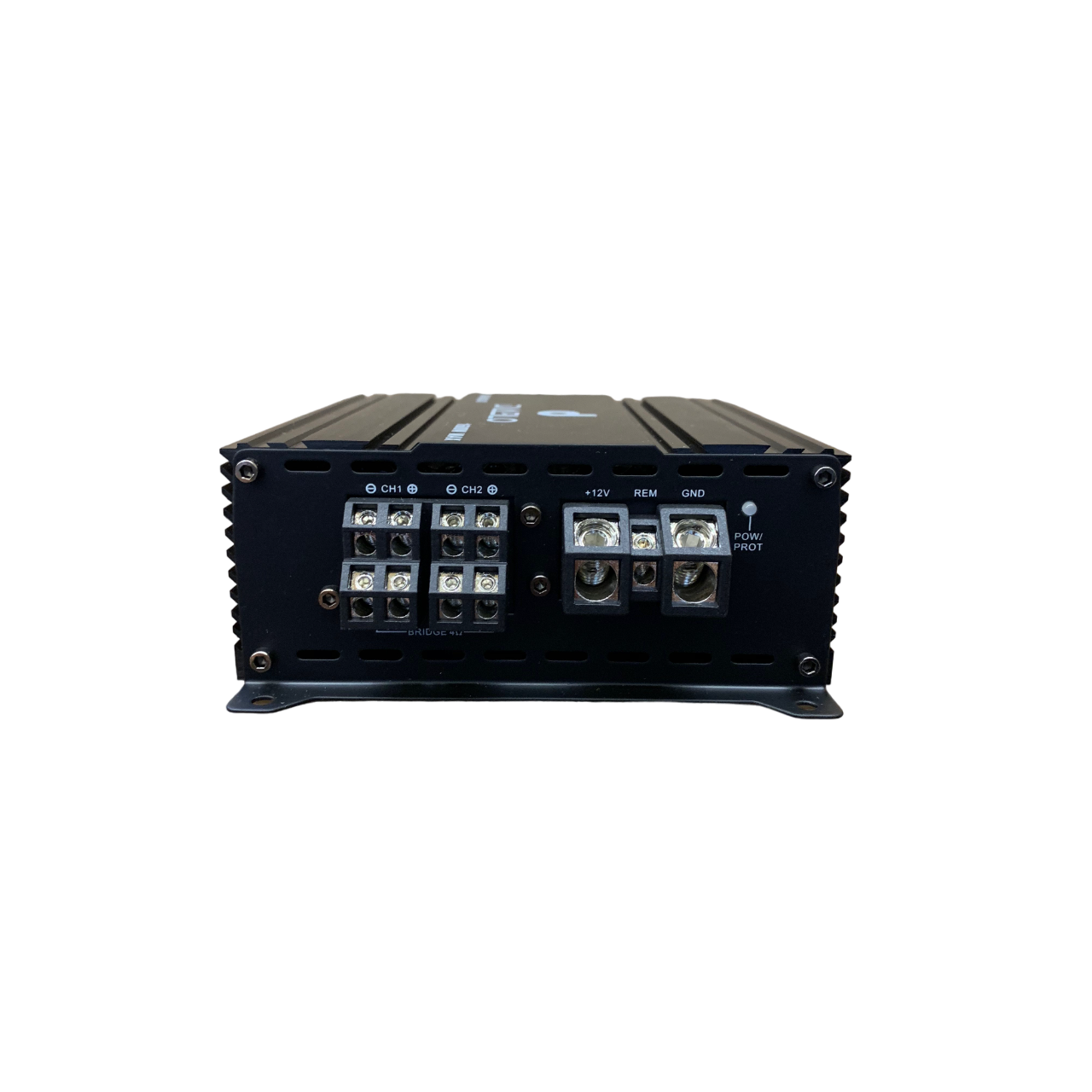

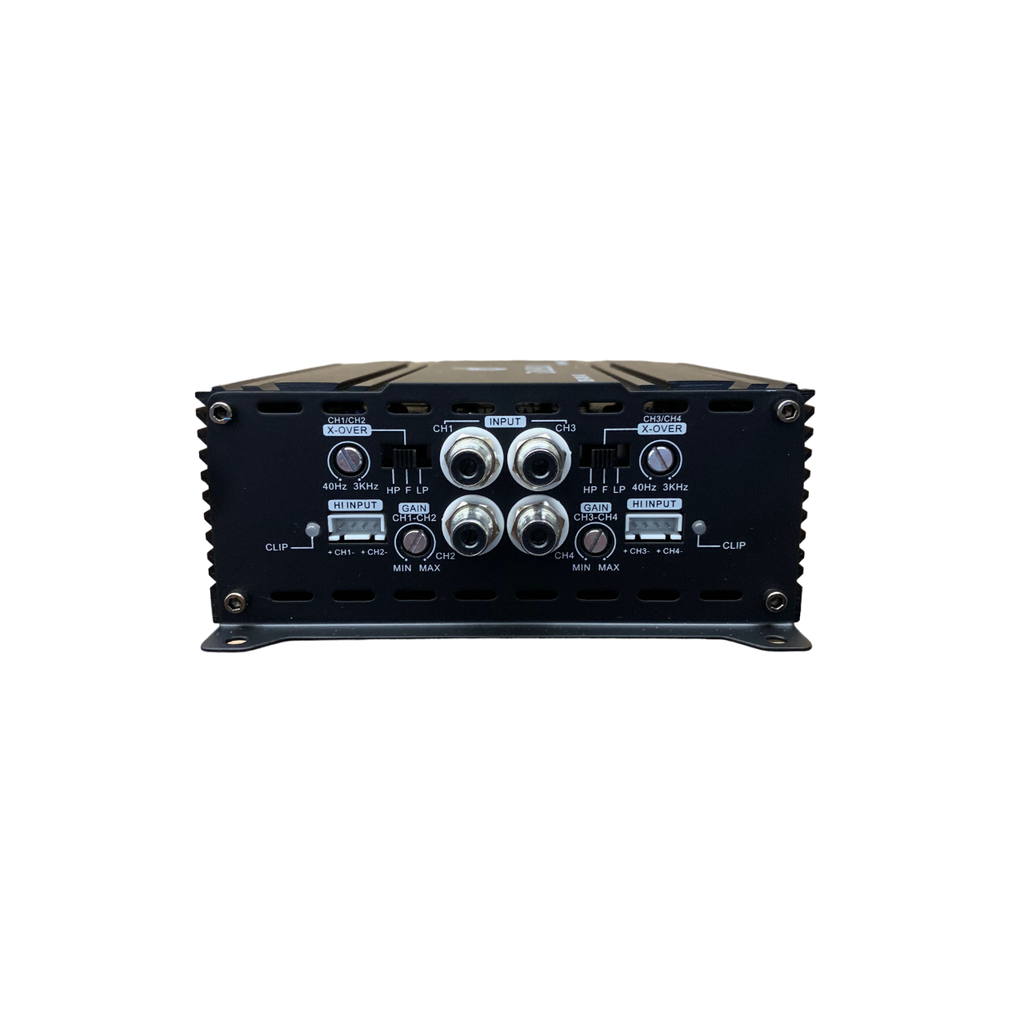

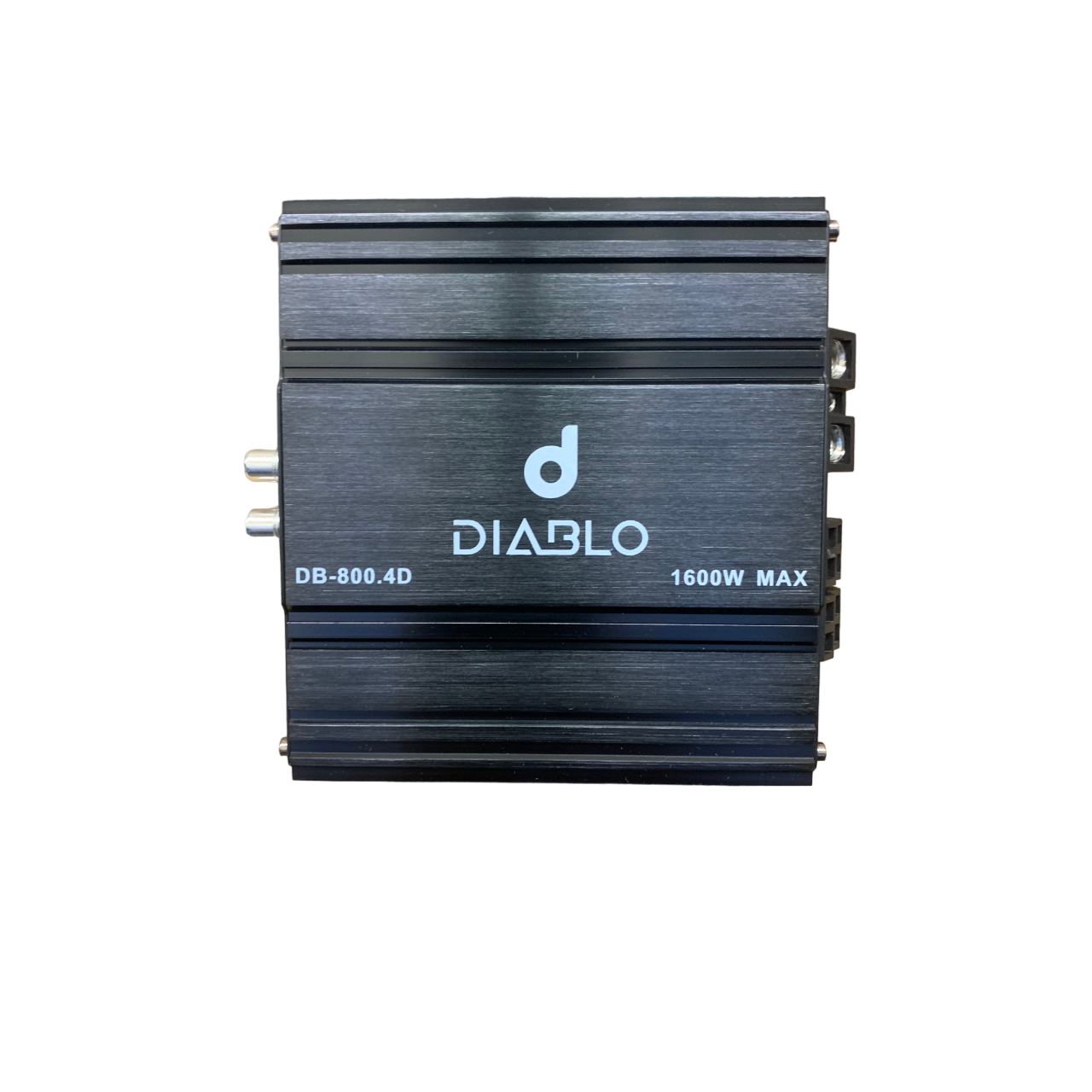

Diablo DB-80.4D

Specifications:

• 4Ch Full-Range Super Mini Class D Amplifier
• Maximum Output Power @ 14.4V (2 OHM) 4X400W MAX
• RMS POWER @ 14.4V (2 OHM) 4X195W RMS
• Maximum output Power @ 14.4V (4 OHM) 4X226 MAX
• RMS POWER @ 14.4V (4 OHM) 4X113W RMS
• Maximum Output Power@14.4V (4 0HM bridged) 2X800W MAX
• RMS POWER (4 OHM bridged) 2X385W RMS
• INPUT SENSITIVITY: 200MV
• Signal-to-Noise Ratio: 101dB
• Frequency Response:15Hz-20KHz




• Crossover:
• H.P.F. (High Pass Filter) 40 to 3KHz Variable
• L.P.F. (Low Pass Filter) 40 to 3KHz Variable
• Bass Boost: 0-12dB (50Hz)
• Protection System: Output Short/High/Low Supply
• Voltage/Thermal Protection
• Minimum Supply Voltage: 9V
• Maximum Supply Voltage: 16V
