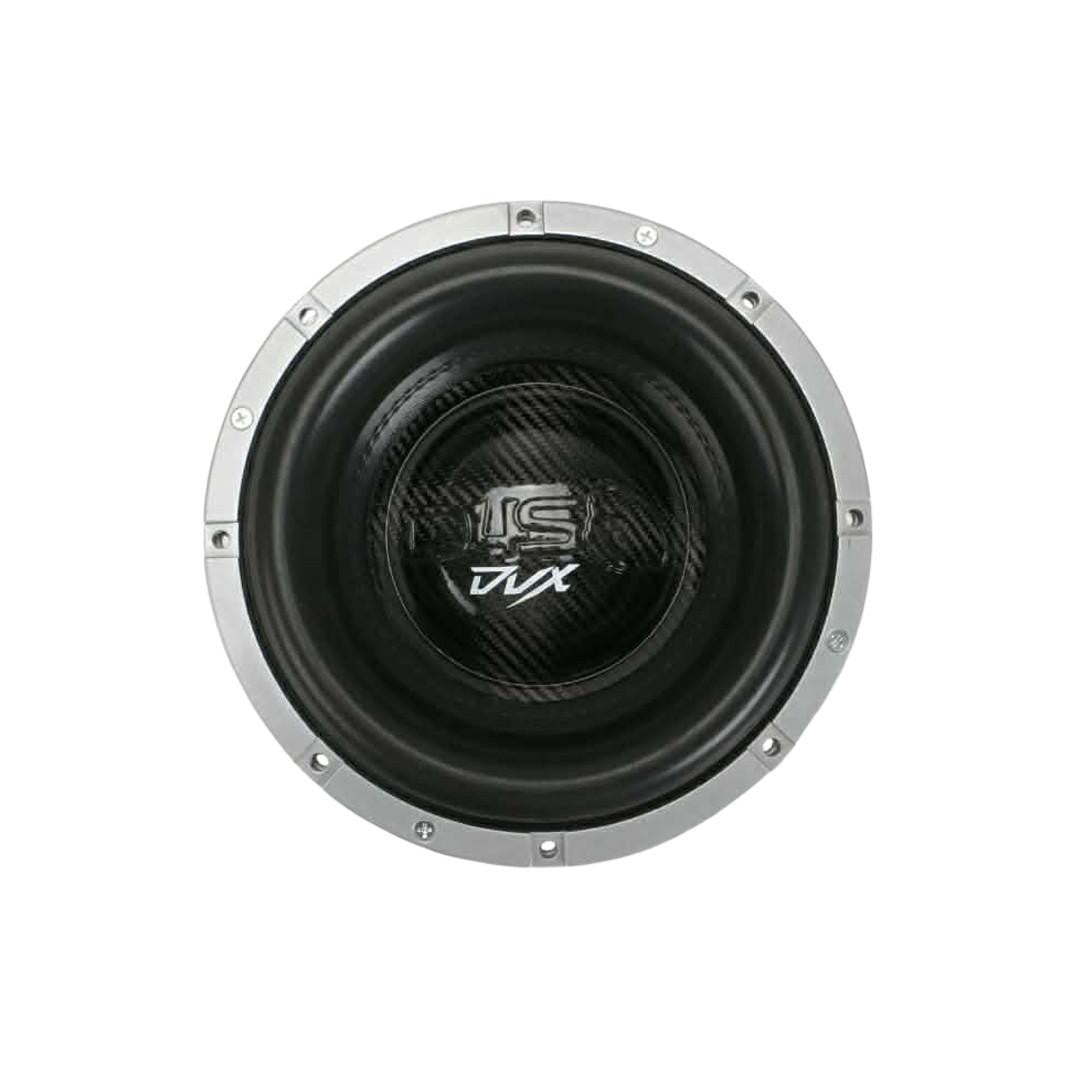

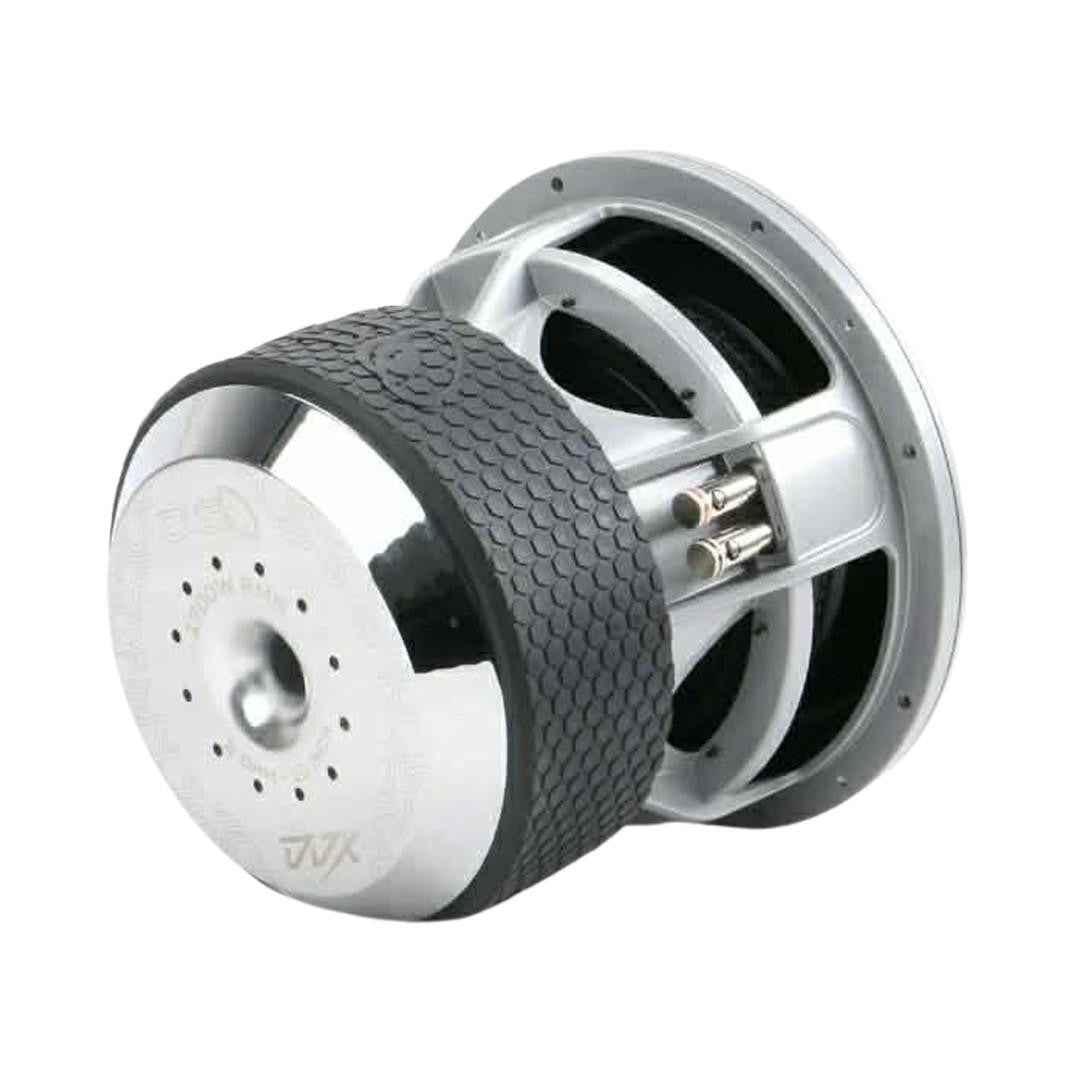

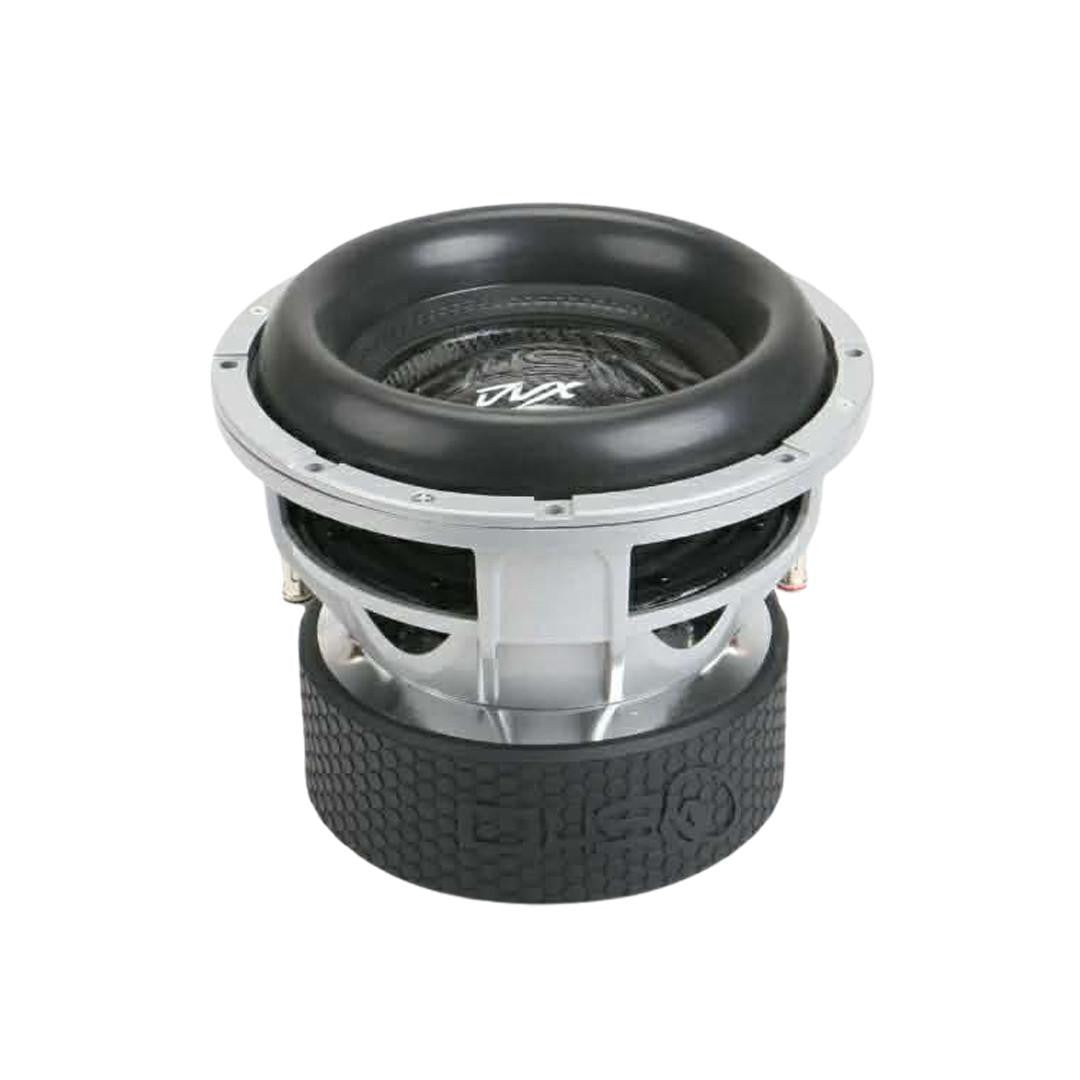

The DOWN4SOUND DVX-10 D4/D2 is engineered for listeners who demand tight, authoritative, and durable low-frequency performance in a more compact footprint. Built with a high-strength motor structure, extended mechanical throw, and a rigid carbon fiber dustcap, the DVX-10 delivers impressive output and control ideal for daily driving, demo systems, and high-power compact builds.
Rated for true high-power handling and equipped with dual 4-ohm/2-ohm voice coils, the DVX-10 D4/D2 offers flexible wiring options while maintaining excellent efficiency, cooling, and long-term reliability unde![]()
r sustained SPL.
Key Features
- High RMS power handling for demanding systems
- Dual 4-ohm voice coil configuration
- 3-inch high-temperature voice coil
- Long linear excursion design
- Carbon fiber dustcap for added rigidity and durability
- Advanced motor ventilation for superior cooling
- Heavy-duty construction built for daily and high-output use
- Compact 10-inch format with serious low-frequency authority
Technical Specifications (T/S Parameters – DVX-10 D4)
-
Revc (DC Resistance): 6.05 Ω
-
Resonance Frequency (Fs): 38.54 Hz
-
Qms: 3.409
-
Qes: 0.531
-
Qts: 0.459
-
Mms (Moving Mass): 360.12 g
-
Cms (Compliance): 47.35 µm/N
-
BL Product: 31.53 T·m
-
Vas: 8.07 L
-
Sd: 346.36 cm²
-
Sensitivity (SPL): 81.3 dB
-
Xmax: 31 mm
Engineering and Construction
- Extended pole piece for improved linearity and mechanical control
- Dual-flared pole venting for reduced turbulence and quiet airflow
- Rear gap ventilation to manage voice coil temperatures under load
- Large-format motor for increased magnetic strength and efficiency
- Long-fiber spider system for consistent suspension behavior
- Carbon fiber dustcap for reduced flex and enhanced durability
Recommended Enclosure
Ported Enclosure (Recommended)
-
Net Volume: ~1.25 cubic feet
-
Tuning Frequency: ~34–35 Hz
- Displacement: 21 cu ft
This alignment delivers strong low-end extension, fast transient response, and excellent output for daily music while maintaining control and efficiency.

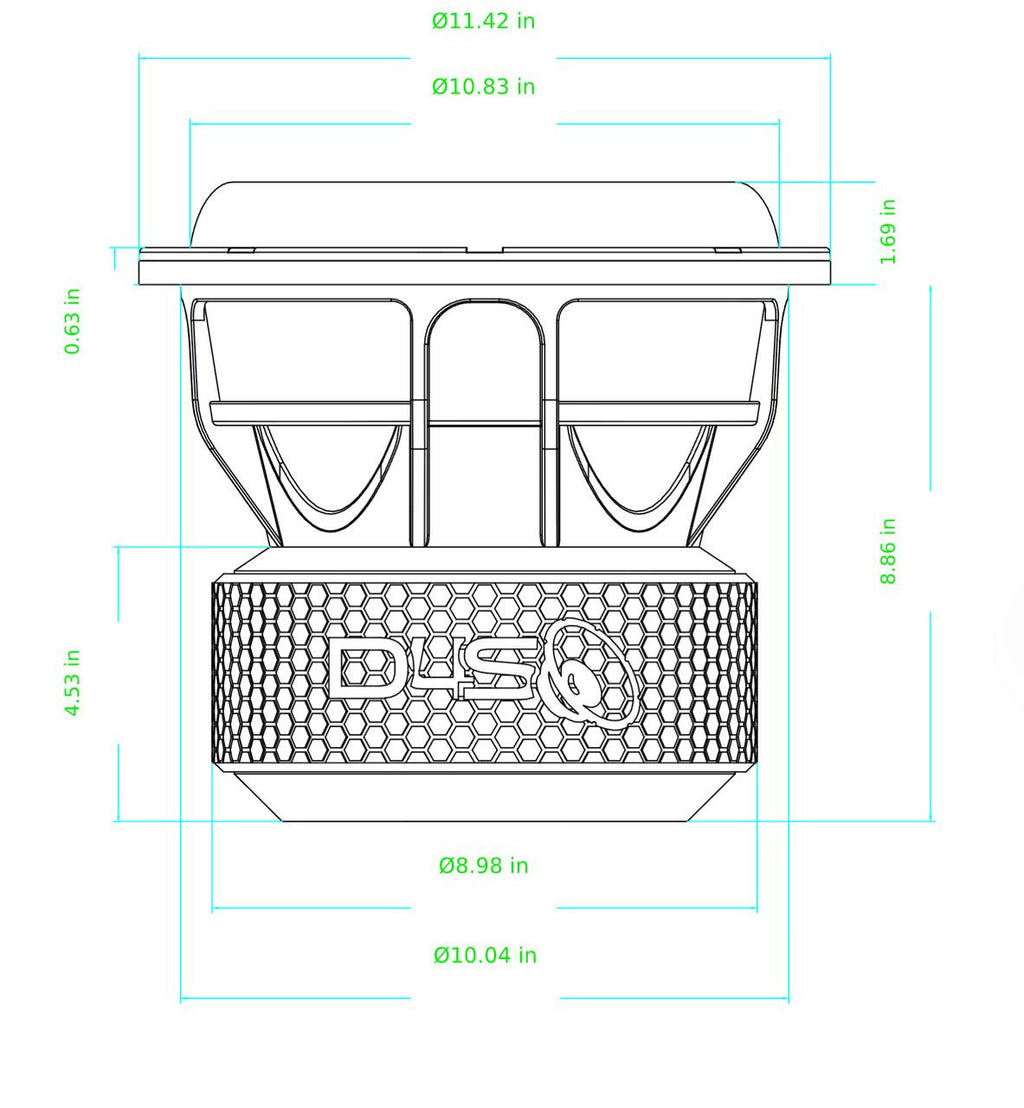

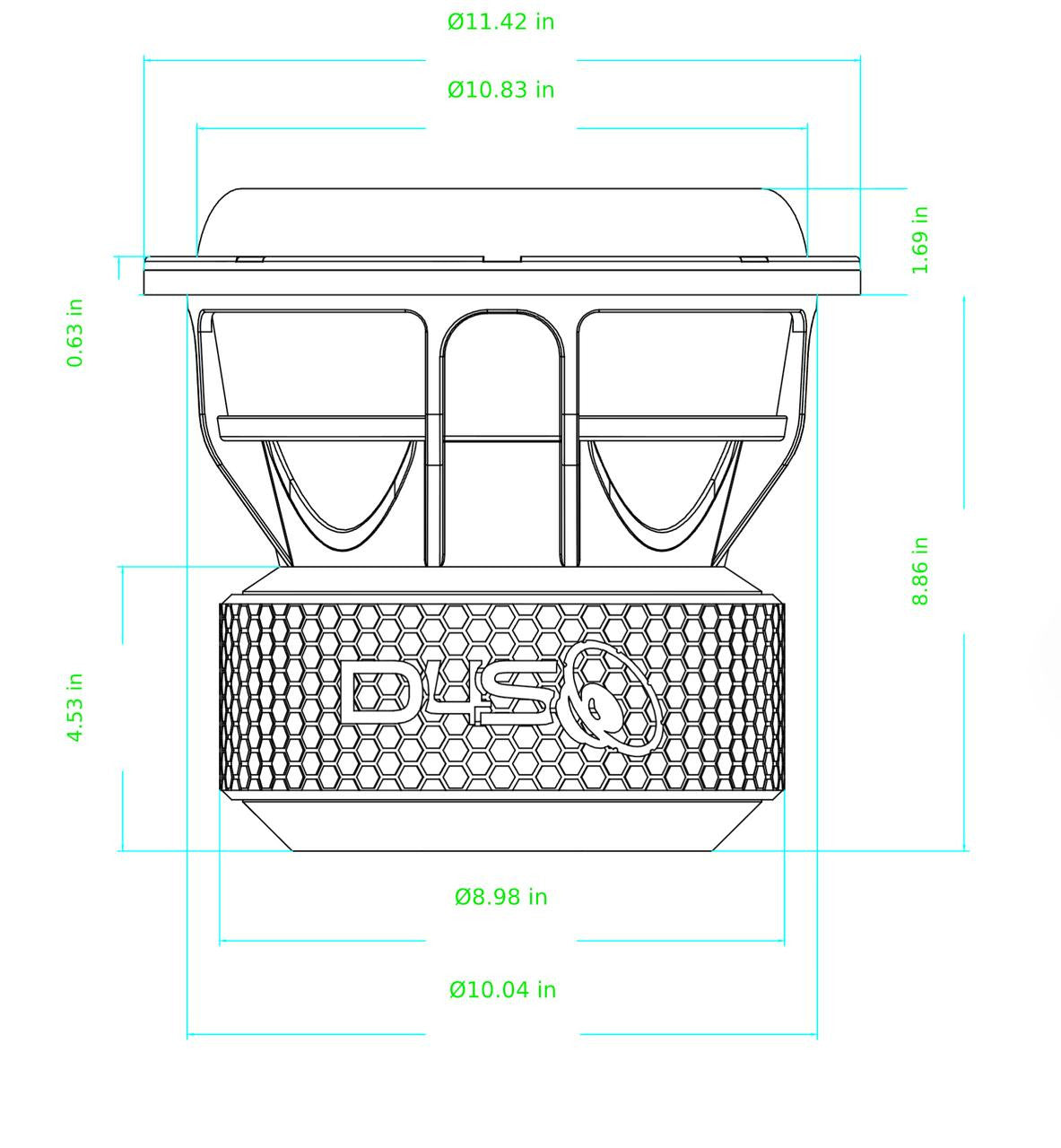

Physical Dimensions
-
Cutout Diameter: 10.04 in (240 mm)
-
Mounting Depth: 8.86 in (225 mm)
-
Overall Diameter: 11.42 in (290 mm)
-
Motor Diameter: 8.98 inch (255 mm)
-
Weight: ~45 lb
Why Choose the DVX-10 D4/D2
- Compact size with serious low-frequency output
- Designed for clean, controlled bass with high durability
- Dual 4-ohm/2-ohm coils allow flexible wiring configurations
- Carbon fiber dustcap adds strength and premium appearance
- Ideal balance of SPL capability and daily sound quality
