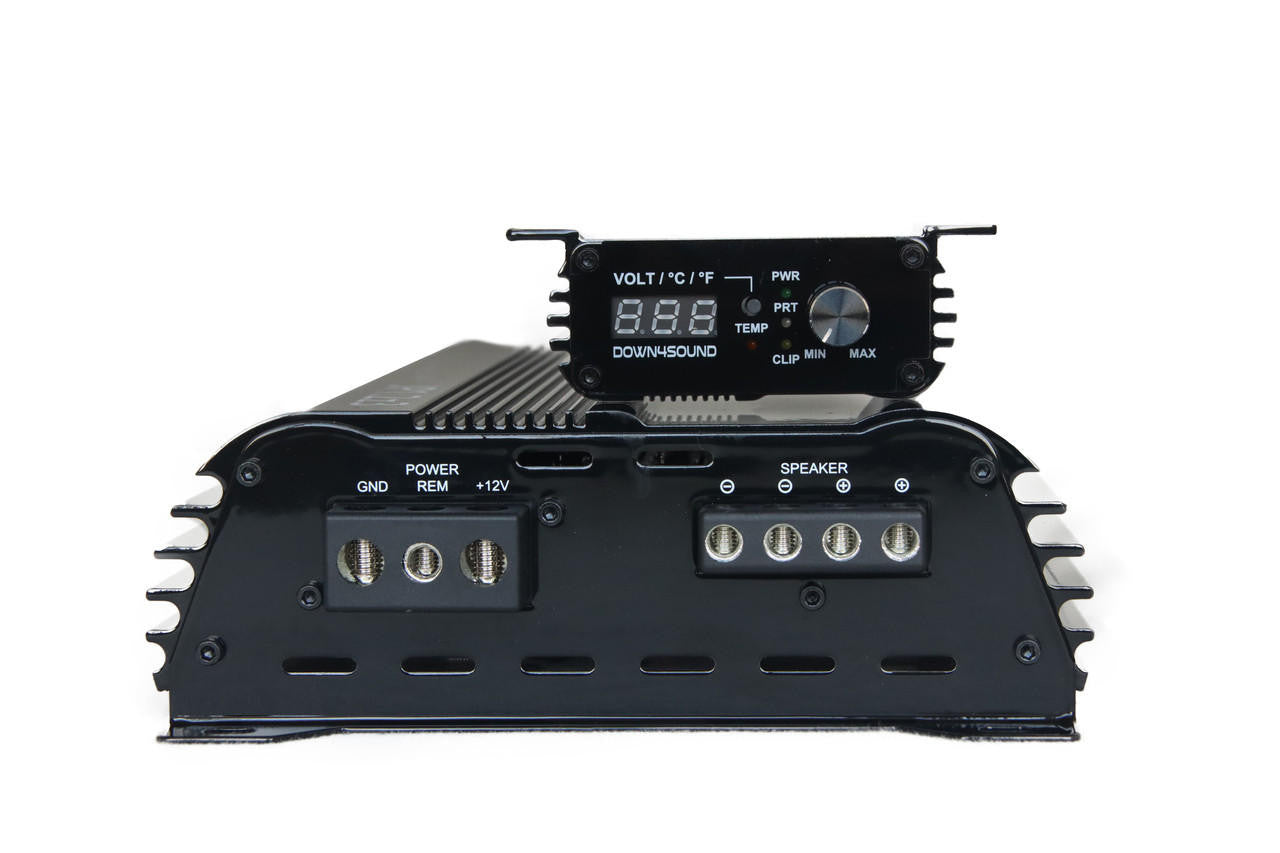

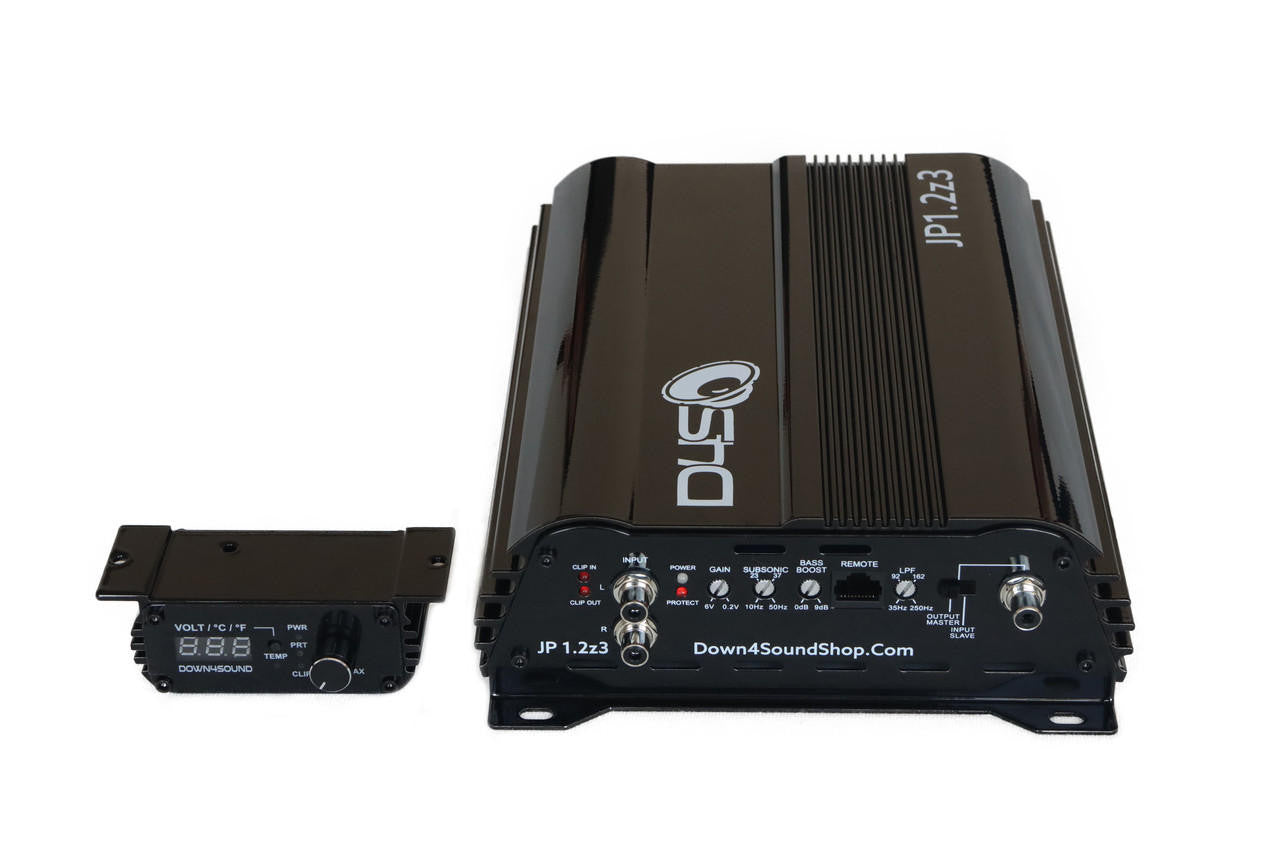

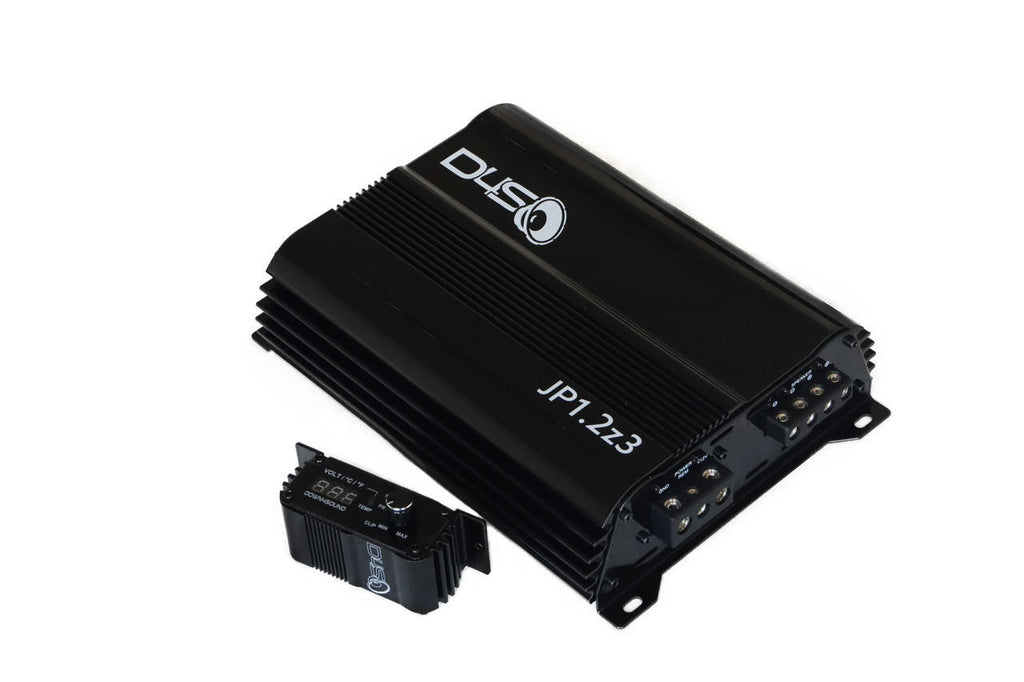

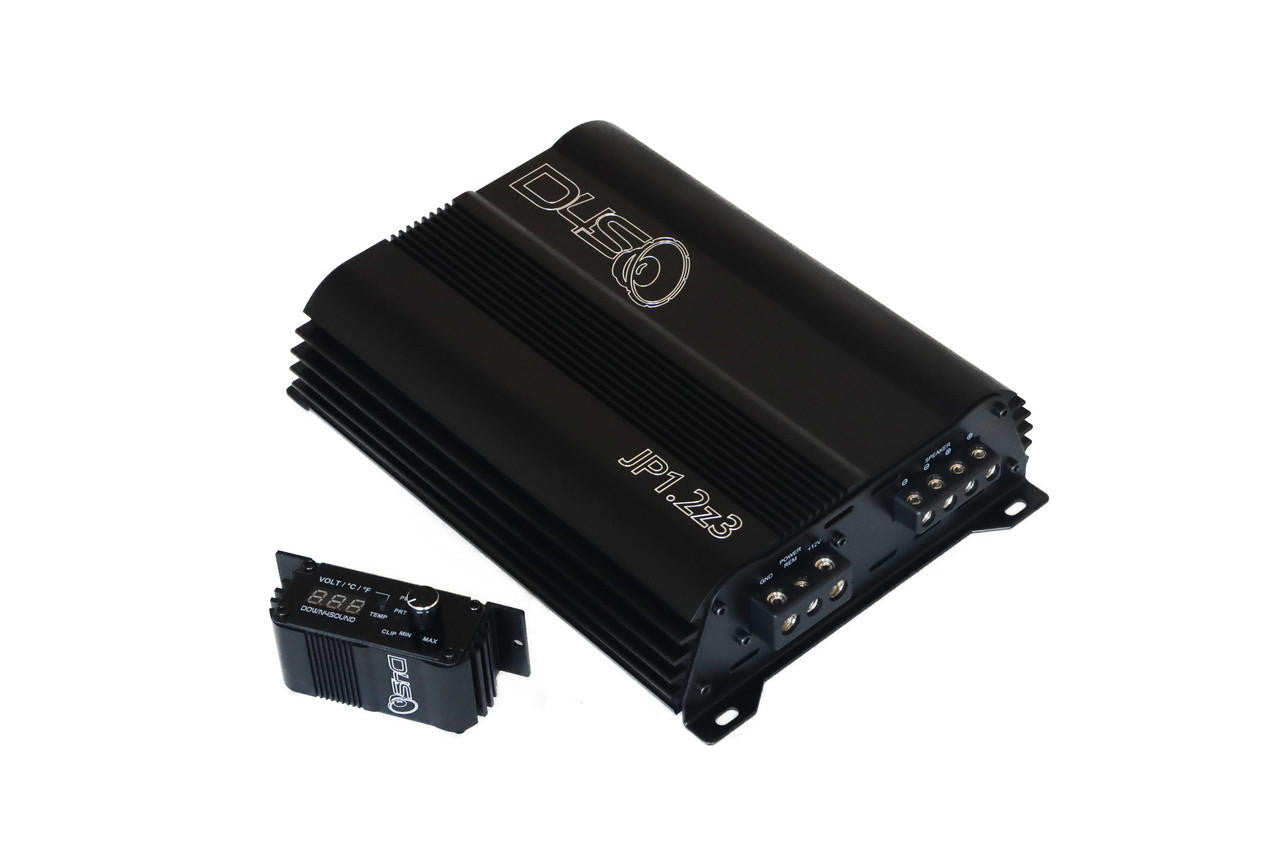

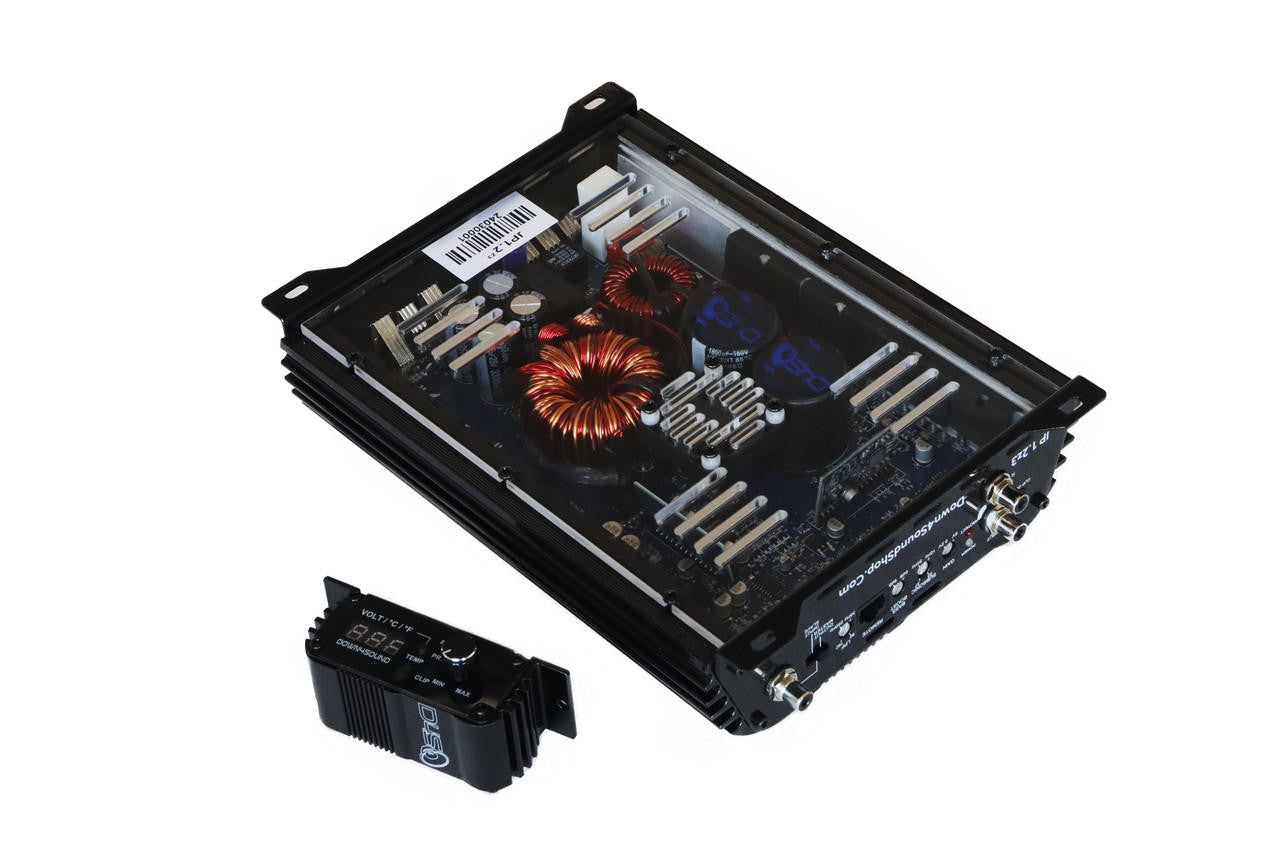

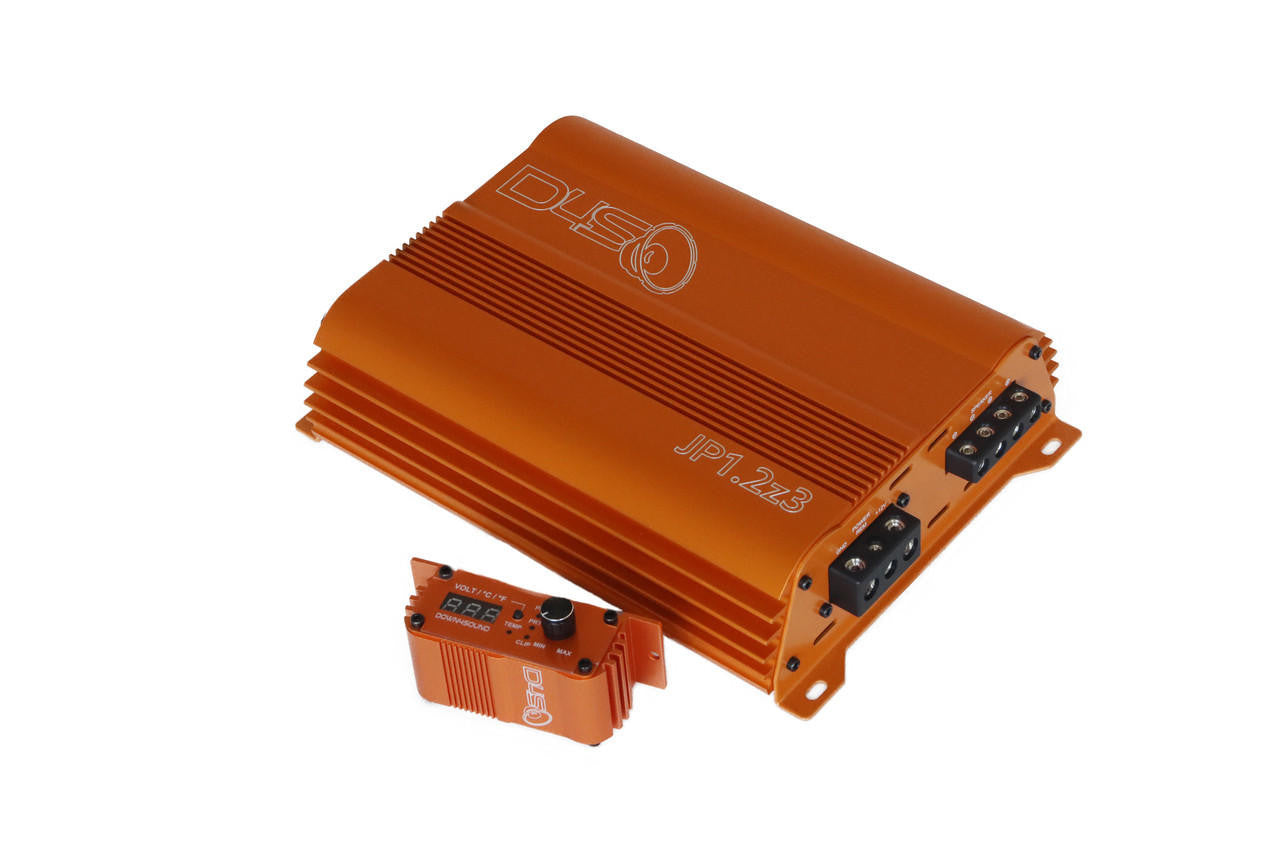

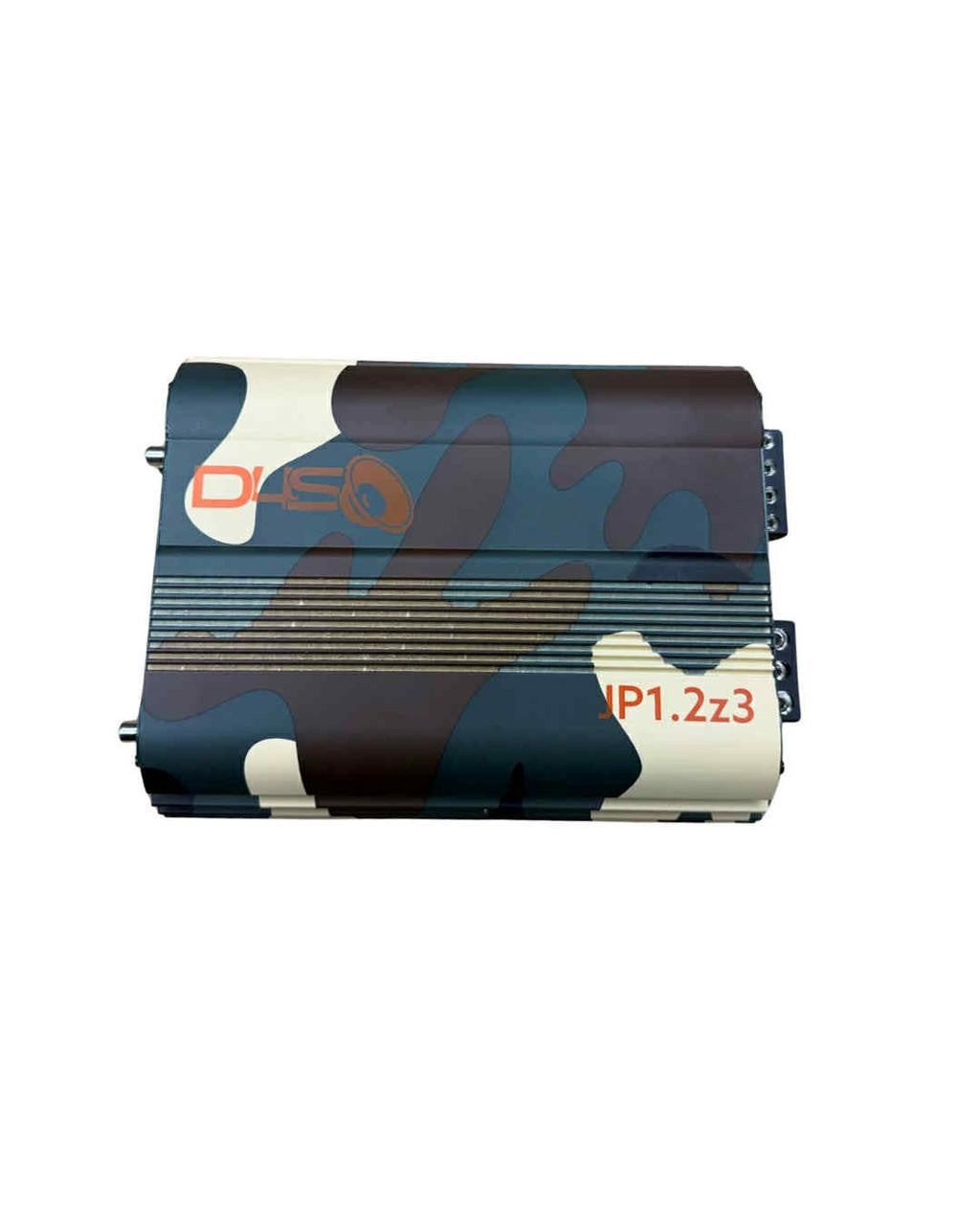

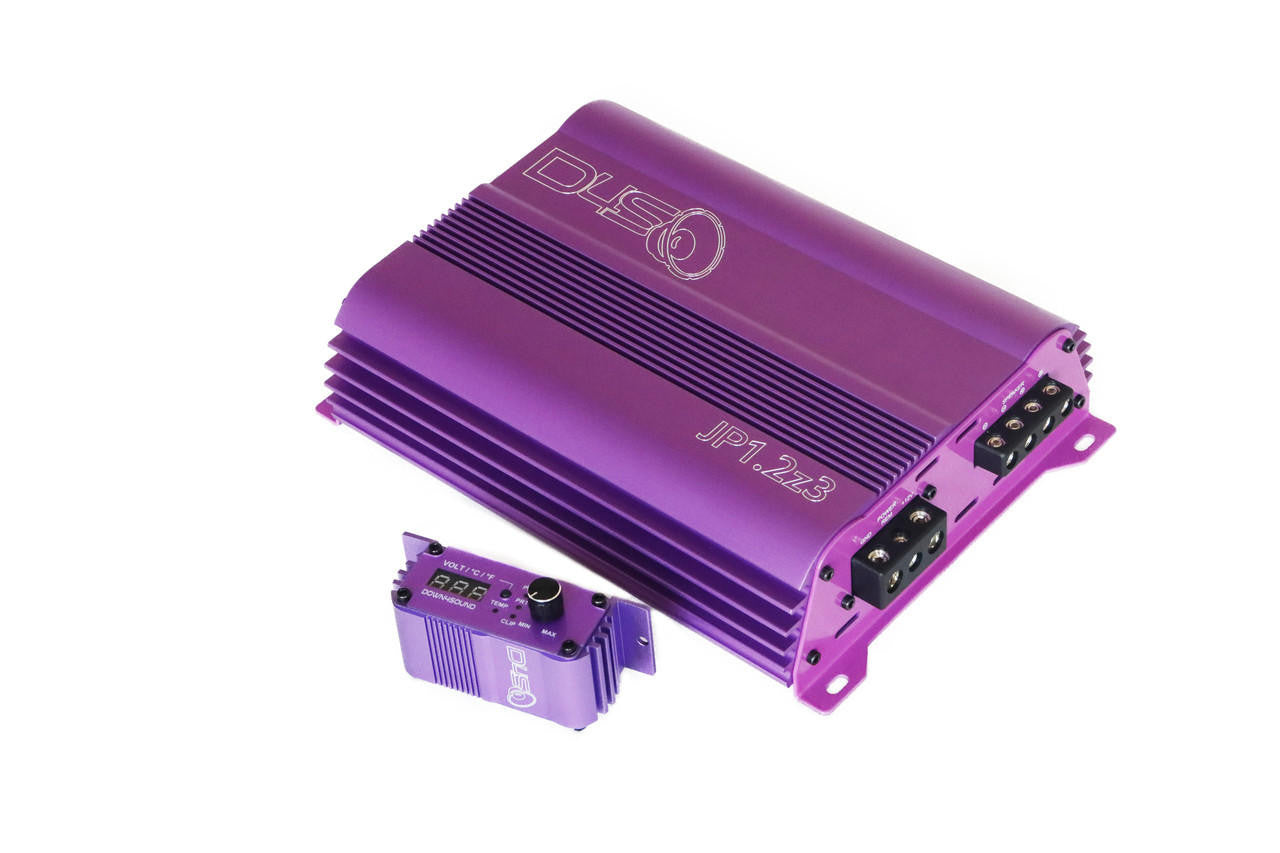

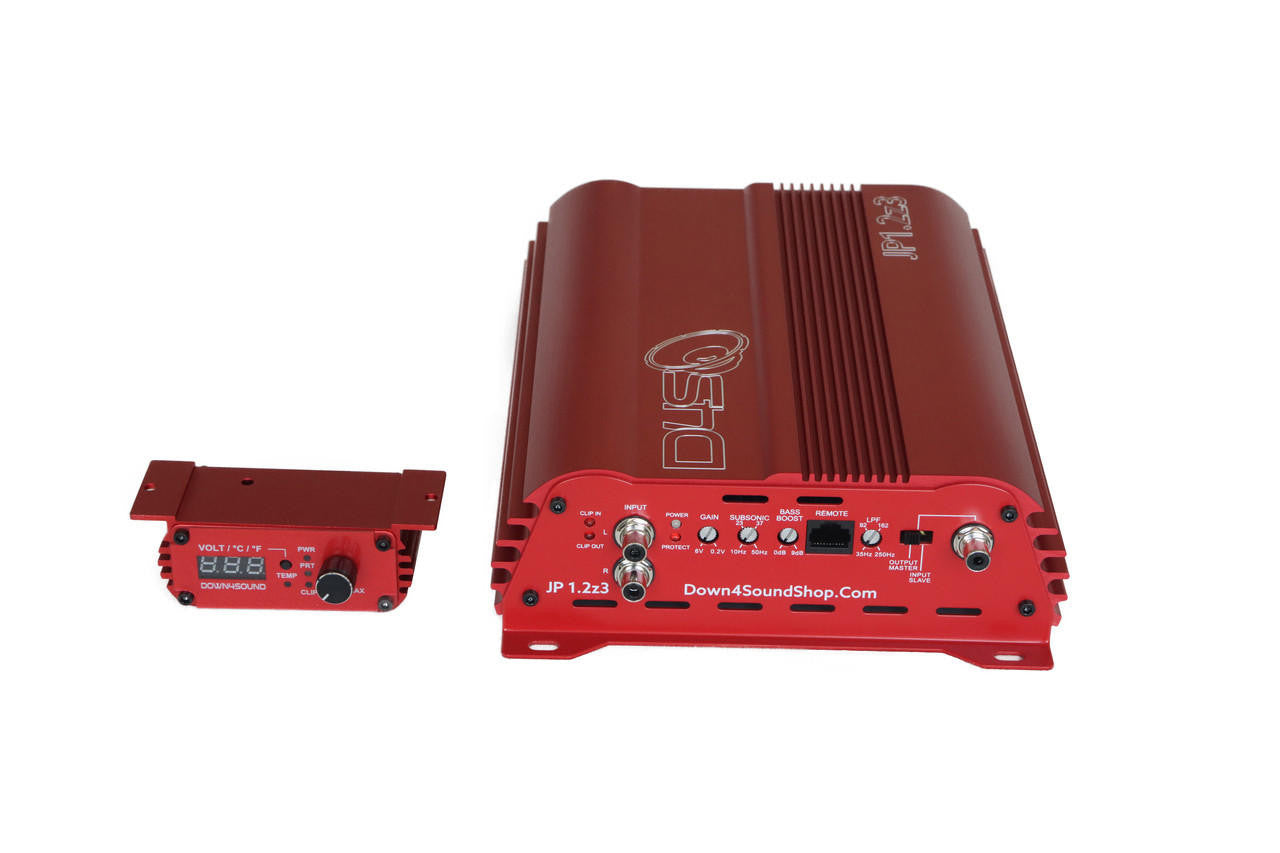

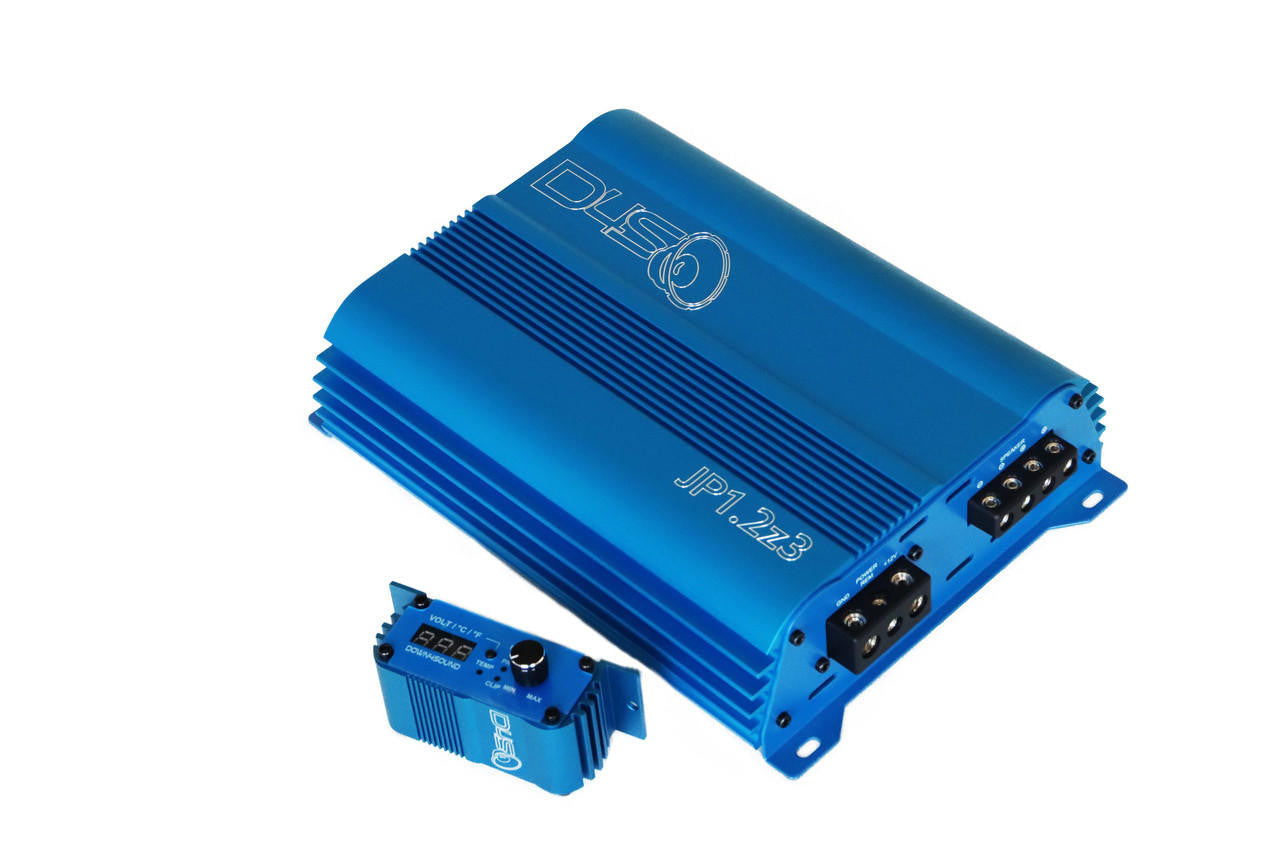

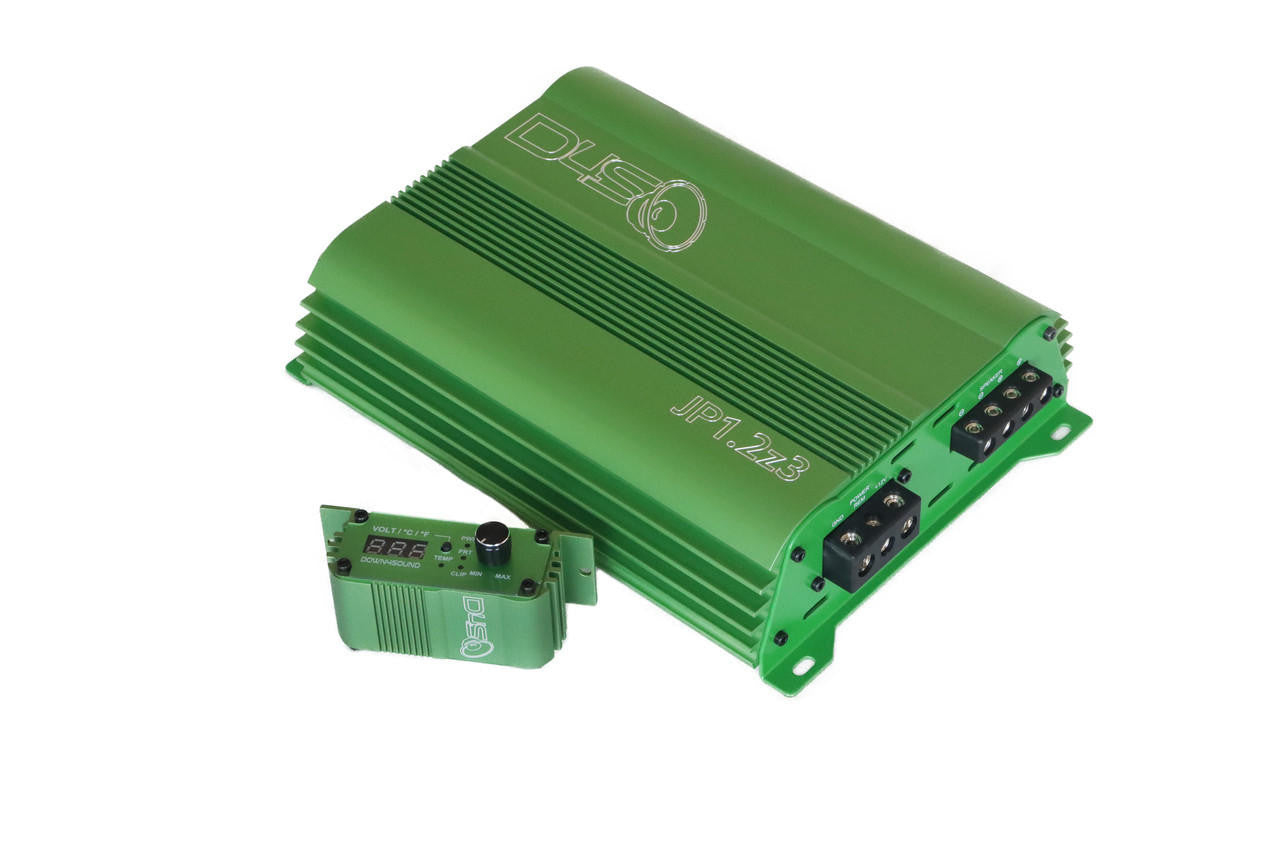

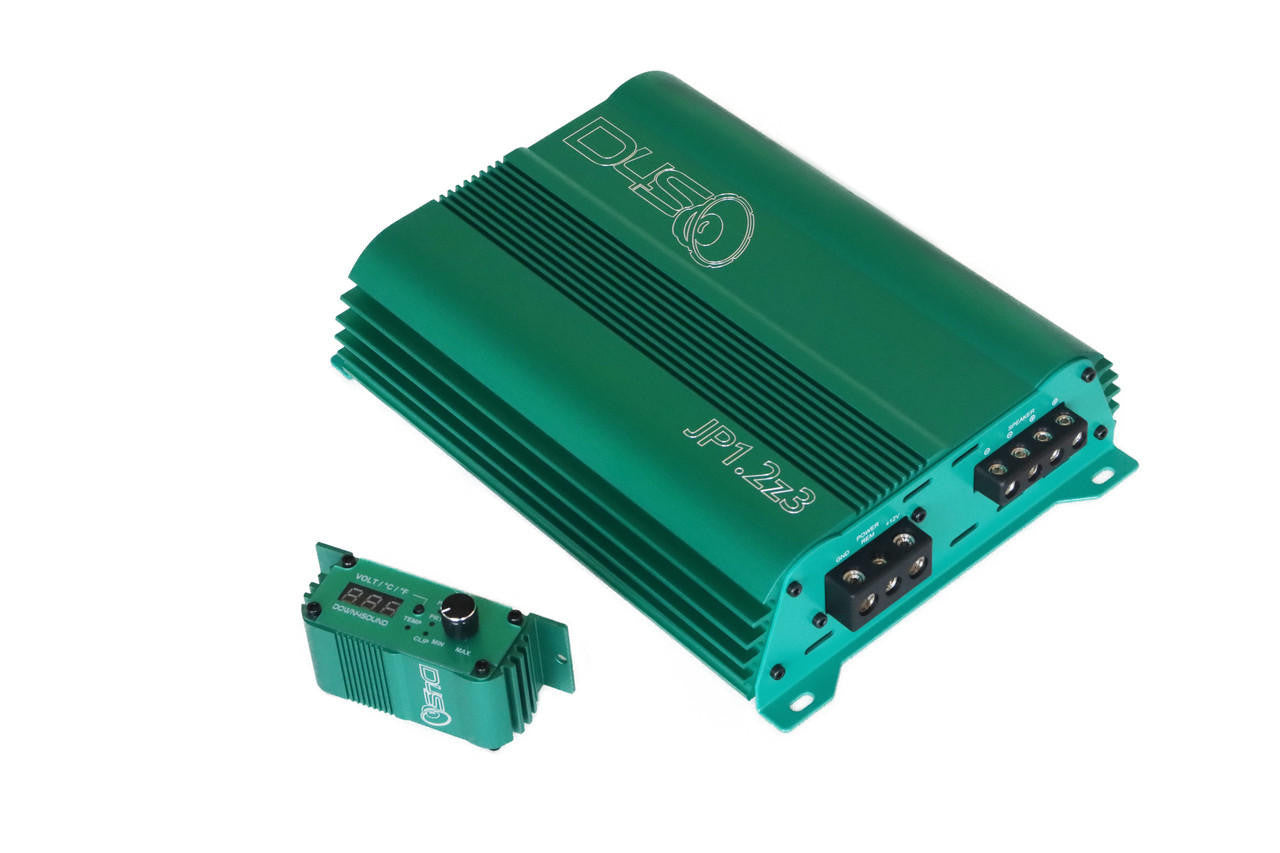

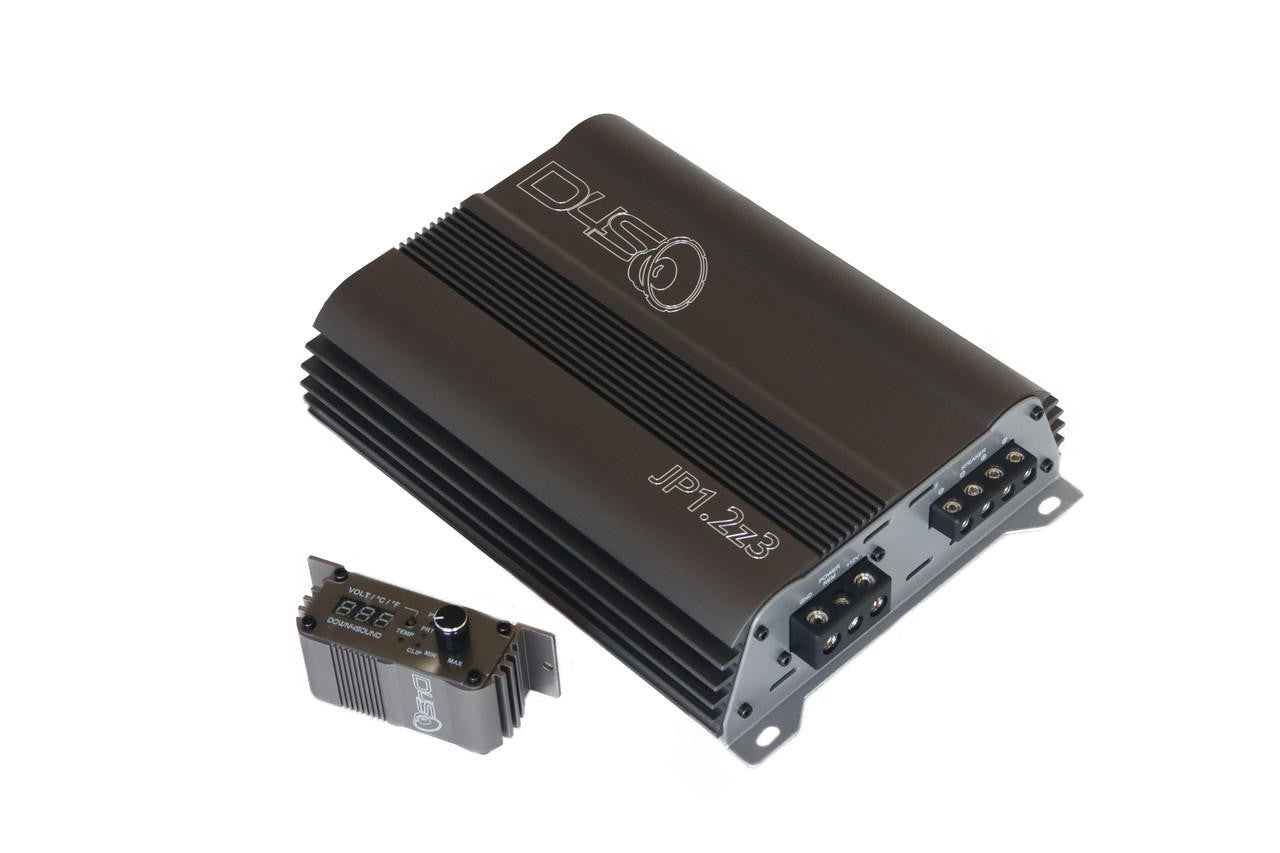

Immerse yourself in the world of powerful car audio with the DOWN4SOUND JP1.2z3 amplifier. Engineered for versatility and performance, this amplifier is designed to handle various impedance configurations, from 4 ohms to 1 ohm.
Product Features:
- Strappable Digital Monoblock Amplifier
- Stable into 1 Ohm Mono Load
- High-Speed MOSFET Power Supply
- Variable Low Pass Filter
- Variable Subsonic Filter
- Variable Bass Boost
- 4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short, and DC)
- Bass Remote with Voltmeter and Temperature Display
- High Purity Copper Printed Circuit Board
- 4 Gauge Power/Ground Terminals
Specifications:
- Output Power:
- 1200W x 1 @ 14.4V (1 Ohm)
- 1200W x 1 @ 14.4V (2 Ohm)
- 1200W x 1 @ 14.4V (4 Ohm)
- 2400W x 1 Strapped
- Frequency Response: 11Hz - 239Hz
- Variable Filters:
- Low Pass Filter: 35Hz - 250Hz
- Subsonic Filter: 10Hz - 50Hz
- Bass Boost: 0 - 9 dB
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 92dB
- Total Harmonic Distortion (THD): Less than 0.1% @ 4 Ohms
- Voltage Range: 9V - 15.5V
- Fuse Ratings:
- 190A (single)
- 380A (strapped)
- Dimensions: 9.05”L x 7.48”W x 2.24”H
