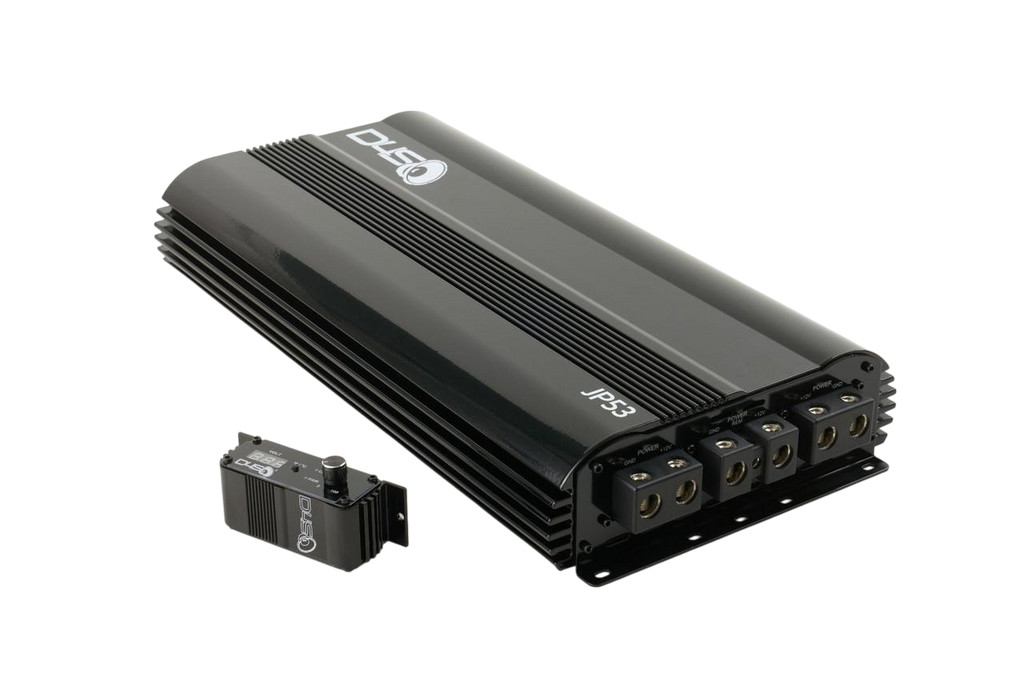

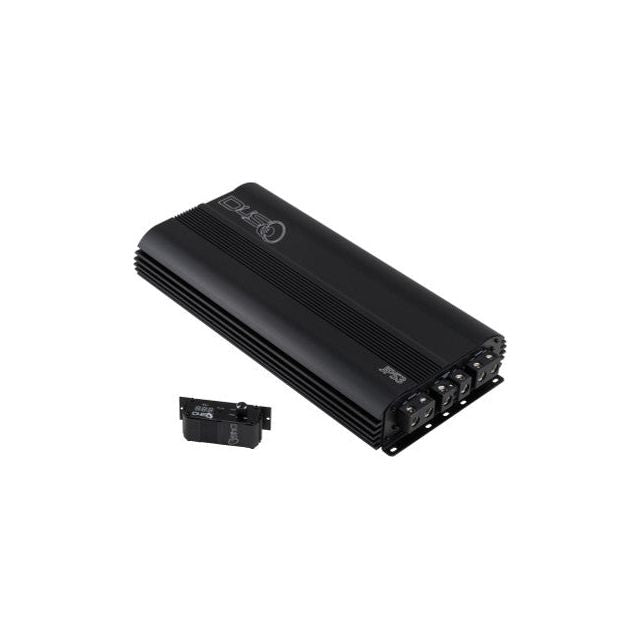

Immerse yourself in the heart-pounding world of bass with the DOWN4SOUND JP53 BLACK Monoblock Amplifier. Engineered for bassheads seeking unparalleled power and performance, this amplifier delivers thunderous lows and crystal-clear audio quality.
Key Features:
-
Power Ratings:
- 5300W x 1 @ 1 Ohm
- 4100W x 1 @ 2 Ohms
- 2100W x 1 @ 4 Ohms
- 10600W x 1 @ 1 Ohm (Linked)
-
Frequency Response: 14Hz - 271Hz
-
High Pass Filter: 35Hz - 250Hz
-
Low Pass Filter: 10Hz - 50Hz
-
Phase: 0º - 180º
-
Bass Boost: 0 - 9dB
-
Bass Frequency: 20Hz - 80Hz
-
Input Sensitivity: 6V - 0.2V
-
Signal to Noise Ratio: 95dB <
-
Total Harmonic Distortion: Less than 0.1%
-
Operating Voltage: 12V - 15.5V
-
Fuse Rating: 600A (Strapped: 1200A)
-
Dimensions: 17.71"L x 9.37"W x 2.71"H
Additional Features:
- STRAPPABLE DIGITAL MONOBLOCK AMPLIFIER
- STABLE INTO 1OHM MONO LOAD
- HIGH SPEED MOSFET POWER SUPPLY
- VARIABLE LOW PASS FILTER
- VARIABLE SUBSONIC FILTER
- VARIABLE BASS BOOST & BASS FREQUENCY
- 4 WAY PROTECTION CIRCUITS (THERMAL, HIGH & LOW VOLTAGE, SPEAKER SHORT AND DC)
- BLUETOOTH REMOTE CONTROL (REMOTE BASS KNOB WITH VOLTMETER, AMPLIFIER TEMPERATURE AND CLIPPING INDICATOR)
- HIGH PURITY COPPER PRINTED CIRCUIT BOARD
- 0 GAUGE POWER / GROUND TERMINALS
