Down4Sound JP53 V2 | 5300W RMS Monoblock Amplifier Made In Korea

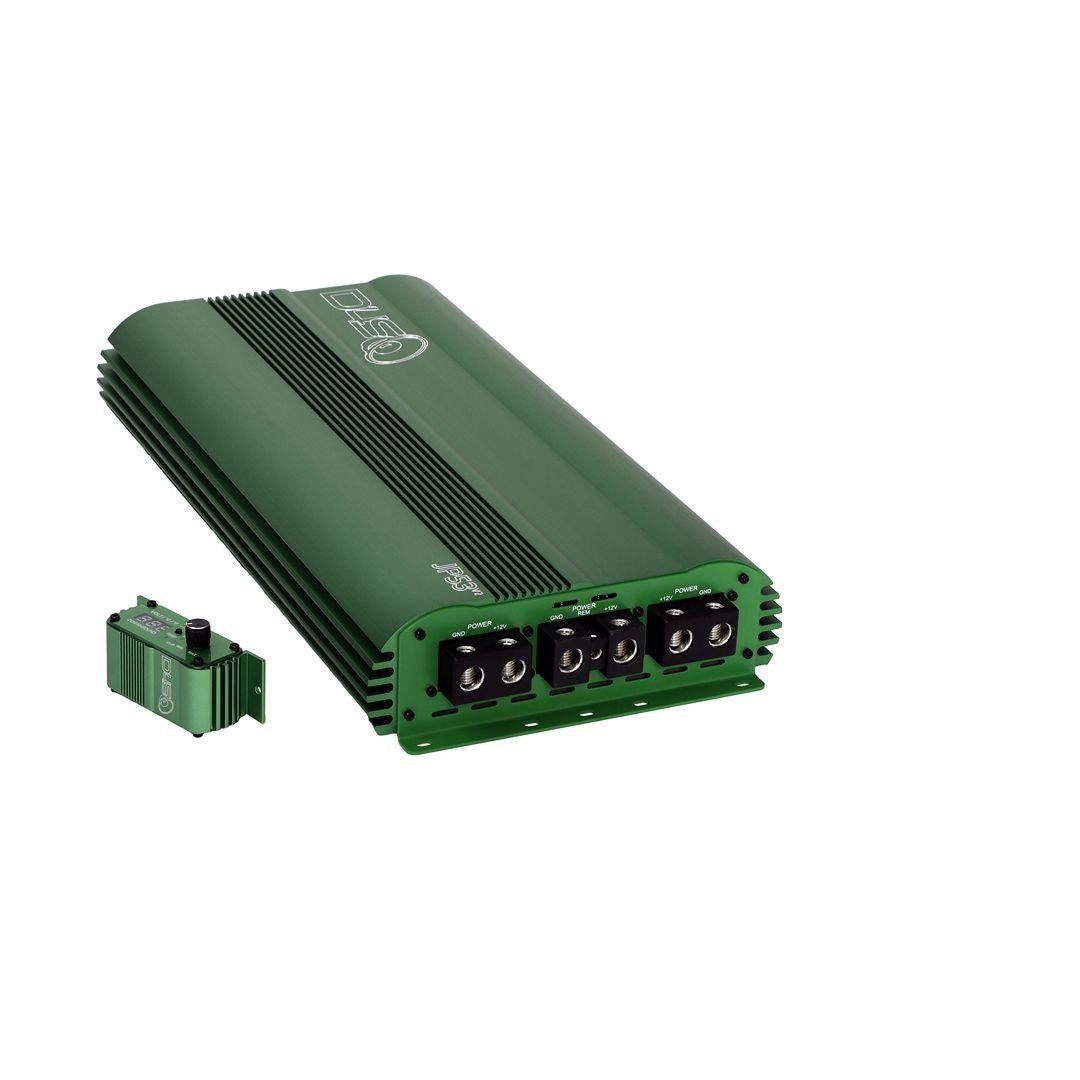

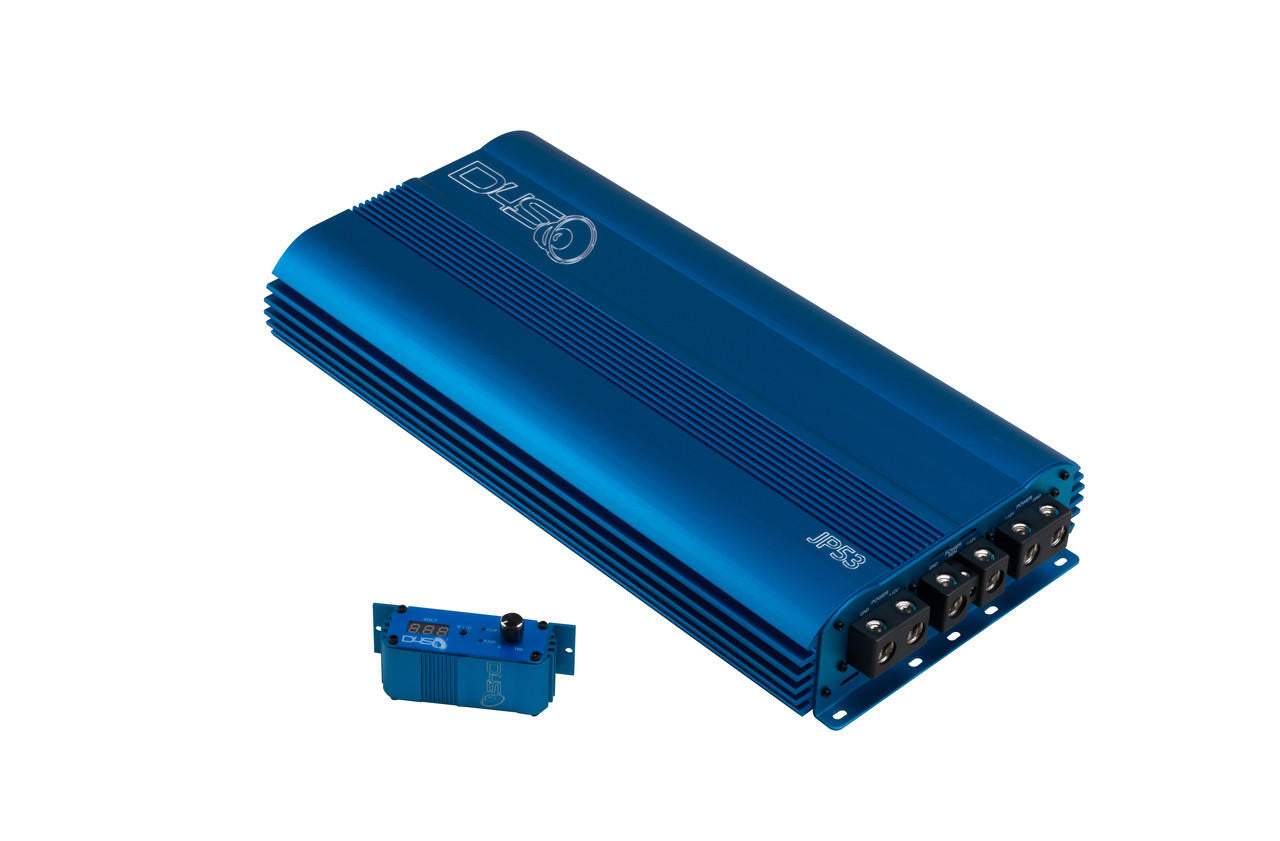

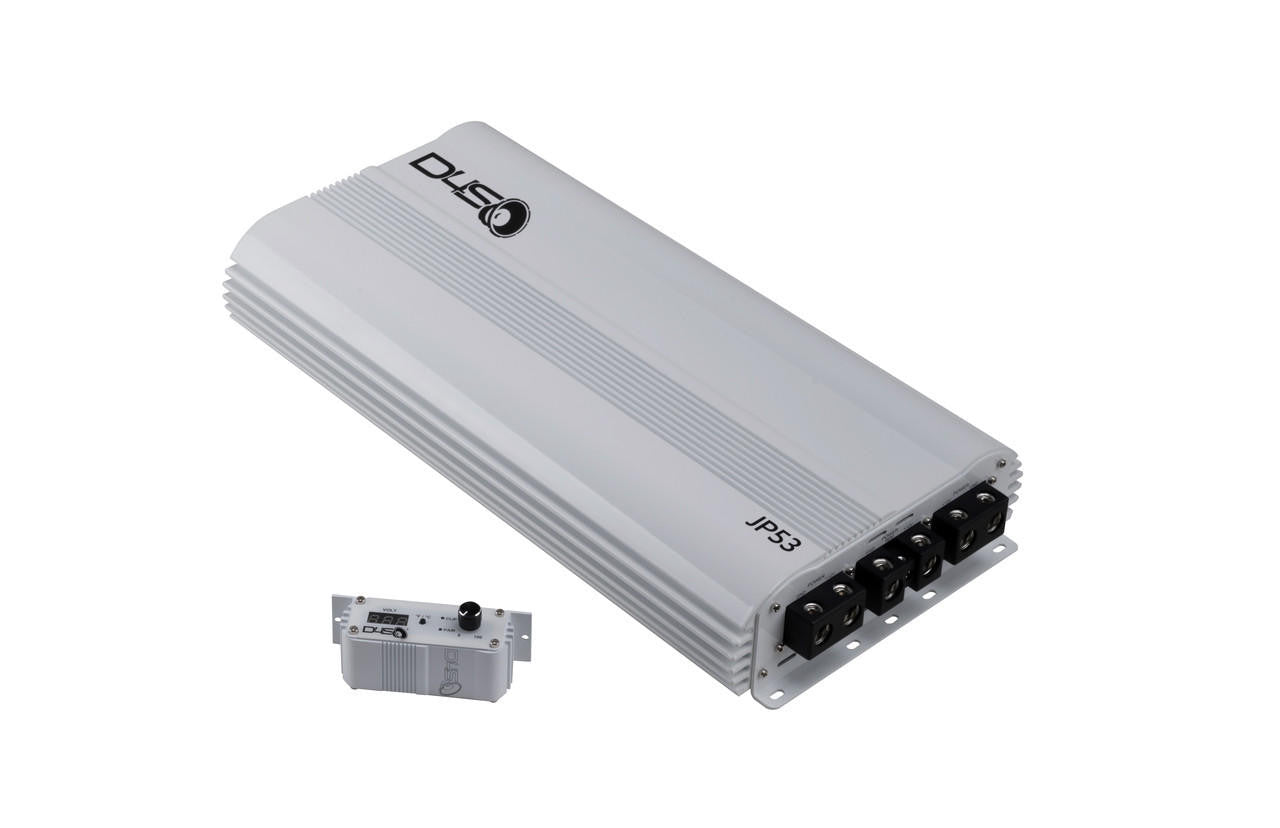

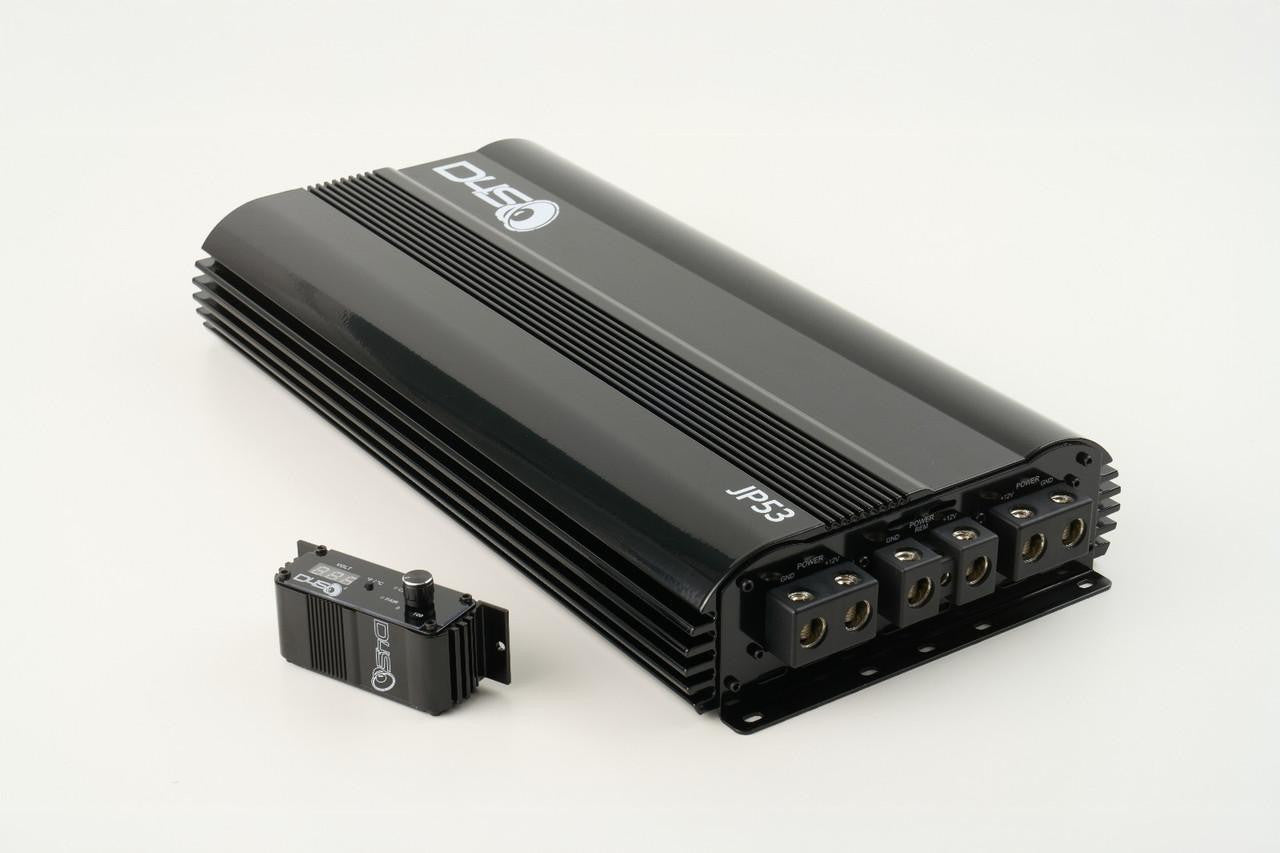

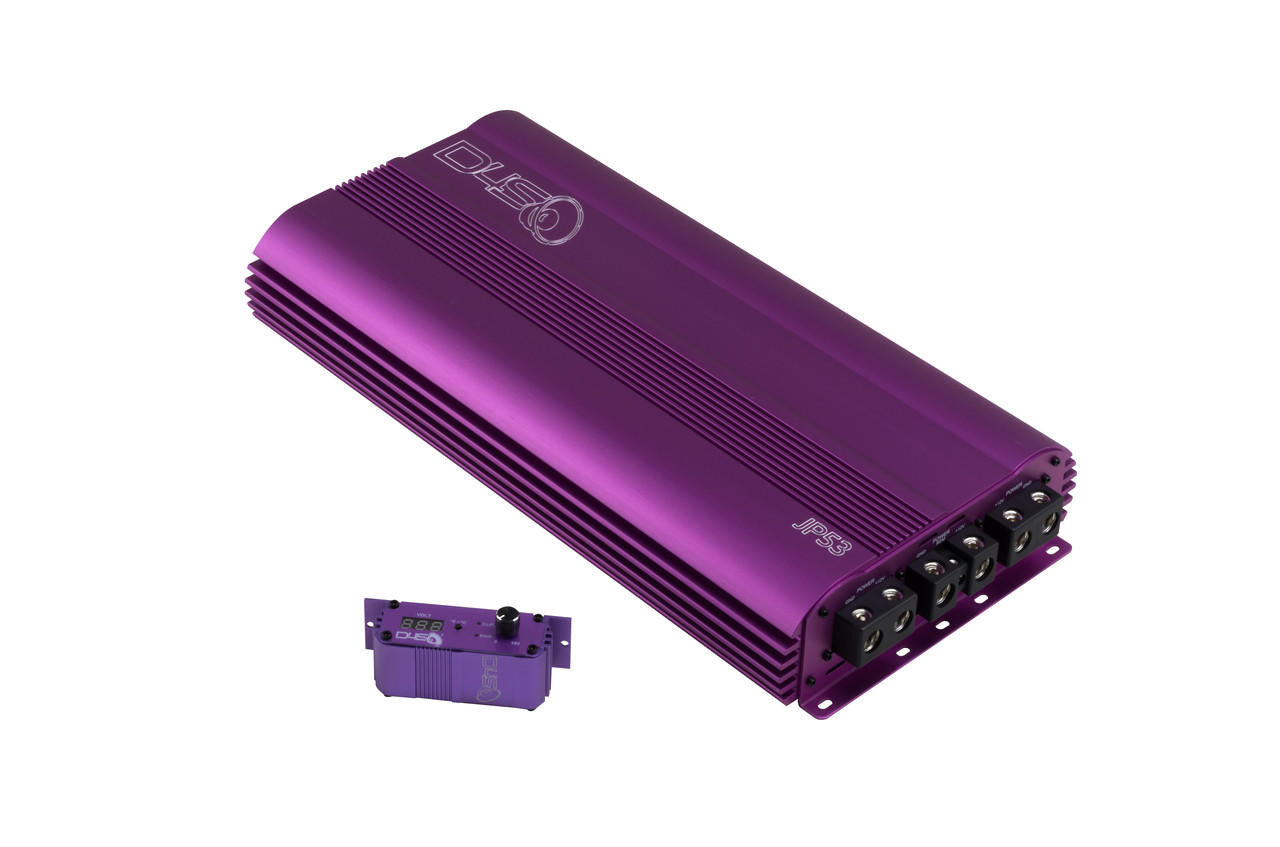

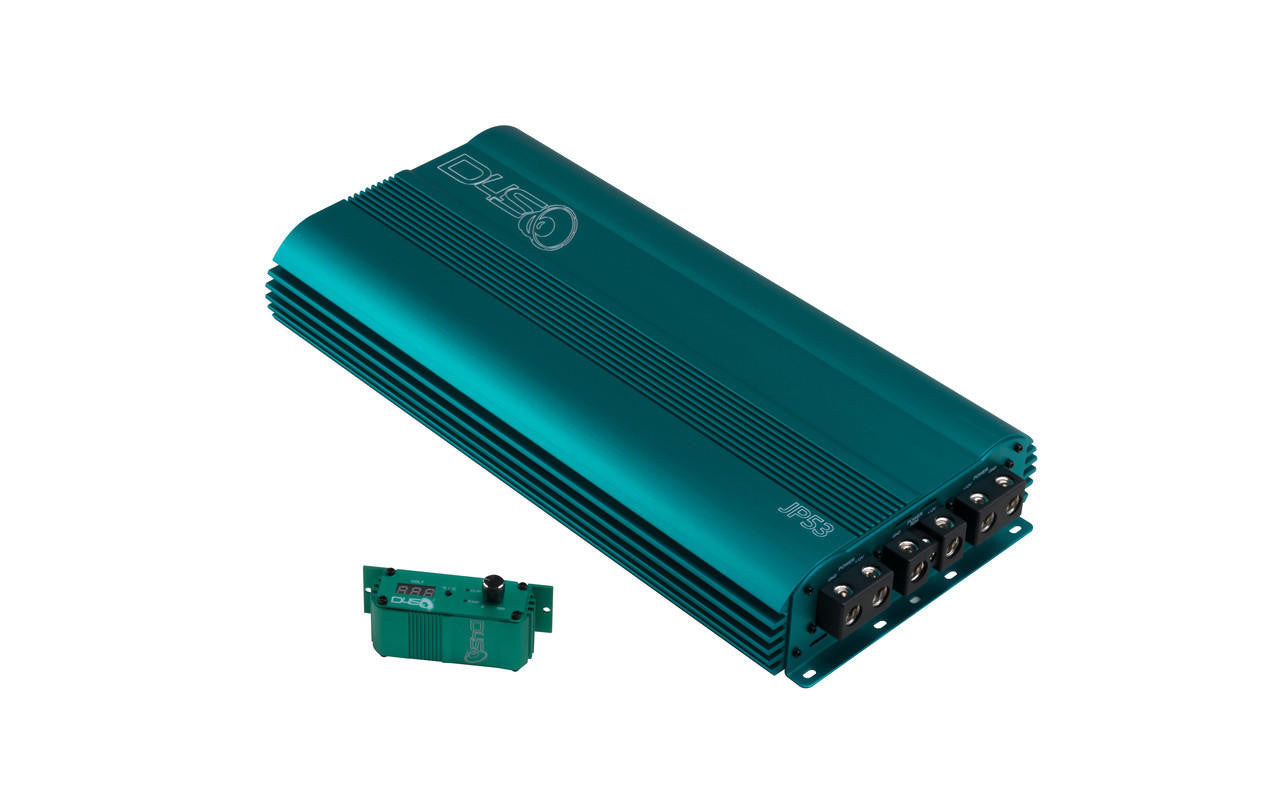

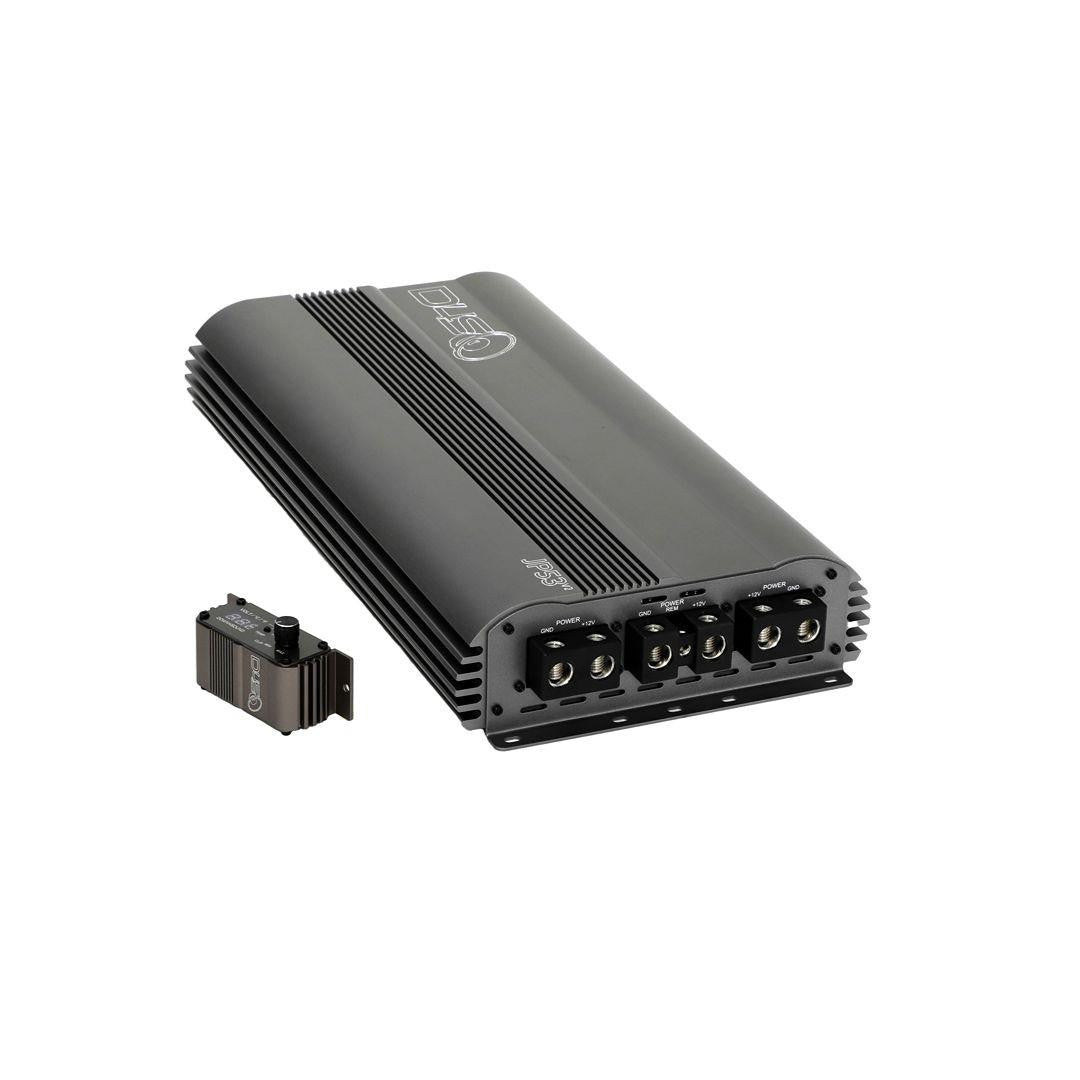

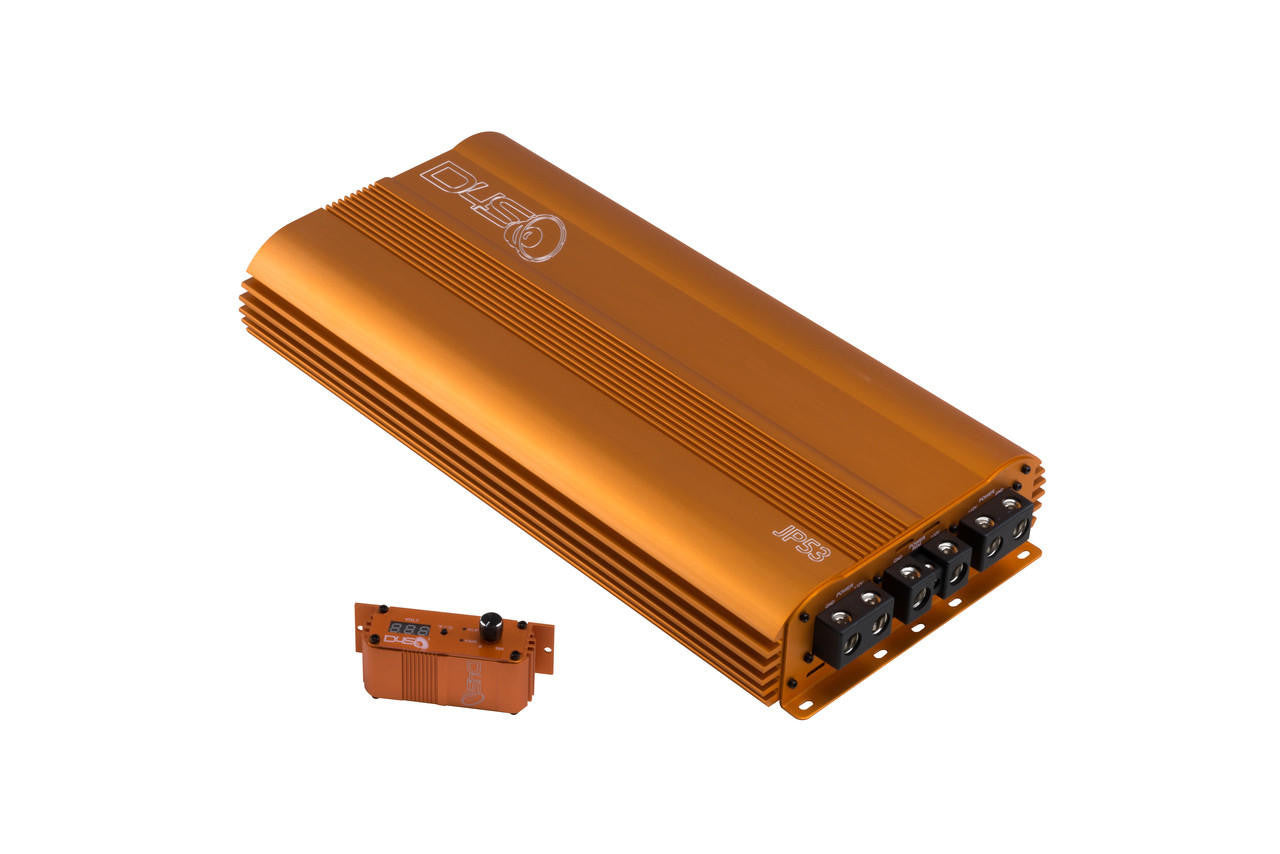

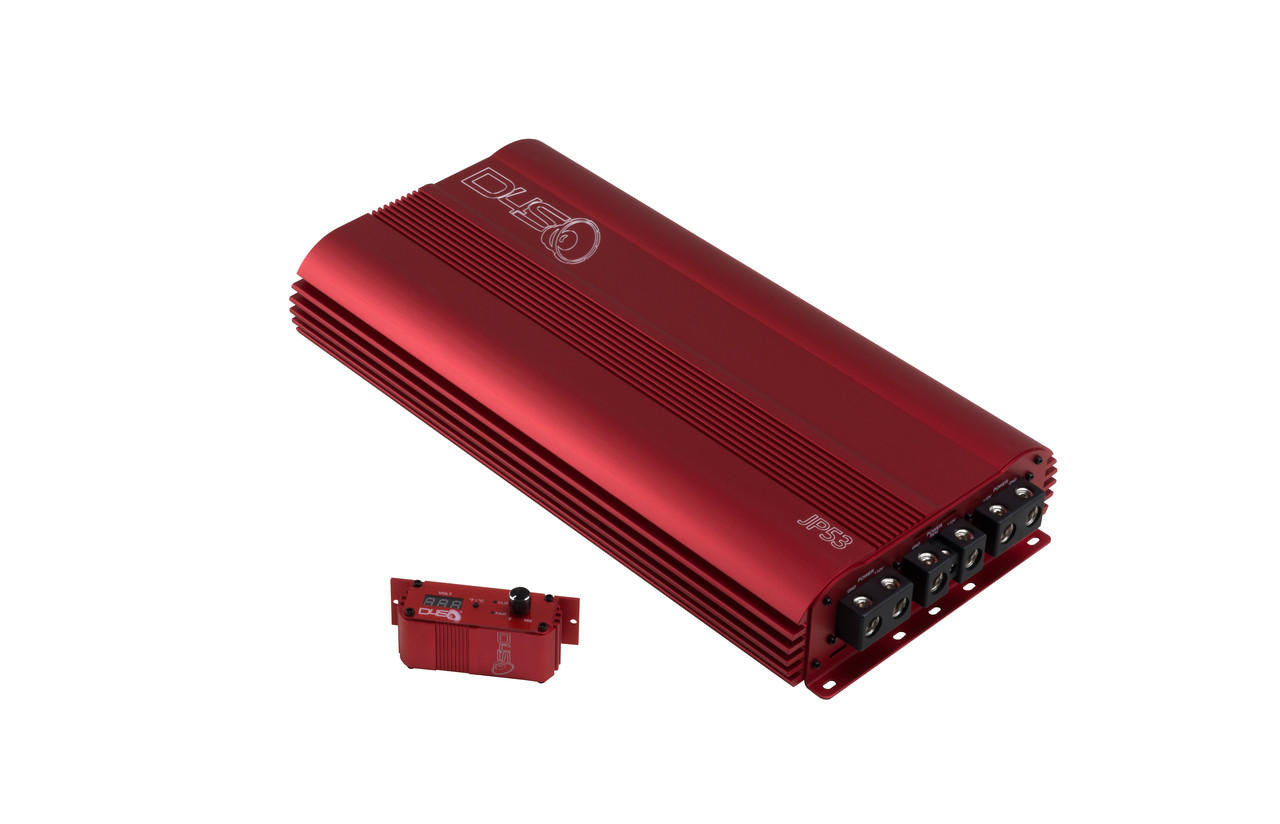

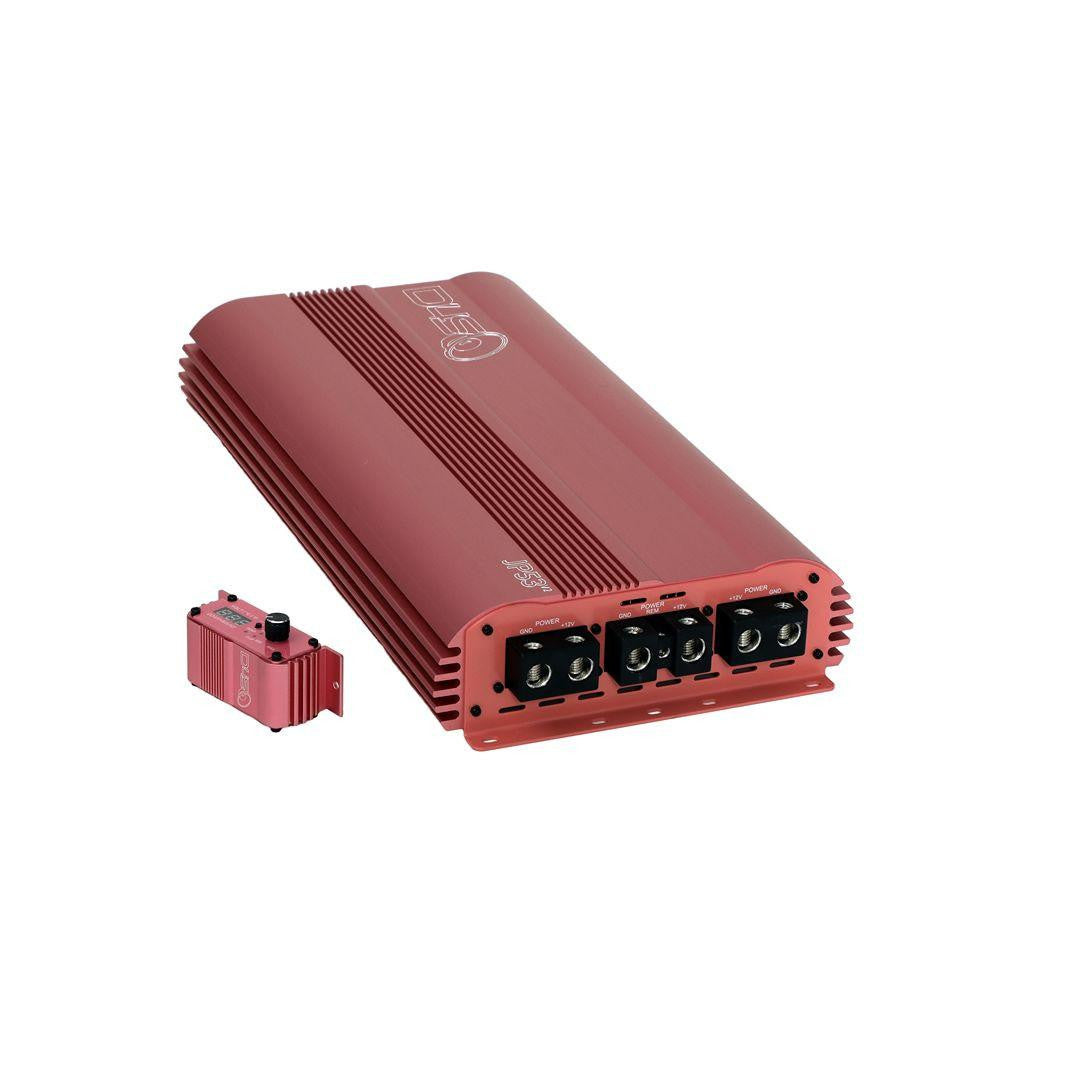

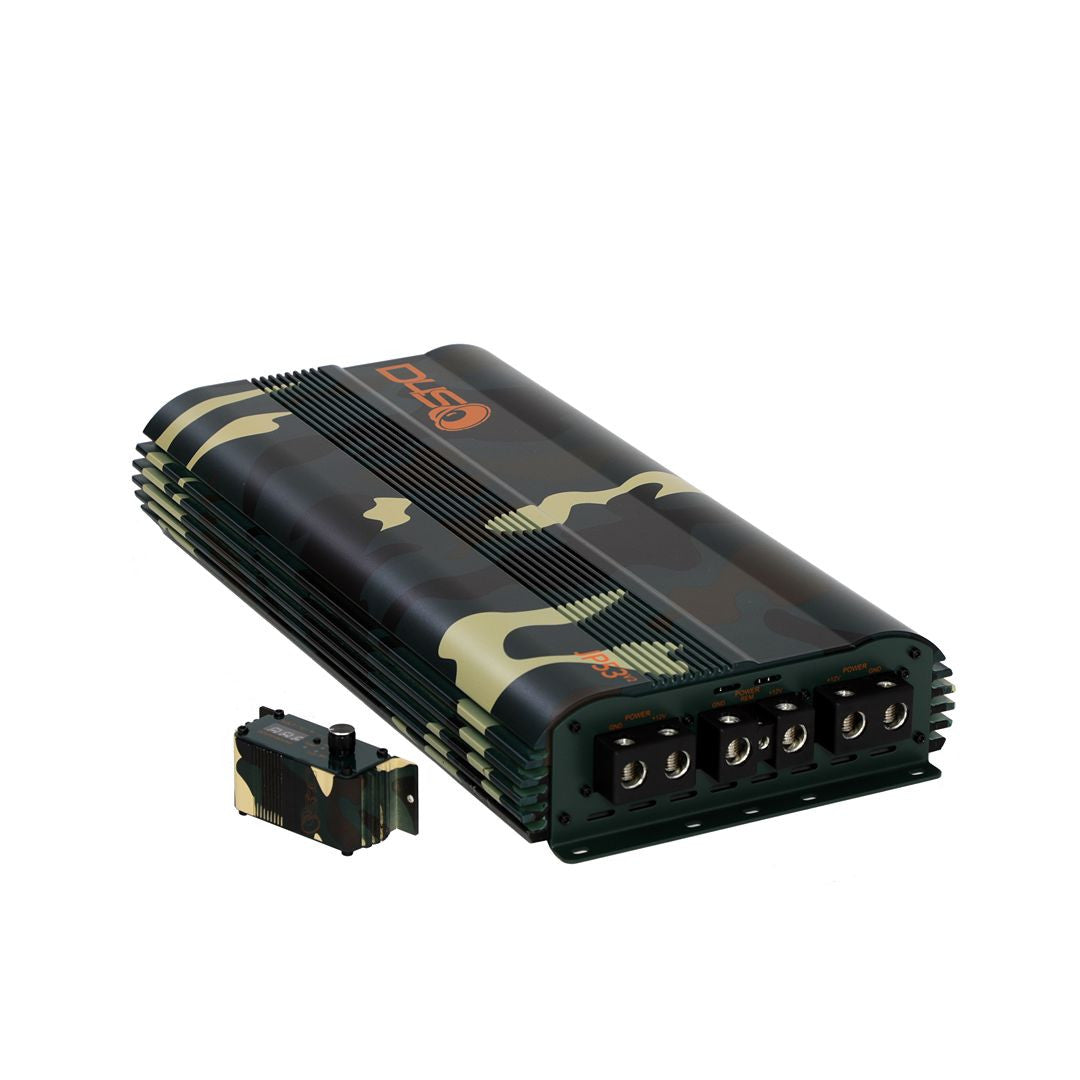

Down4Sound JP53 V2 5300W RMS Monoblock Amplifier

The Down4Sound JP53 V2 5300W RMS monoblock amplifier is engineered for powerful, controlled subwoofer performance. The V2 design adds a stronger power supply, thicker end plates, an aluminum wired bass knob, and built-in clip input and clip output detection while retaining the extreme output and dependable performance that made the original JP53 a serious choice for high-power bass systems.

What Changed from the JP53 V1 to the JP53 V2?

• Stronger Power Supply: The V2 features an upgraded power supply for improved power delivery and stability.
• Thicker End Plates: The V2 features thicker end plates for increased strength and durability.
• Wired Bass Knob: The V2 includes a wired bass knob with voltage, temperature, and clipping information.
• Clip Input and Clip Output Detection: Clip input and clip output detection have been added directly to the amplifier.

Built for High-Power Subwoofer Systems

The JP53 V2 delivers up to 5300 watts RMS at 1 ohm, providing the output needed to drive demanding subwoofer systems with deep, forceful bass. Three 0-gauge power and ground terminals help support the amplifier’s current demands, while its strappable design allows two matching JP53 V2 amplifiers to be linked for applications requiring additional output.

Enhanced Features for Maximum Performance

• High-Speed MOSFET Power Supply: Designed for efficient power delivery and dependable performance under demanding loads.
• Triple Power and Ground Inputs: Three 0-gauge power and ground terminals provide the current capacity required for high-output operation.
• Adjustable Signal Controls: Variable filtering and phase controls allow the amplifier to be tuned for the subwoofer system.
• Four-Way Protection: Protection circuits monitor thermal conditions, high and low voltage, speaker shorts, and DC output.
• Strappable Design: Two matching JP53 V2 amplifiers can be linked for applications requiring additional output.
• Advanced System Monitoring: The included aluminum wired bass knob displays voltage, temperature, and clipping information.
• High-Purity Copper Circuit Board: A high-purity copper printed circuit board supports reliable current flow and amplifier performance.

JP53 V2 Power Ratings

• 1 Ohm: 5300W RMS x 1
• 2 Ohms: 4100W RMS x 1
• 4 Ohms: 2100W RMS x 1

JP53 V2 Specifications

• Amplifier Type: Monoblock Class D
• Operating Voltage: 12V to 15.6V
• Frequency Response: 14 Hz–271 Hz
• High-Pass Filter: 35 Hz–250 Hz
• Low-Pass Filter: 10 Hz–50 Hz
• Phase Control: 0–180 degrees
• Input Sensitivity: 6V–0.2V
• Signal-to-Noise Ratio: Greater than 95 dB
• Total Harmonic Distortion: Less than 0.1%
• Minimum Speaker Impedance: Stable at 1 ohm mono
• Strappable Connection: Yes, with a matching JP53 V2 amplifier
• Recommended Fusing: 600A, or 1200A when strapped
• Protection Circuits: Thermal, high voltage, low voltage, speaker short, and DC protection
• Clip Input Detection: Yes
• Clip Output Detection: Yes
• Bass Control: Aluminum wired bass knob with voltage, temperature, and clipping information
• Power and Ground Inputs: Three 0-gauge terminals
• Dimensions: 17.71" L x 9.37" W x 2.71" H

The Down4Sound JP53 V2 5300W RMS monoblock amplifier combines extreme output with improved power delivery, thicker end plates, advanced system monitoring, comprehensive protection, and flexible tuning controls. Whether it is powering a demanding daily system or a high-output competition build, the JP53 V2 delivers the strength and control needed to bring serious subwoofer systems to life.

Electrical Upgrade Notice

When wiring the amplifier at lower impedances or playing extreme low-frequency bass, upgrading the vehicle’s electrical system is strongly recommended for stable performance. Recommended upgrades include:

• The Big 3 wiring upgrade
• Upgraded alternator
• Adequate reserve battery capacity
