Description

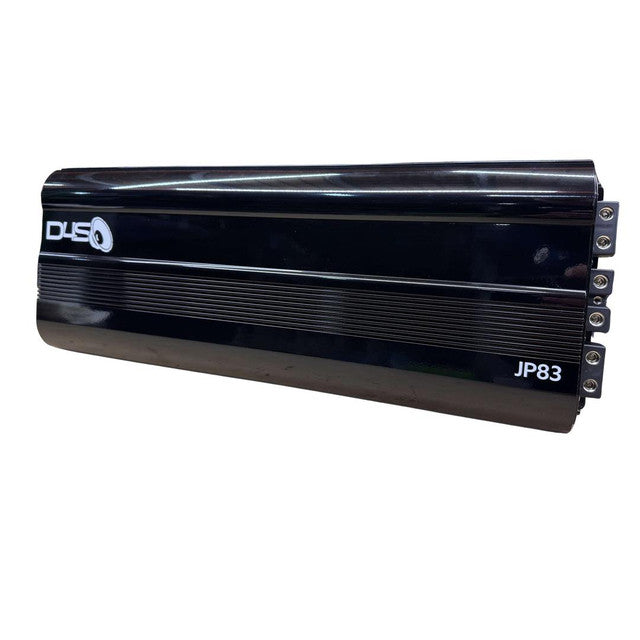

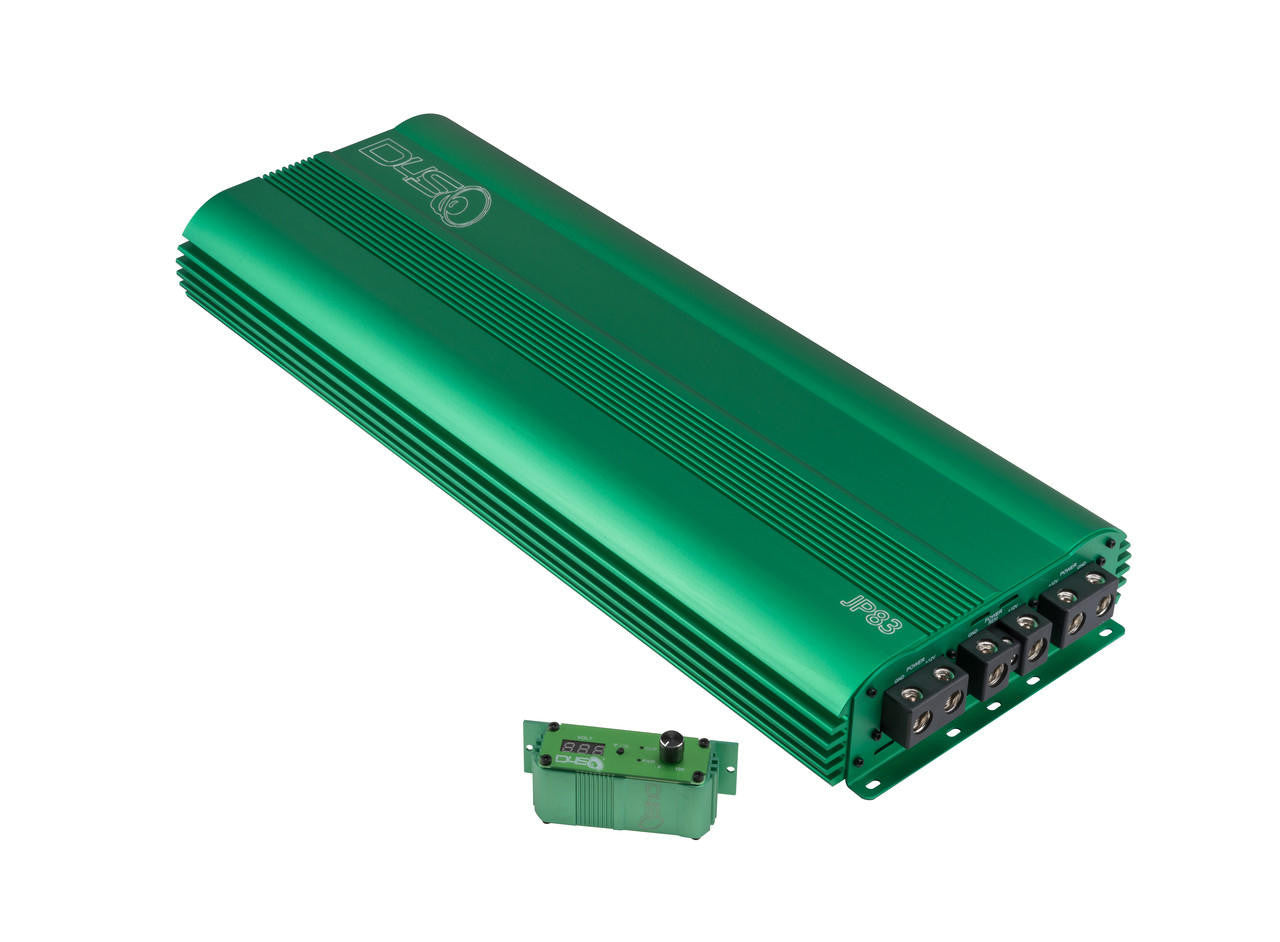

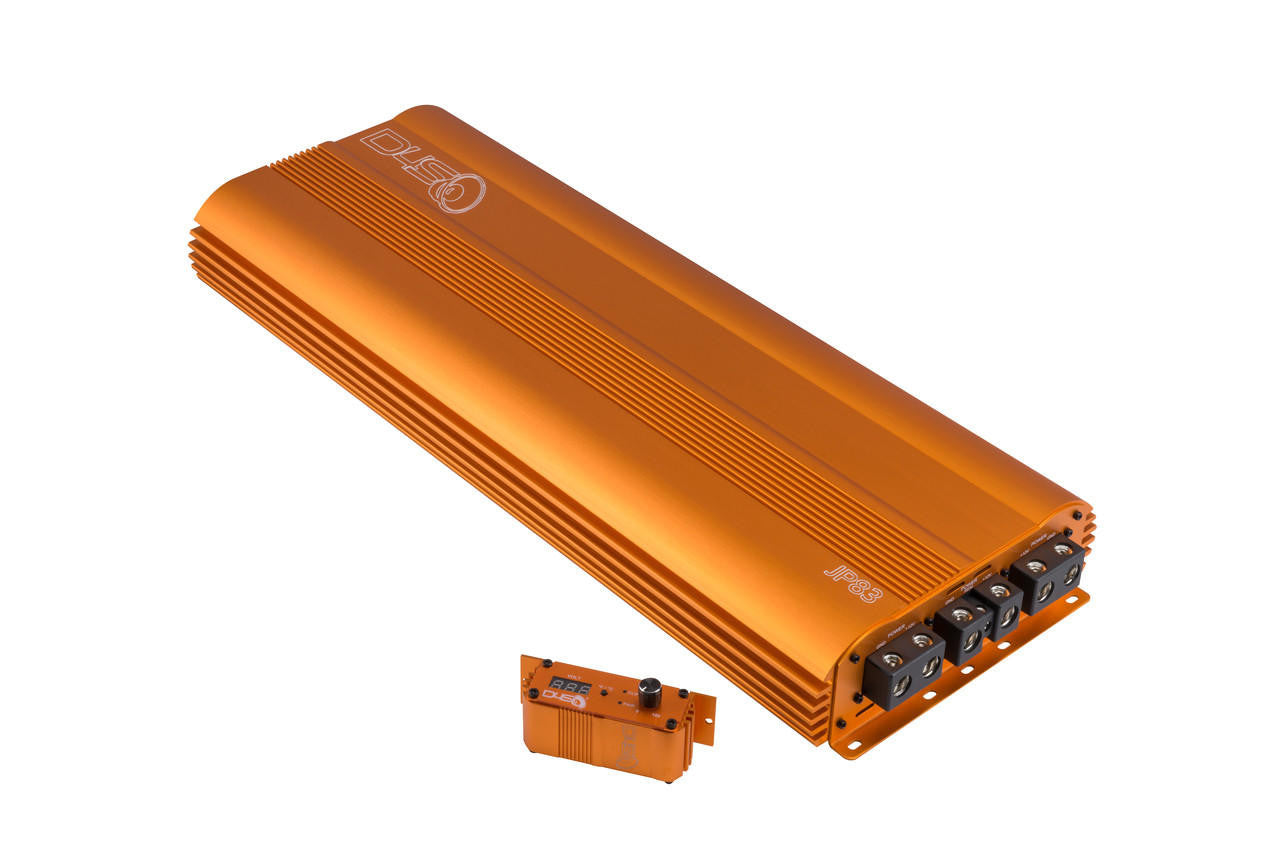

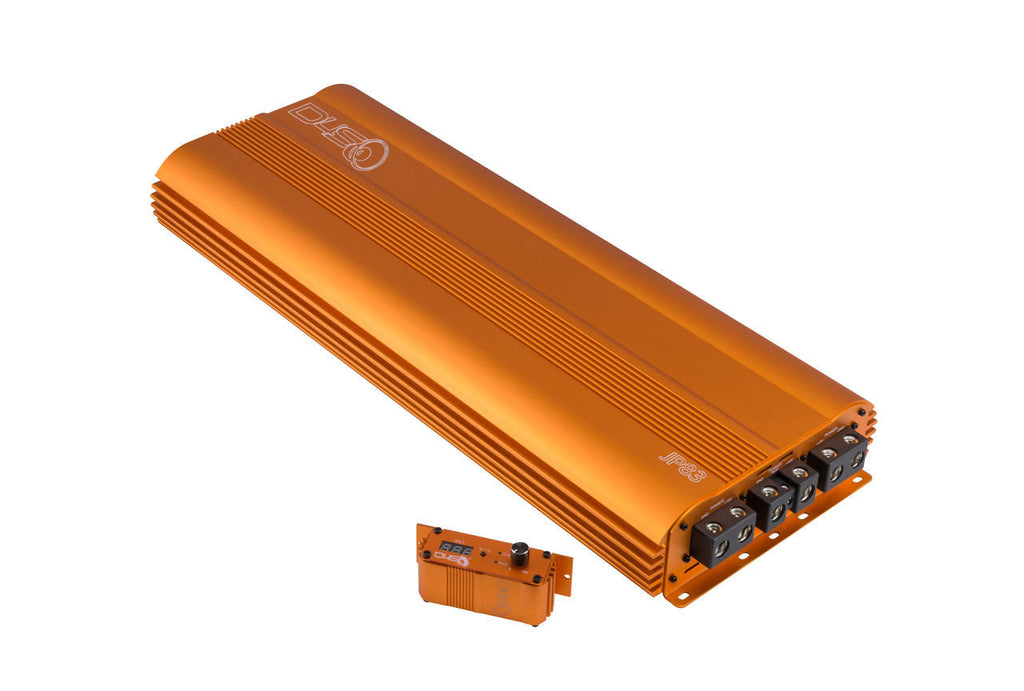

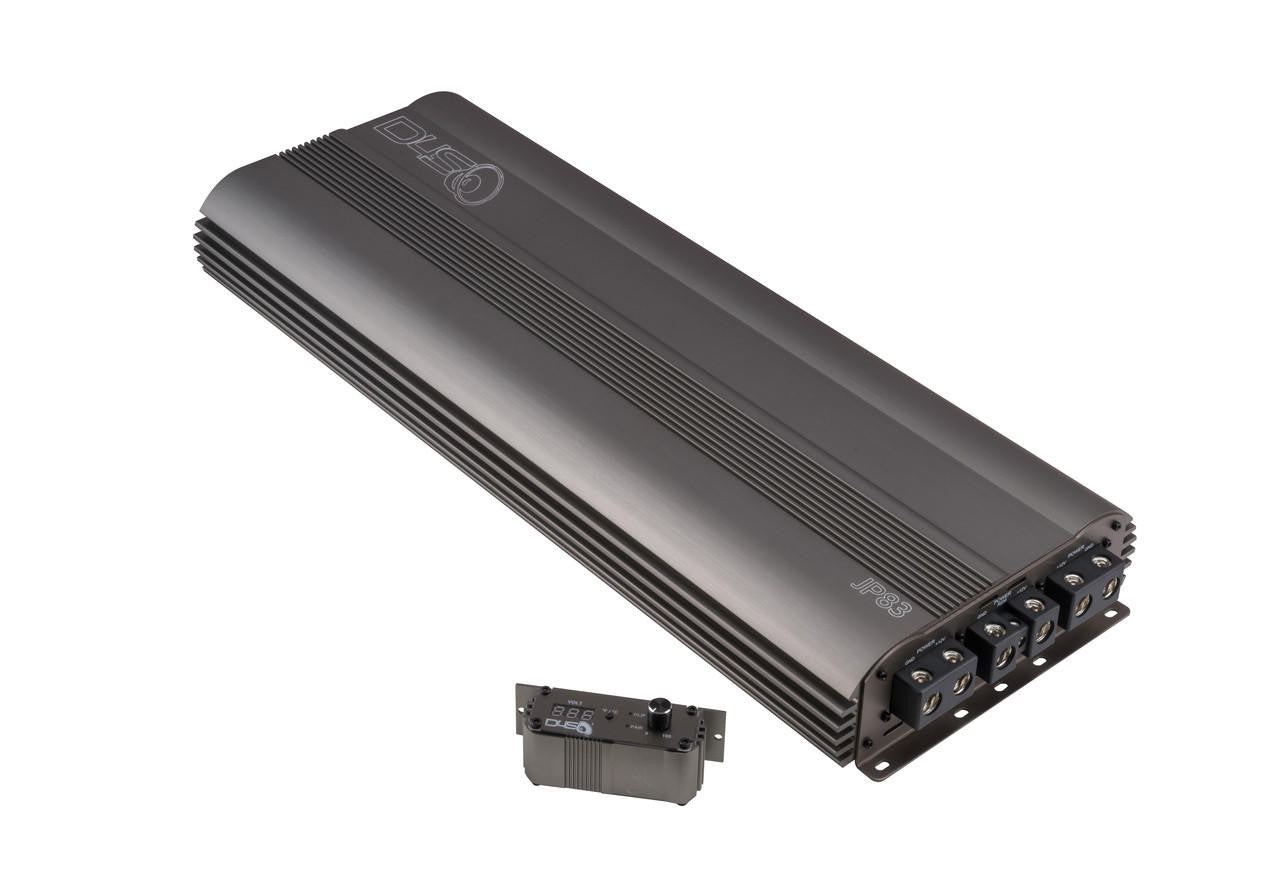

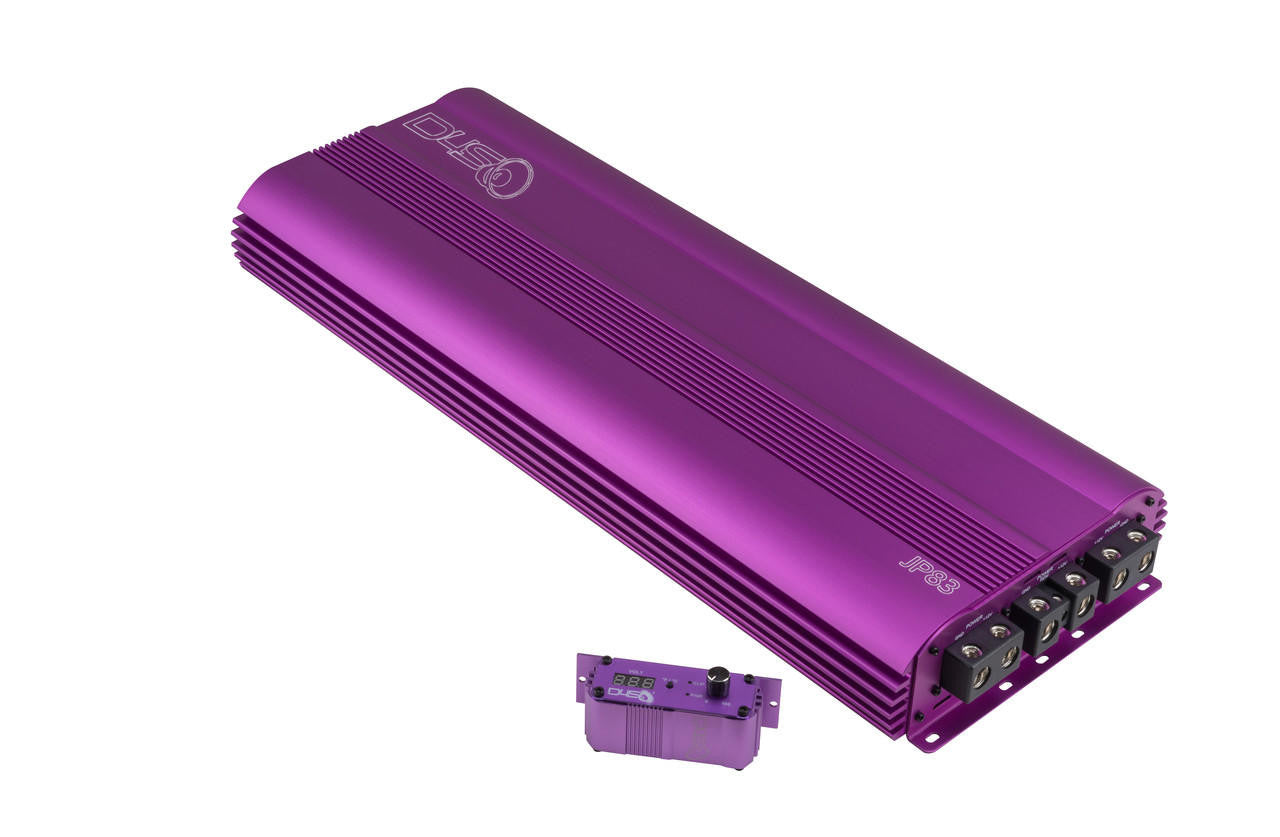

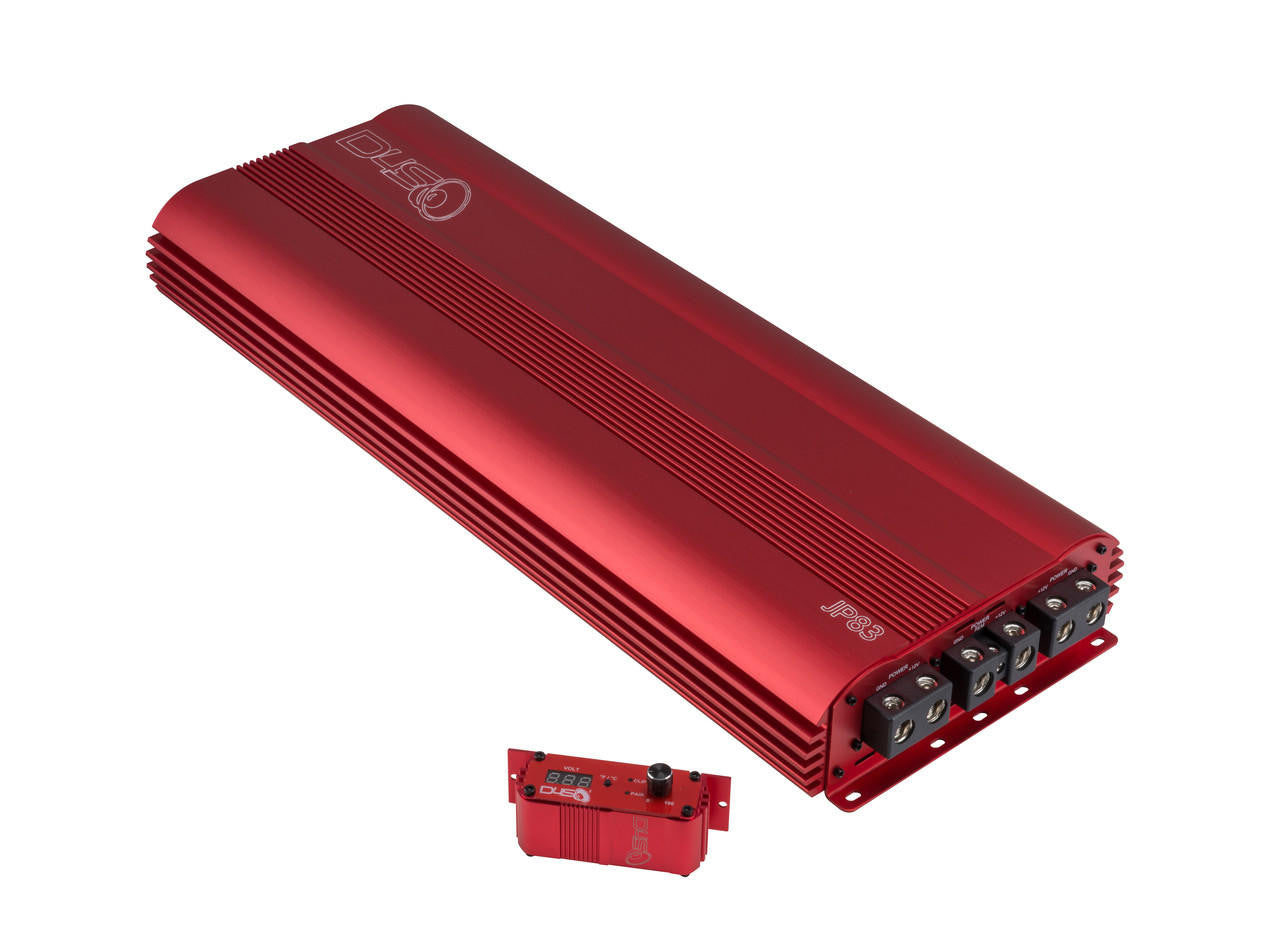

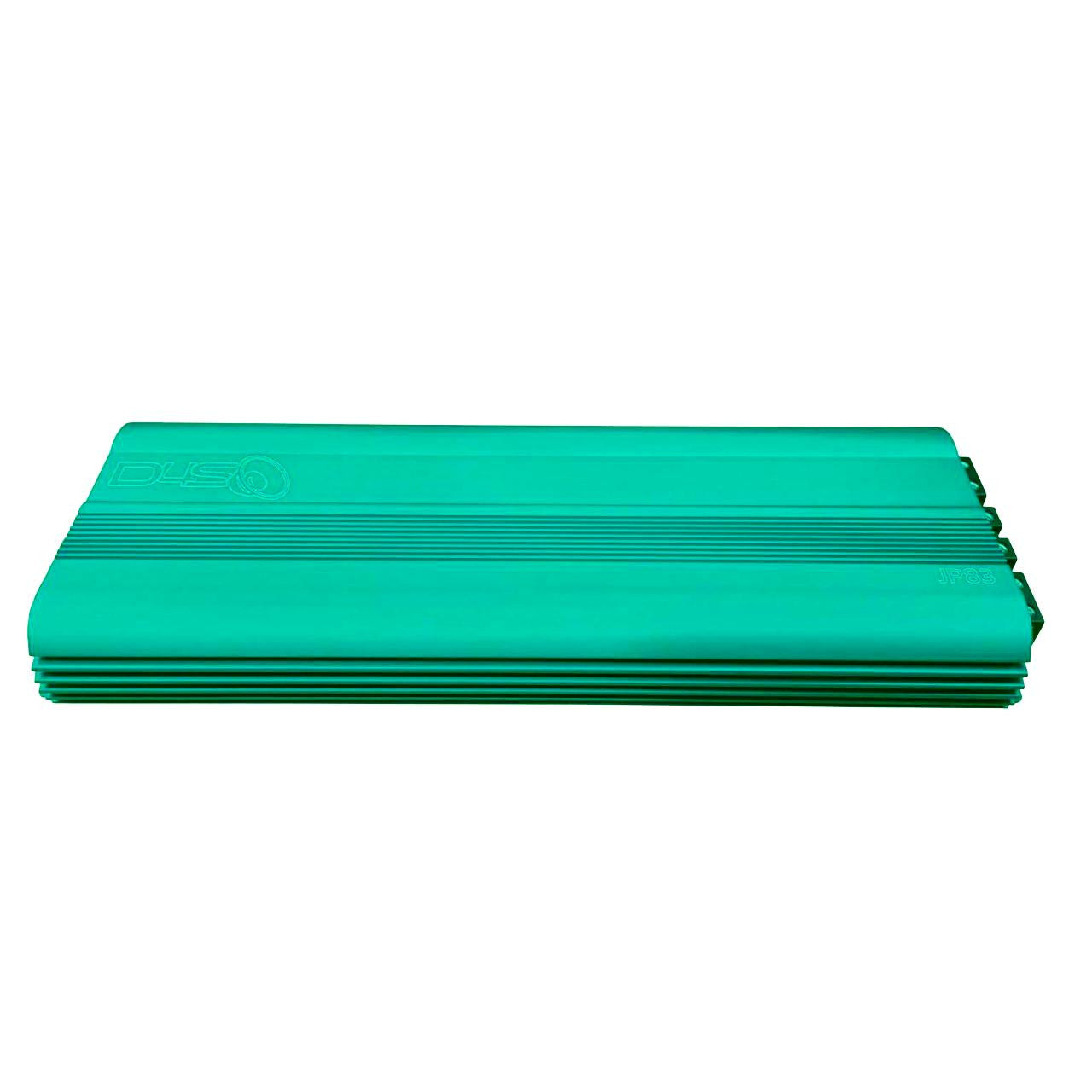

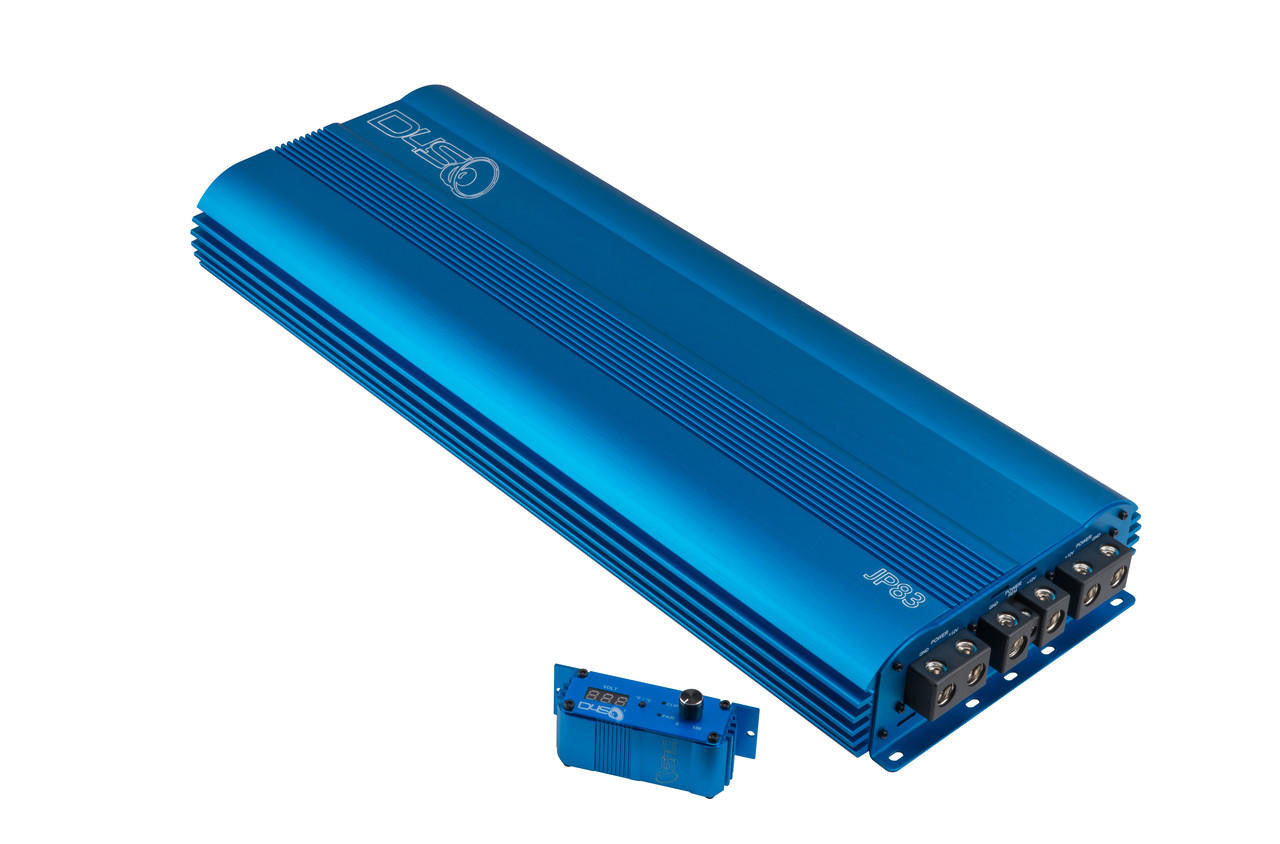

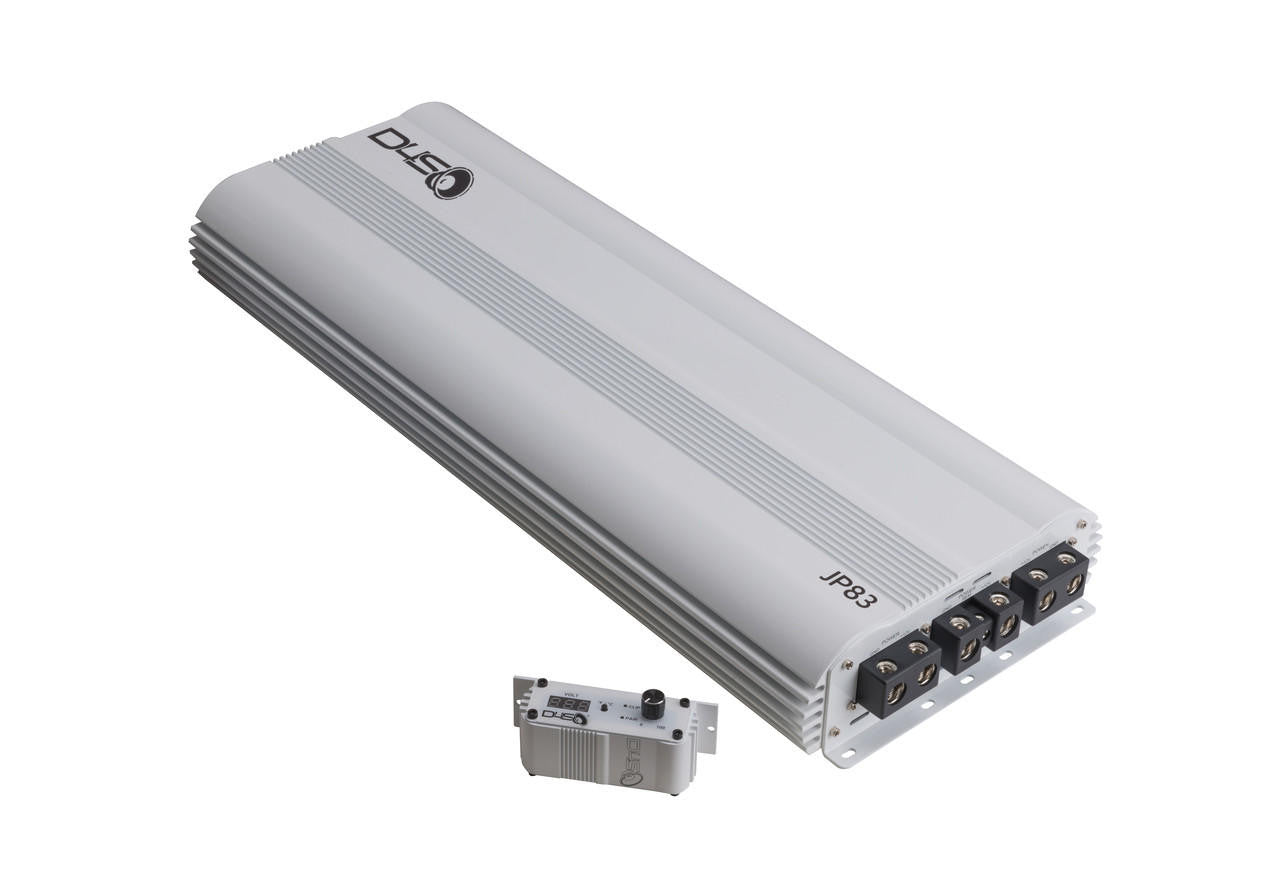

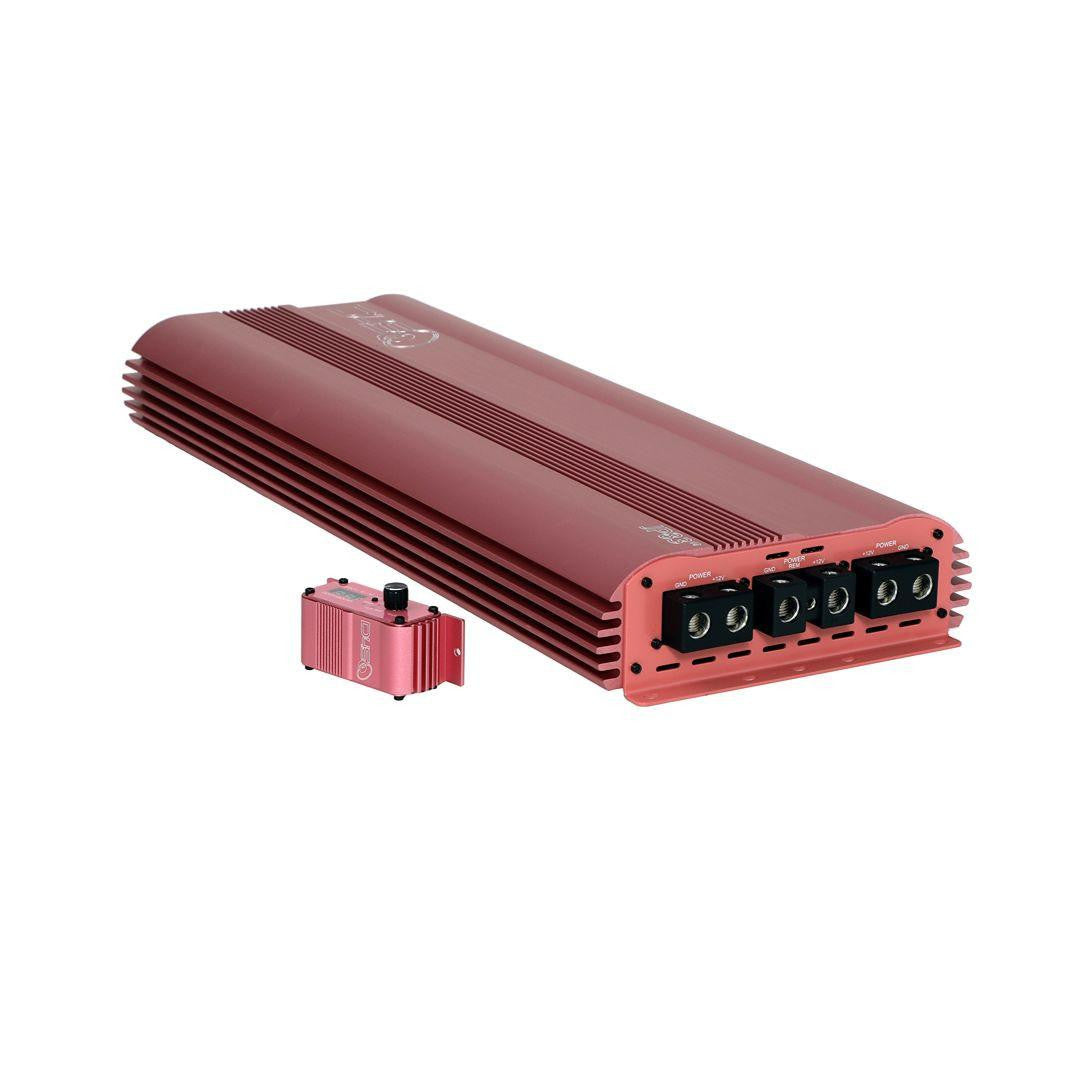

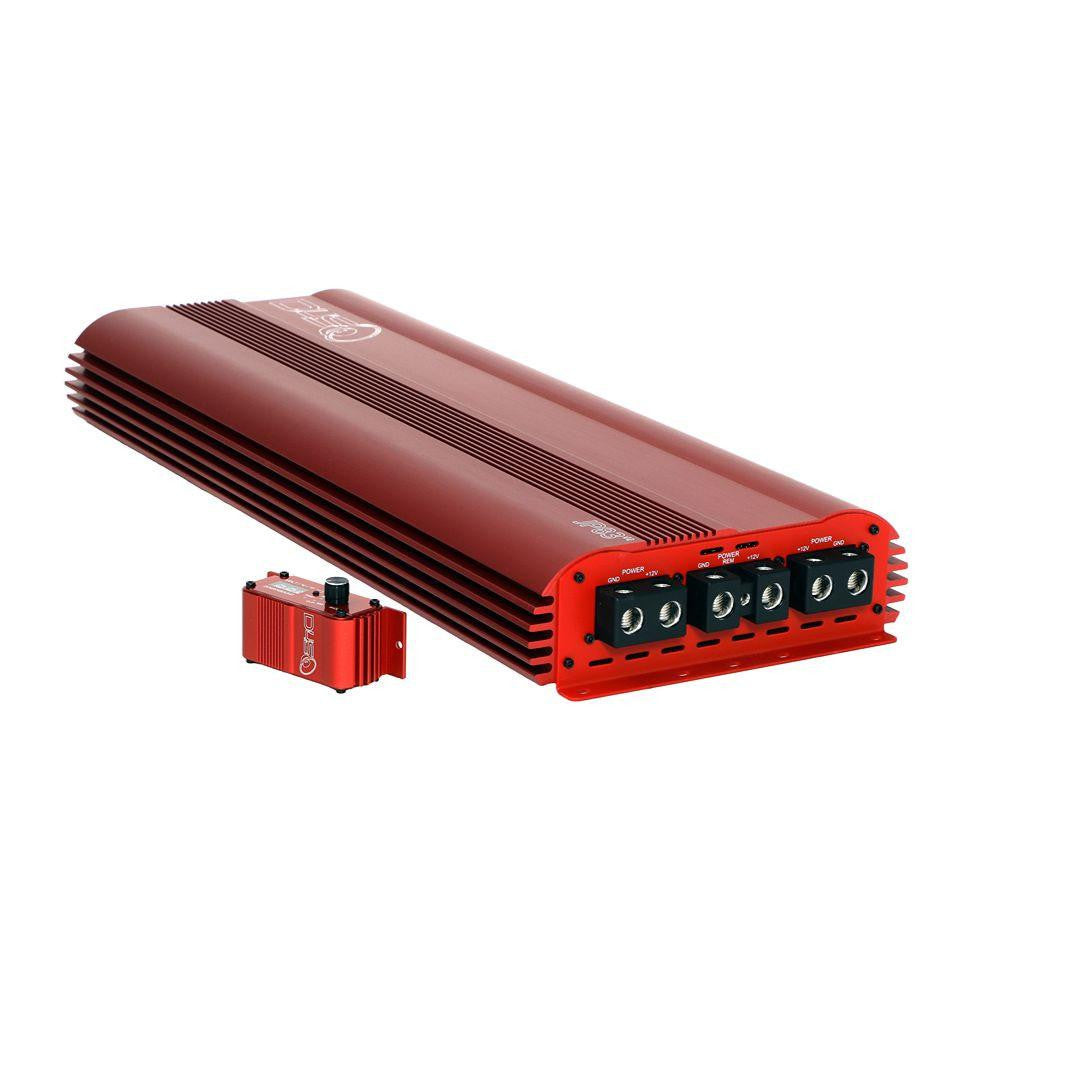

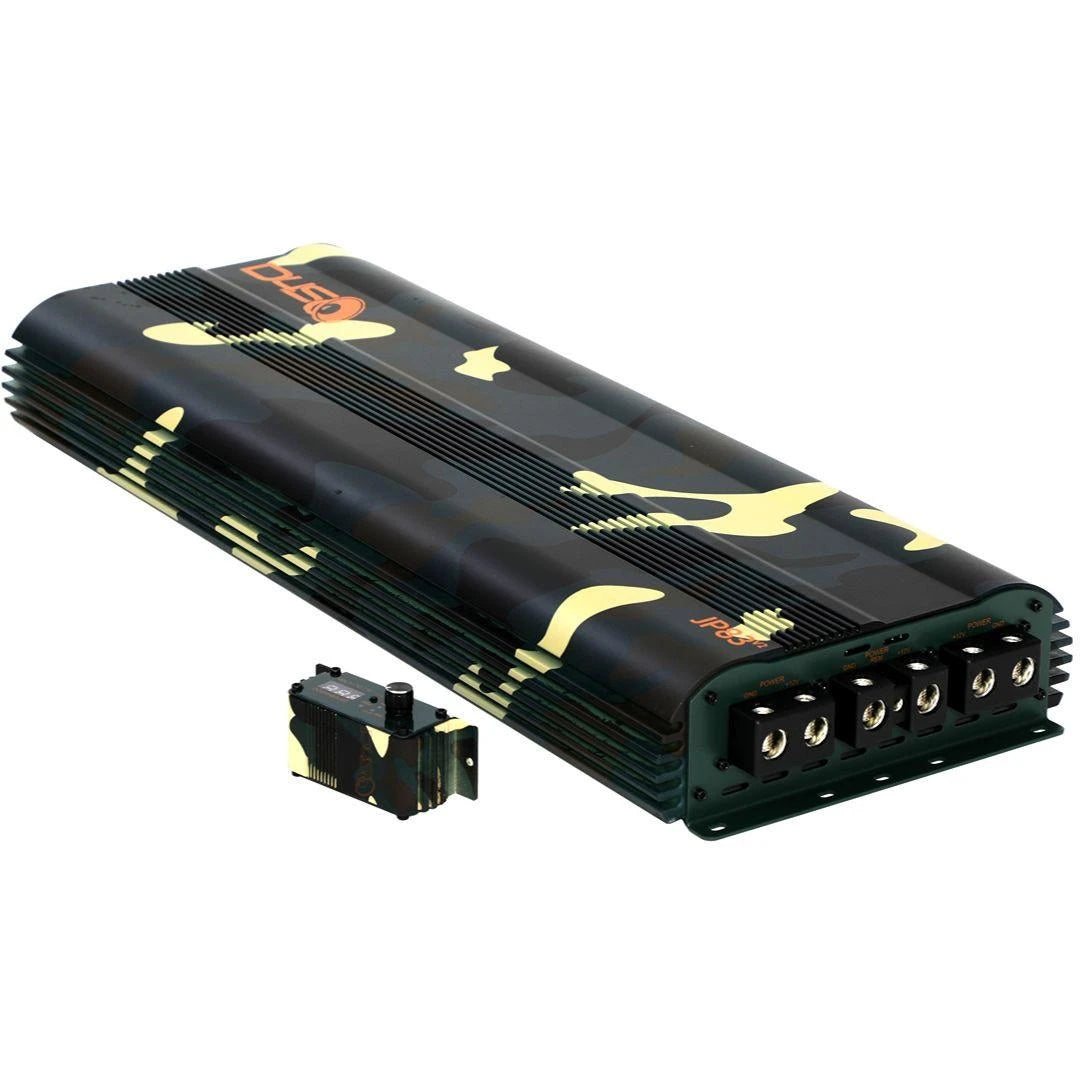

Get ready to meet the Down4Sound JP83 Titanium an 8300W+ RMS monoblock amplifier that's engineered to redefine bass performance. This isn't just an 8000W amp; it's a bass behemoth designed to make your subwoofers deliver bass so intense, it's like feeling the earth move beneath you.
State-of-the-Art Features for Unbeatable Performance

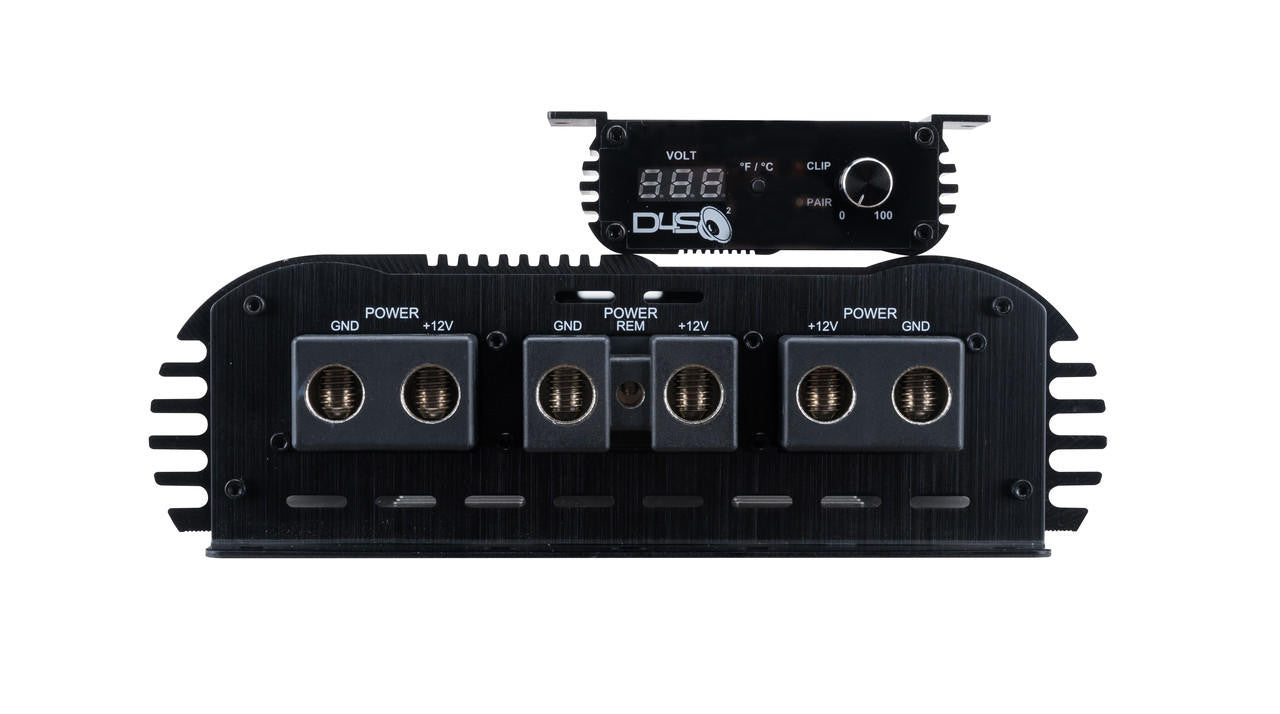

- Triple Power and Ground Inputs: With three zero-gauge power and ground wire inputs, this amplifier ensures maximum power stability.

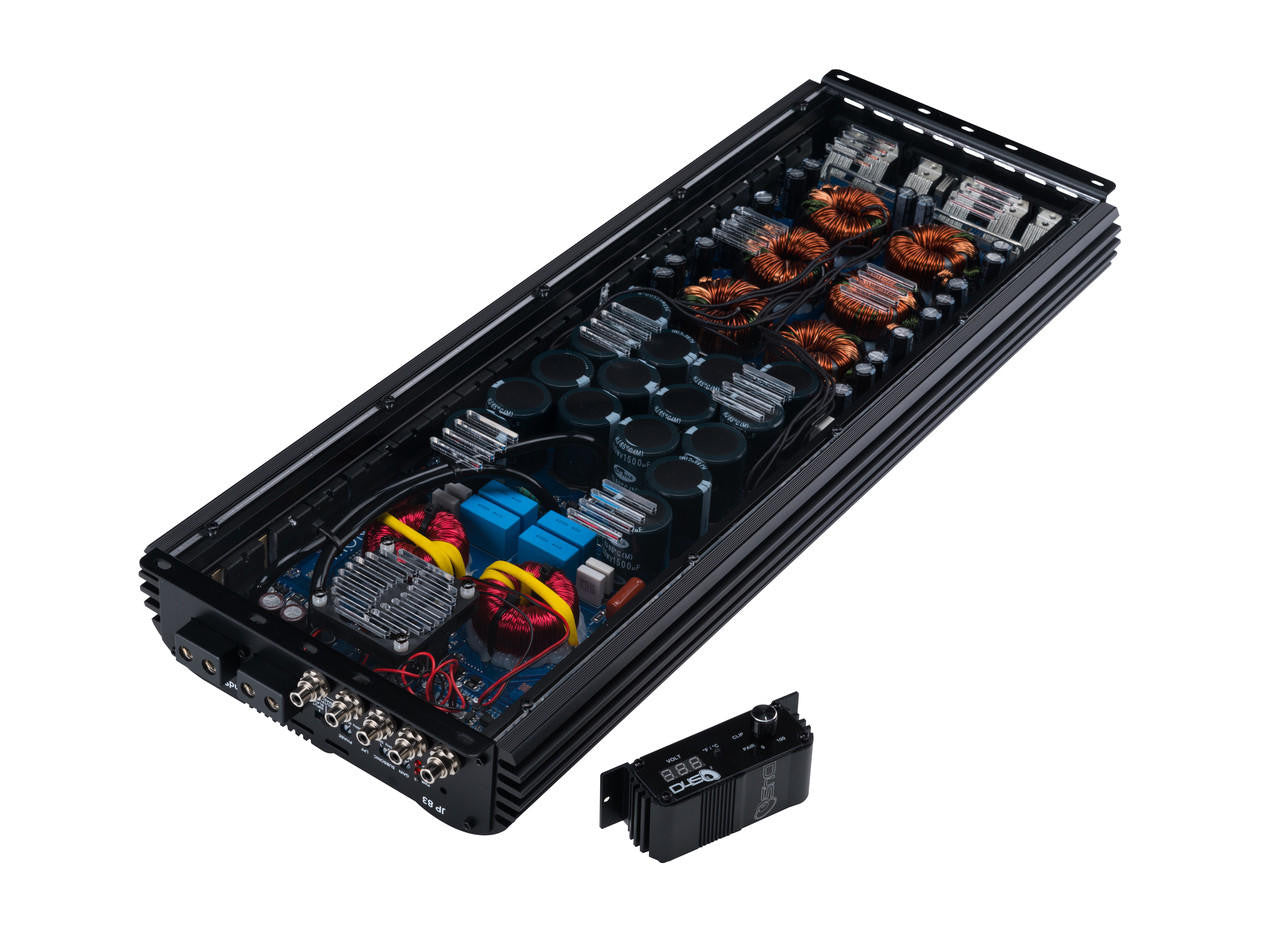

- Enhanced Thermal Stability: We've increased the weight of the heat sink and added high-flow internal fans to keep this beast cool under pressure.
- Premium RCA Connectors: Features TRUE Tiffany RCA connections, because exceptional sound starts with exceptional connections.
- Strappable Design: Link multiple JP83 amplifiers together to truly unleash their power.

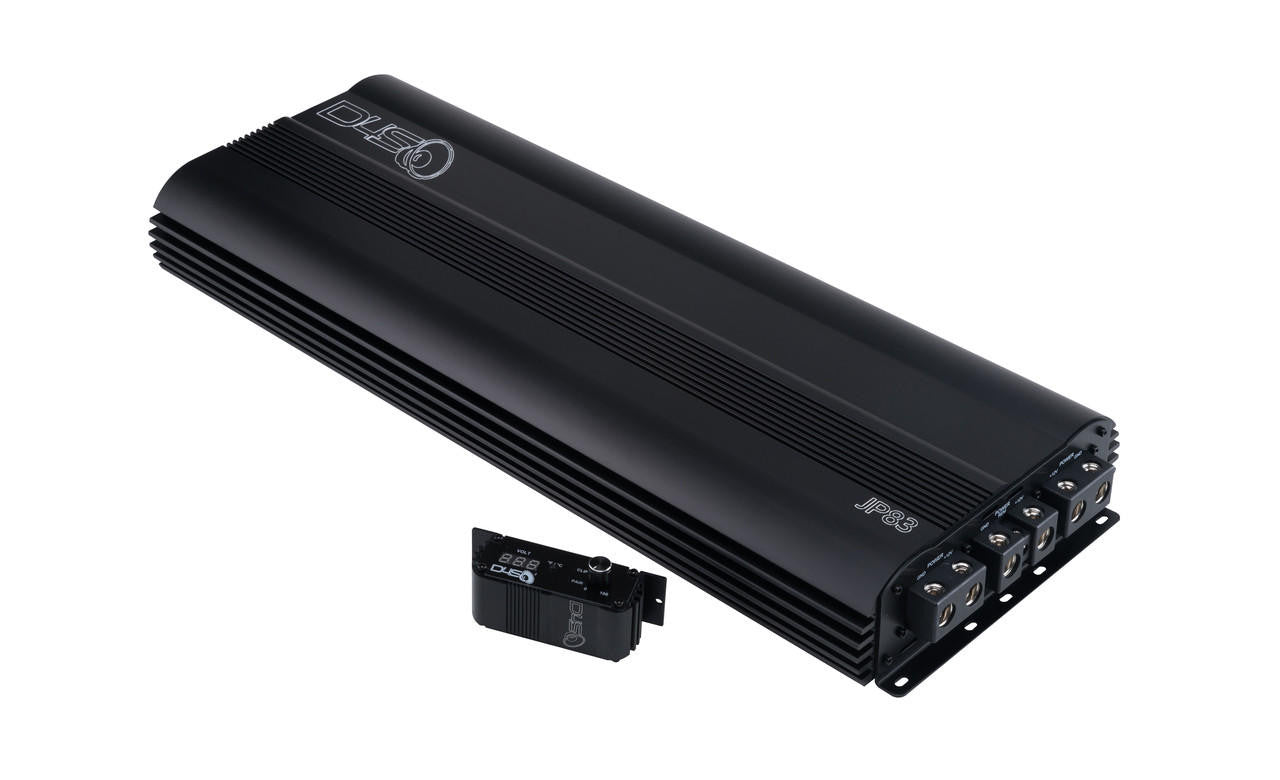

- Color: Black
Electrical Upgrade Mandatory for Warranty
To tap into the full power of this amplifier, a comprehensive electrical upgrade is absolutely essential. Read this again: Failure to upgrade will void your warranty. You must install:
- The Big 3
- Upgraded Alternator
- Reserve Battery(s)
Power Ratings (Tested at 14.4V)
- 1-ohm: 8300W RMS
- 2-ohm: 6300W RMS
- 4-ohm: 3300W RMS
Additional Technical Specifications
- Frequency Response: 14Hz – 271Hz
- Signal-to-Noise Ratio: 92dB
- Damping Factor: < 500
- Input Sensitivity: 6V – 0.2V
- Subsonic Filter: 10Hz – 50Hz
- Low Pass Filter: 35Hz – 250Hz
- Phase Control: 0 – 180 degrees
- Speaker Connection: 8 GA Wire
- Fusing: 900A Total (300A for each of the three positive wires)
- Clipping Indicator: Yes

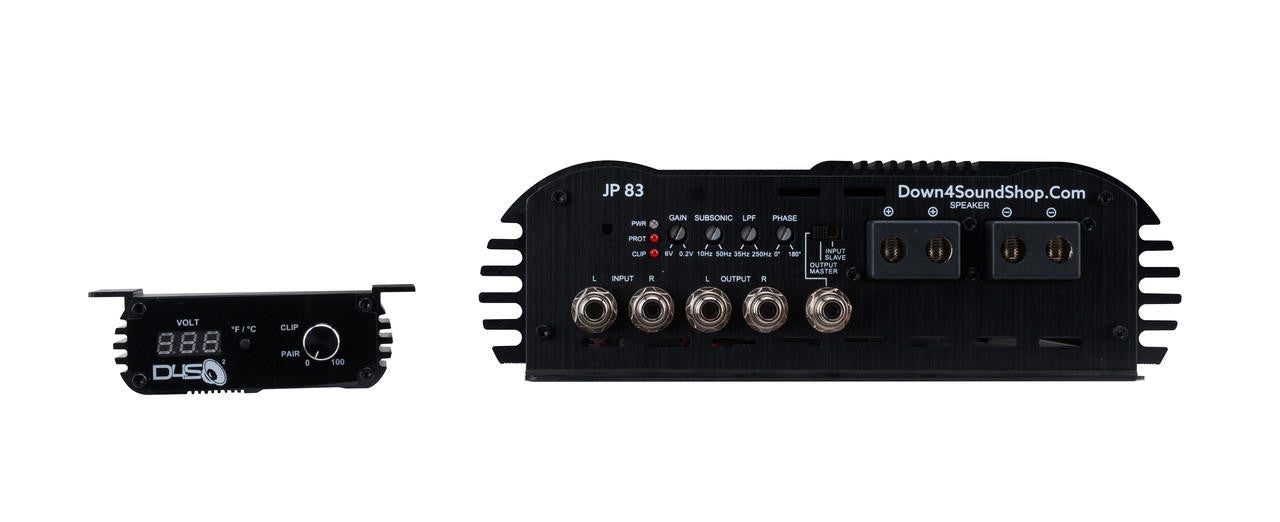

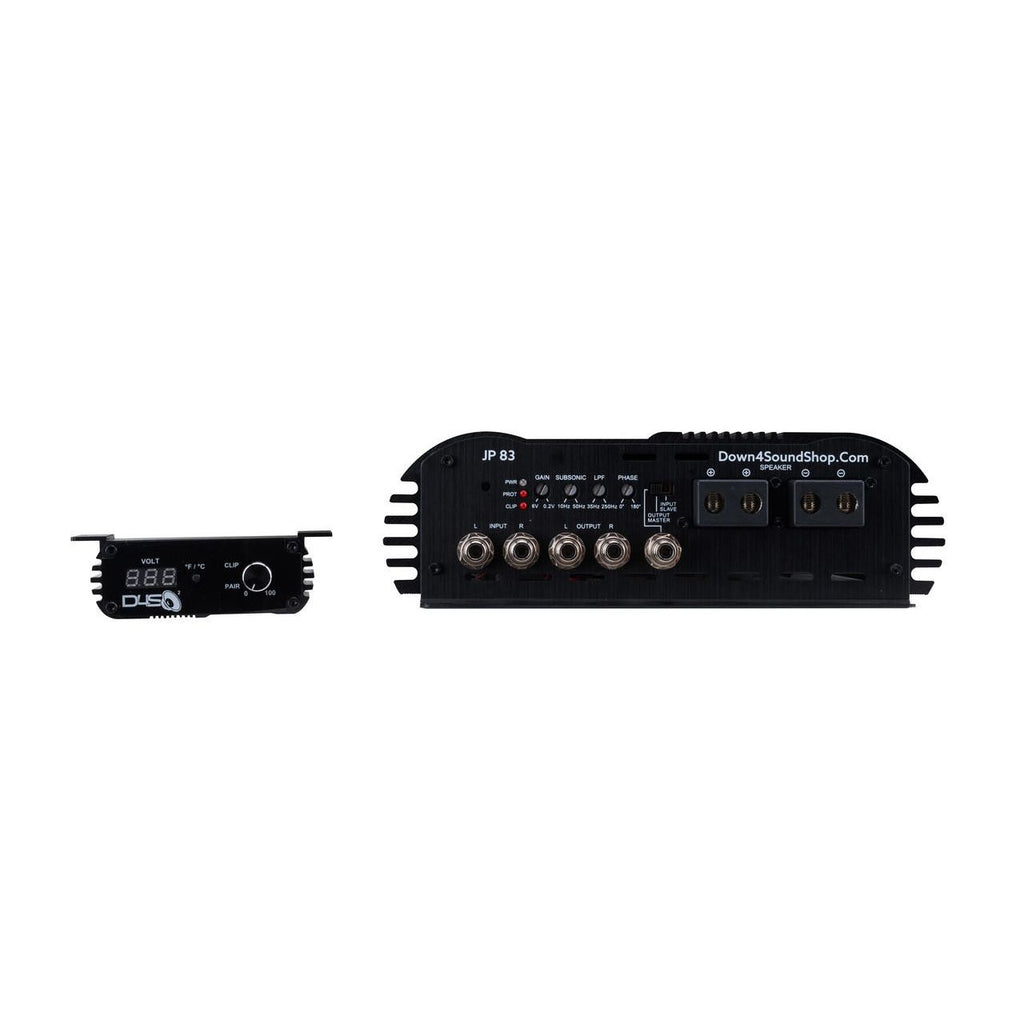

- BT Remote Control: Features voltage and temperature display, along with a clipping indicator
- Power Connection for BT Remote: C-type (external battery pack or USB power required; unit does not have rechargeable batteries)
- Speaker Output: 4-gauge
- Power Inputs: 3 x 0-gauge
- Operating Voltage: 9 to 15.5 Volts
- Dimensions: 24" (L) x 9.37" (W) x 2.63" (H)
- Country of Origin: Made in South Korea
