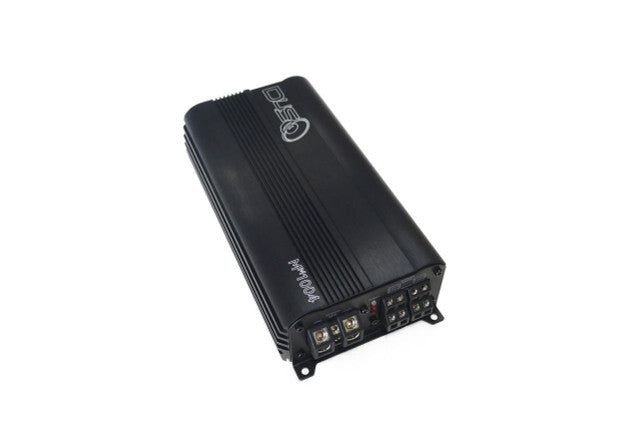

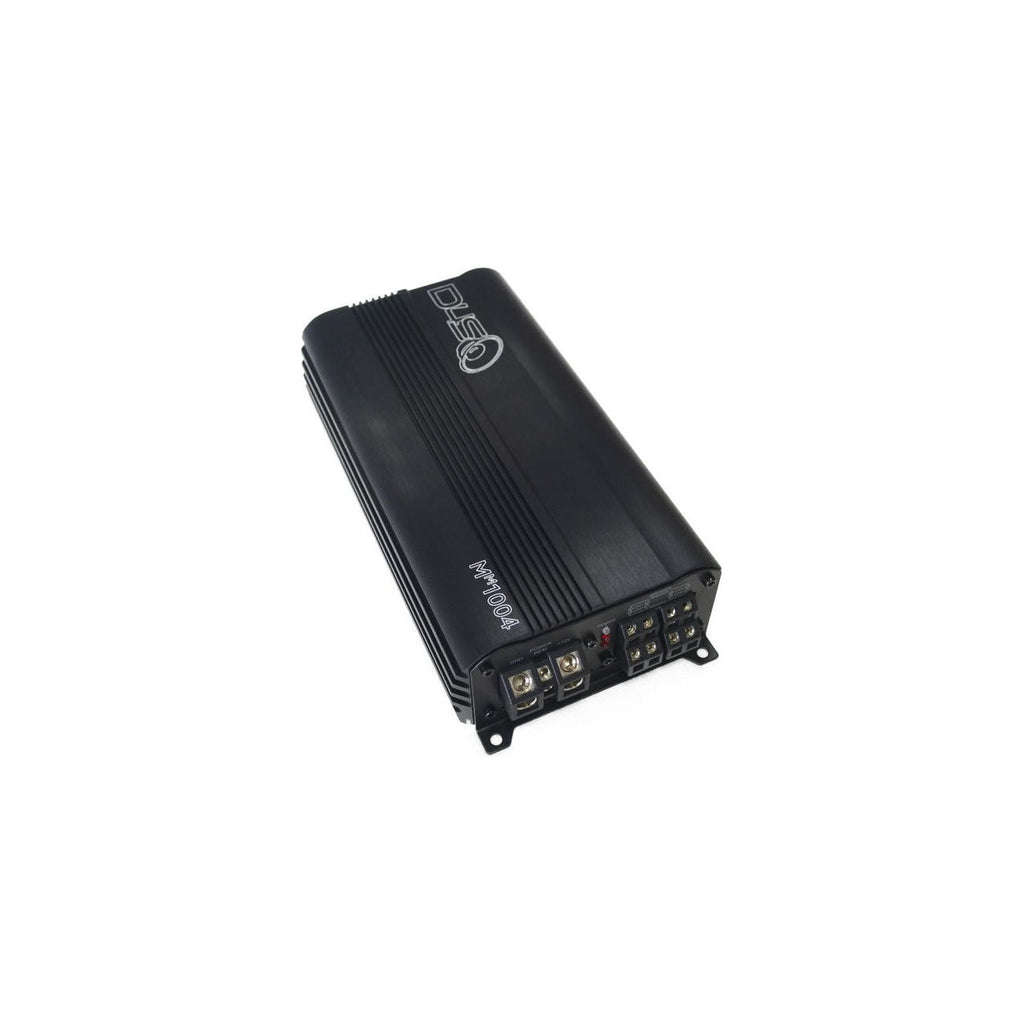

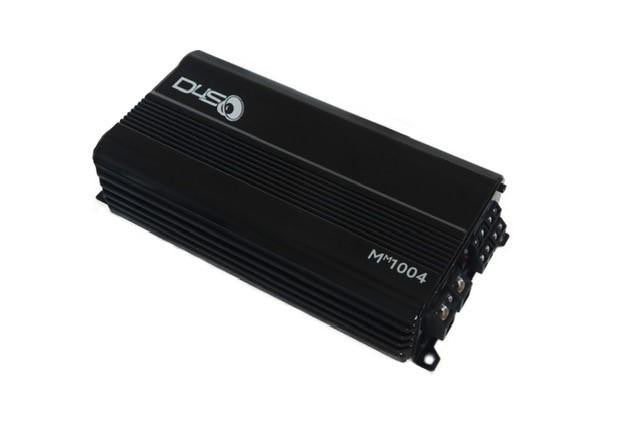

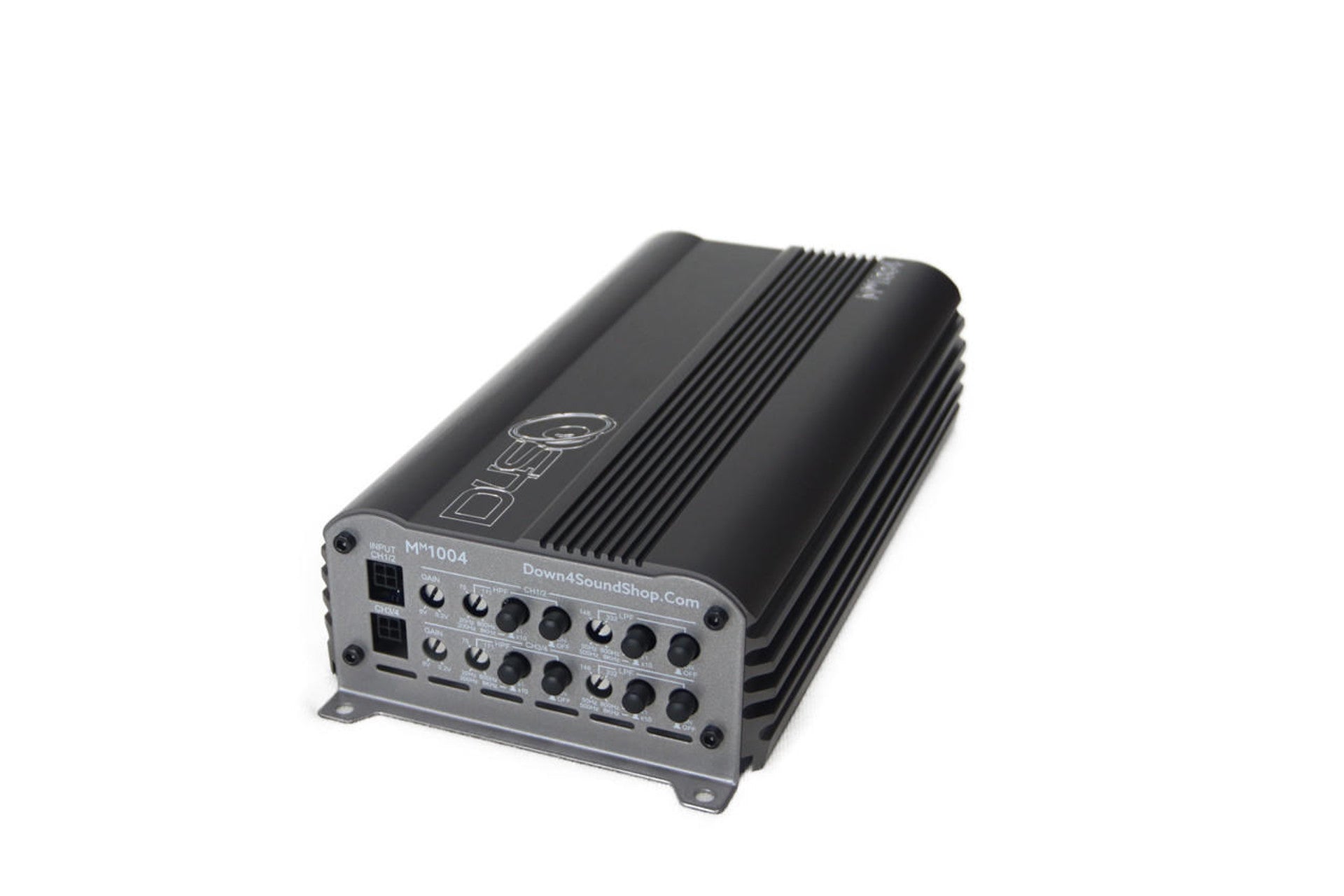

Down4Sound MM1004 MINI MAXX BLACK 4-Channel Amplifier 700 Watts

No reviews

Price:
Sale price$149.99
Stock:
Sold out

Payment & Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Unleash the sound of music to it full potential with the MM1004 a BLACK MINI 4-Channel Amplifier

Designed to be compact with band-passable crossovers X1 & X10, this dynamic amplifier allows you to run mids and highs on one channel and bass on the other, or bi-amplify the 4 channels differently for a customizable listening experience.

**Technical Specifications:**

  • 4ohm rms power : 100W x 4ch
  • 2ohm rms power : 150W x 4ch
  • 4ohm rms bridged power : 300W - 350W x 2ch Tested at 14,4V & 1% THD (RANGE).
  • Frequency response : 10Hz –23.8KHz
  • Signal to noise : 93dB Damping factor : 100
  • Input sensitivity : 6V –0.2V

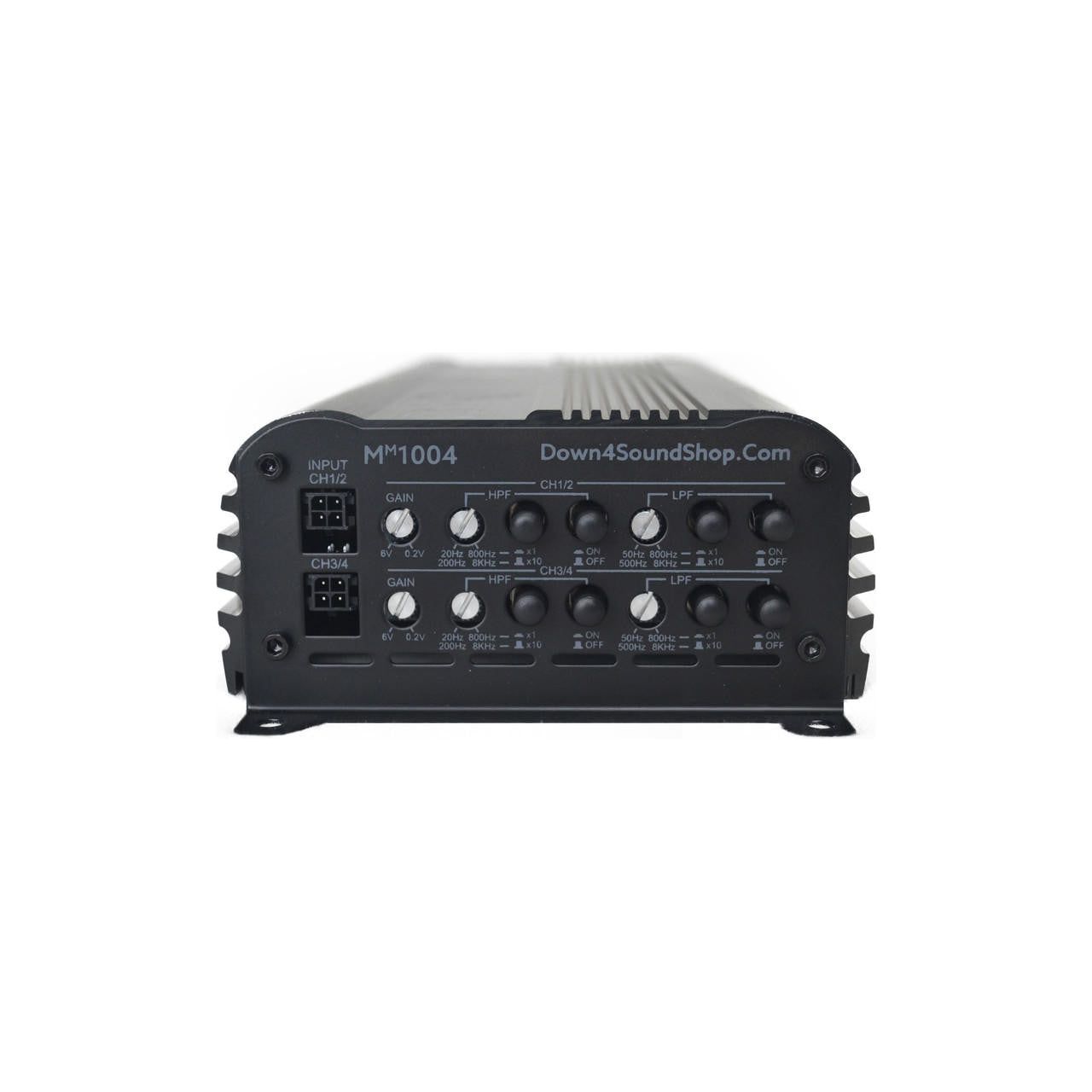

  • CH1/2 High Pass Filter : 20Hz –800Hz
  • HighPass multiply : x1, x10 ( 200Hz –8Khz )
  • Low Pass Filter : 50Hz –800Hz Low Pass multiply : x1, x10 ( 500Hz –8Khz ) Bandpass capable
  • CH3/4 High Pass Filter : 20Hz –800Hz
  • High Pass multiply : x1, x10 ( 200Hz –8Khz )
  • Low Pass Filter : 50Hz –800Hz Low Pass multiply : x1, x10 ( 500Hz –8Khz ) Bandpass capable

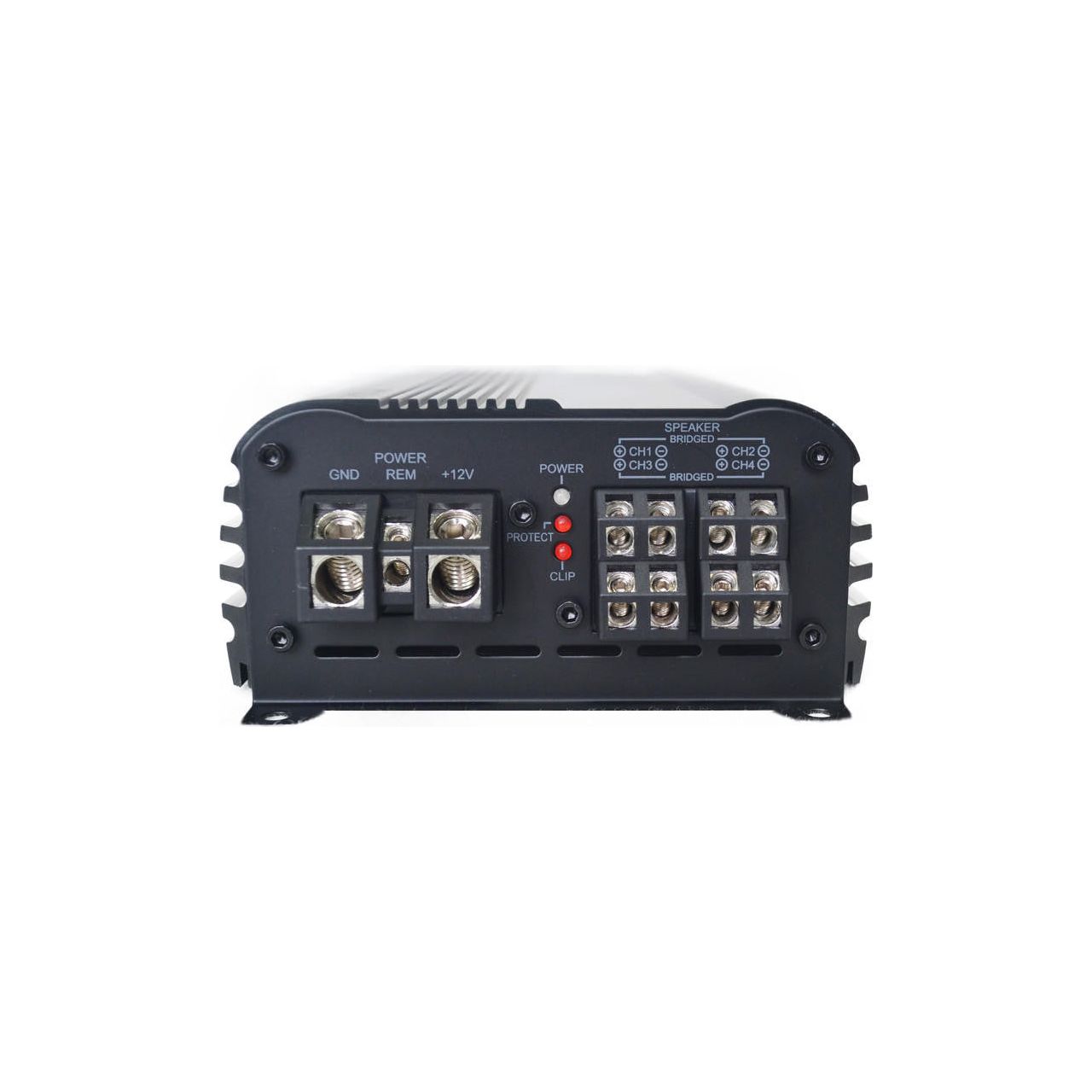

  • Clipping Indicator
  • Working voltage : 9 to 15.5Volts.
  • 4 GA Power & Ground Terminal
  • 14GA Speaker wire Terminal



Dimensions :

  • 220mm L x 123.9mm W x 54.3mm H
  • 8.66 x 4.87 x 2.13 inches
