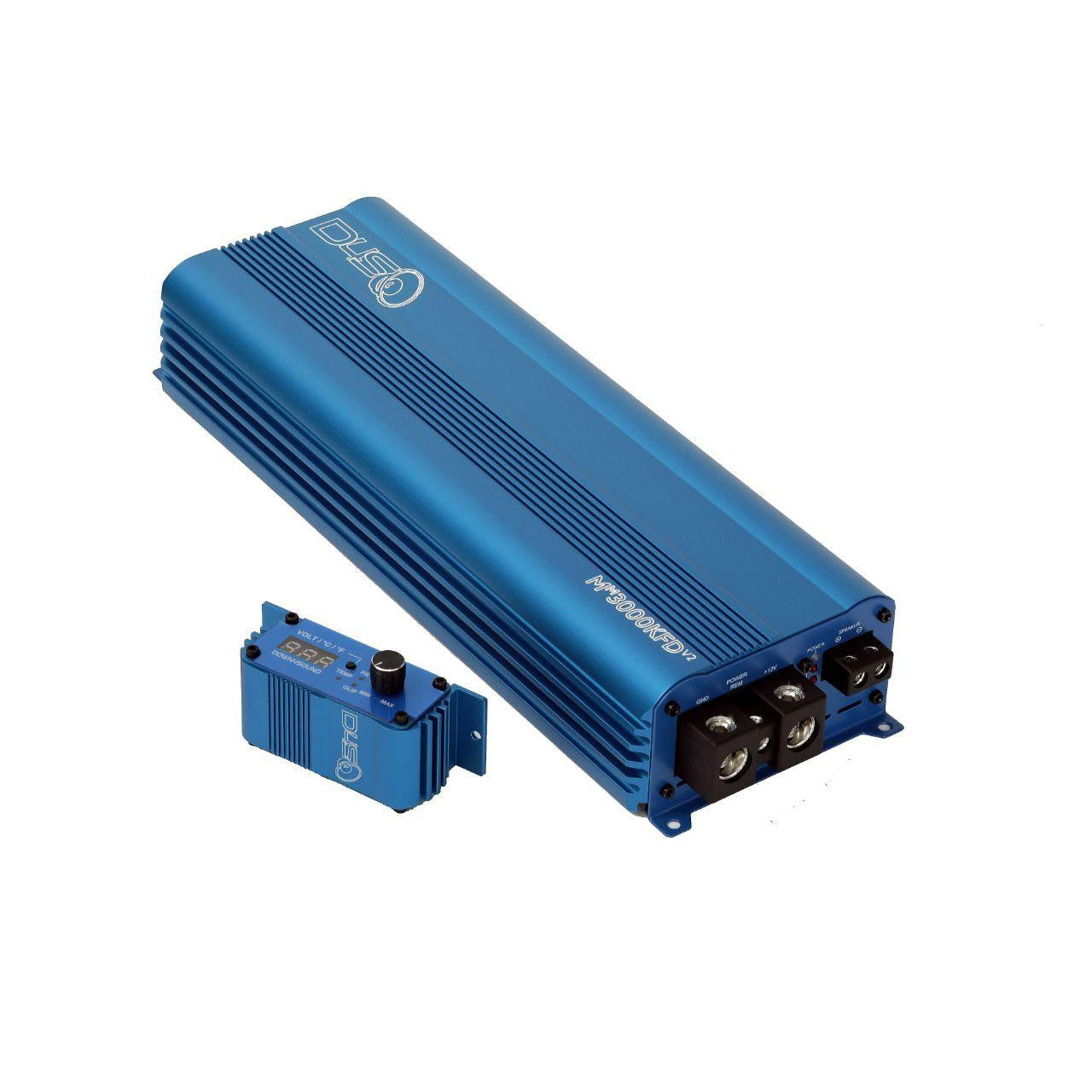

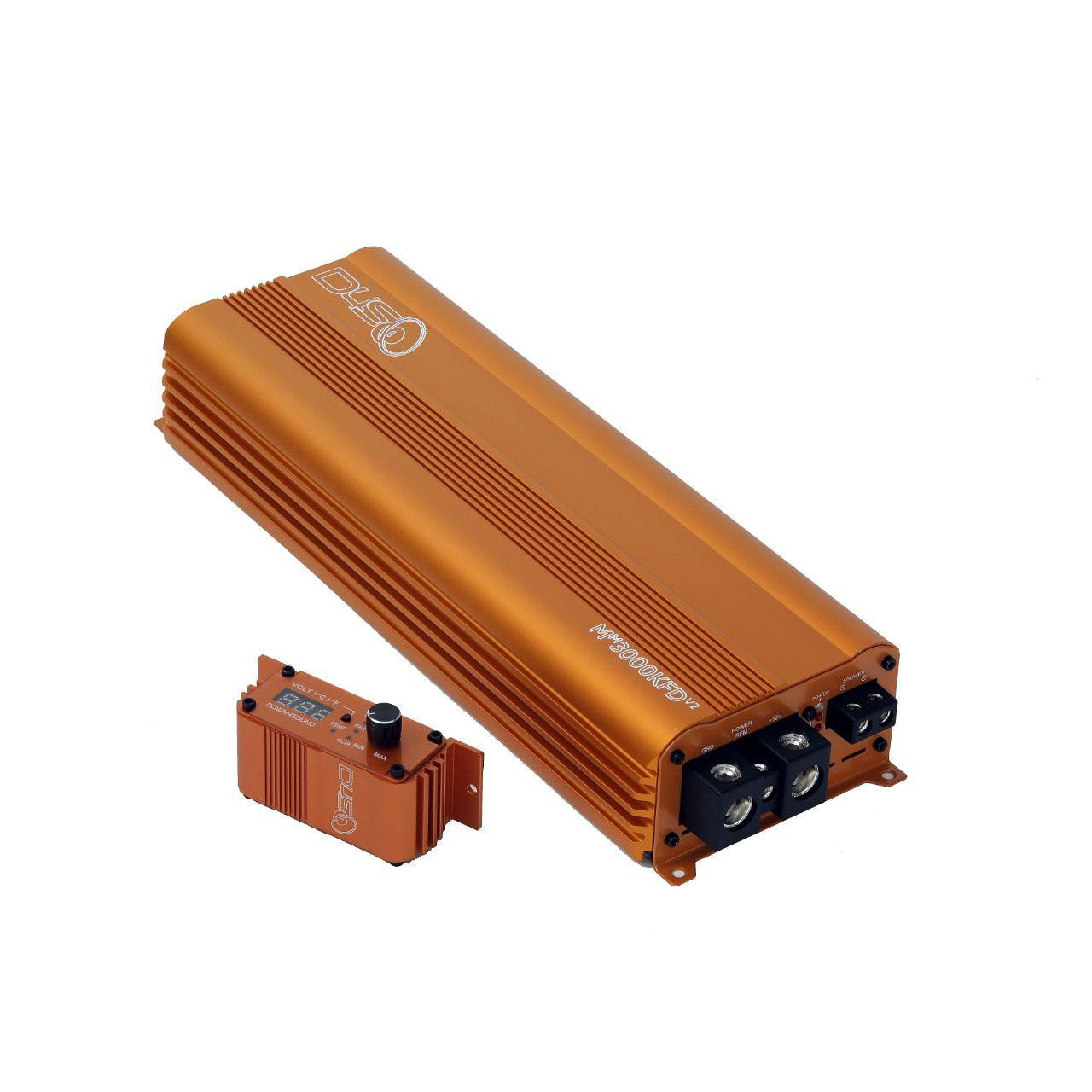

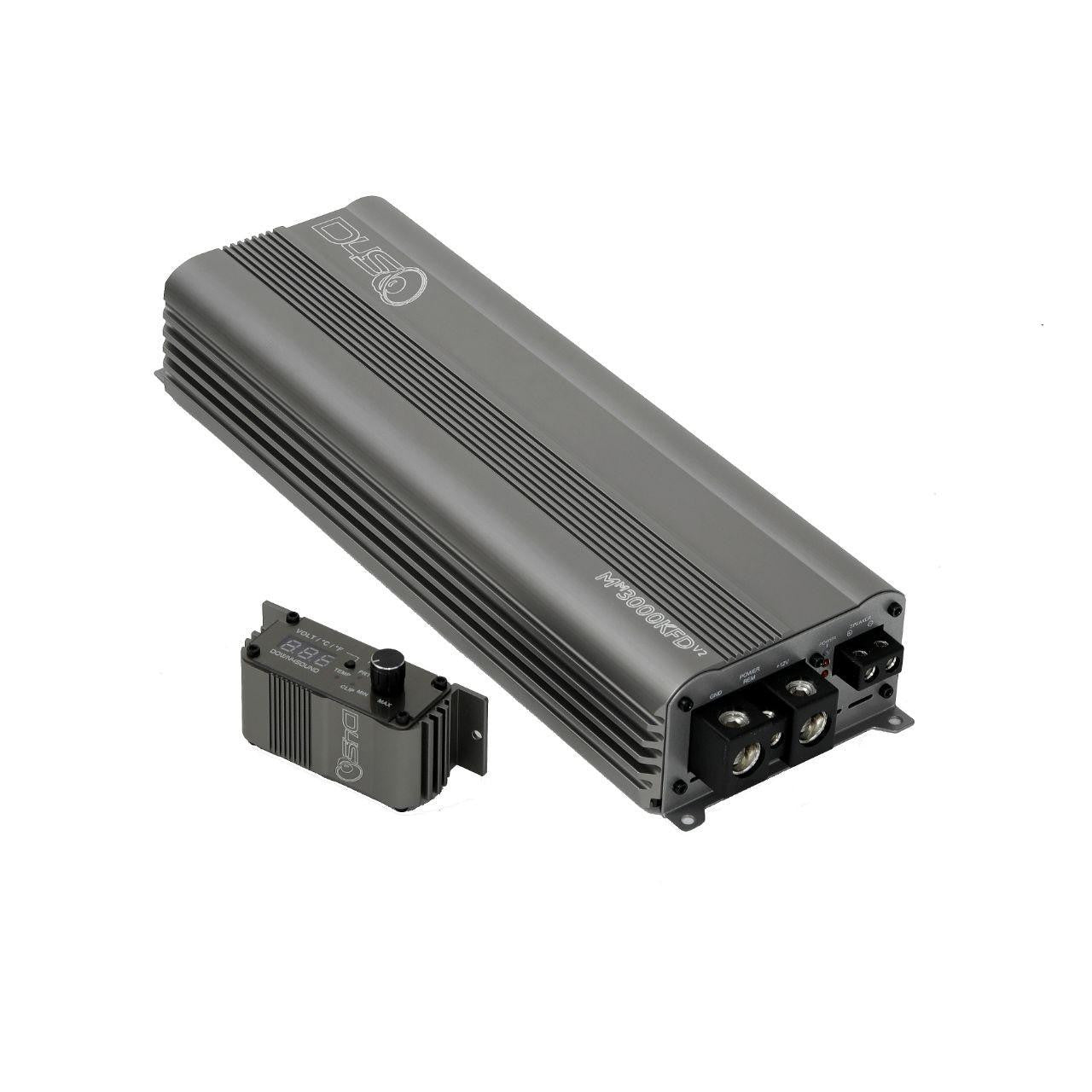

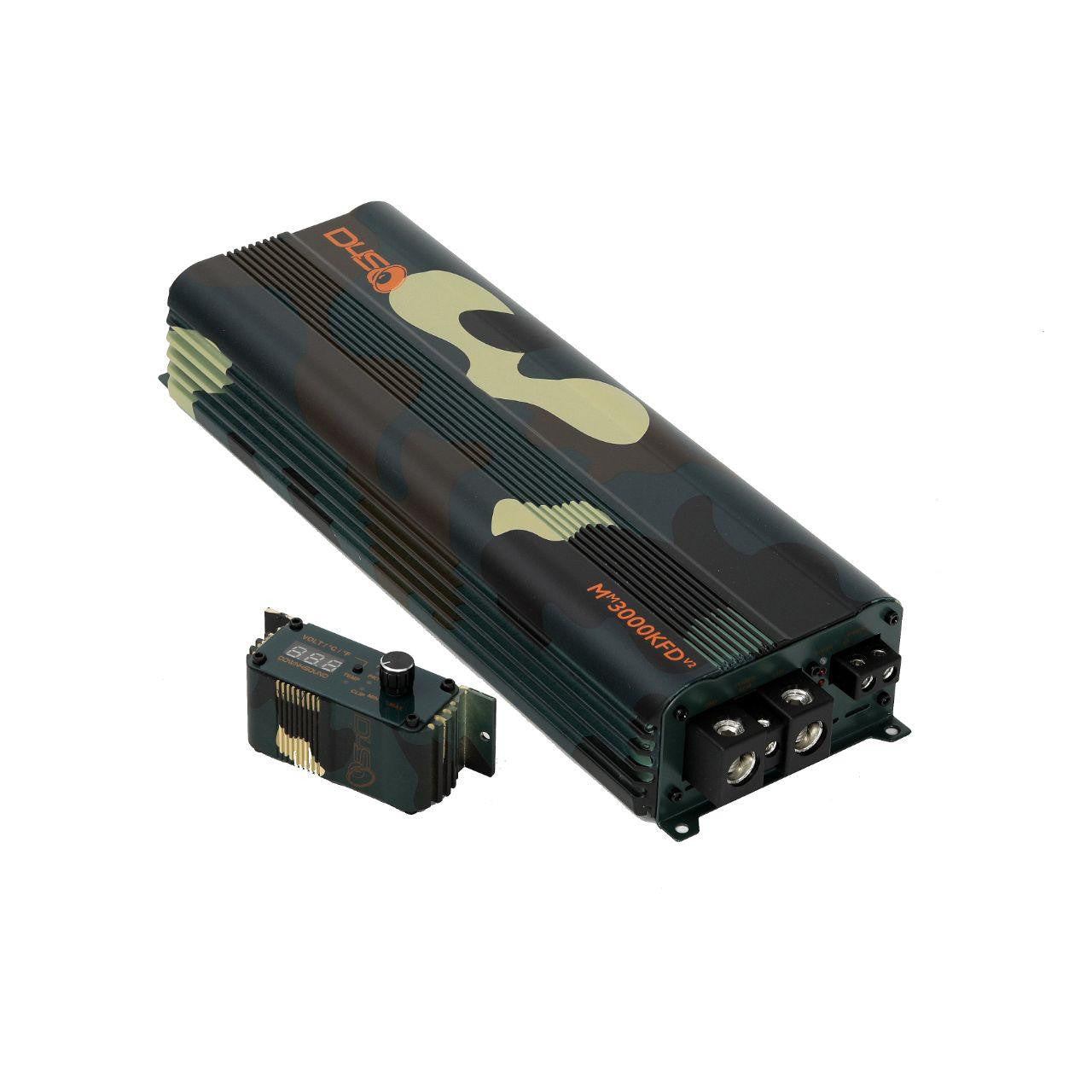

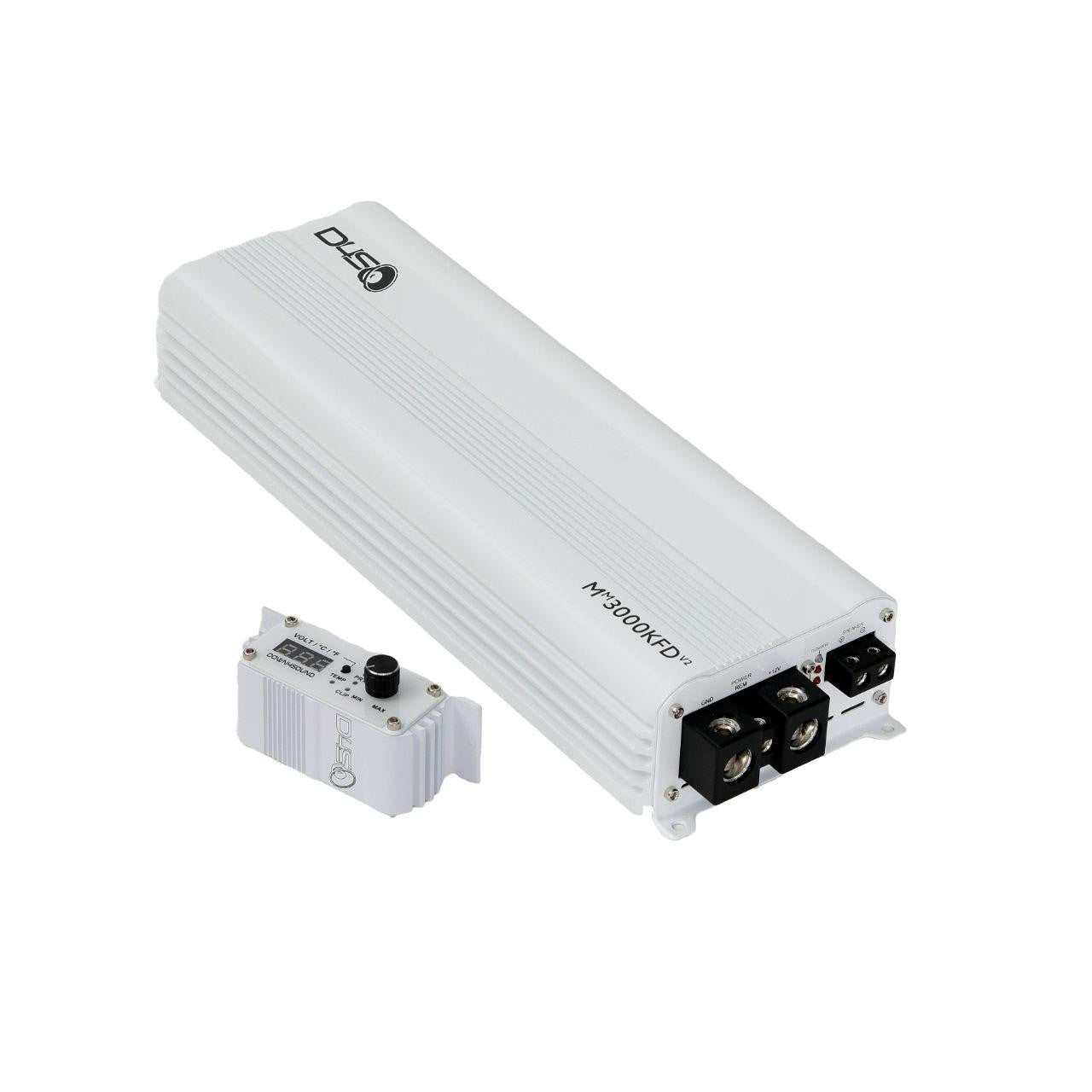

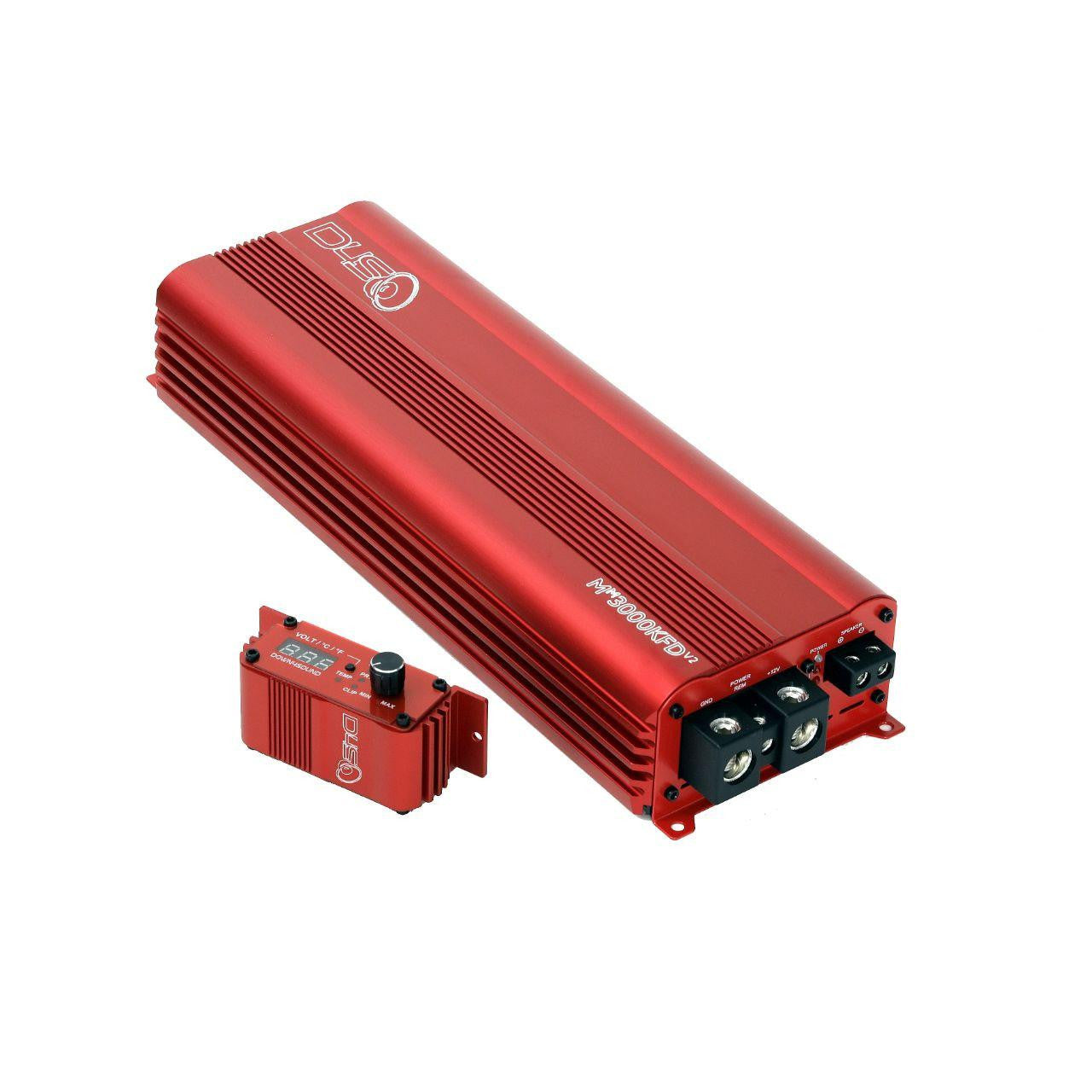

Down4Sound MM3000KFD V2 (MINI MAXX) 3000W RMS Mini Full Range Monoblock Amplifier

DOWN4SOUND MM3000KFD V2 Mini Maxx Monoblock Amplifier – 3000W RMS Full-Range Full Bridge Class D

The DOWN4SOUND MM3000KFD V2 Mini Maxx is a compact high-output full-range monoblock amplifier built for serious car audio systems that need big power without taking up big space. This full-bridge Class D amplifier delivers up to 3000W RMS at 1 ohm, making it a strong choice for subwoofers, midbass drivers, pro audio speakers, and custom high-output audio systems.

Designed with a small footprint, wide tuning control, and strong output capability, the MM3000KFD V2 gives builders the flexibility to power bass systems, loud front stages, midbass setups, and full-range applications where clean output and efficient power delivery matter.

The MM3000KFD adds a clean, high-shine finish that gives the amplifier a stealthy, professional look while matching a wide range of custom car audio installs.

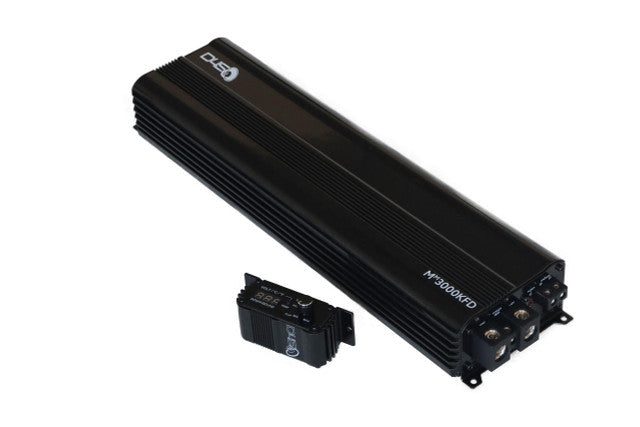

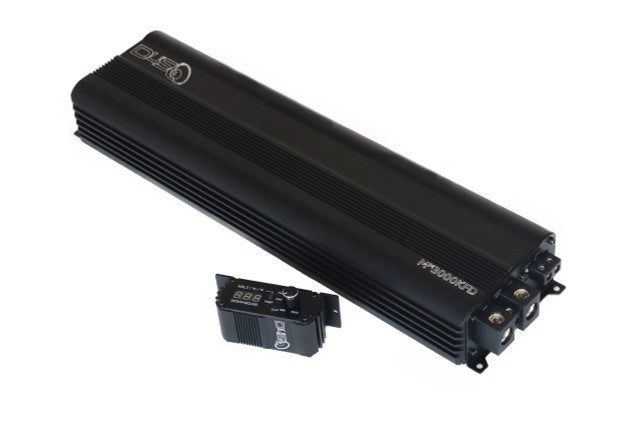

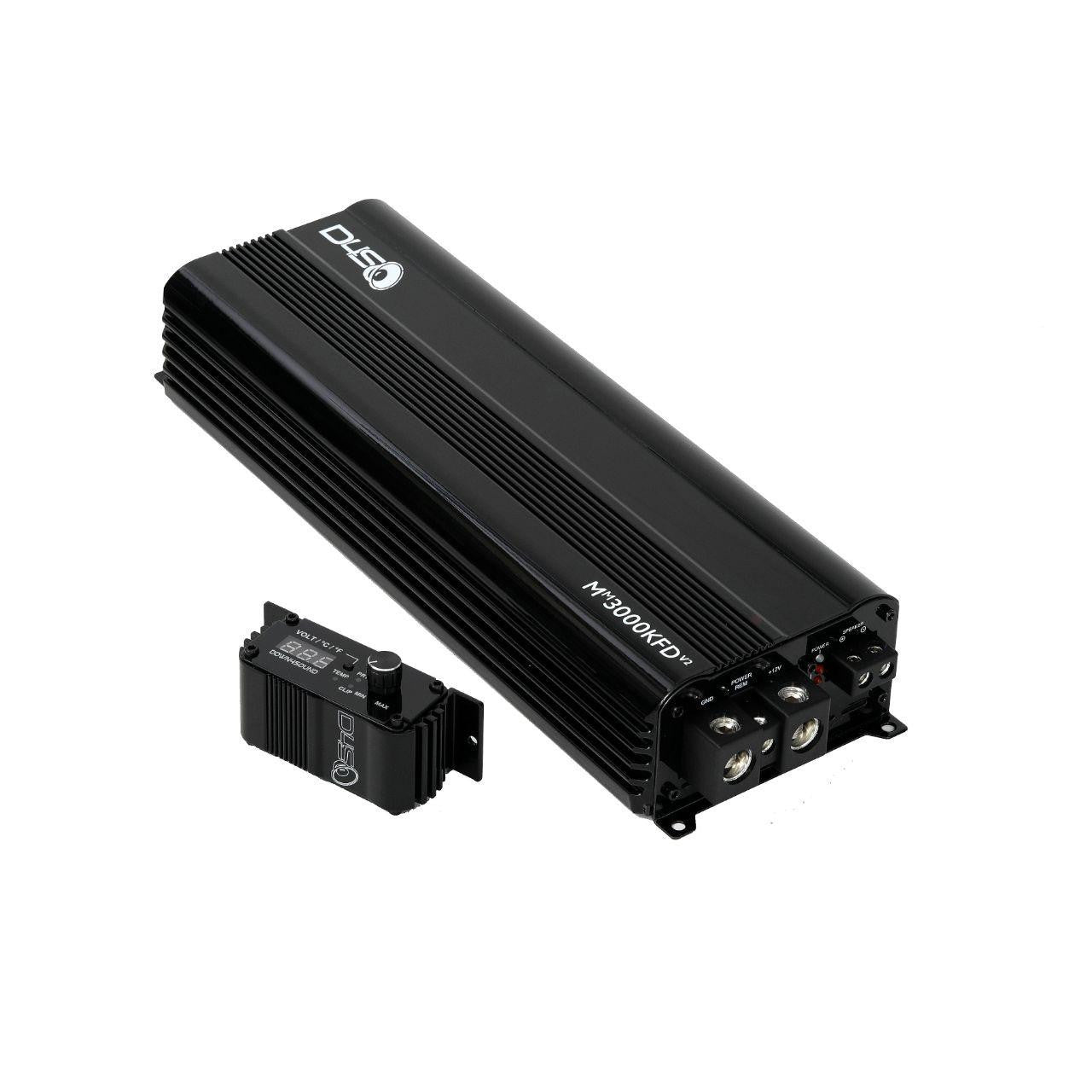

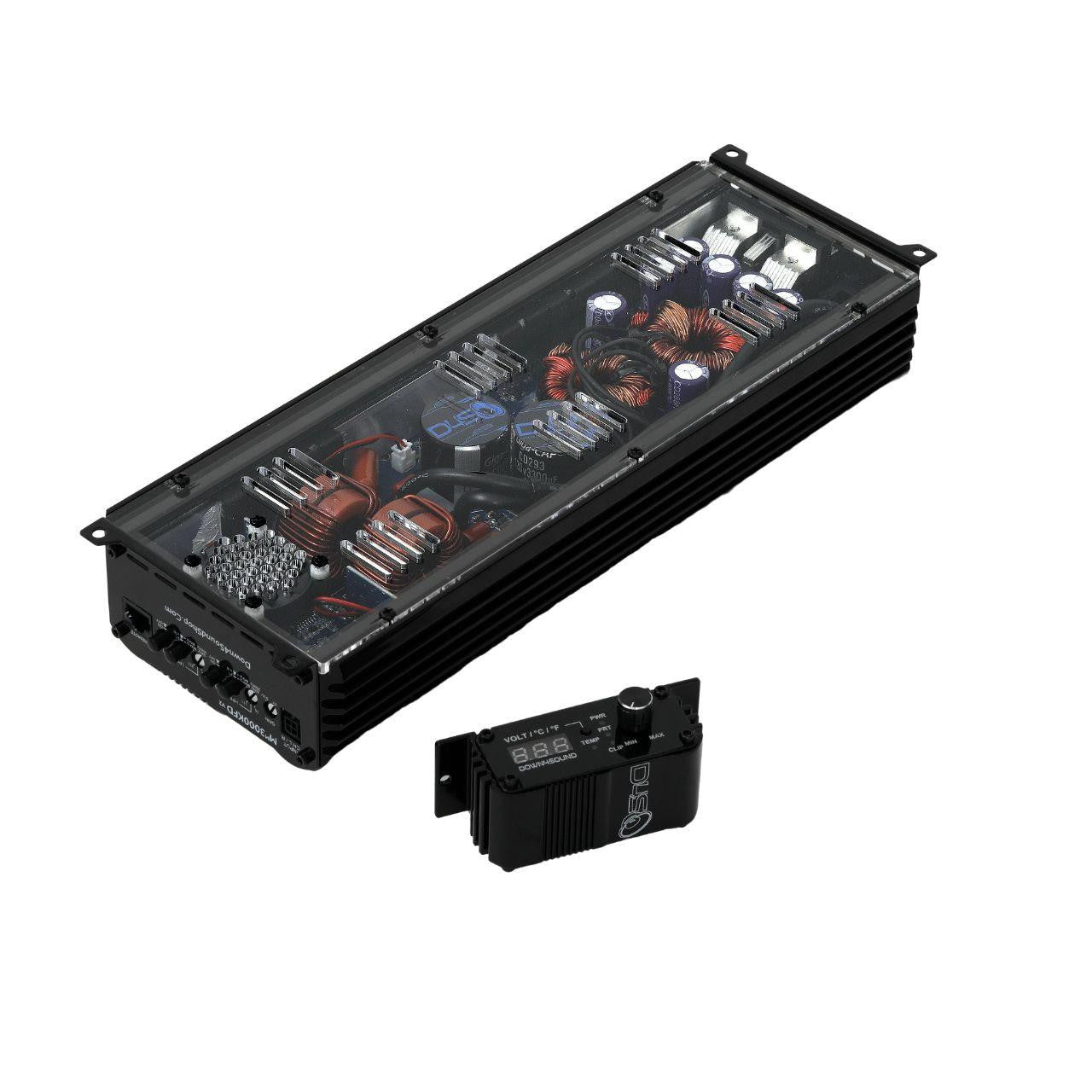

Black Gloss Finish

• Deep gloss-black housing for a clean, premium appearance
• Stealth-style finish that blends into custom installs
• Show-ready look for daily drivers, demo vehicles, and full audio builds

The Black Gloss finish gives the MM3000KFD V2 a clean, professional appearance without taking attention away from the rest of your system.

Power Output

• 1 x 3000W RMS @ 1 Ohm
• 1 x 2300W RMS @ 2 Ohms
• 1 x 1400W RMS @ 4 Ohms

Power ratings are tested at 14.4V, 1% THD, and 1kHz. The full-range Class D circuit design helps deliver strong output with efficient power delivery in a compact chassis.

• Full-range design for flexible car audio system applications
• Band-pass capable for advanced system tuning
• 500 damping factor for tight and controlled output

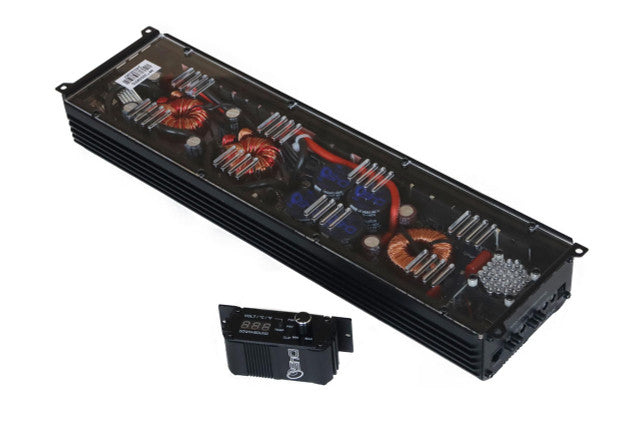

• Compact full-bridge design for high-output car audio systems

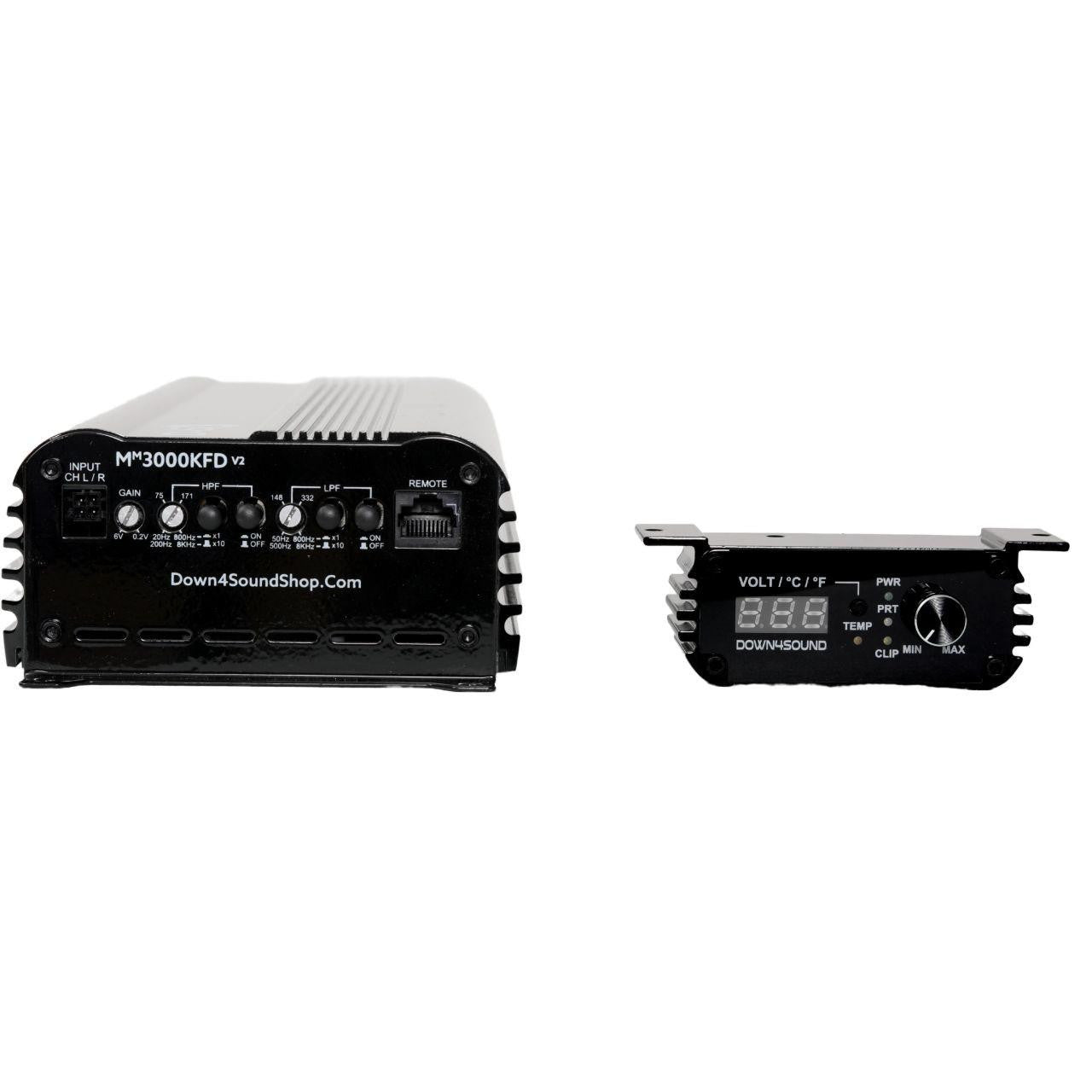

Precision Crossovers

• Adjustable HPF: 20Hz–800Hz
• HPF multiply: x1 / x10 for extended range adjustment
• Adjustable LPF: 50Hz–800Hz
• LPF multiply: x1 / x10 for extended range adjustment
• 41-click potentiometers for precise HPF and LPF tuning
• Band-pass capable using onboard crossover controls

The onboard crossover section gives installers more control when dialing in subwoofers, midbass drivers, pro audio speakers, or custom full-range system layouts that need more precise filtering.

Compact High-Output Design

• 12.99" x 4.88" x 2.25"
• 330 x 124 x 57.3 mm
• Small footprint for tight installs and custom layouts
• High-output design for serious car audio performance

The Mini Maxx platform is built for systems where space is limited but output still matters.

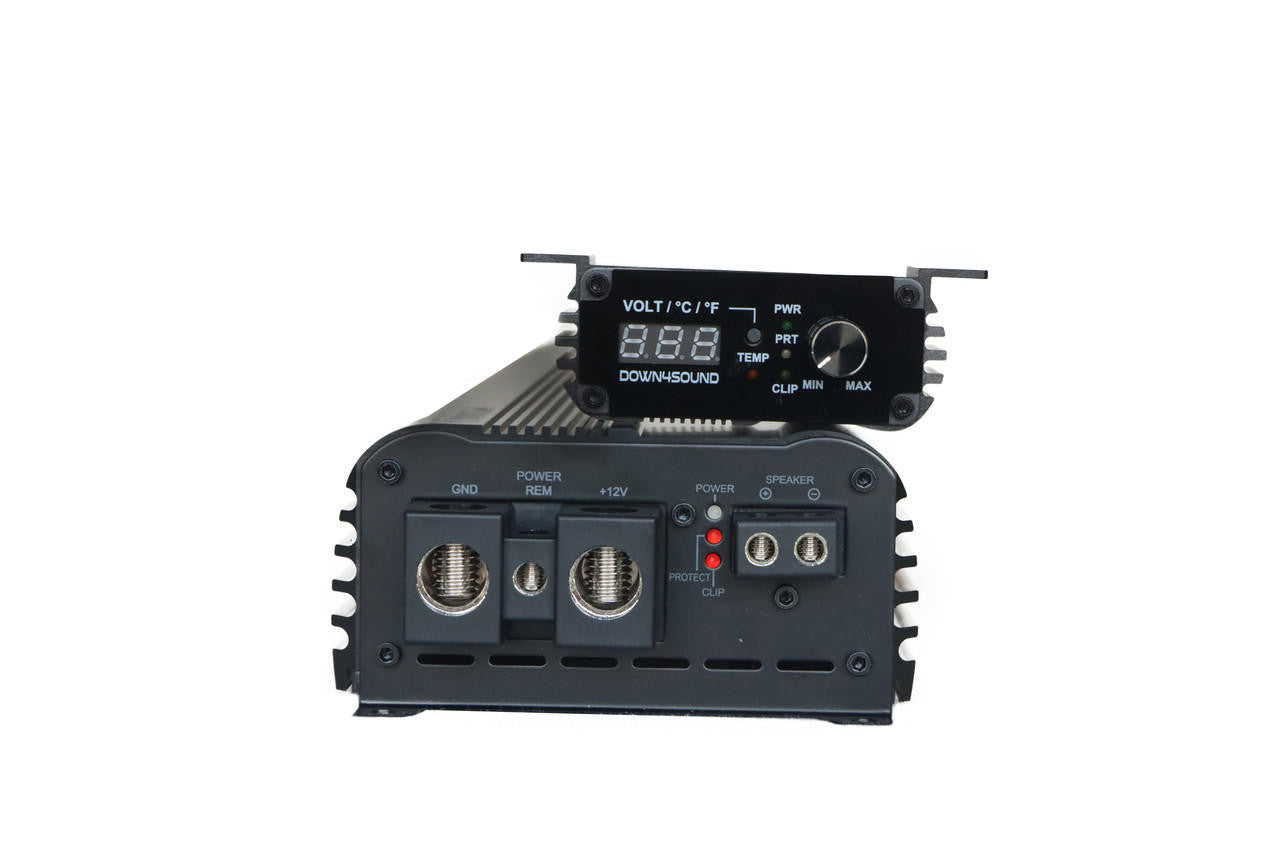

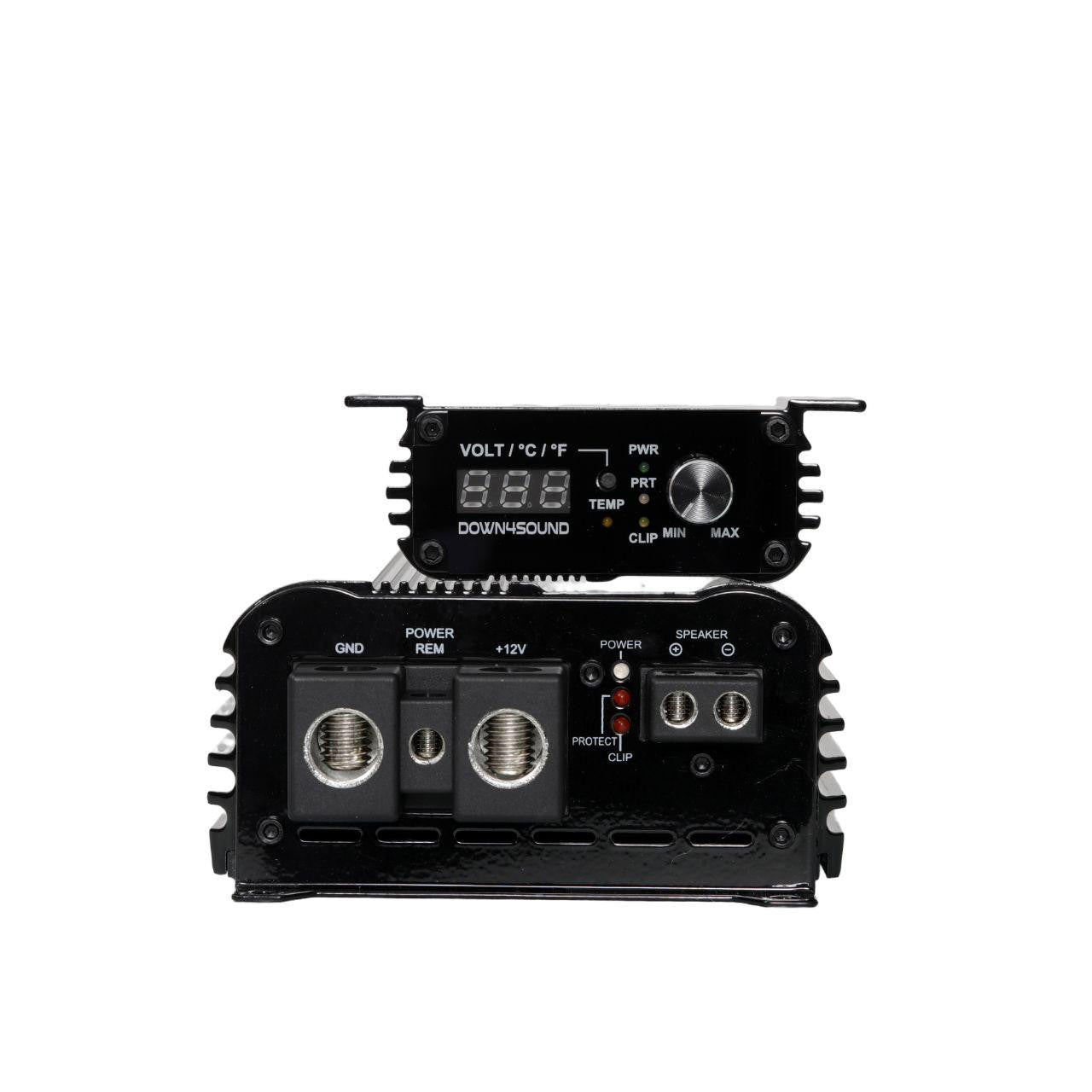

Remote Control & Monitoring

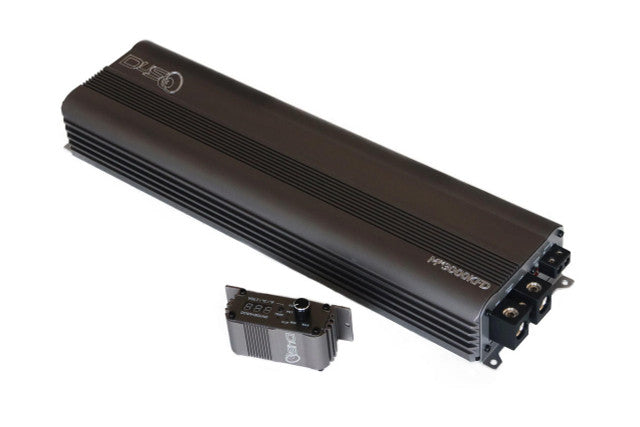

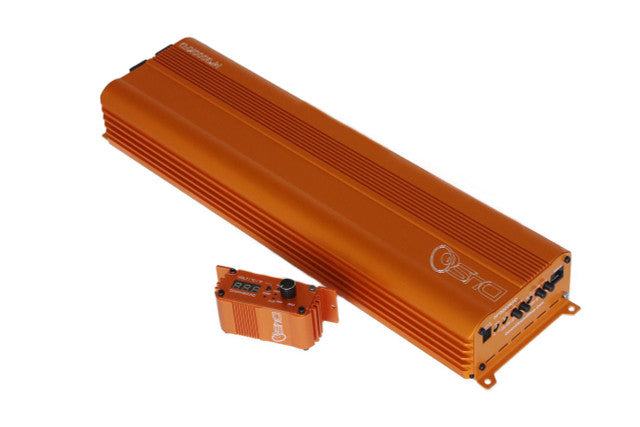

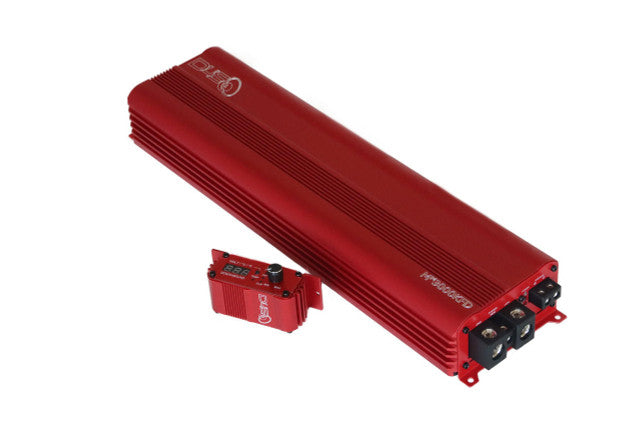

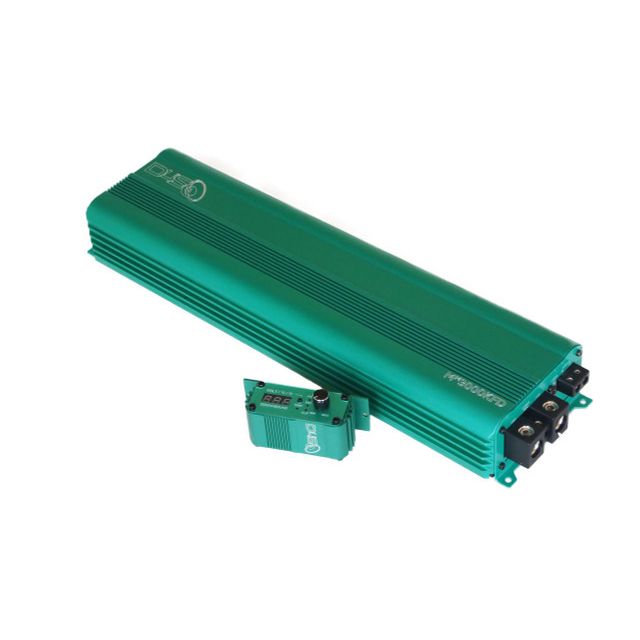

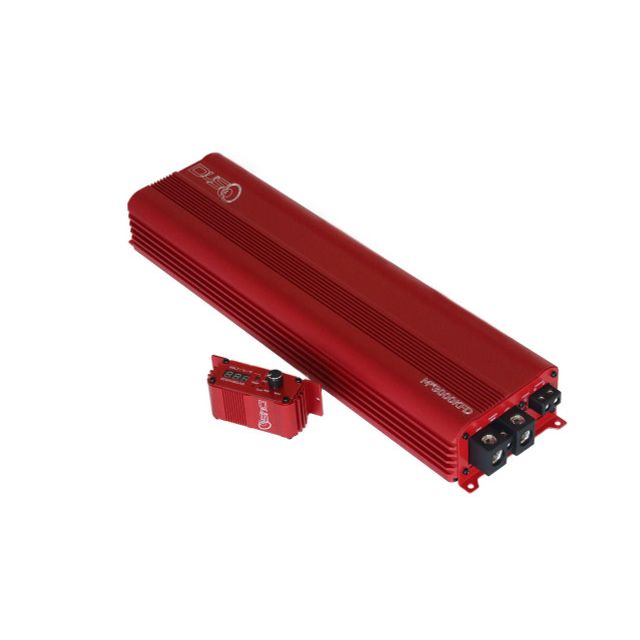

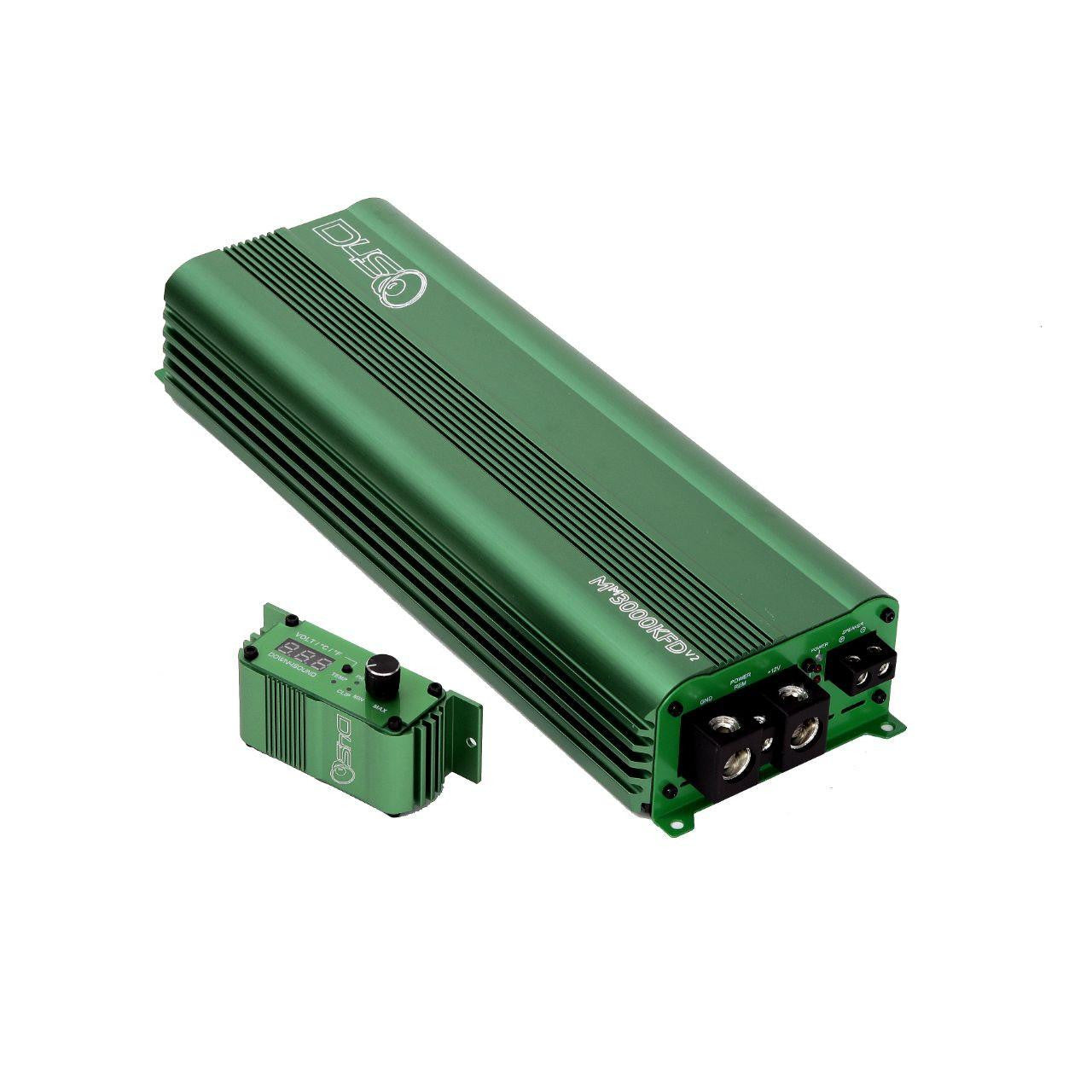

• Includes remote control with real-time voltage display
• Remote control also displays amplifier temperature
• Onboard clipping indicator
• Thermal and clipping status monitoring for safer system tuning

Technical Specifications

• Power Class: 3000W RMS
• Channels: 1 Channel Monoblock
• Amplifier Design: Full-Range Full Bridge Class D
• Frequency Response: 10Hz–20.2kHz
• Signal-to-Noise Ratio: 91dB
• Damping Factor: 500
• Input Sensitivity: 6V–0.2V
• High Pass Filter: 20Hz–800Hz, x1 / x10
• Low Pass Filter: 50Hz–800Hz, x1 / x10
• Working Voltage: 9V–15.5V
• Maximum Output Reference: Up to 4700W @ 1 Ohm at 16V
• Dimensions: 330 x 124 x 57.3 mm / 12.99" x 4.88" x 2.25"

Important Compatibility Note

The MM3000KFD V2 is not strap-compatible. Do not strap this amplifier with another MM3000KFD V2, a V1 model, or any other amplifier.

Add the DOWN4SOUND MM3000KFD V2 Mini Maxx to your system when you need compact size, serious output, and full-range amplifier flexibility in one powerful package.
