Description
The DOWN4SOUND TCX 15” Subwoofer D1 is designed to take bass performance to the next level. Whether you’re pushing limits in the lanes or slamming the streets in a daily setup, this 2700W RMS sub is built to hit hard, stay cool, and deliver clean low-frequency output every time.

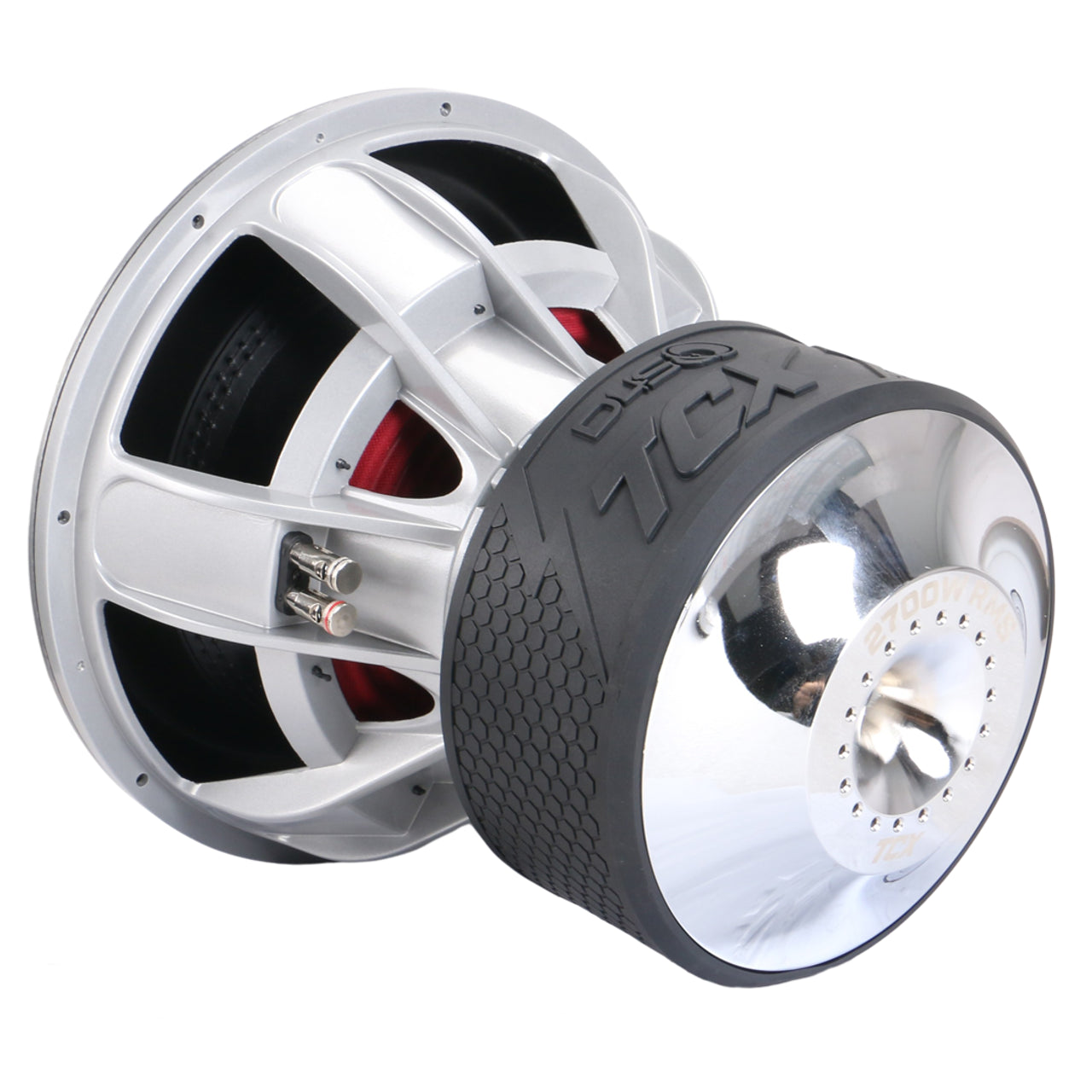

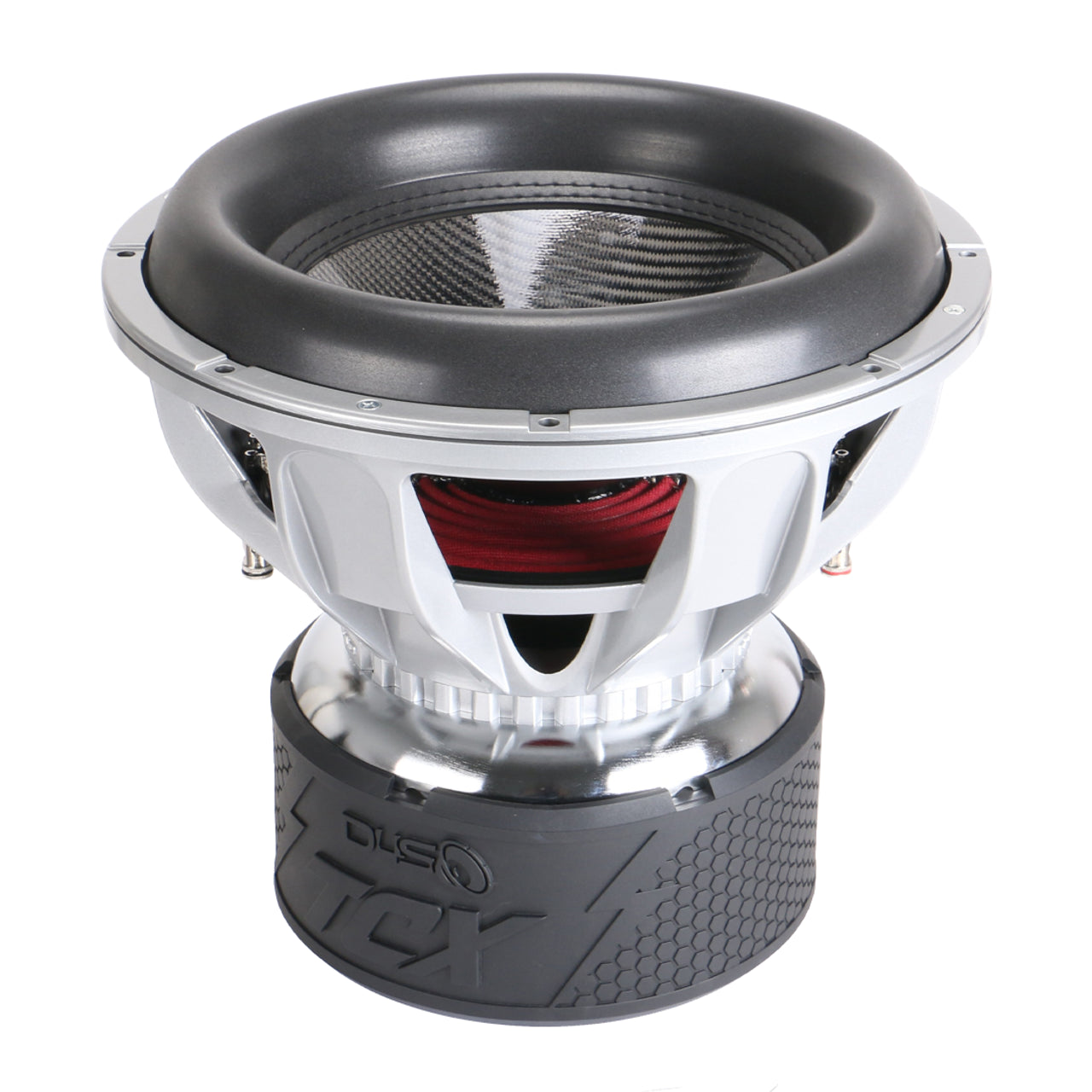

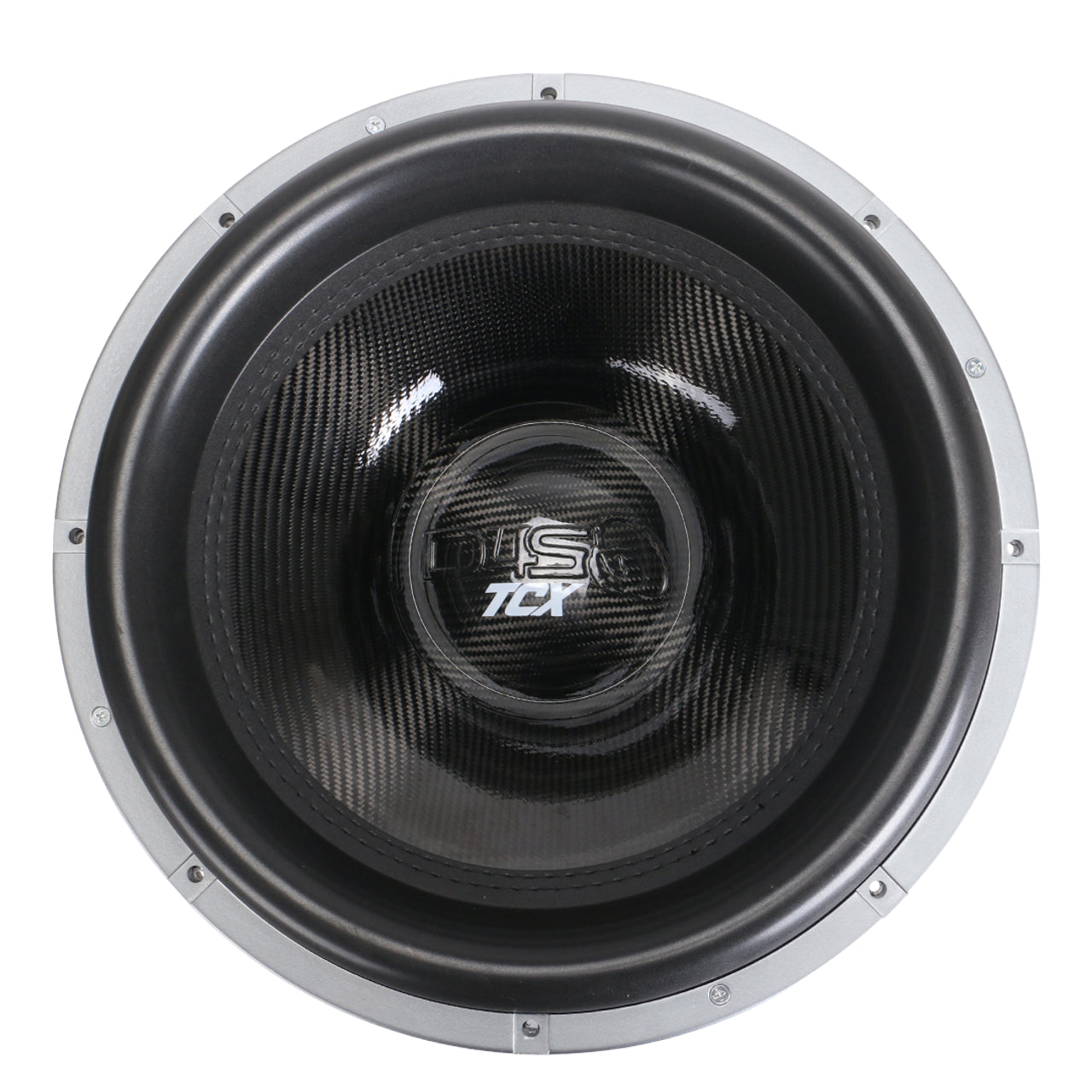

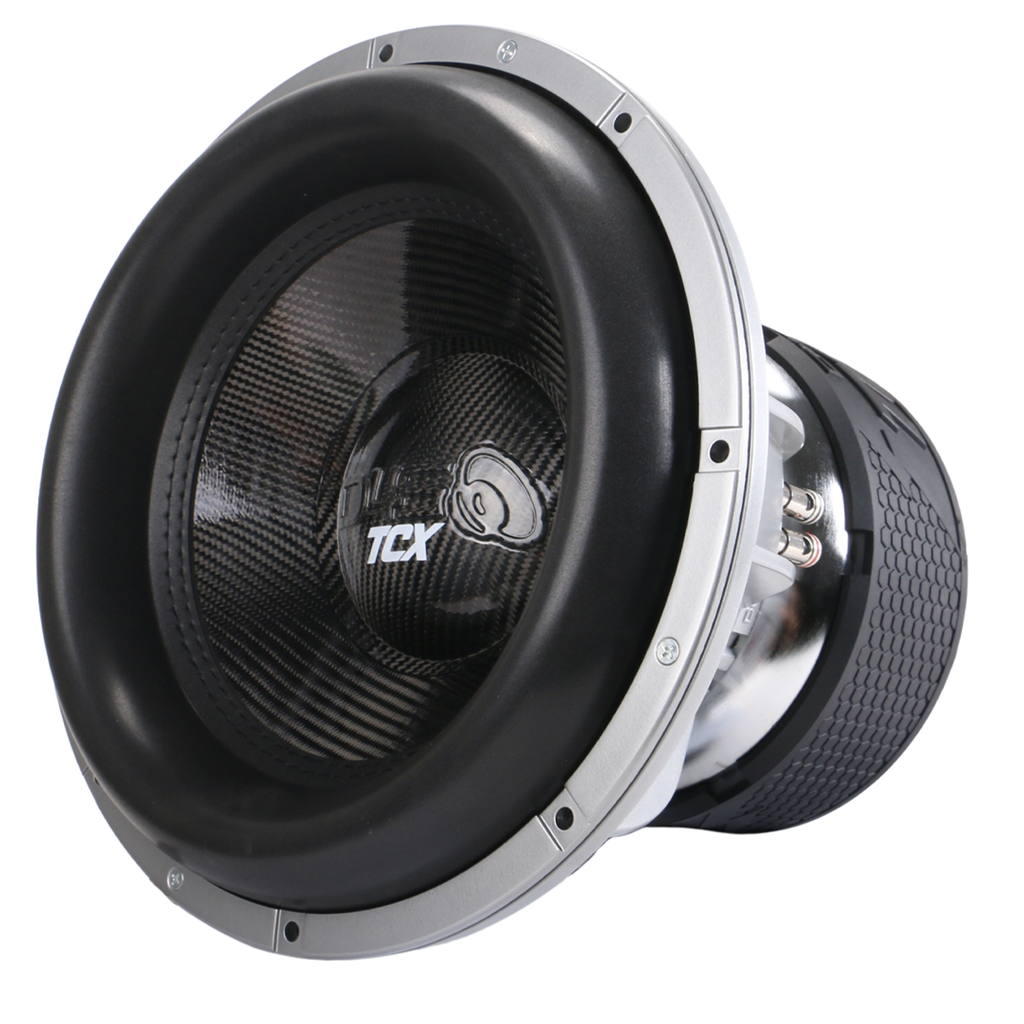

At the core of the TCX-15 is a 3-inch 8-layer flat aluminum voice coil, a carbon fiber cone, and a 5-stack Y35 ferrite motor. Together, this combination delivers extreme excursion, superior coil cooling, and high-pressure output — without compromise.
QUICK NOTES
- RMS Handling: 2700W RMS
- Coil Size: 3 Inch – 8 Layer Flat Aluminum
- Impedance: Dual 1 Ohm (D1)
- Cutout Diameter: 14.05 inches / 357 mm
- Mounting Depth: 10.0 inches / 254 mm
- Weight: ~75 lbs
- Xmax: ~35 mm (one-way)
- Motor Size: 240 mm (9.45 in)
- Extended pole piece for full excursion control
- Dual flared pole vent for improved coil airflow
- Full backplate and gap venting for long play sessions without thermal fade
PRECISION ENGINEERING
- With a BL product over 28 T·m and a linear, reinforced suspension system, the TCX-15 D1 maintains cone alignment and output at high levels of power and excursion. The 8-layer coil construction maximizes heat dissipation and current handling under extreme loads, while the carbon fiber cone delivers responsive, distortion-free performance.
- Ideal for both aggressive daily builds and professional demo applications, this D1 configuration gives you flexibility for low impedance amp wiring and full system optimization.
TECHNICAL SPECIFICATIONS
- Resonance Frequency (Fs): 28.9 Hz
- Total Moving Mass (Mms): ~608.7 g
- Suspension Compliance (Cms): ~49.8 μm/N
- Equivalent Volume (Vas): ~37.7 L
- Sensitivity (SPL): 84.3 dB @ 1W / 90.5 dB @ 2.83V
- Qms (Mechanical Q): 4.91
- Qes (Electrical Q): 0.50
- Qts (Total Q): 0.46
- Outside Diameter: 15.50 in (394 mm)
- Displacement: ~0.22 cu ft
RECOMMENDED ENCLOSURE
- Ported Box Volume: 3.25 – 4.0 cu ft
- Tuning Frequency: 30–32 Hz
The TCX-15 D1 offers serious bass performance and full system flexibility in one high-output package.
