| Nominal Diameter | 6.5" |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150 Watts |
| MAX Power Handling | 450 Watts |
| Sensitivity (1w/1m) | 93 dB |
| Frequency Response | 70Hz - 21KHz |
| Recommended HI Pass Crossover | 90 Hz |
| Body / Features | |
| Enclosure Material | Injection PC+ABS |
| Marine Grade Type | IP65 + UV Stable |
| RGB LED | Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker |
| Grill Type | ABS+316 Stainless Metal Mesh |

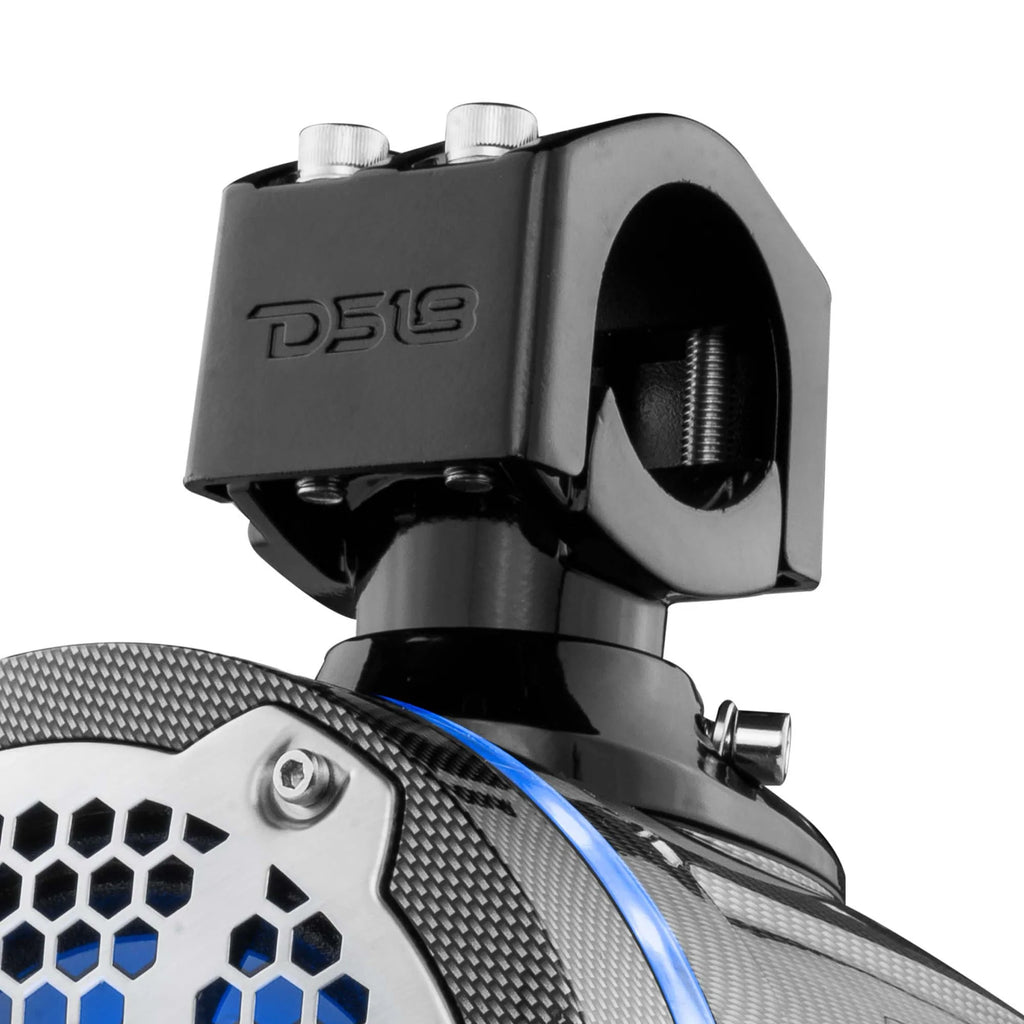

| Clamps | Die-Cast adjustable (1" ~ 2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws,Stop Washers,Hexagon wrench, Safety Rope,Screw fastening Glue) |
| Front Logo | Can be Rotated For Correct Angle Display |
| Rear Logo | Radiator Fixed Position |
| Finish | Gloss Black Carbon Fiber Texture |
| Woofer Specifications | |
| Voice Coil Diameter | 1.5" |
| Cone Material | Waterproof Compress Paper+Carbon Fiber |
| Surround Material | Soft PC Damping Glued |
| Basket Material | PC Injection Molded Composite |
| Magnet Material | Neodymium |
| Magnet Grade | N40H |
| Passive Radiator | 3.5" With LED RGB Light |
| Tweeter Specifications | |
| Voice Coil Diameter | 1" |
| Type | Compression Driver with CNC Solid Aluminum Horn |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Crossover | 12dB with Over Power Protection |
| Thiele & Small Parameters | |
| Equivilant Volume | Vas 8.5 L |
| Excursion (one way) | Xmax 3 mm |
| Free Air Resonance | Fs 75 Hz |
| Total Factor | Qts 0.783 |
| Speaker Measurements | |
| Overall Diameter | 6.93" / 176.1mm |
| Overall Depth | 11.42" / 290.2mm |
| Overall Height | 10.7" / 271.7mm |
