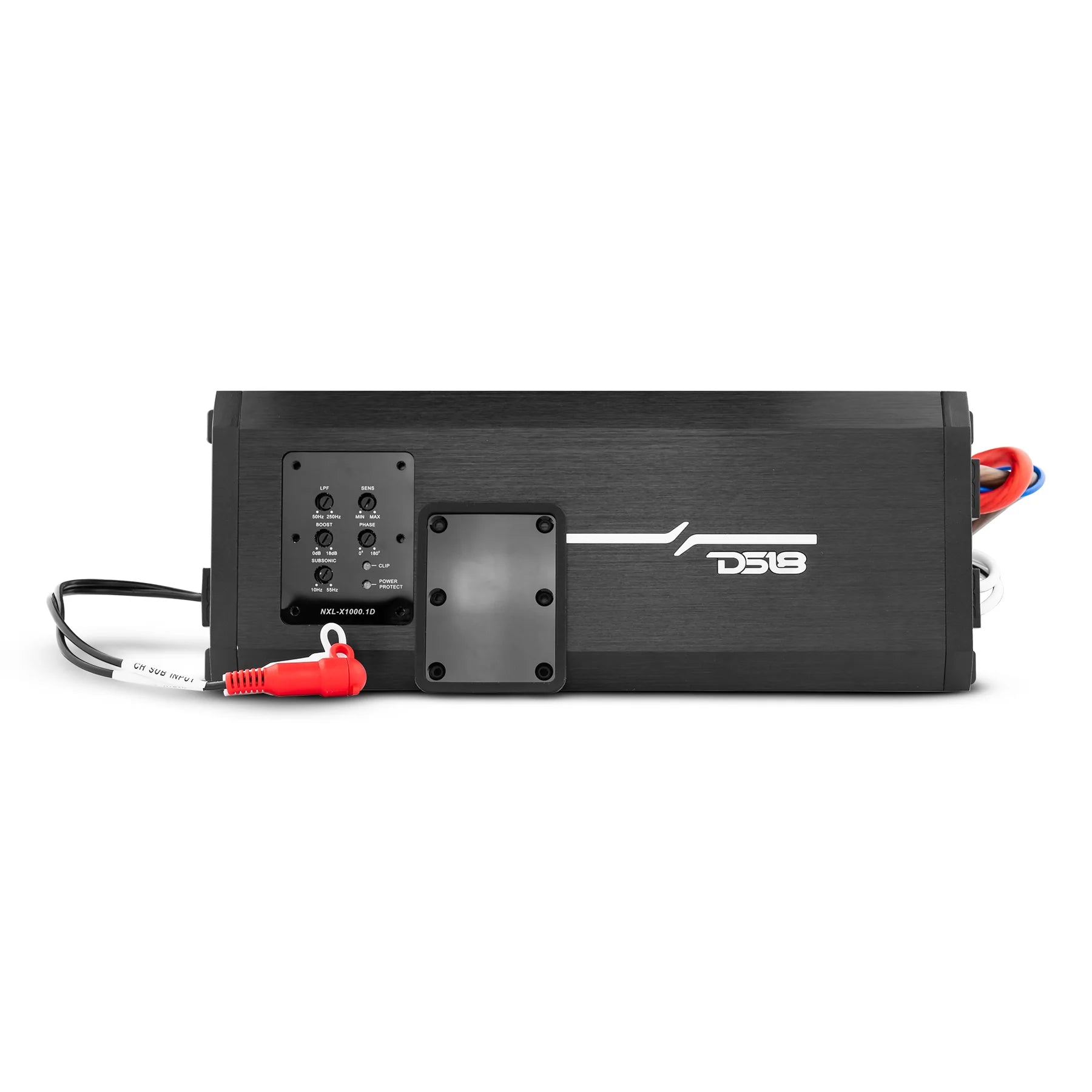

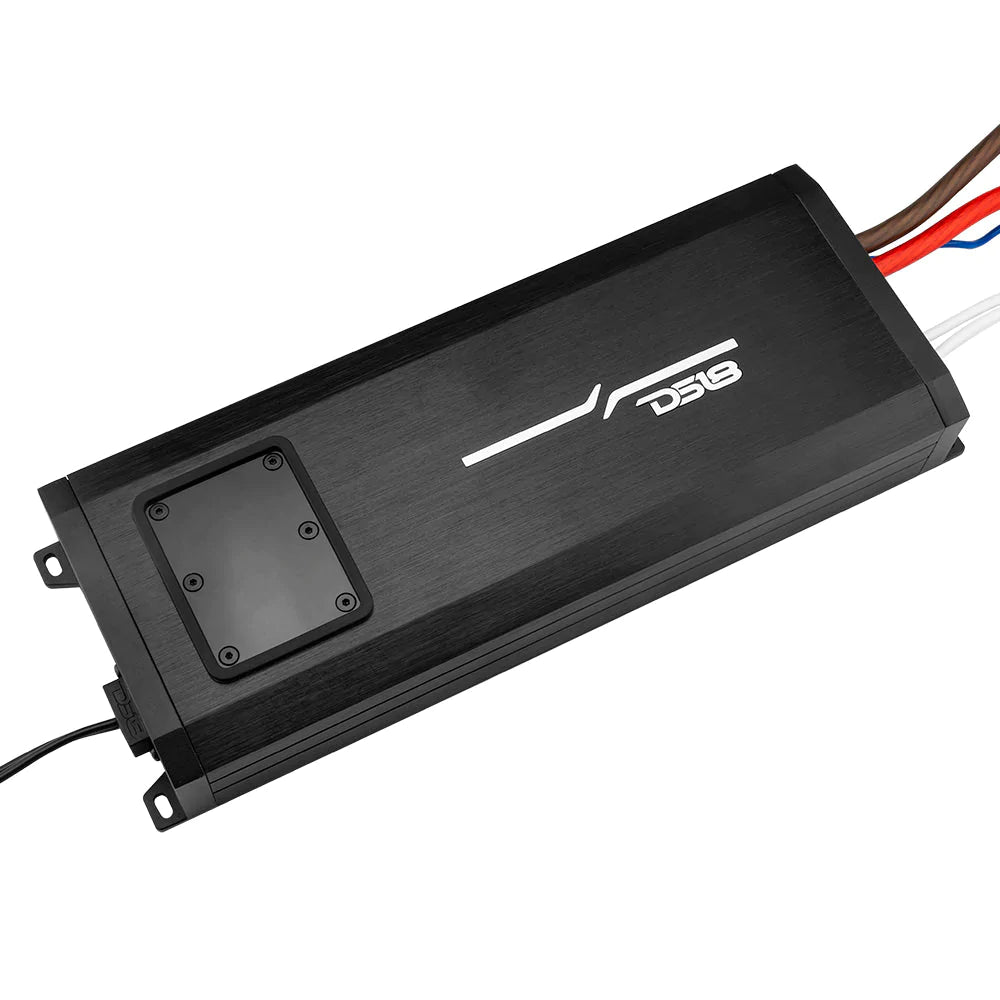

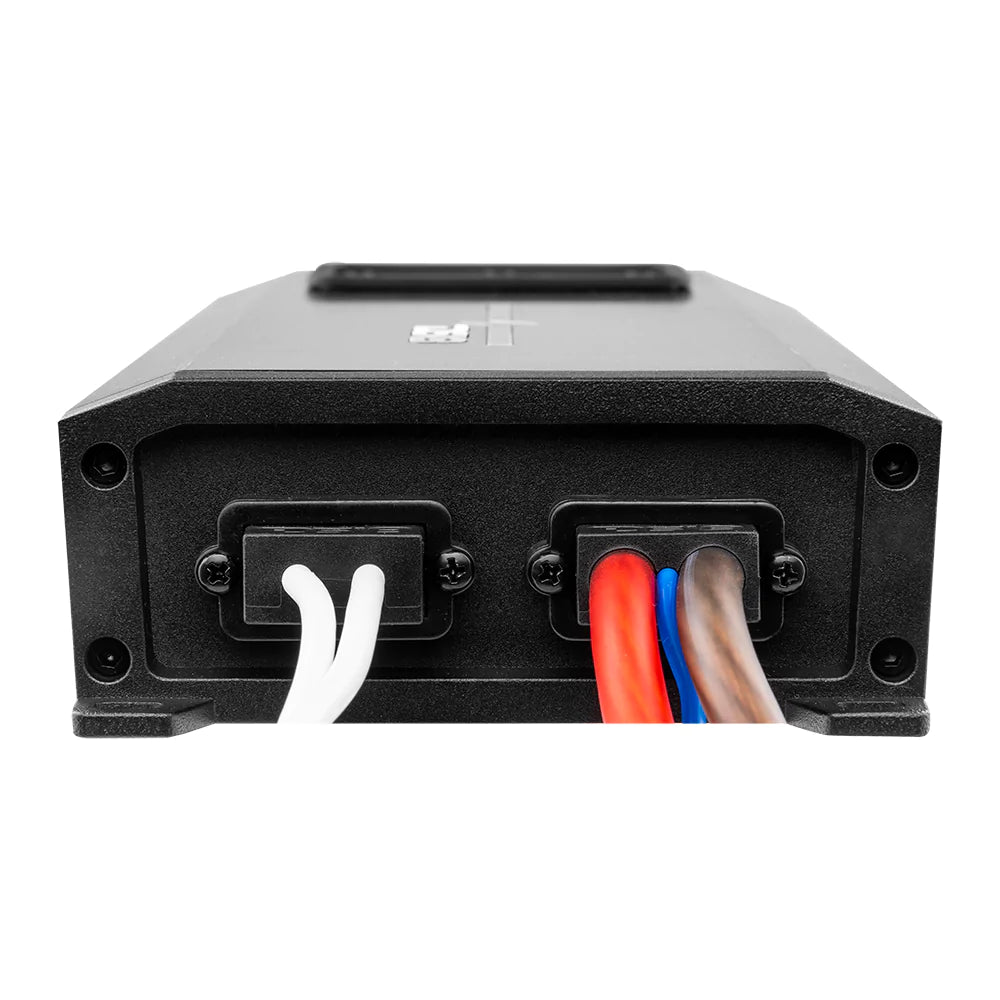

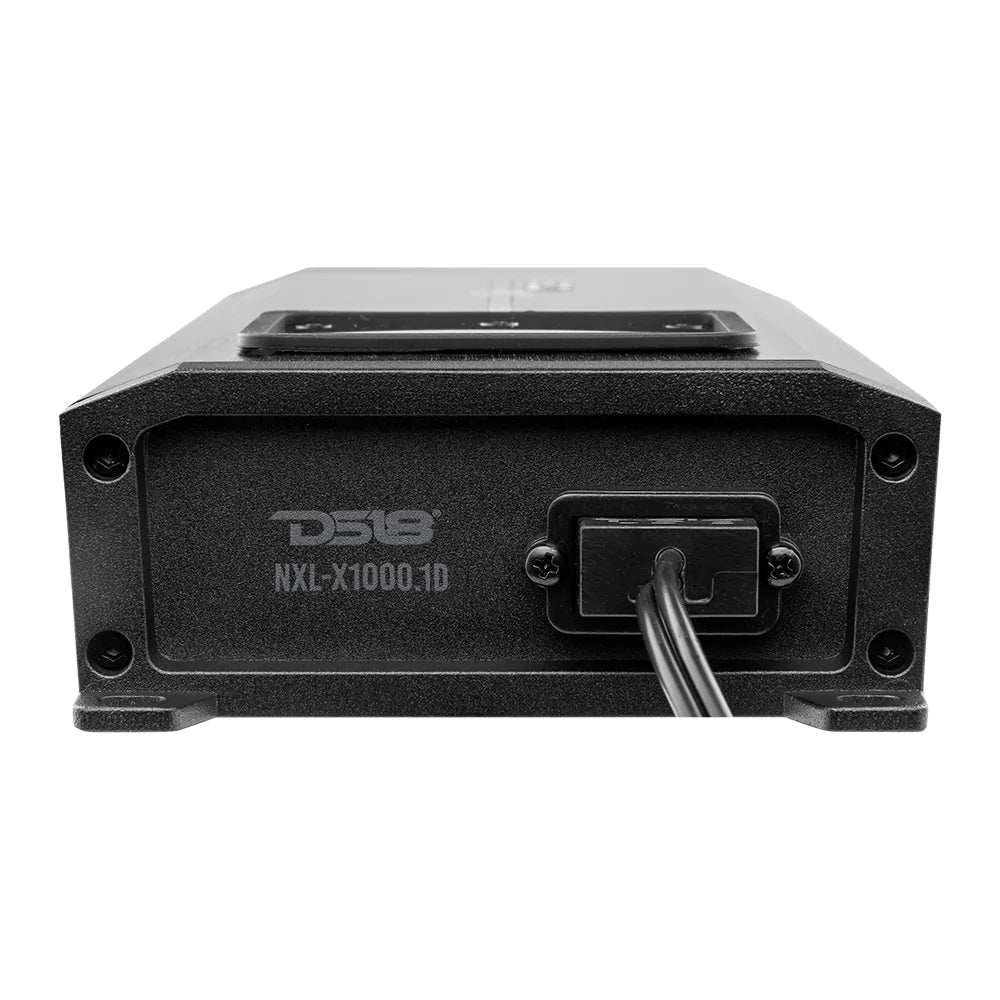

DS18 HYDRO NXL-X1000.1D 1-Channel Marine Waterproof Amplifier - Class D 1000 Watts RMS @ 1-Ohm

No reviews

Sale price$499.95
In stock

Payment & Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Total Watts (Peak) 2000W
RMS Power @ 4 ohm 350W
RMS Power @ 2 ohm 600W
RMS Power @ 1 ohm  1000W
RMS Power @ 4 ohm Bridge -
Frequency Response 10Hz-20KHz
Signal to Noise Ratio 1W@4Ω > 100dB
Efficiency @ 4ohm 0.83
Input Impedance 20KΩ
Channel Separation N/A
Total Harmonic Distortion (THD) < 0.05%
Low Level Input Range 200mV-5V
Selectable X-Over LPF Fixed
X-Over Filter Range 50Hz-250Hz
Bass Boost Range 0-18dB
Bass Boost Frequency 42Hz
Infrasonic Filter 10Hz-55Hz
Phase Selector 0-180°
Amplifier Class Digital
Amplifier Type Monoblock Subwoofer
Number of Channels 1
Minimum Impedance 1 Ohm
Led Indicators Power / Protection / Clip
Power Input Size 4GA Tinned OFC
Fuse Size 2 x 50A (100A)
Thermal Protection Yes (75°C)
Over-Load Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes (7-16V)
Body Color / Finish Black Brushed Aluminum
Overall Length 11.8" / 302mm
Overall Wide 4.4" / 112mm
Overall Height 1.77" / 45mm
Heatsink Length 11" / 281.6mm
Gross Single Unit Weight 2.21kg
