DS18 NXL-N2 2-Channel Full-Range Class D IP67 Marine and Powersports NANO Amplifier

AMPLIFIERS ARE NOT FOR SUBMERSIBLE USE, WILL VOID WARRANTY

Highlights

• Stable and reliable 4 layers PCB layout design
• IPX67 Waterproof for Powersports applications
• Ultra-compact size for easy installation
• Audio precision quality control verification

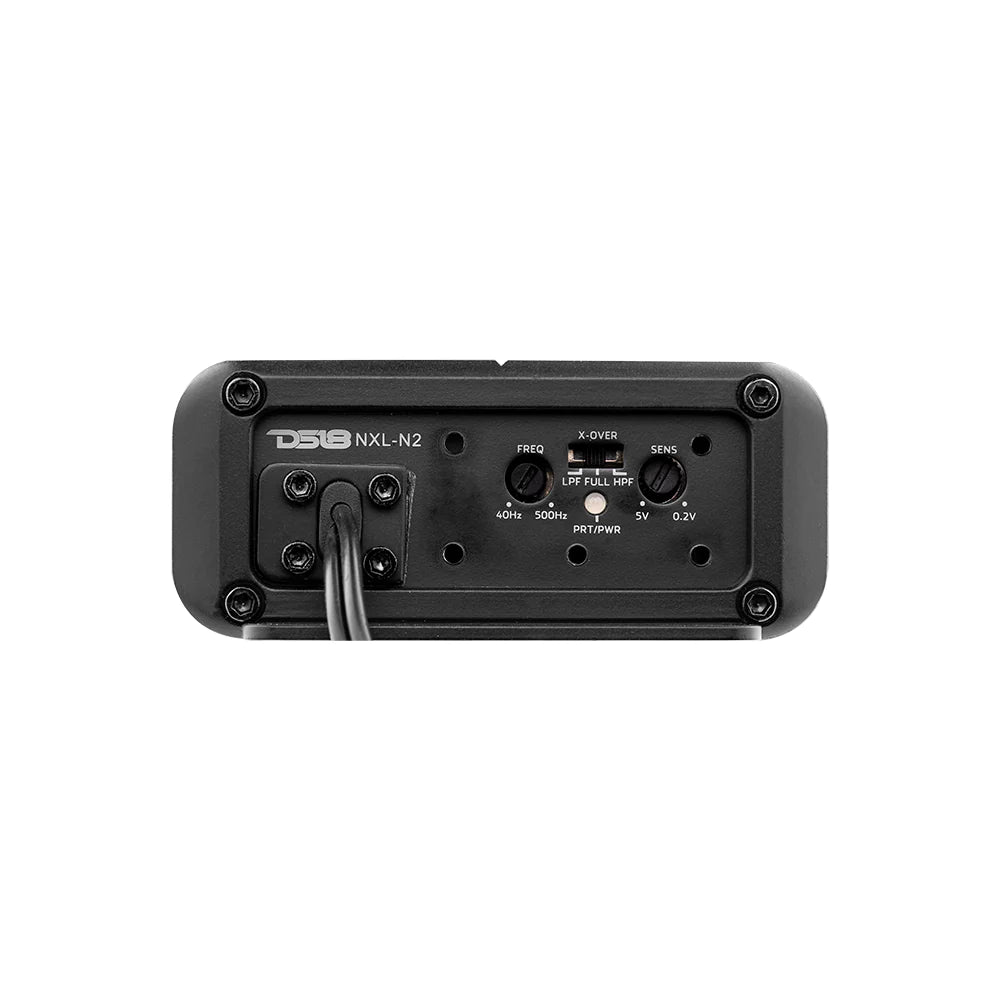

• Selectable X-Over: LPF / FULL / HPF



Model:	NXL-N2
Number of Channels:	2
Max Power	900W
Frequency Response:	20Hz - 20KHz
2 Ohms RMS Power (14.4V) Per Channel:	2 x 150W
4 Ohms RMS Power (14.4V) Per Channel:	2 x 100W
4 Ohms RMS Power Bridge (14.4V) Channel:	1 x 300W
Input Sensitivity:	0.2V + 10V
High Pass	40Hz - 500Hz
Signal-to-Noise Ratio:	90dB
Product Dimensions: (L x W x H)	200 x 93.4 x 39.8
