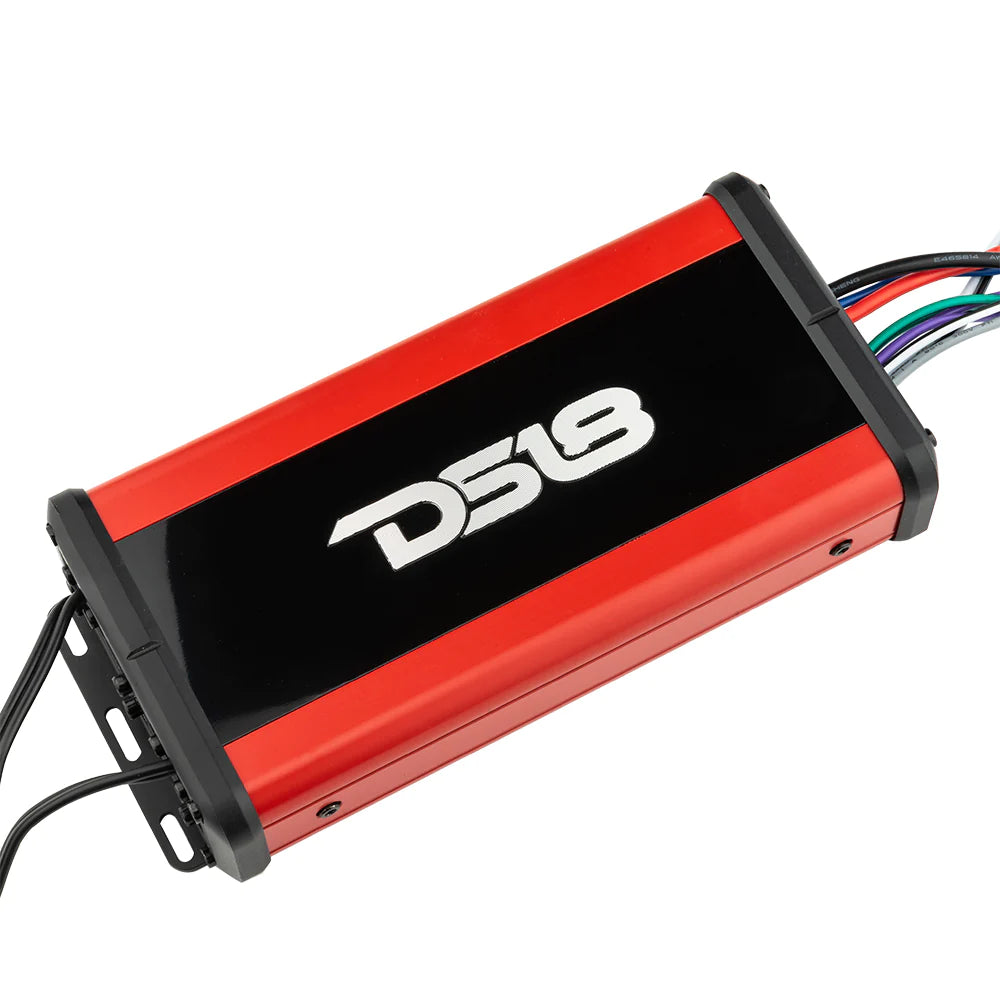

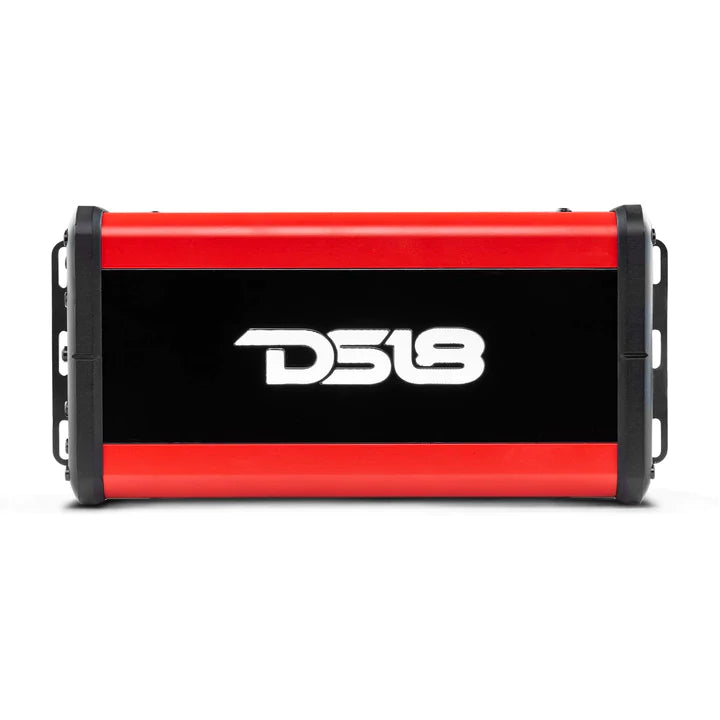

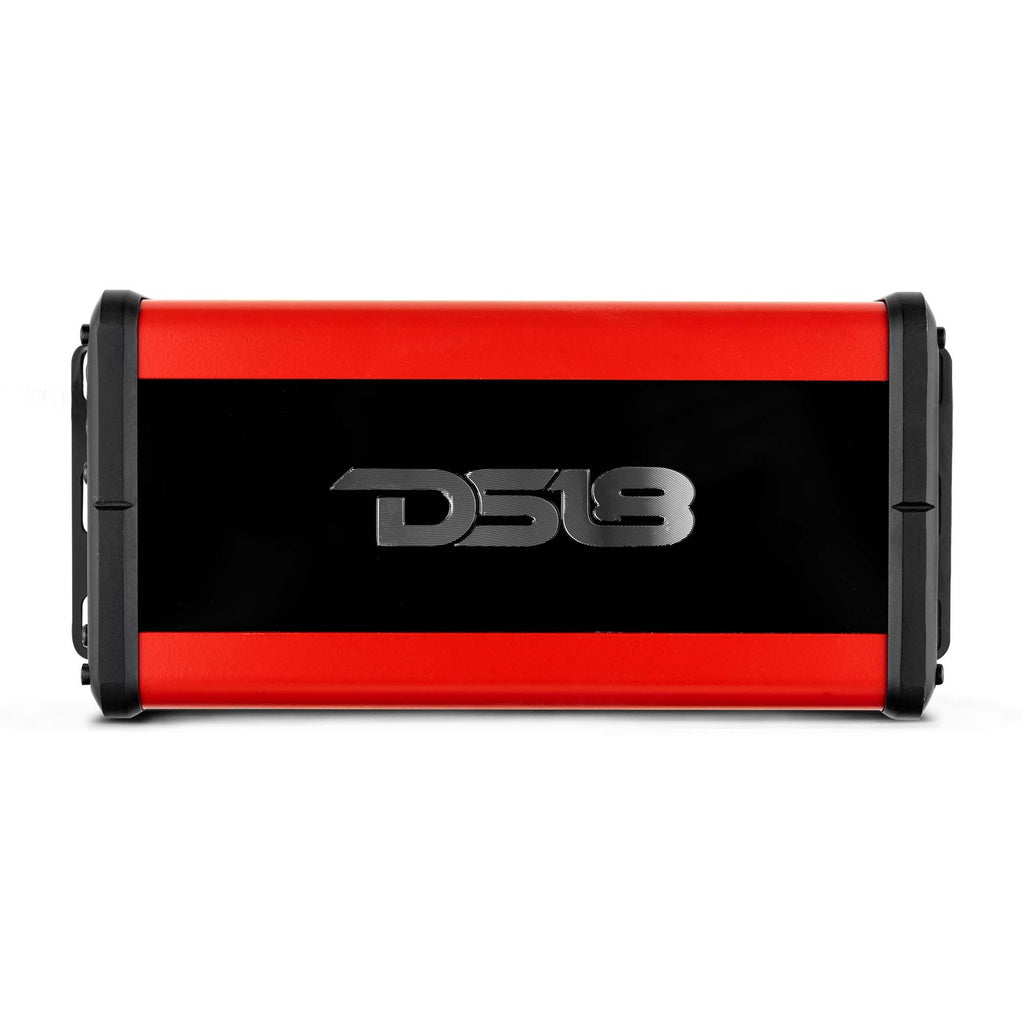

DS18 NXL-N4 NXL 4-Channel Full-Range Class D IP67 Marine and Powersports NANO Amplifier 4 x 100 Watts Rms @ 4-Ohm 1800 Watts Peak

Highlights

• Stable and reliable 4 layers PCB layout design
• IPX67 Waterproof for Powersports applications
• Ultra-compact size for easy installation
• Audio precision quality control verification

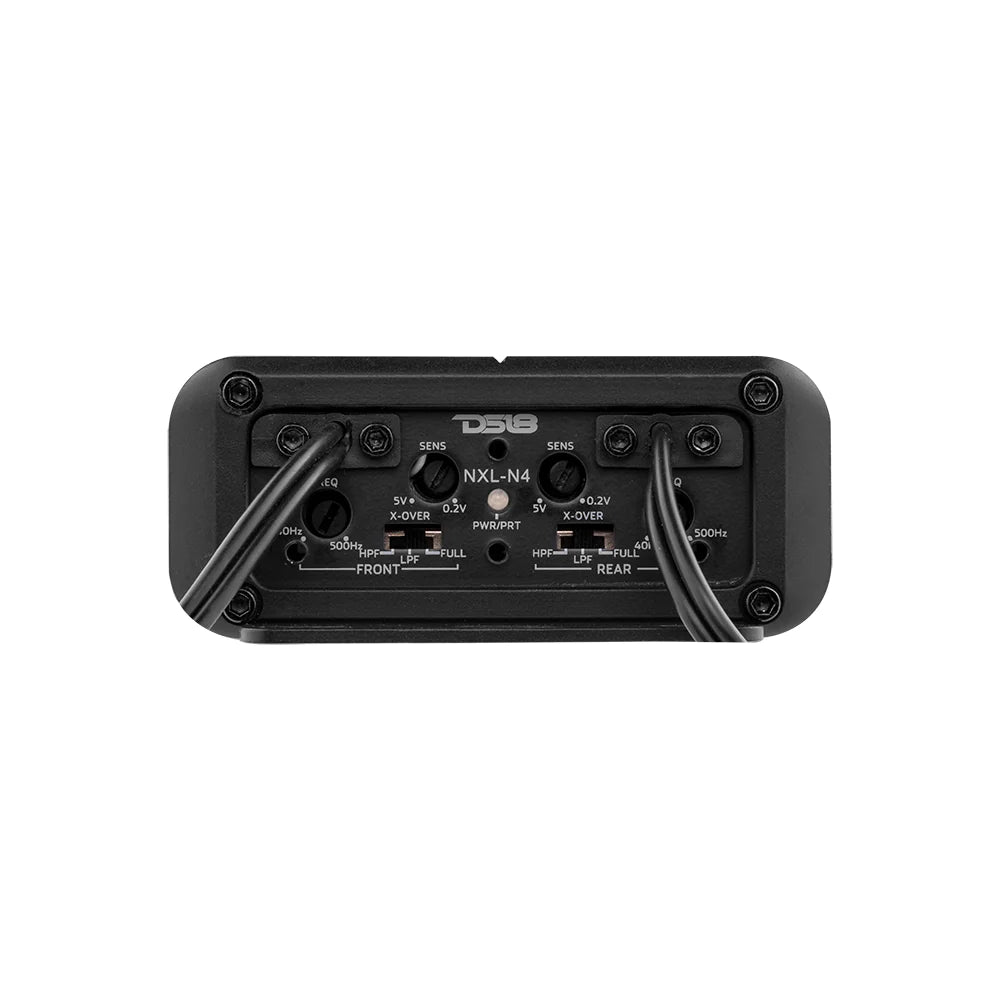

• Selectable X-Over: LPF / FULL / HPF

Model:	NXL-N4
Number of Channels:	4
Max Power	1800W
Frequency Response:	20Hz - 20KHz
2 Ohms RMS Power (14.4V) Per Channel:	4 x 150W
4 Ohms RMS Power (14.4V) Per Channel:	4 x 100W
4 Ohms RMS Power Bridge (14.4V) Channel:	2 x 300W
Input Sensitivity:	0.2V + 10V
High Pass	40Hz - 500Hz
Signal-to-Noise Ratio:	90dB
Product Dimensions: (L x W x H)	200 x 93.4 x 39.8
