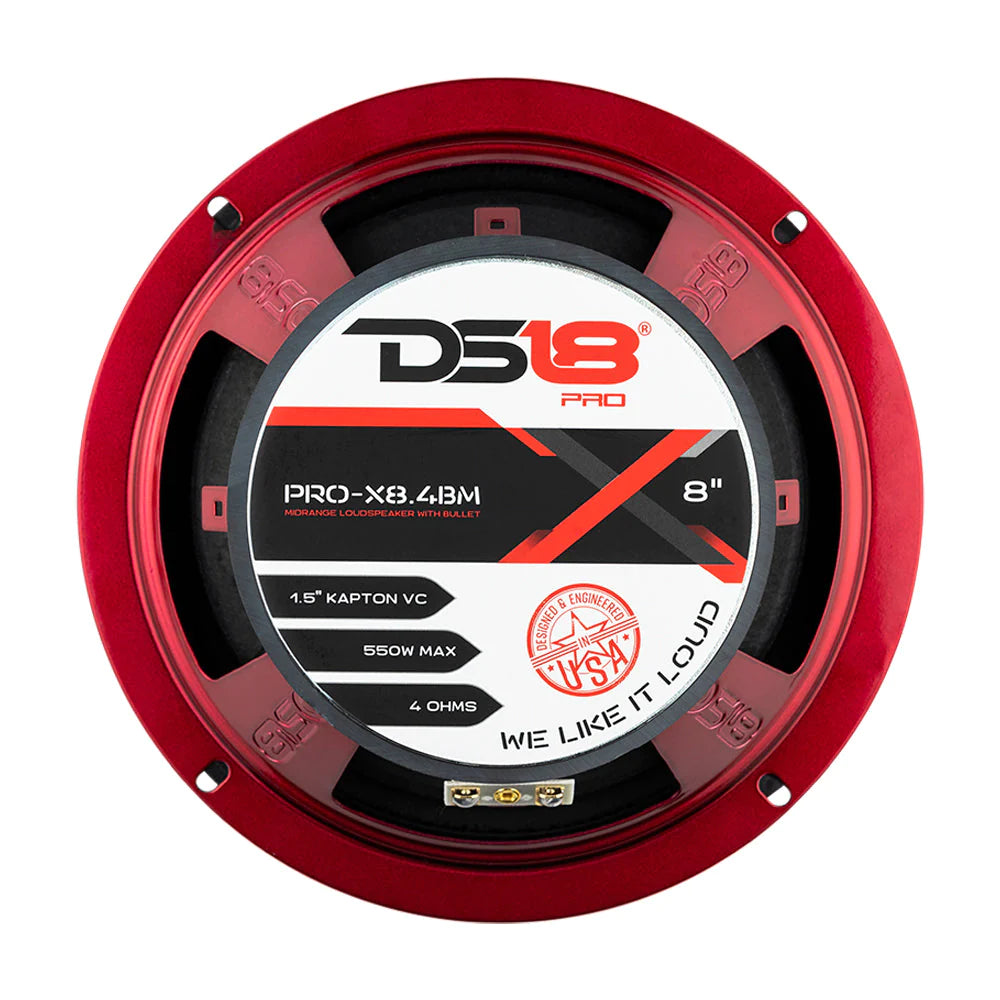

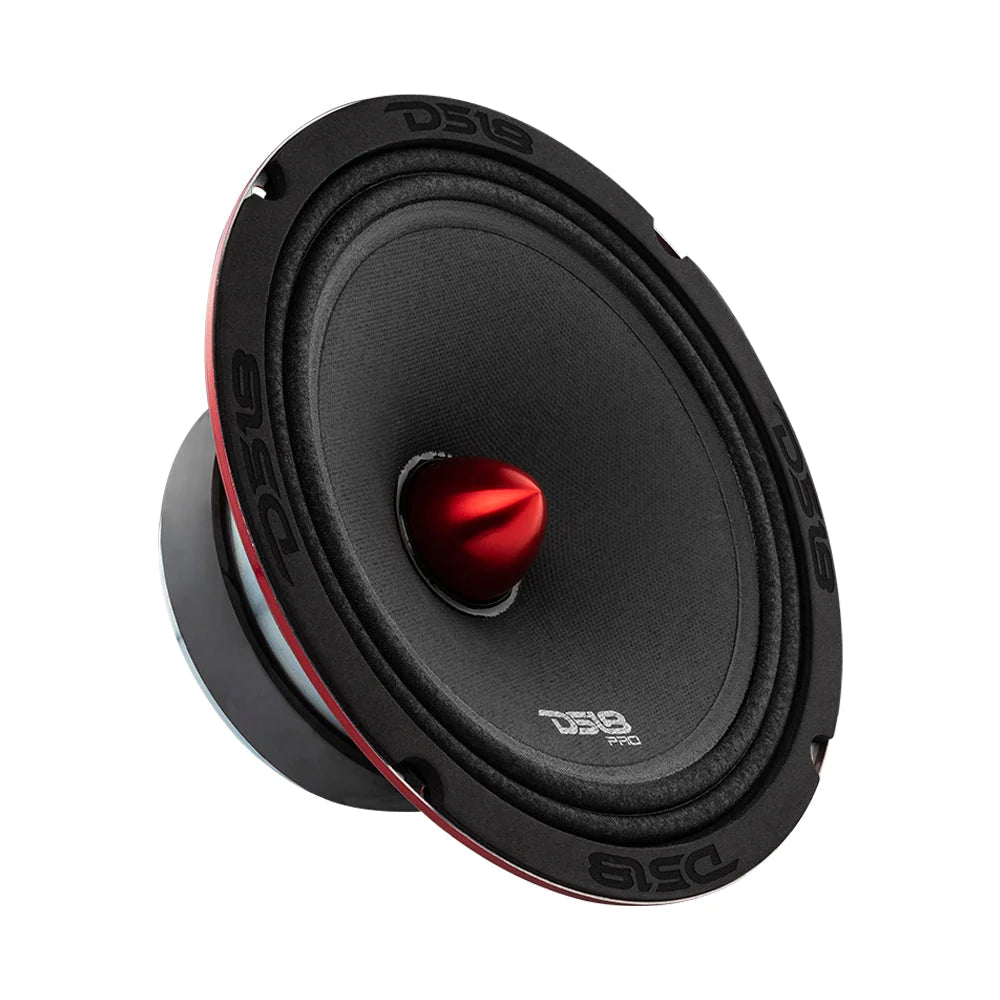

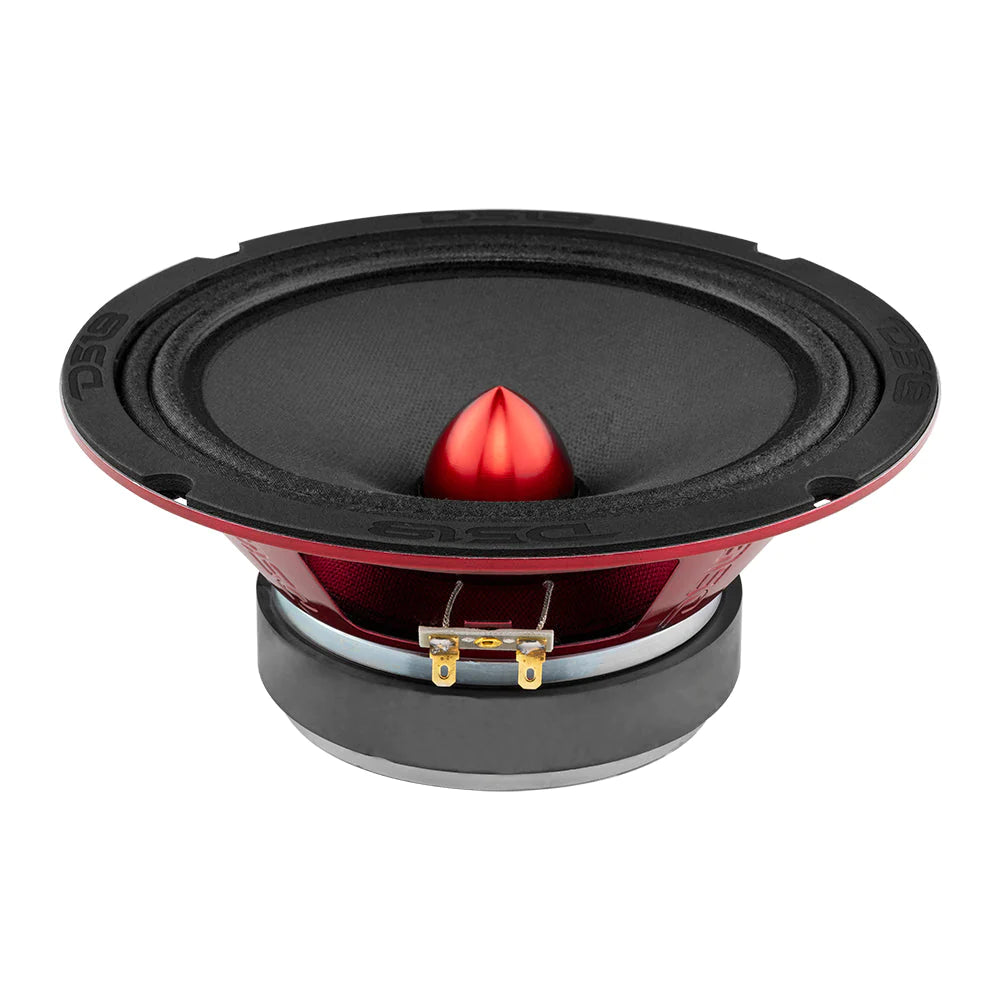

| Model: | PRO-X8.4BM |
| Type: | Midrange Loudspeaker |
| Size: | 8" |
| RMS Power: | 275W |
| MAX Power: | 550W |
| Frequency Response: | 93Hz - 16KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Diameters | |
| Voice Coil Size: | 1.5" |
| Magnet Size: | 30 oz |
| Mounting Depth: | 3.11" / 79mm |
| Cut-Out Dimension: | 7.16" (182mm) |

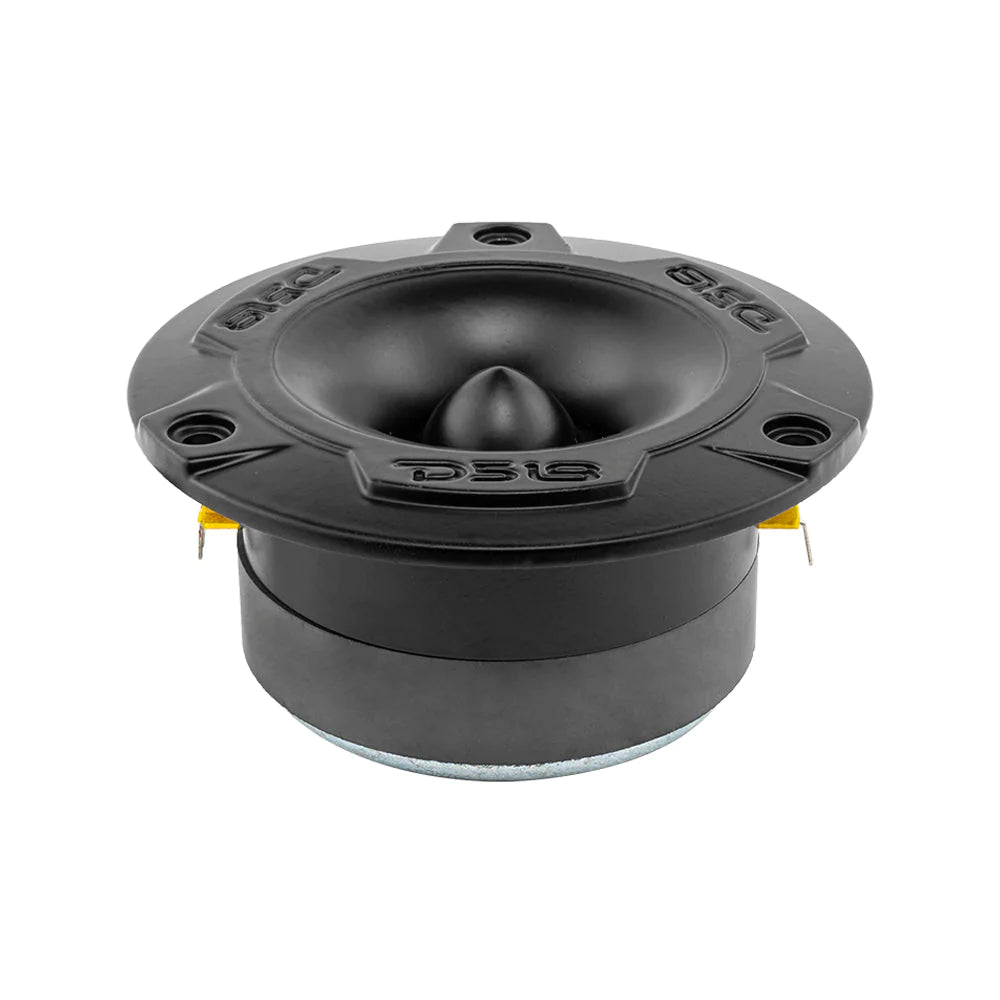

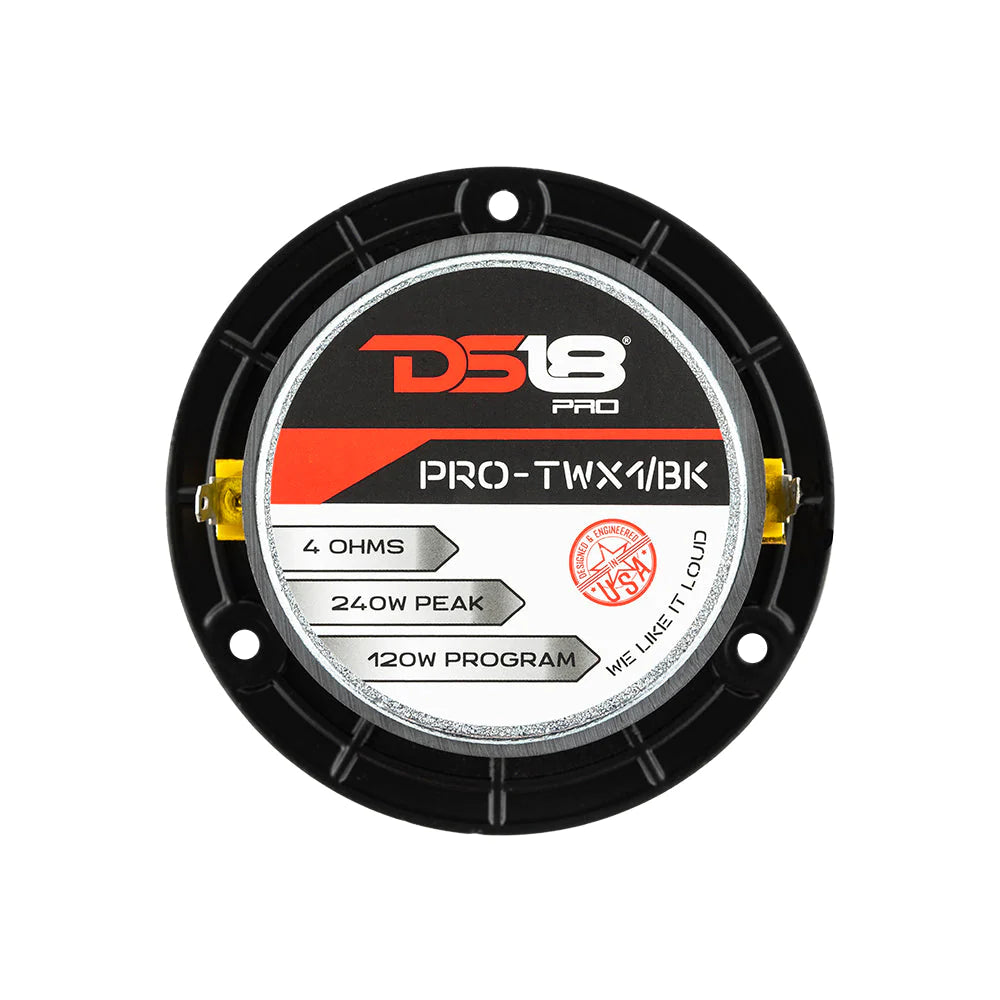

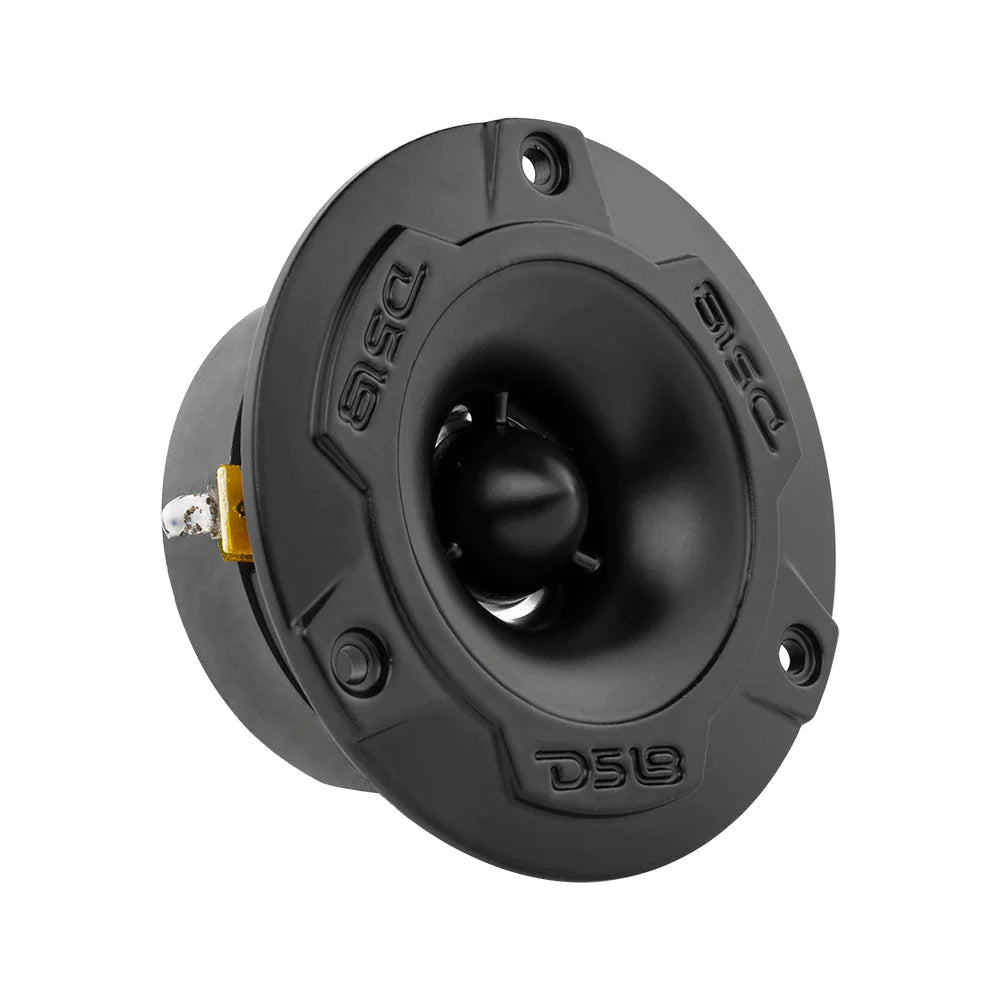

| Model: | PRO-TWX1/BK |
| Type: | Super Bullet Tweeter |
| RMS Power: | 120 Watts |
| MAX Power: | 240 Watts |
| Diaphragm Material: | Aluminum |
| Sensitivity: | 103dB |
| Impedance: | 4 Ohms |
| Frequency Response: | 3.5KHz - 20KHz |
| Package Quantity: | 2 |
| MEASUREMENTS | |
| Overall Diameter | 3.78" / 96mm |
| Overall Depth | 1.78"/ 45mm |
| Front Mount Baffle cutout | 2.76"/ 70mm |
| Mounting Depth | 1.57"/ 40mm |
