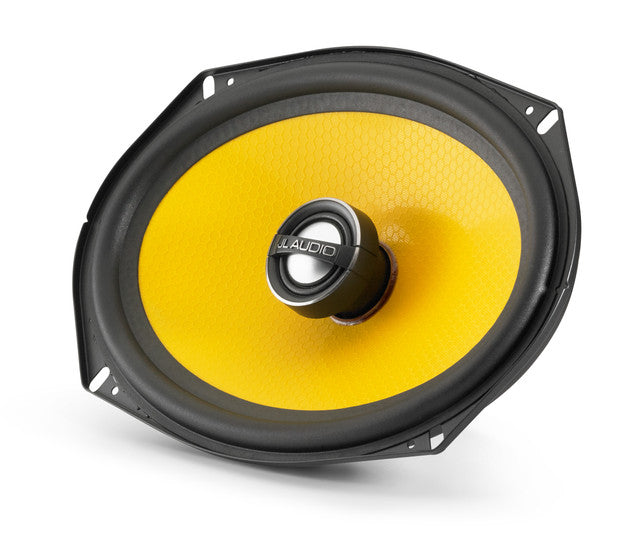

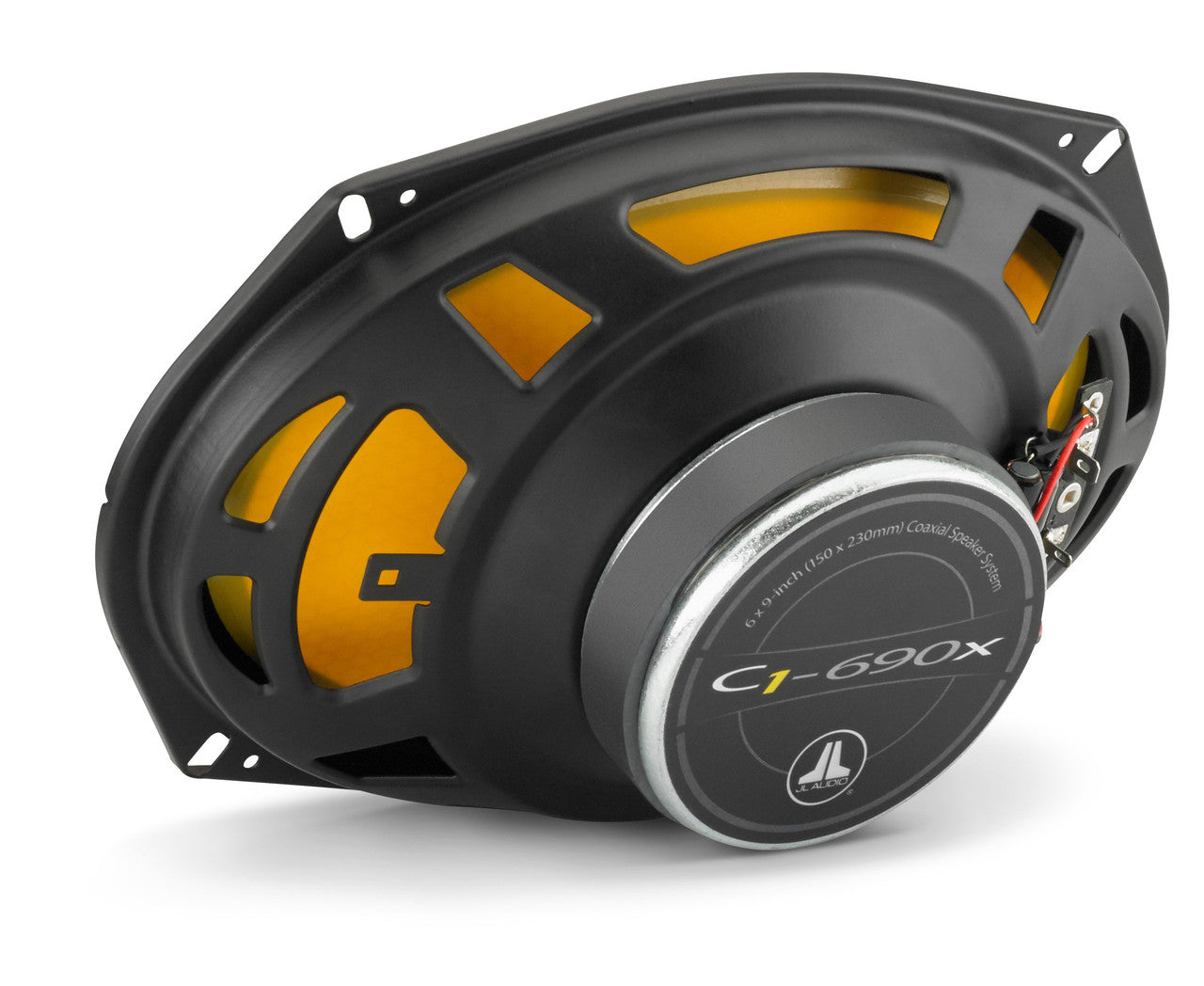

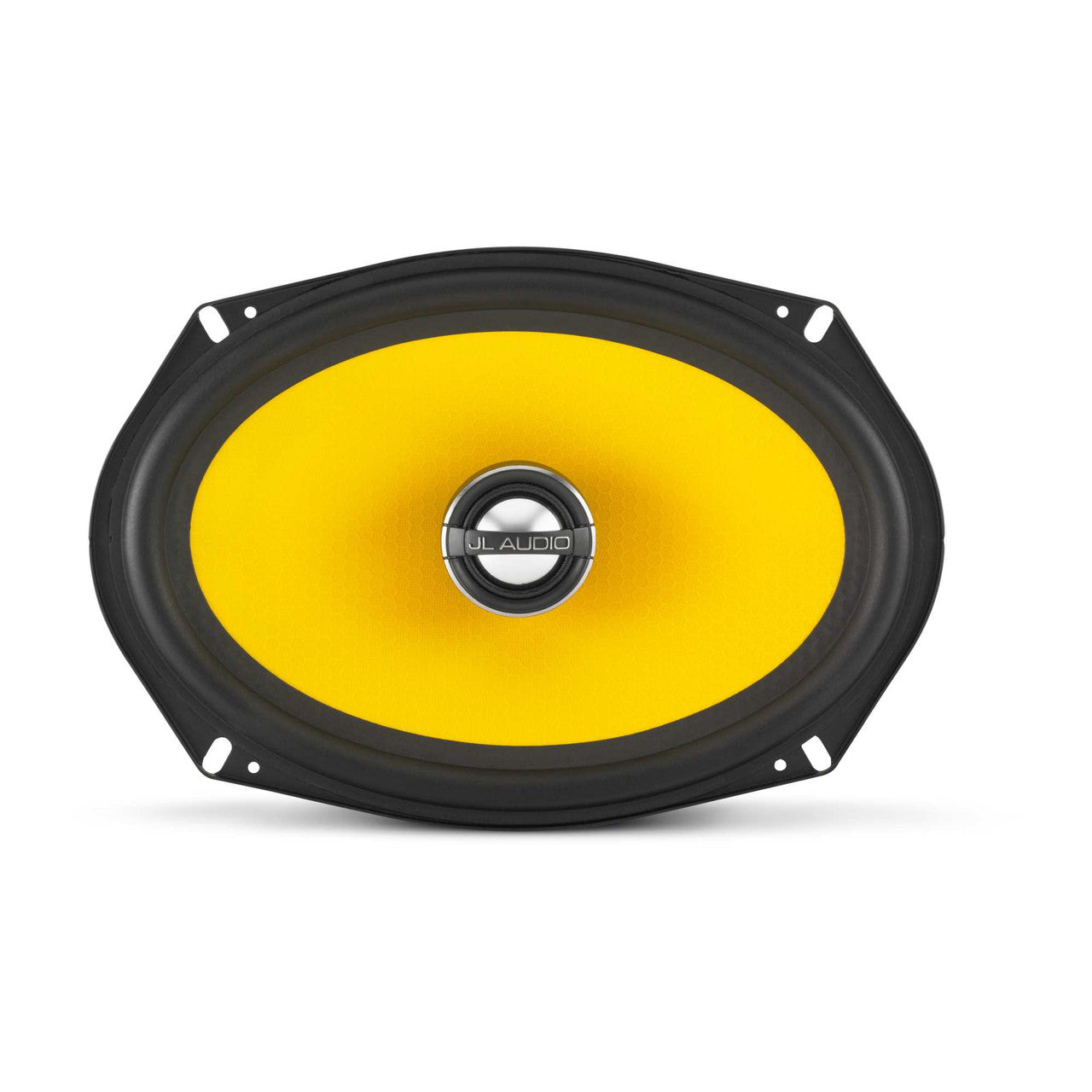

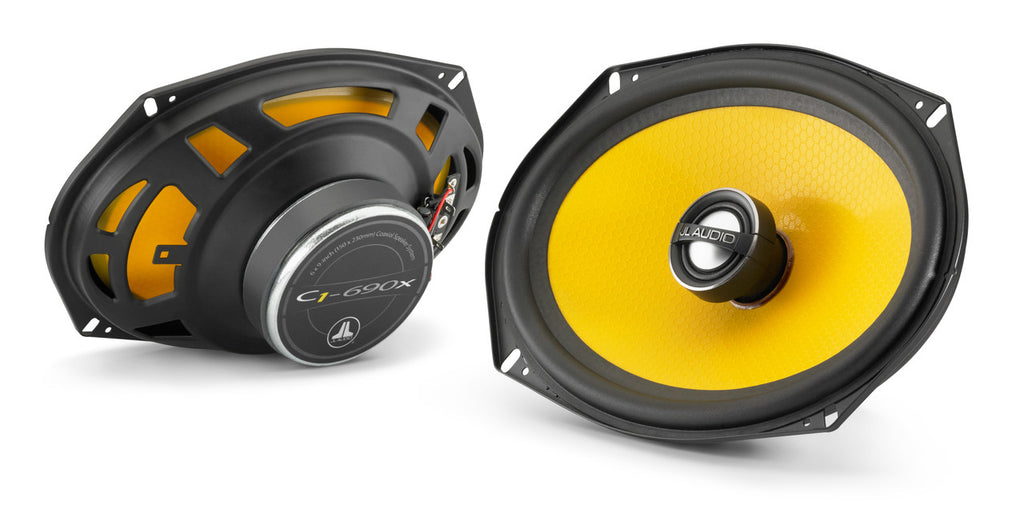

JL Audio C1-690x | 6"x9" 2-Way Coaxial Speakers (Pair)

• 6"x9" 2-way speakers (pair)
• injection-molded mineral-filled polypropylene woofer cone with rubber surround
• 1" aluminum edge-driven dome tweeter
• handles up to 60 watts RMS (225 watts peak power)
• frequency response: 39-22,000 Hz
• sensitivity: 94 dB at 2.83 volts
• top-mount depth: 2-3/4"
• grilles not included

General
Speaker Size	6X9
Driver Design	2-way
Woofer Design	Cone
Woofer Material	Mineral-Filled injection-Molded Polypropylene
Woofer Surround	Rubber
Midrange Design	---
Midrange Material	---
Tweeter Design	1" Edge-Driven Dome
Tweeter Material	Aluminum
Super Tweeter Design	---
Super Tweeter Material	---
Impedance (Ohms)	4
Weather-resistant	No
Grilles Included	No

Specifications
Sensitivity (1W at 1 meter)	91.5
Sensitivity at 2.83 volts	94
Frequency Response	39 - 22k Hz
Maximum RMS Wattage	60
Peak Power Handling (Watts)	225
Top-mount Depth (Inches)	2 13/16
Bottom-mount Depth (Inches)	3 9/16
Cutout Diameter (Inches)	8.657 x 5.937
Mounting Height (Inches)	0.374
Frame Width	6.397
Frame Length	9.339
