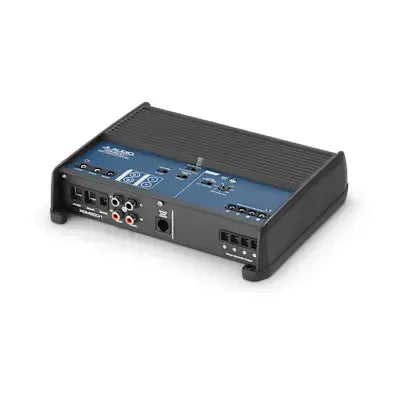

JL Audio XDM600/1 | 600W RMS Monoblock Amplifier 2-Ohm

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω	400 W RMS x 1
@ 3 Ω	500 W RMS x 1
@ 2 Ω	600 W RMS x 1
@ 1.5 Ω	N/A

Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω	300 W RMS x 1
@ 3 Ω	400 W RMS x 1
@ 2 Ω	500 W RMS x 1
@ 1.5 Ω	N/A

General Specifications

Frequency Response	7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power	>87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W	>67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω	>1000 / 50 Hz
Damping Factor @ 2 Ω	>500 / 50 Hz
THD+N @ Rated Power	<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs	200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge	4 AWG wire
Fuse Rating	50 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s)	Low-Pass only
Filter Slope(s)	12/24 dB/octave
Filter Frequency Range	50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer	Yes
Filter Defeat Function	Yes
Infrasonic Filter	30 Hz, defeatable
Bass Boost EQ	No
Output Polarity Switch	No
Remote Subwoofer Level Control	Optional HD-RLC or MHD-RLC (water-resistant)
Remote Bass EQ Boost Control	No
Pass-Through Preamp Output	Buffered

Physical Specifications

Height (H)	2.05 in / 52 mm
Width (W)	8.52 in / 216 mm
Depth (D)	7.09 in / 180 mm
Net Weight	6.3 lb / 2.86 kg
