The Party Starts Here

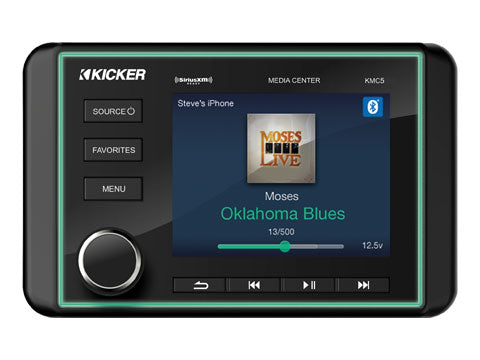

Your KMC5 comes with a sunlight-viewable full color 3.5-inch LCD screen, rotary encoder and 240 watts of peak power into six channels.
Video Input
Exclusive to the KMC5, the included video input can be configured in a variety of ways. Monitor your rider at the end of the rope, use it as a backup camera, even use it as a video baby monitor! The video input can be toggled with either a trigger wire or a button push.
Connect to Your Music
Connect your Bluetooth to the KMC5, plug into the USB or RCA inputs, or turn on the AM/FM or satellite radio. Add a wired KRC12 Remote Commander or KRC55 Digital Remote Controller for even more control. This durable Media Center is ready for some fun on the water! (IP66)
| 46KMC5 Dimensions |
| 46KMC5 Product Dimensions PDF |
| Power Output @ 14.4V, 4Ω stereo, <10% THD+N |
| 25x6 |
| Power Output @ 14.4V, 2Ω stereo, <10% THD+N |
| 40 x 6 |
| Frequency Response [Hz] |
| 20 - 20k |
| Signal-to-Noise Ratio [dB] |
| 108 |
| RCA Outputs |
| Pre-amp Outputs: Front Rear Subwoofer Zone2 |
| Line-Out Level [V] |
| 4 |
| Outer Trim Ring Dimensions [in, cm] |
| 3.5 x 5.5, 8.88 x 13.99 |
| Protrusion From Mounting Surface [in, cm] |
| 1-5/16, 3.33 |
| Required Mounting Depth for Wiring [in, cm] |
| 7, 17.82 |
| Mounting Hole Diameter [in, cm] |
| 2.8, 7.19 |
| Mounting Panel Thickness Range [in, cm] |
| Any |
| IP Rating |
| IP66 |
| AUX Input Sensitivity |
| Adjustable from 500mV-1.5V |
| USB:Playback, Charging, Compatible File System |
| MP2, MP3, WMA, WAV16, FLAC, AAC, ALAC, M4A DC 5V, 1 Amp FAT32 |
| BT Range (feet) |
| 30 |
