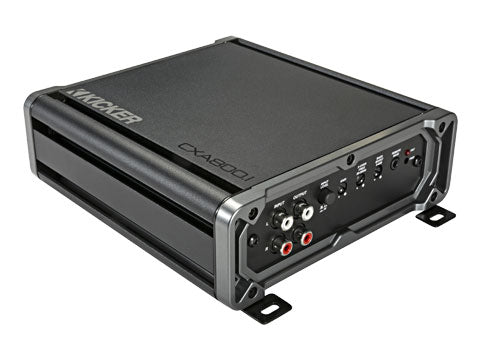

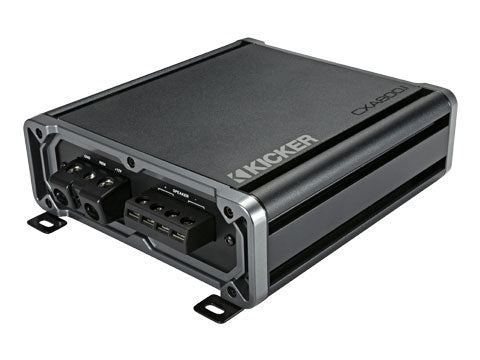

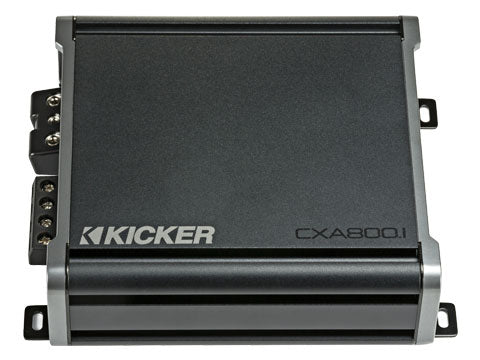

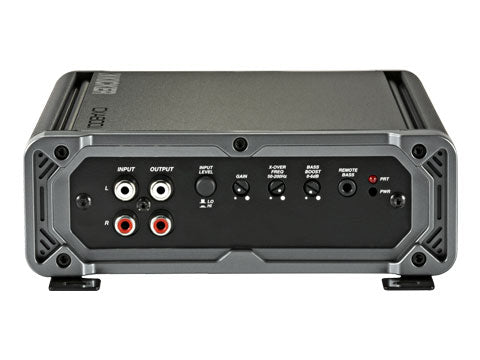

CX-Series Amps reach massive power levels thanks to an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash.
About That Power
This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! This Class-D CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
Expand your system with full-range, RCA pass-through outputs, then choose a “standard” mount or a cool vertical mount with the included hardware.
This CX.1 amplifier delivers as much as 800 watts into one bass channel. See below for more details.
| MODEL |
| CXA800.1 |
| White Paper |
| 46CXA8001-wp.pdf |
| Power (watts/ch) 4 Ohm |
| 300x1 |
| Power (watts/ch) 2 Ohm |
| 600x1 |
| Power (watts/ch) 1 Ohm |
| 800x1 |
| CXRC Remote Bass Capable (sold sep.) |
| yes |
| Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L) |
| 8-1/8, 20.6 |
| Frequency Response (Hz): |
| 25-200, +0/-1dB |
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
