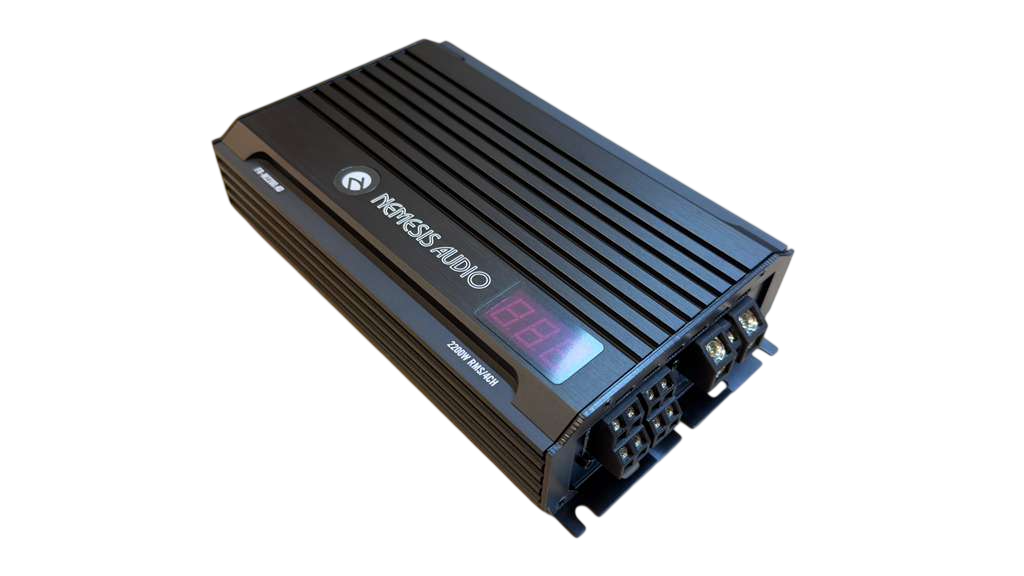

The Nemesis Audio FR-M2200.4D is a high-performance 4-channel amplifier from the FR Series designed to deliver exceptional power and sound quality. This Class D powerhouse provides the muscle needed to drive high-end component systems and pro-audio midrange speakers with absolute authority.
Key Performance Features:
-
High-Efficiency Power: Delivers an impressive 540W RMS per channel at 2-Ohm, providing incredible headroom for a dynamic and loud listening experience.
-
Clean Audio Reproduction: Engineered with a Signal-to-Noise ratio of >90dB and ultra-low THD (<0.2%), ensuring your music remains crystal clear at extreme volumes.
-
Bridging Flexibility: Capable of bridging to 4-Ohm to provide 1080W x 2, making it a versatile choice for driving large mid-bass drivers or subwoofers.
-
Refined Chassis: The 9.53″ aluminum heatsink is designed for superior thermal dissipation, keeping the internal Class D circuitry cool under heavy loads.
Technical Specifications:
-
RMS Power @ 2-Ohm: 540W x 4
-
RMS Power @ 4-Ohm: 350W x 4
-
Bridged Power @ 4-Ohm: 1080W x 2
-
Dimensions: 9.53″ x 5.51″ x 2.17″
-
Frequency Range: 10Hz – 30kHz
-
Low Pass Filter: 40Hz – 500Hz
-
Input Sensitivity: 0.36V – 7.5V
