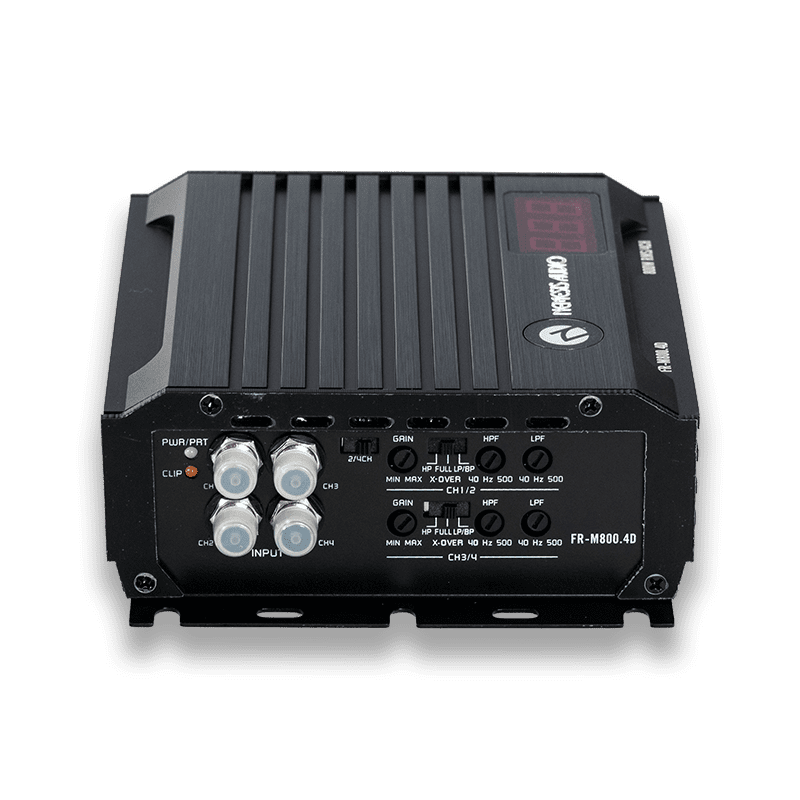

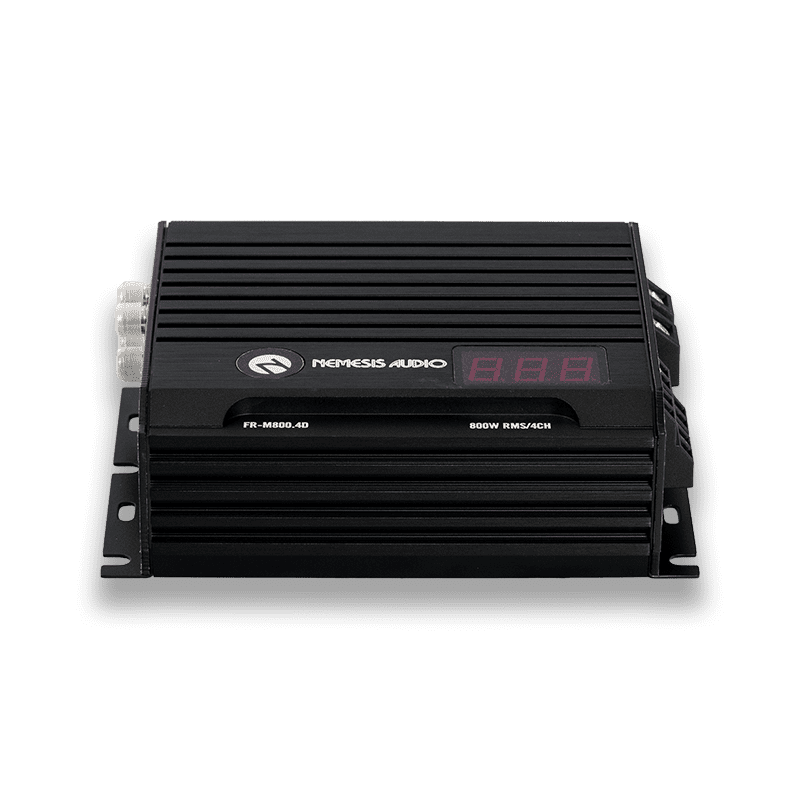

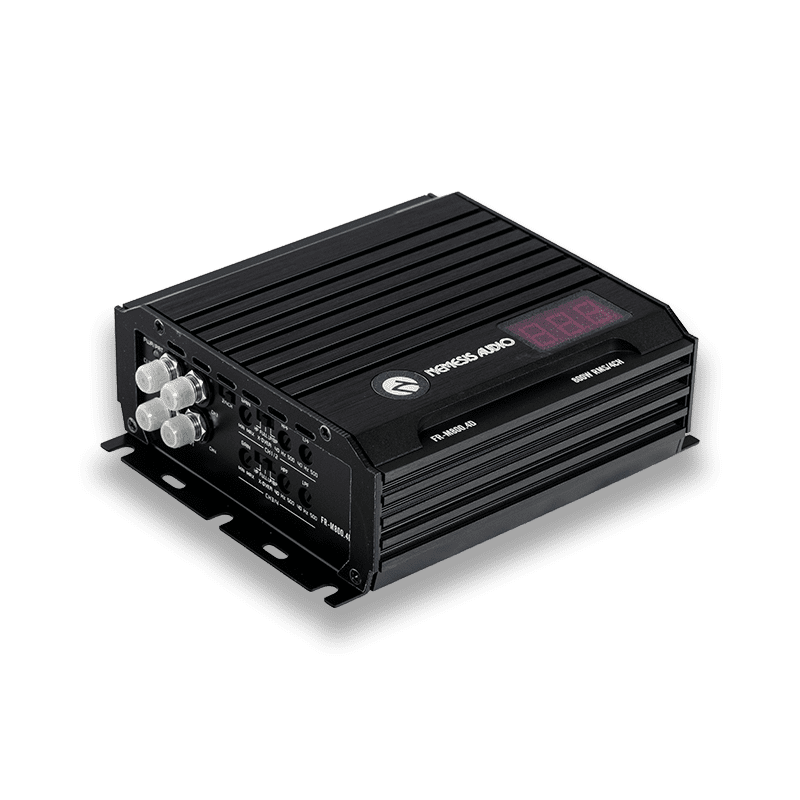

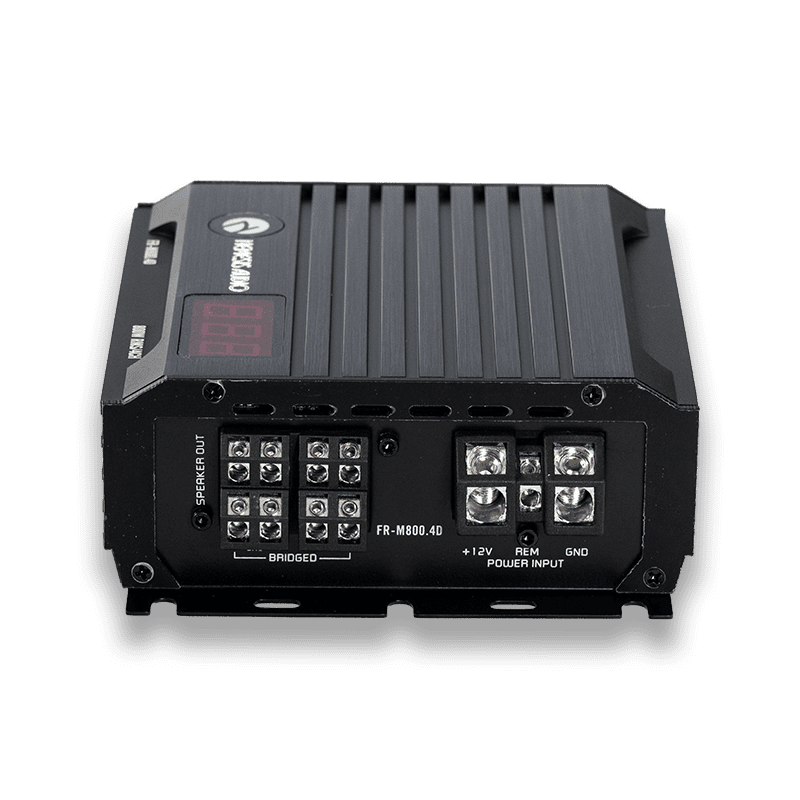

The Nemesis Audio FR-M800.4D is a compact yet powerful 4-channel amplifier designed for high-fidelity audio in space-constrained installations. Part of the FR Series, this Class D amplifier offers exceptional efficiency and clean power delivery, making it the perfect choice for upgrading your vehicle’s midrange and tweeter setup.
Key Performance Features:
-
Compact Powerhouse: Measuring just 6.61″ x 5.51″ x 2.17″, this amplifier fits easily under seats or in small compartments without sacrificing output.
-
Versatile Output: Delivering 210W x 4 at 2-Ohm, it provides plenty of headroom for clear, dynamic sound.
-
Bridging Options: Bridgeable to 4-Ohm (400W x 2) to power larger components or small subwoofers.
-
Clean Signal: With a Signal-to-Noise ratio of >90dB and a THD of < 0.2%, you get crystal-clear audio even at high volumes.
Technical Specifications:
-
RMS Power @ 2-Ohm: 210W x 4
-
RMS Power @ 4-Ohm: 130W x 4
-
Bridged Power @ 4-Ohm: 400W x 2
-
Dimensions: 6.61″ x 5.51″ x 2.17″
-
Frequency Response: 10Hz – 30kHz
-
Low Pass Filter: 40Hz – 500Hz
-
Input Sensitivity: 0.36V – 7.5V
