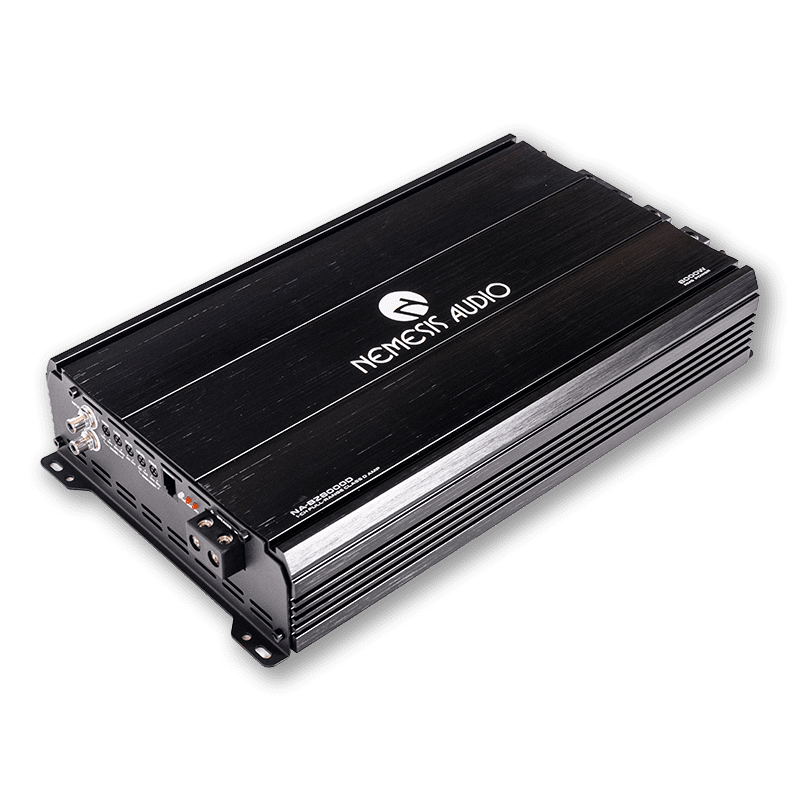

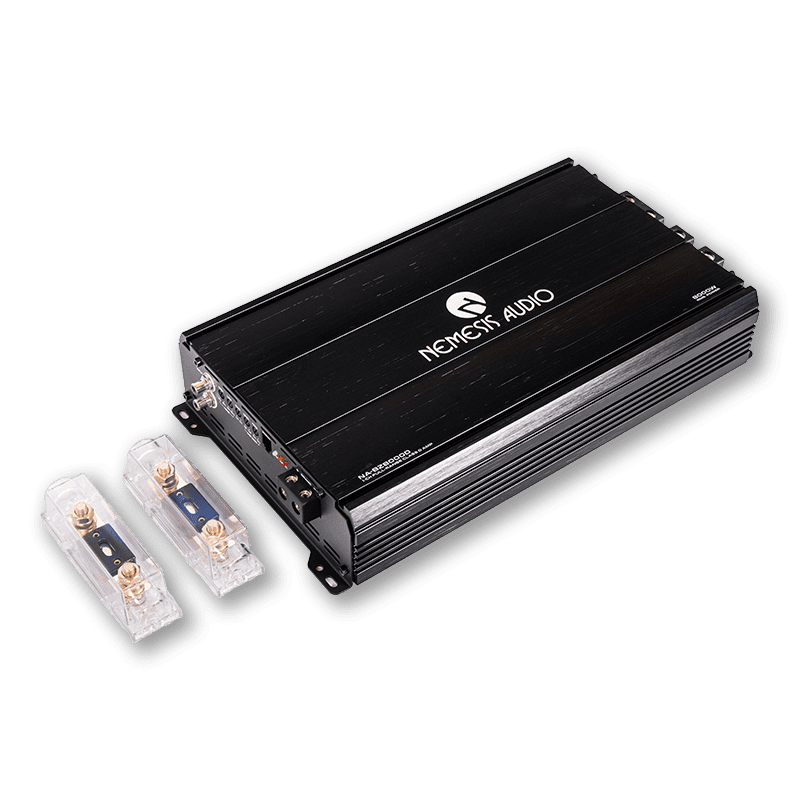

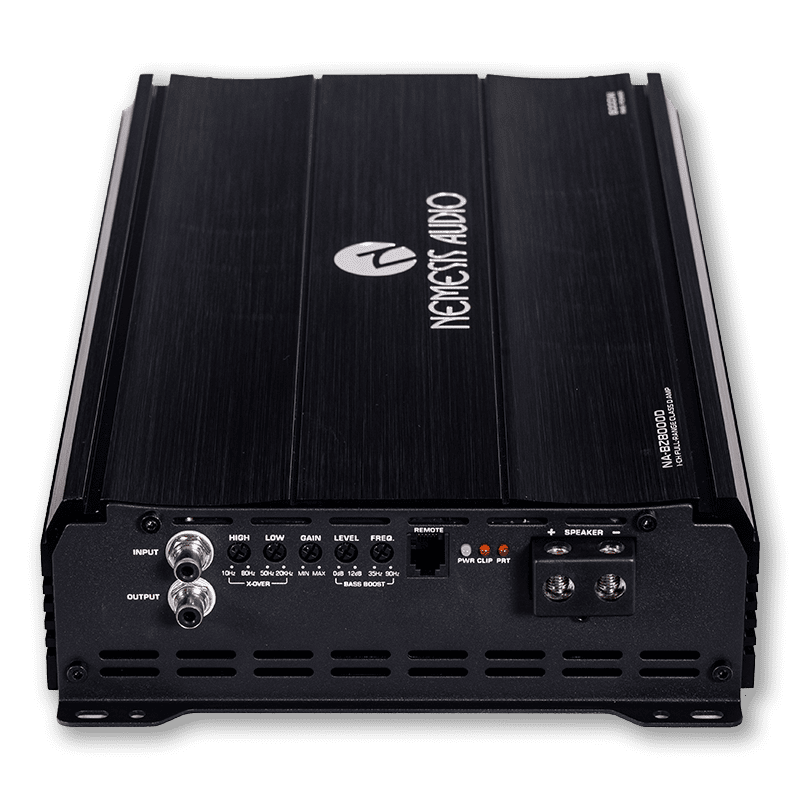

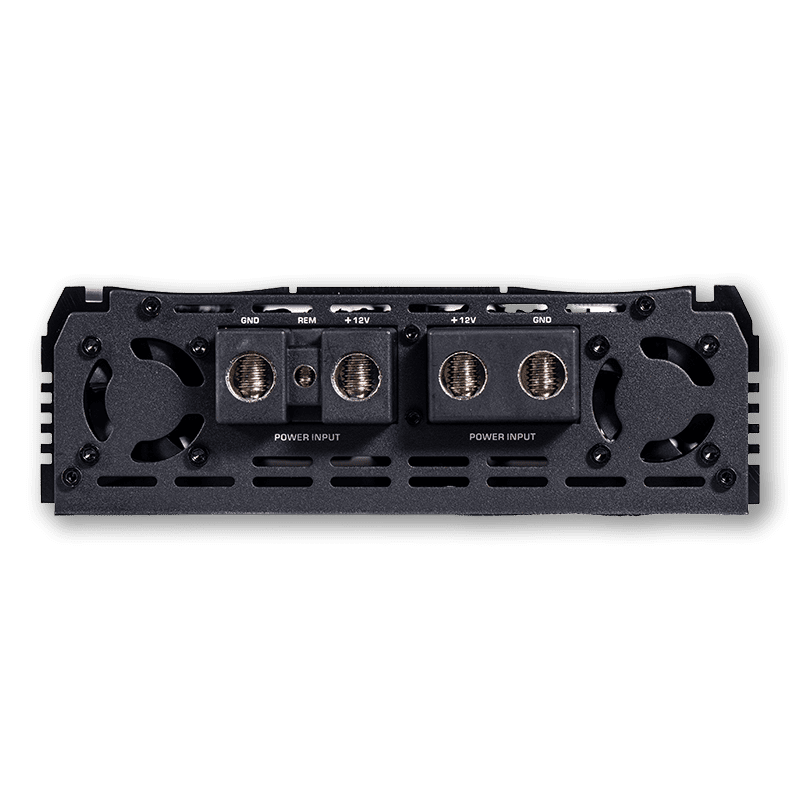

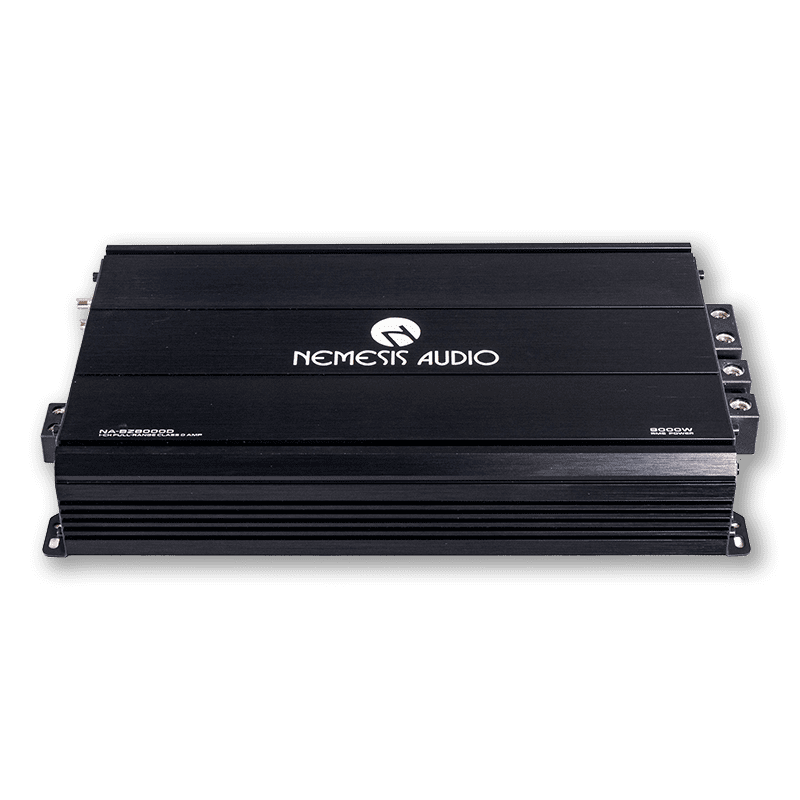

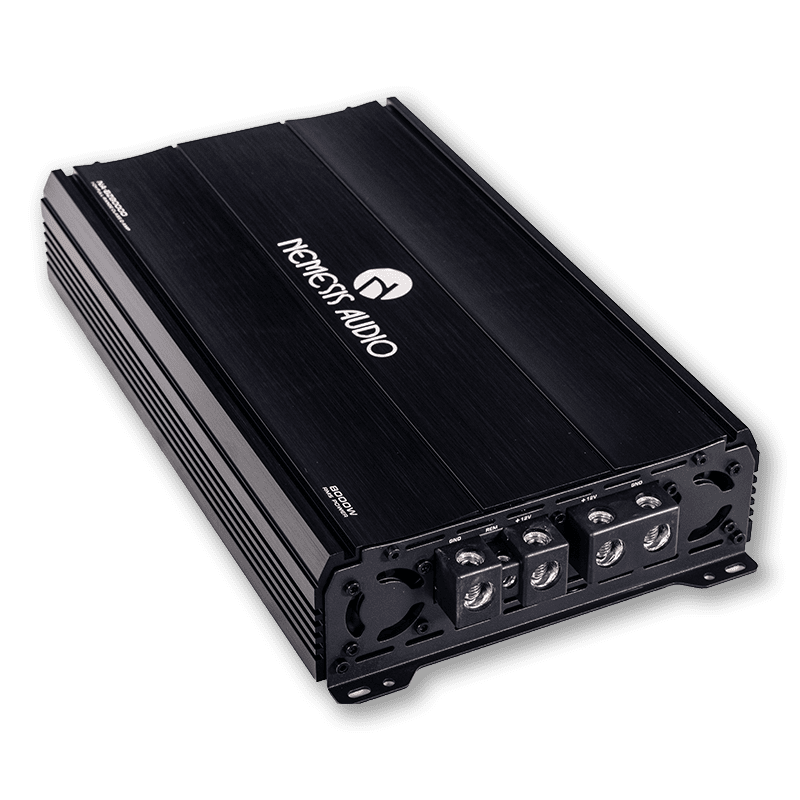

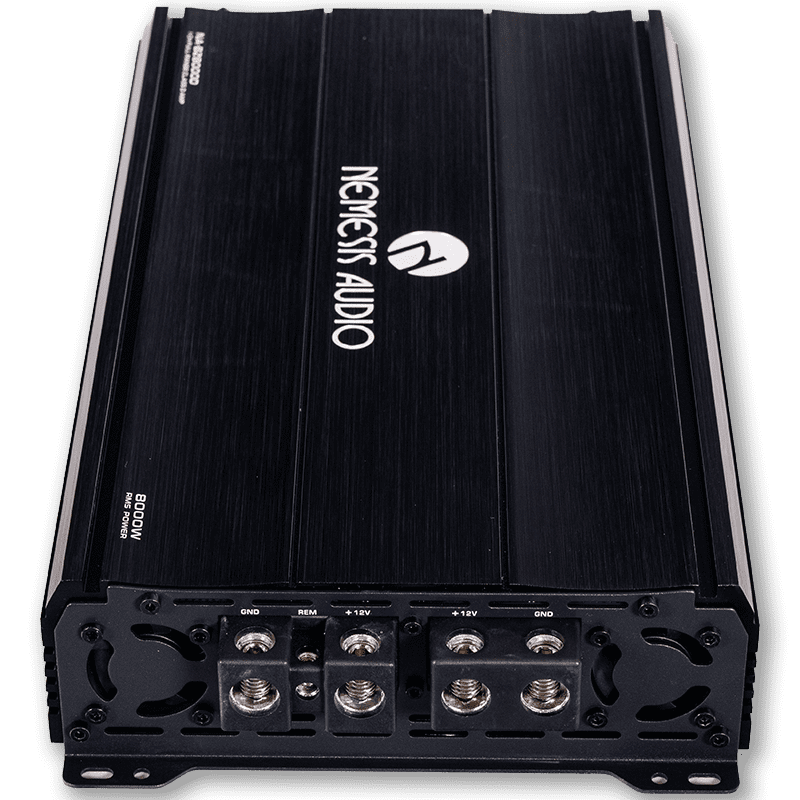

Nemesis Audio NA-BZ8000D 8000W RMS Class D Monoblock Full Range Amplifier

The Nemesis Audio NA-BZ8000D is a mono full range Class D amplifier built for serious high-power systems. It delivers up to 8000W RMS at 1 ohm with a full range design and onboard tuning controls.

Specifications

• Amplifier Type: Mono full range Class D
• RMS Power @ 4 Ohms: 1 x 2500W
• RMS Power @ 2 Ohms: 1 x 4800W
• RMS Power @ 1 Ohm: 1 x 8000W
• Working Impedance: 1 Ohm stable
• Input Sensitivity: 0.25V to 4V
• Low Pass Filter: 50Hz to 20kHz
• Subsonic Filter: 10Hz to 80Hz
• Bass Boost: 0dB to 12dB
• Frequency Response: 10Hz to 20kHz
• Signal-to-Noise Ratio: 85dB
• THD @ 4 Ohms: 0.4%
• Operating Voltage: 9V to 16V
• Fuse Rating: 800A
• Dimensions: 13.74 x 8.35 x 2.56 in

This model is intended for customers building high-output systems where maximum amplifier power is the priority.
