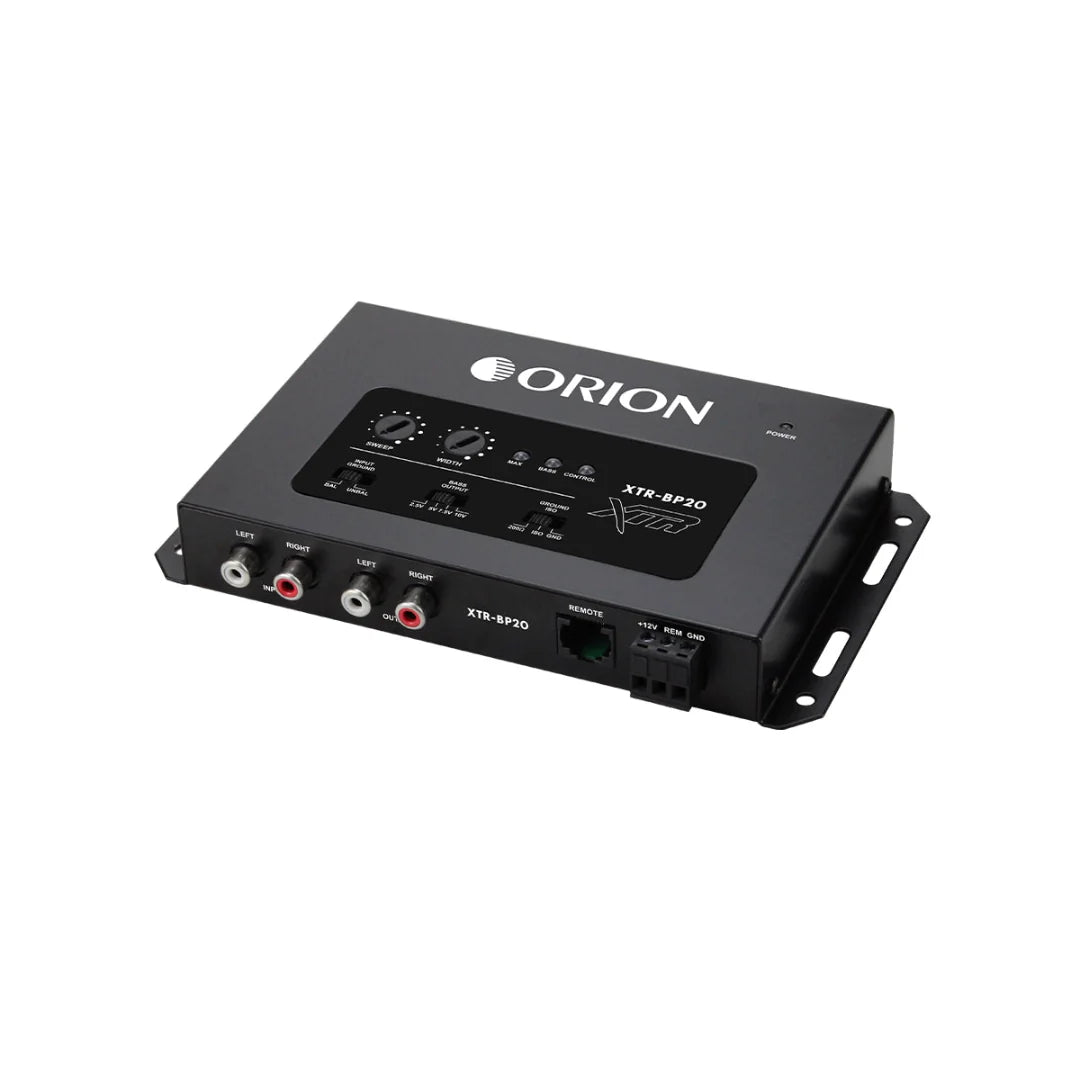

Orion XTR-BP20 Bass Processor with 10V Output & Precision Bass Control
Orion XTR-BP20 Bass Processor with 10V Output & Precision Bass Control
Orion XTR-BP20 Bass Processor with 10V Output & Precision Bass Control
Orion XTR-BP20 Bass Processor with 10V Output & Precision Bass ControlOrion XTR-BP20 Bass Processor with 10V Output & Precision Bass ControlOrion XTR-BP20 Bass Processor with 10V Output & Precision Bass Control

Orion XTR-BP20 Bass Processor with 10V Output & Precision Bass Control

Price:
$99.95
Stock:
In stock

Moon Points Earn 99 Moon Points when you buy this item.

Description

  • XTR Performance Bass Processor: Designed to enhance low-frequency performance and deliver deeper, tighter bass for subwoofer systems.
  • Bass Restoration Technology: Recovers bass frequencies lost in compressed music or factory audio systems.
  • Sweep Frequency Control: Adjusts the center frequency of the bass enhancement for precise bass tuning.
  • Width Bandwidth Control: Allows tuning of the bass restoration range for wider deep bass or tighter, punchy bass response.
  • Selectable Output Voltage: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match amplifier sensitivity and maximize signal strength.
  • High Signal-to-Noise Performance: Provides clean bass enhancement with a signal-to-noise ratio greater than 110dB.
  • Ultra-Low Distortion Processing: Maintains excellent audio clarity with less than 0.02% total harmonic distortion.
  • Balanced / Unbalanced Input Selection: Ensures compatibility with both factory radios and aftermarket head units.
  • Ground Isolation Control: Helps eliminate alternator noise and electrical interference.
  • Remote Bass Control Support: Allows real-time bass adjustment from the driver’s seat using the remote bass knob.
  • Power Supply: 6.5V – 18V
  • Maximum Input Level: 10V
  • Maximum Output Level: 10.5V
  • Input Sensitivity: 10.5V
  • Input Impedance: >50K Ohms
  • Output Impedance: 100 Ohms
  • EQ Boost / Cut: 15 dB
  • Signal-to-Noise Ratio: >110 dB
  • THD @ 2V Output: <0.02%
  • Channel Separation: >80 dB
  • CMRR: -70 dB Balanced / -29 dB Unbalanced
  • Frequency Response: 10 Hz – 30 kHz
  • Subsonic Filter: 31 Hz – 71 Hz
  • Current Draw: 180 mA
  • Interchannel Gain Tracking: 0.1 dB
  • Fuse Rating: 1A
  • Dimensions: 7.28” x 4.13” x 1.02”
