Description

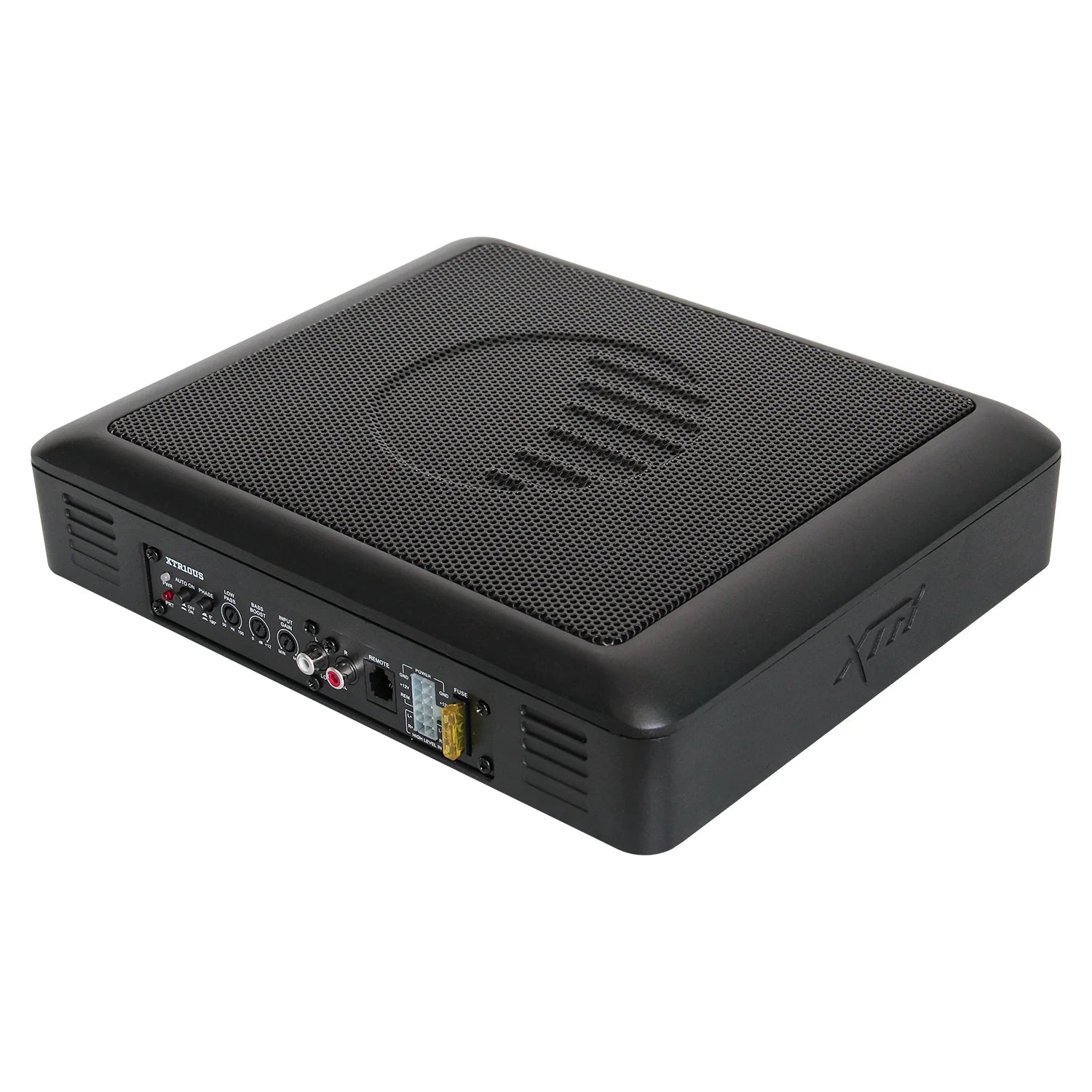

Compact Bass with Big Impact – Orion XTR10US 10” Underseat Powered Subwoofer
When space is limited but you still crave deep, responsive bass, the Orion XTR10US steps in as the perfect solution. Designed for ultra-compact installations like under seats or behind panels, this all-in-one subwoofer system delivers up to 1200W of clean, punchy bass that enhances your driving experience without stealing your cargo space.
Small Size, Serious Sound
With a unique 10” woofer setup, the XTR10US may be small in footprint but it hits hard where it counts. It’s engineered to give your system the added low-end depth missing from factory audio, bringing your favorite music to life with richness and clarity. Whether you’re upgrading a commuter or a custom build, this underseat subwoofer delivers reliable performance with minimum installation hassle.
All-in-One Simplicity
No need for external amps or complex wiring, the XTR10US includes a built-in 300W RMS amplifier that’s pre-tuned for smooth performance. You get full control via bass boost, phase adjustment, and low-pass filter, plus a wired remote to adjust the bass from the driver’s seat. With smart features like auto-start and 4-way protection, it’s made to be easy, safe, and effective.
Engineered to Fit Anywhere
Crafted for stealthy installations, the XTR10US is housed in a rugged, low-profile enclosure that disappears under most car seats. With clean wiring, illuminated status indicators, and vibration-resistant construction, it’s the kind of install you set up once and enjoy every drive after.
Key Features:
- Ultra-Compact Enclosure for Tight Spaces: Built to tuck neatly under seats, behind panels, or in compact hatchbacks, the XTR10US delivers serious bass performance without sacrificing cargo room or cabin aesthetics.
- Built-In High-Efficiency Amplifier: Forget external components. The integrated 300W RMS amplifier is optimized for the woofer, offering tight, controlled bass and peak performance of up to 1200W — all in one box.

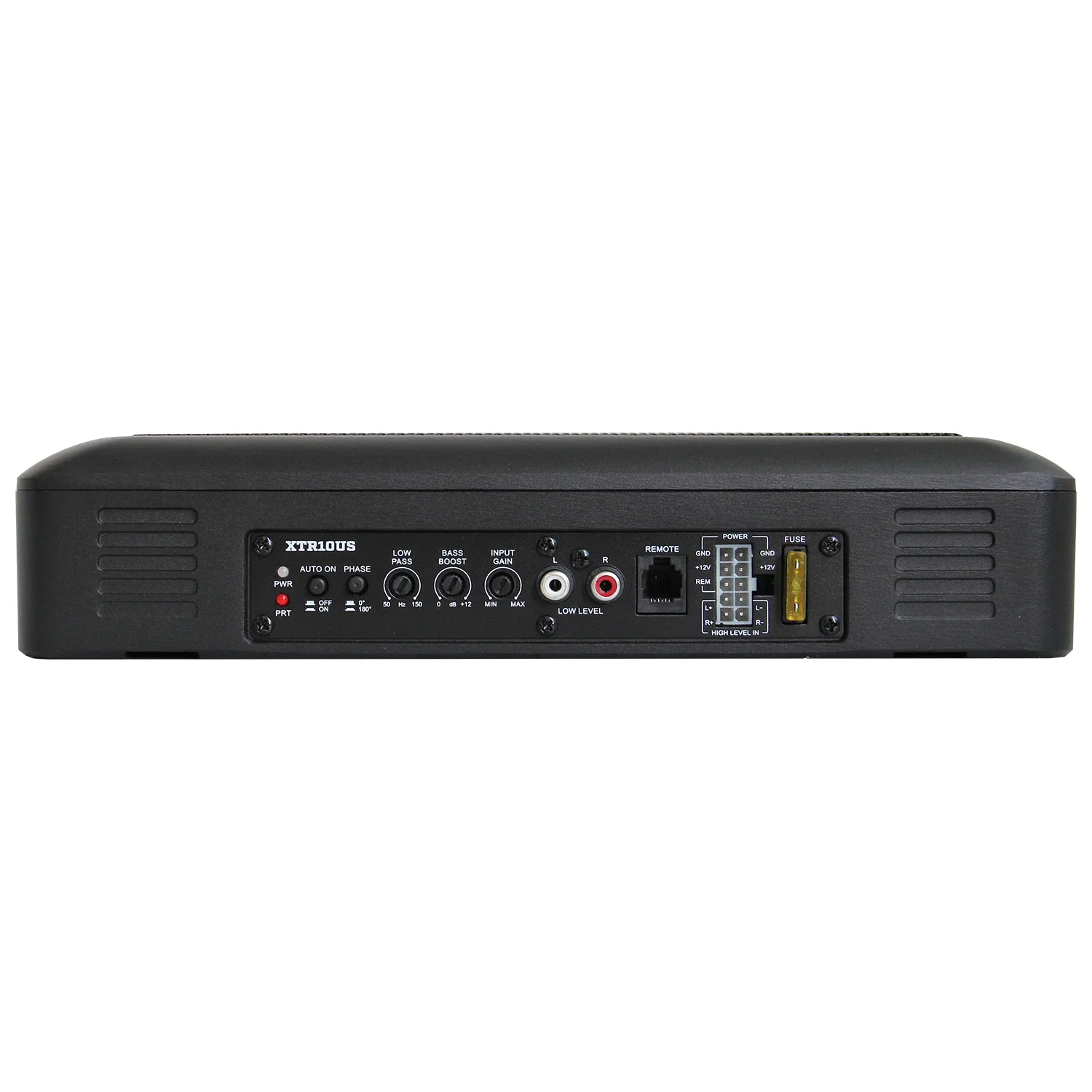

- Precision Bass Tuning Tools: Dial in your sound with adjustable bass boost (0–12 dB), low-pass filter (50–150 Hz), and a phase switch (0°/180°) for better bass alignment in any vehicle interior.

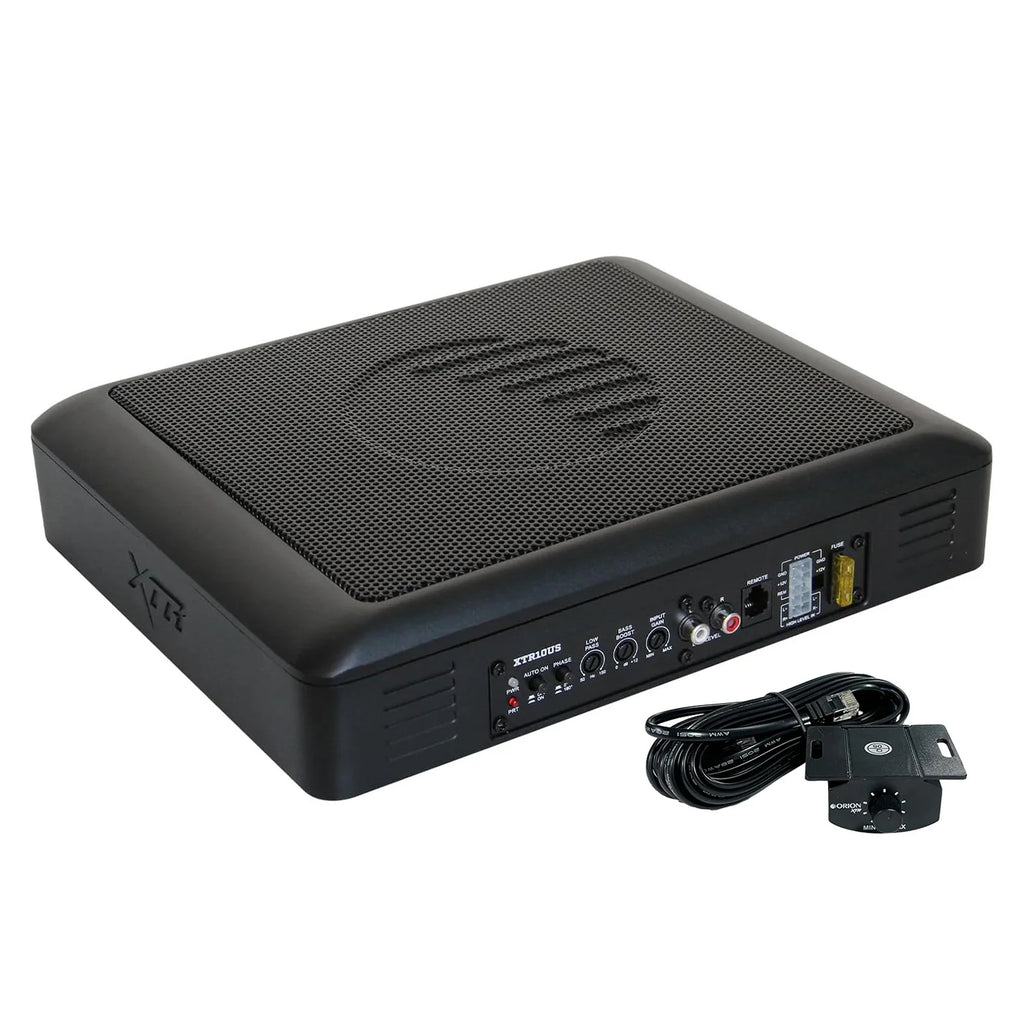

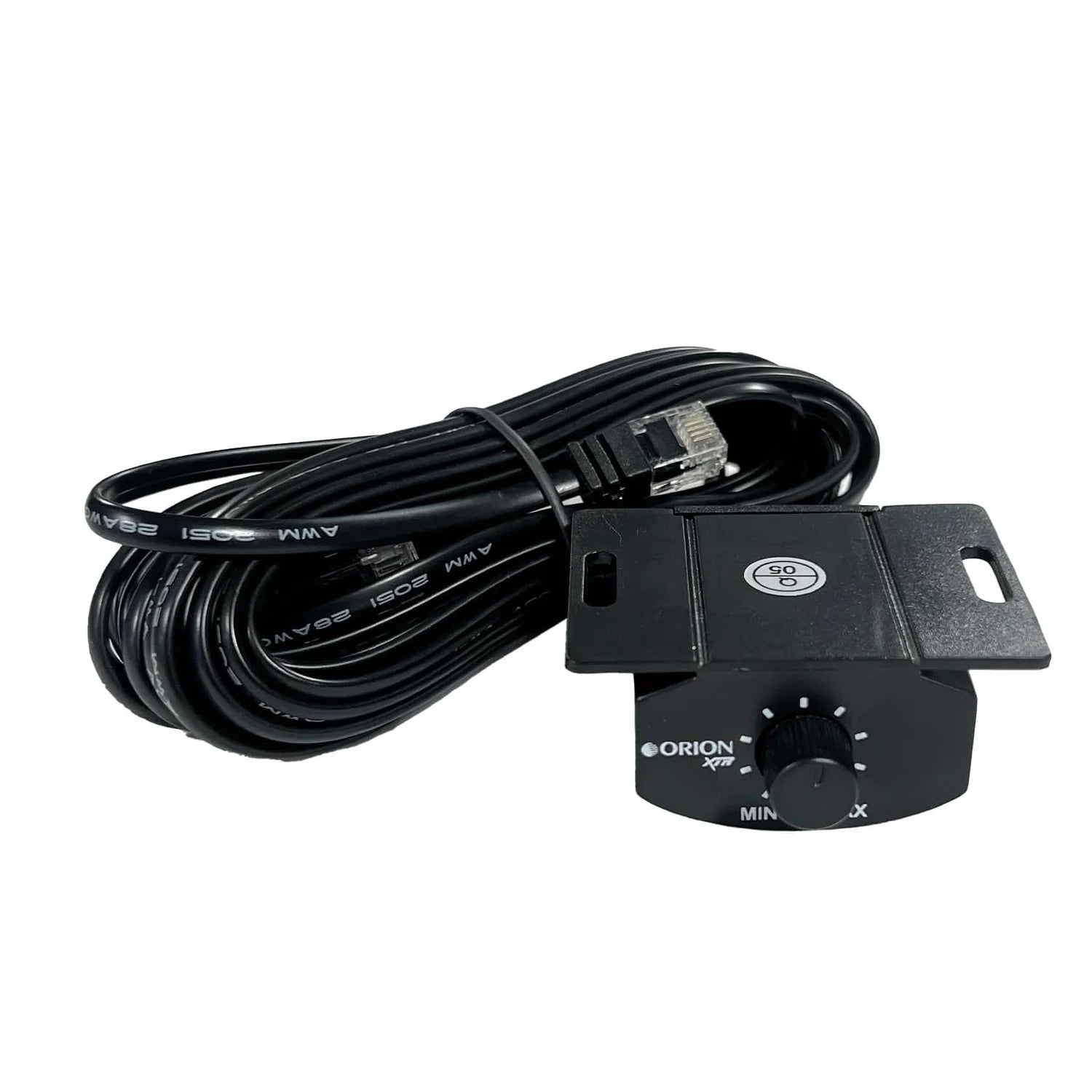

- Wired Remote Bass Control Included: Make quick on-the-fly adjustments to your bass level from the driver’s seat with the included remote knob — perfect for switching between music genres or moods.
- Reliable and Protected Performance: With 4-way protection (thermal, overload, short circuit, and DC), plus LED status lighting and auto-start technology, the XTR10US is designed to last and protect your gear.
Specifications:
- Speaker Size: 10”
- Power Handling (RMS): 300 Watts
- Power Handling (Peak): 1200 Watts
- Bass Boost: 0 – 12 dB
- Low Pass Filter: 50 – 150 Hz
- Frequency Response: 30 Hz – 150 Hz
- Signal to Noise Ratio: >90 dB
- Phase Switch: 0° / 180°
- Dimensions (inches): 11.81” x 9.65” x 2.56”
- Inputs: RCA Input / High-Level Input
- Controls: Remote Control for Subwoofer Level
- Power Supply: P.W.M. MOSFET
- Protection: 4-Way System (thermal, overload, short, DC offset)
- Illumination: Blue / Red LED Indicators
