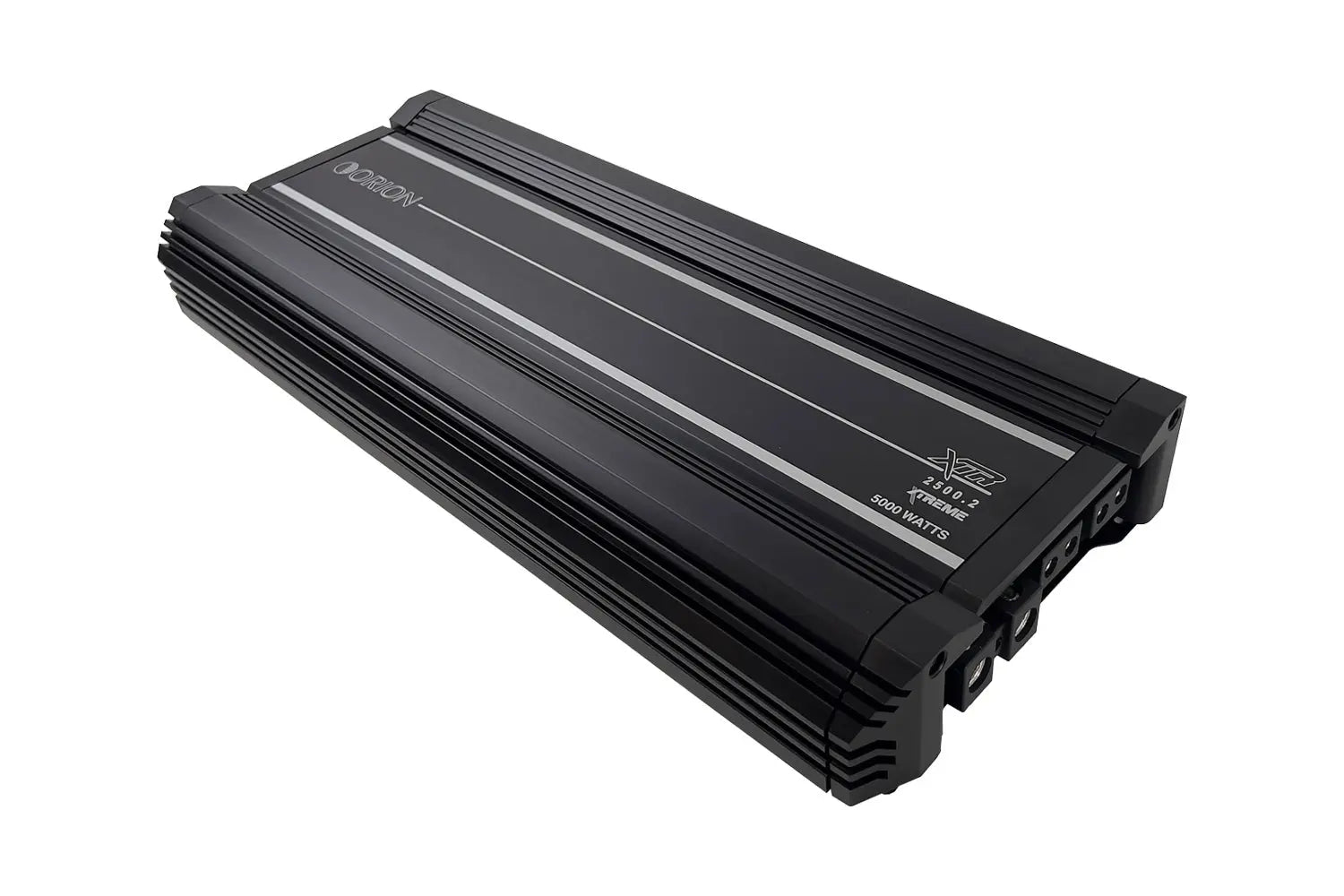

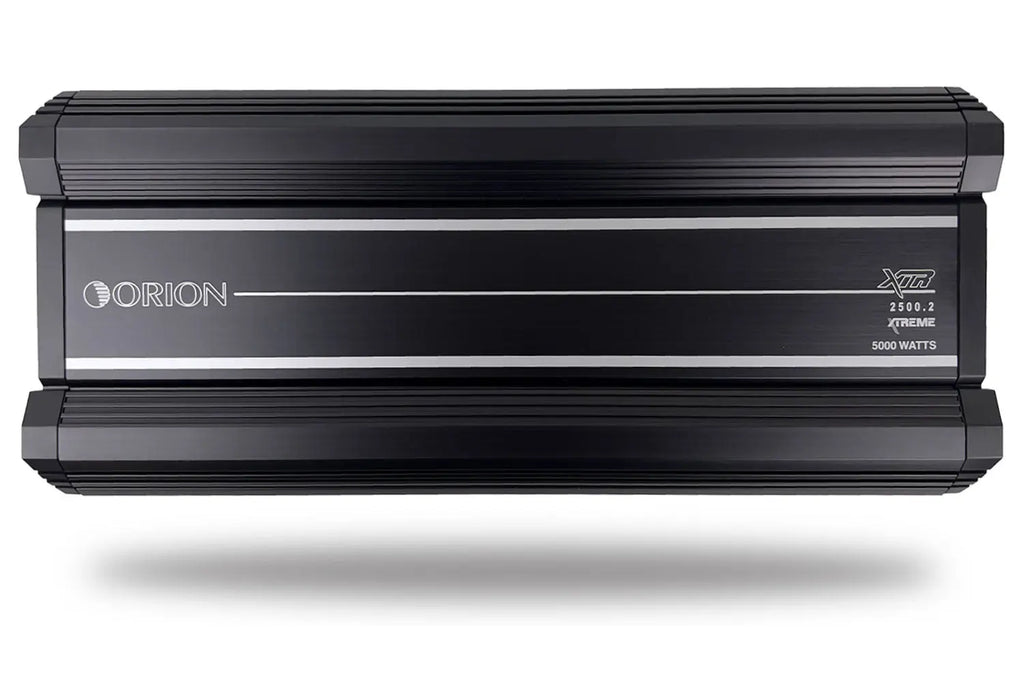

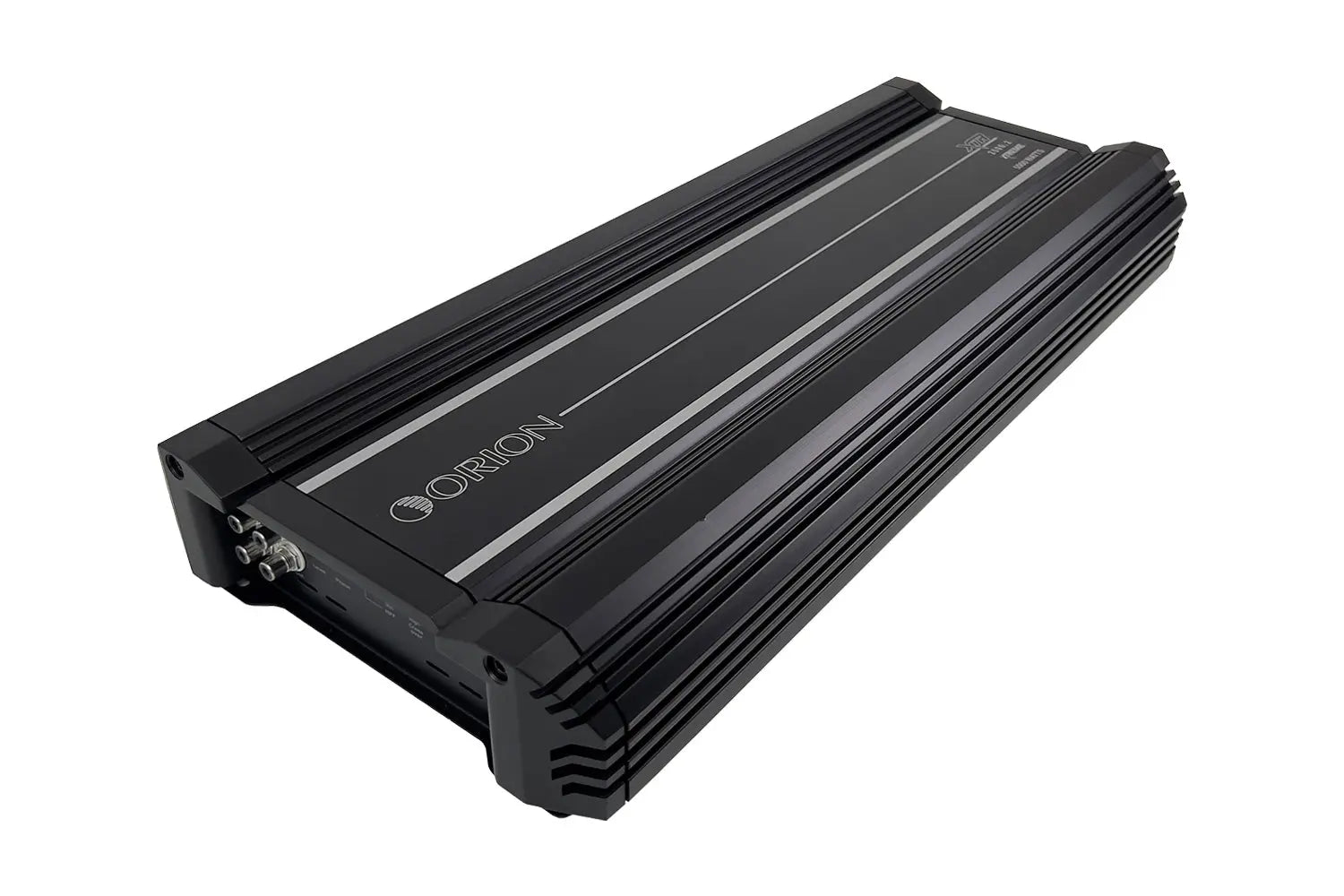

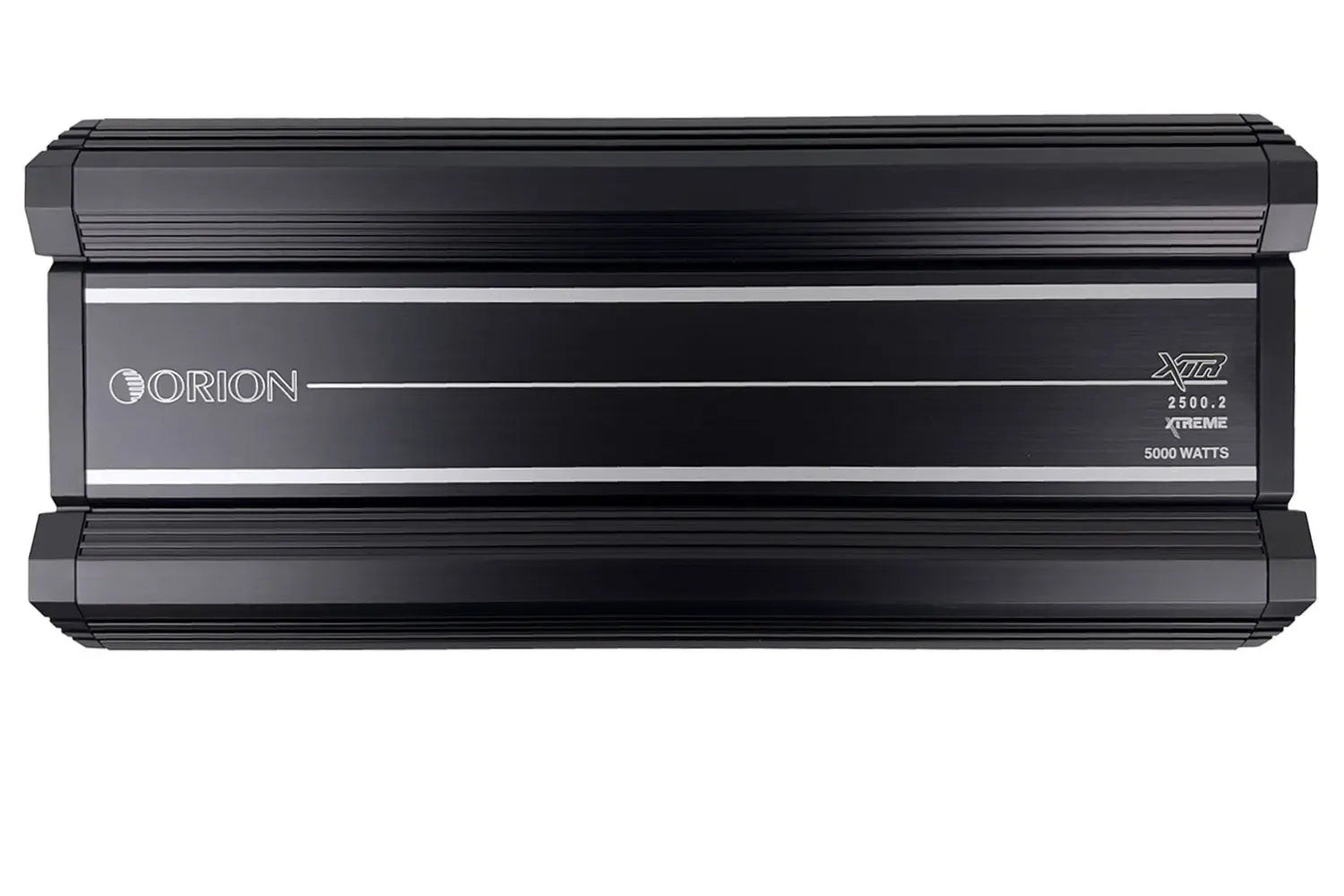

ORION XTR2500.2 XTR Series 2500W RMS 2-Channel Class-AB Amplifier
Unleash Auditory Excellence: The ORION XTR2500.2 XTR Series 2500W RMS 2-Channel Class-AB Amplifier redefines audio supremacy. With advanced features and precision engineering, this amplifier transcends conventional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.
Immersive Sound Reproduction: Rediscover your music in its fullest detail. Every note, beat, and melody – from the softest to the most dynamic – is meticulously reproduced for an immersive and authentic listening experience.
Unrivaled Power and Precision: Experience your music with unmatched force and precision. The ORION XTR2500.2 XTR Series Amplifier seamlessly combines commanding power with exceptional audio quality, crafting a sonic masterpiece that resonates deeply.
Elevate Your Drive: Step into the realm of sonic excellence with the ORION XTR2500.2 XTR Series 2500W RMS 2-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It's time to embrace sound in its purest form.
Class AB Amplification: Experience the ultimate blend of efficiency and precision with Class AB amplification for commanding and accurate sound reproduction.
2500 Watts RMS: Immerse yourself in a world of sonic supremacy with 2500 Watts RMS, delivering unparalleled audio performance.
Precision Audio Control: The adjustable built-in crossover enables meticulous calibration of audio frequencies, optimizing speaker performance.

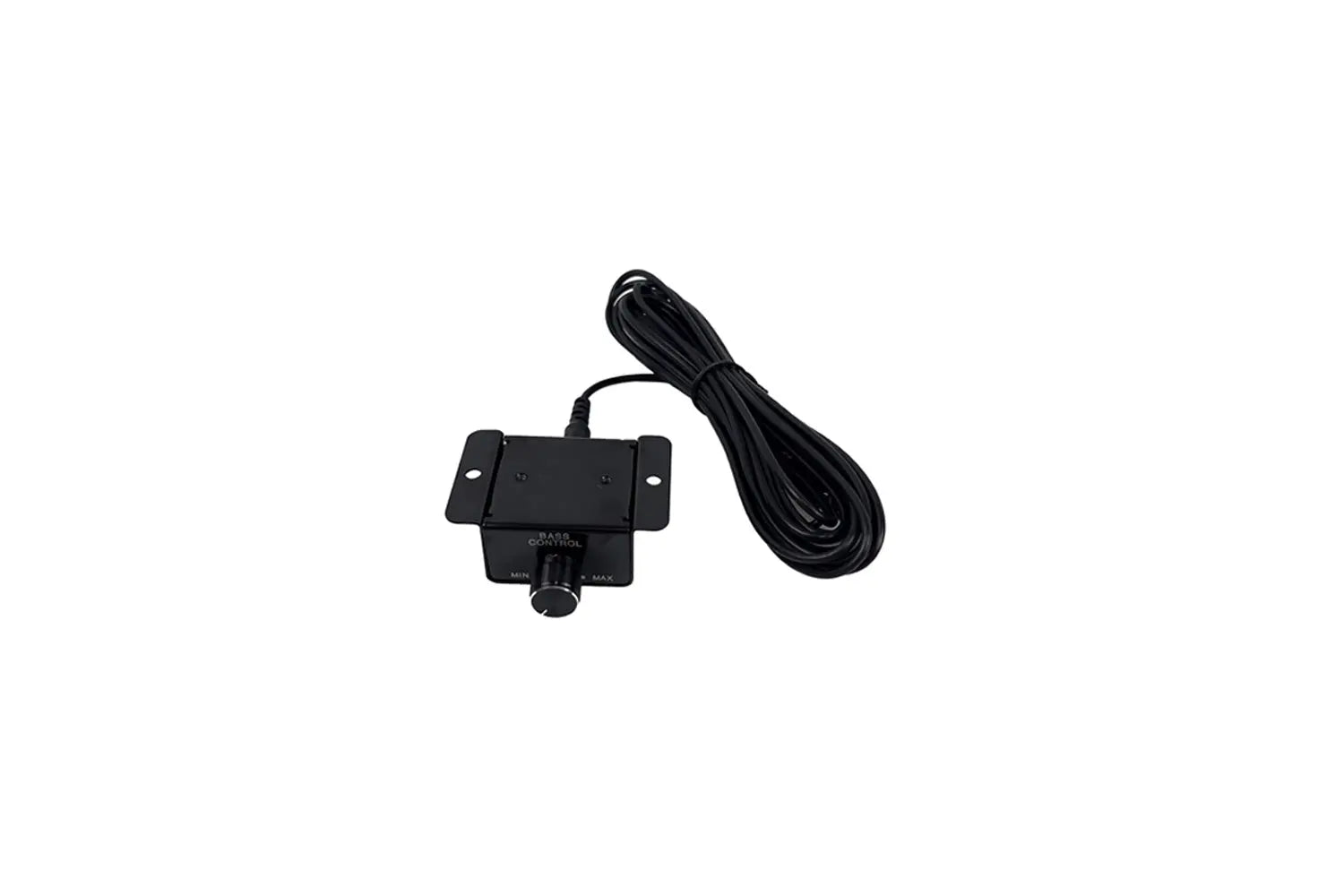

Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Stylish Design: The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
-All MOSFET Power Supply & Output Stage
-Heavy Gauge / High Current Custom Power and Speaker Terminals
-2-Ohm Stable
-RCA Out Throughput
-12dB Octave Low-Pass Filter
-Electronic Crossover Network
-Bass Boost Circuit
-Intelligent Power and
-Protection LED Indicator
-Soft Turn-on/Turn-off
-Turn-On Delay
-Fault and Protection Monitoring
-4-Way Protection- Thermal, DC offset, Short Protection, under & over voltage.
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 750W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 1250W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 2500W

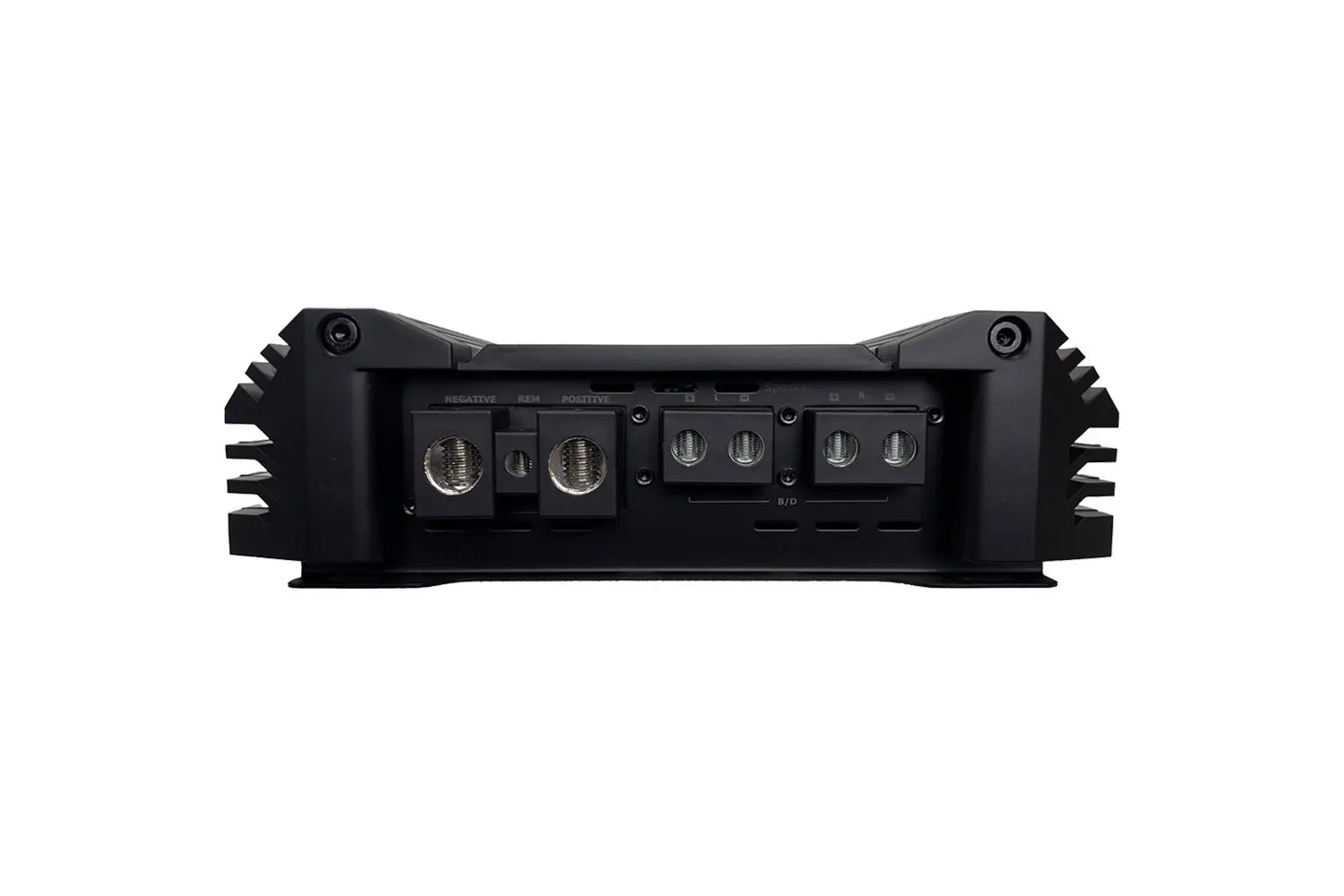

POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 12 AWG.
Frequency Response: 10Hz - 35kHz
Linear Bandwidth 20Hz to 65kHz +/- 3 dB
High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
Low Pass Crossover Continuously variable (50-400Hz)
Supply Voltage: 9 - 16V
Amplifier Efficiency: >80%
Damping Factor: 100dB
Signal to Noise Ratio: >95dB
T.H.D. & Noise: 0.5%
Phase Shift: 0 - 180
Bass Boost: 0-18dB Variable
Variable Input Level Control: 0.2V - 6.0V
Fuses: 200A recommended
Dimensions (L x W x H): 21.26" x 9.25" x 2.75" (540x235x70mm)
