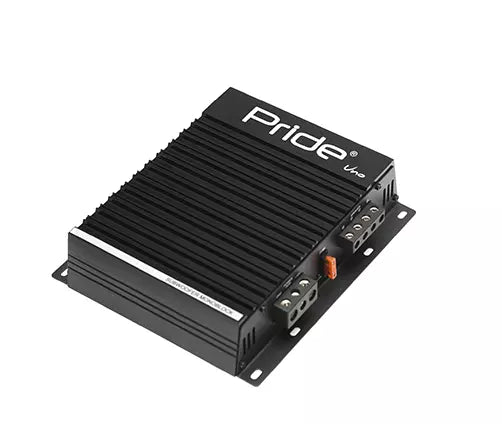

Amplifier Pride Uno
We present to you the Uno series from Pride, single-channel subwoofer amplifiers with Korean circuitry.
The line includes 3 models, such as UNO, UNO PLUS and UNO XL with a power of 400, 700 and 1200 W with a distortion of 5% and a load of 1 ohm. On board three models there is an external level control with indications of amplifier operation and overload (Klipp).
The Korean circuit gives us increased stability in operation than Chinese models, and also retains good rich bass.
“1 channel power amplifier Pride UNO 400W. Suitable for subwoofer up to 400 Watts RMS.
Subwoofer monoblock D class Pride Uno.
Stable on a 1 ohm load. 400 W power per 1 Ohm load, at a voltage of 14.4 volts and a non-linear distortion coefficient (hereinafter K.N.I) at 5%, which is the norm for a subwoofer unit. The remote control of the input sensitivity level has an LED indicator for exceeding the threshold of permissible distortions. The power amplifier is not designed to operate in “bridge mode”
Range of reproduced frequencies, Hz 15 – 270
RMS rated power of 1 ohm, number of channels x W 400
RMS rated power of 2 ohms, number of channels x W 280
RMS rated power at 4 ohms, number of channels x W 160
The quality and stability of the UNO line makes the amplifiers an excellent choice.”
Part number: U.4
Technical feature | |
---|---|
1 Ohm Power | 400 W |
2 Ohm Power | 280 W |
4 Ohm Power | 160 W |
Frequency Response | 15Hz - 270 Hz |
Signal to Noise | 85 dB |
Efficiency @ 4ohm | Over 90% |
Damping Factor | > 200 |
Input Sensitivity | 8V-0,3V |
Subsonic Filter | 10 Hz - 50 Hz |
Bass Boost | 0-9 dB |
Remote Control with indication of exceeding the distortion | Included |
Low Pass Filter | 35 Hz - 250 Hz |
Strap Connection | No |
Fuse Rating | 40 А |
Physical feature | |
Length | 160 mm/6,3" |
Height | 53 mm/2" |
Width | 220 mm/8,6" |
Color | Black |
