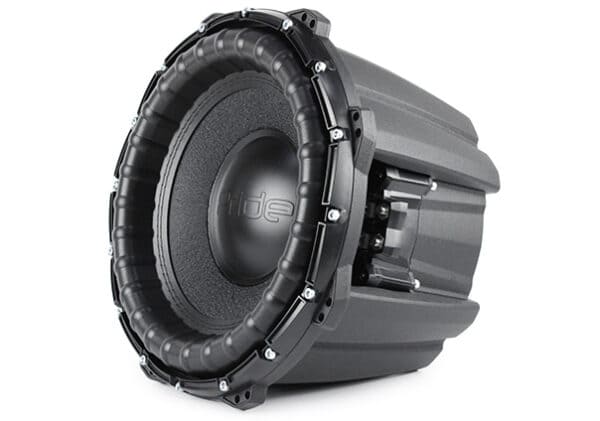

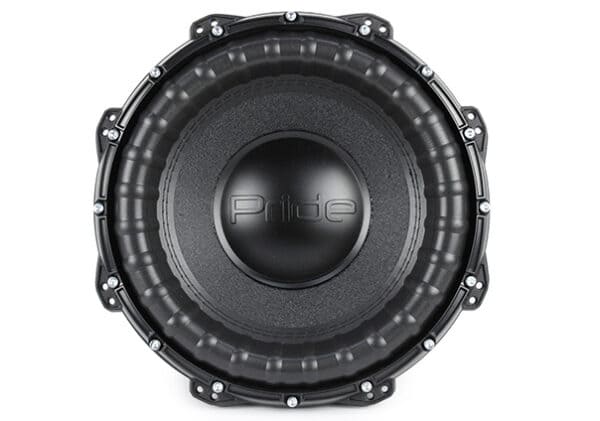

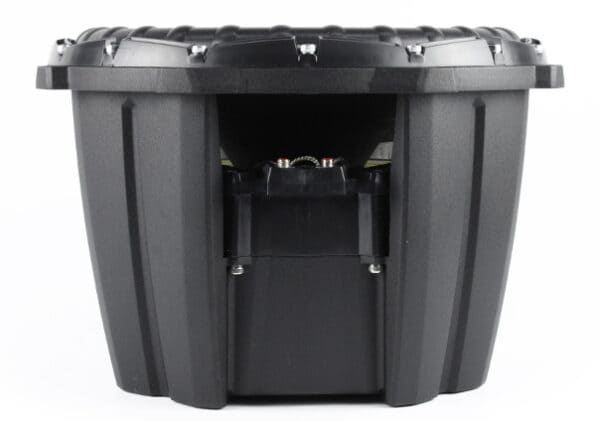

Subwoofer Pride M16.12
The Pride M.16.12 is a powerful and reliable car subwoofer designed using innovative technologies. Thanks to the modular design, subwoofer repair takes only a few minutes – just replace the damaged module.
The M.16 has a power rating of 1600W and features a 12-inch coil that delivers powerful and deep bass. The special suspension design and cast radiator basket ensure effective cooling even during intensive use. Pride M.16 will be an excellent choice for true connoisseurs of high-quality sound in the car
Subwoofers manufactured by the leading company Pride stand out among their analogues with the following advantages:
Hot pressing of the washers and the use of woven material for the centering washers allows you to realize the full potential of the speaker under various operating conditions.
Automated gluing of magnetic systems to test the magnetic system according to all characteristics.
Special glue for each unit of the Pride acoustics allows for maximum strength and elasticity of the moving units.
Acoustic meshes are designed individually for the entire model range, therefore they effectively protect diffusers from mechanical damage
Please yourself with powerful bass, clear sound and reliable equipment with Pride Car Audio
Subwoofer available in the USA!
Part number: M16.12D16
General feature | |
---|---|
Power Handling (RMS) | 1600 W |
VC diameter / material | 3,2" round copper |
VC wire insulation | Polyimide |
Frame material | Aluminum |
Magnet size and q-ty | 190*25mm x 2 pcs / 7,48*0,98" x 2 pcs |
Spider diameter and q-ty | 230 mm x 4 pcs / 9,06" x 4 pcs |
Cone material | Paper with glass fiber |
Dust cap material | Hi-temp ABS |
Parameters | |
DC Resistance (Re) | 1,5+1,5 Ω |
Free Air Resonance (Fs) Hz | 27 |
Moving Mass (Mms) g | 406 |
BL Tm | 21,5 |
Total Speaker “Q” (Qts) | 0,43 |
Electrical Q (Qes) | 0,47 |
Mechanical Q (Qms) | 4,82 |
Equivalent Compliance (Vas) L | 36,1 |
One-Way Linear Excursion (Xmax) (BL 50%) mm | 21 |
Sensitivity (1 W / 1 m) dB | 83,8 |
Effective Piston Area (Sd) cm² | 530 |
Physical Specifications | |
Overall Diameter | 325mm / 12,8" |
Mounting Hole Diameter | 307,5mm / 12,11" |
Mounting Depth | 188mm / 7,4" |
Driver Displacement | 4 l / 1,06 Gal |
Net Weight | 13,3 kg / 29,32 lbs |
