Description
Subwoofer Pride M25.15

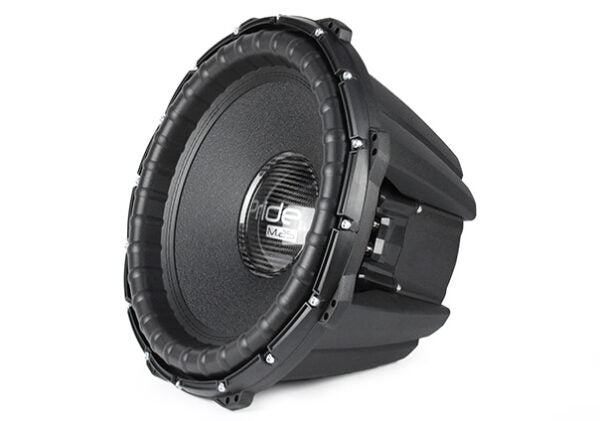

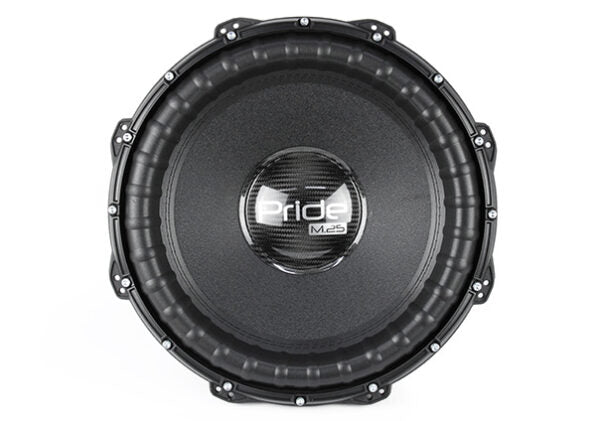

We present you one of the most popular subwoofer by Pride Car Audio brand – Pride M.25 15” with carbon dust cap.
Size – 15″, RMS – 2500 W.
The subwoofer has an updated cooling system. The aluminum frame now completely removes all heat. Now the subwoofer can play even longer and louder. The subwoofer also received a new powerful magnetic system and our high-line suspension. The size of the magnets is 8.66*1.06″” x 2 pcs.
The voice coil is designed and developed by Pride. Because we used the high-temperature glue and varnish, the voice coils do not emit an odor during operation. A 3.2″ diameter voice coil.
Enlarged centering washer with a diameter of 9.06″” with a progressive corrugation shape. The shape of the cone made it possible to reduce the additional mass of the moving part and increase the area of adhesive contacts, which gives even more strength at high loads.
The subwoofer has a replaceable modular design of the suspension and you can replace it in a few minutes.
The subwoofer is available in two versions – D0,75 and D1,5.
Pride subwoofers are impeccable power and reliability.
Please yourself with powerful bass, clear sound and reliable equipment with Pride Car Audio!
Part number: M25.15D07
| General feature | |
|---|---|
| Power Handling (RMS) | 2500 W |
| VC diameter / material | 3,2" flat aluminum |
| VC wire insulation | Polyimide |
| Frame material | Aluminum |
| Magnet size and q-ty | 220*27mm x 2 pcs / 8,66*1,06" x 2 pcs |
| Spider diameter and q-ty | 230mm x 5pcs / 9,06" x 5pcs |
| Cone material | Paper with glass fiber |
| Dust cap material | Carbon (real) |
| Parameters | |
| DC Resistance (Re) | 0,75+0,75 Ω |
| Free Air Resonance (Fs) Hz | 31,4 |
| Moving Mass (Mms) g | 395 |
| BL Tm | 15,8 |
| Total Speaker “Q” (Qts) | 0,44 |
| Electrical Q (Qes) | 0,48 |
| Mechanical Q (Qms) | 5,25 |
| Equivalent Compliance (Vas) L | 71,7 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm | 34 |
| Sensitivity (1 W / 1 m) dB | 88,7 |
| Effective Piston Area (Sd) cm² | 845 |
| Physical Specifications | |
| Overall Diameter | 397mm / 15,63" |
| Mounting Hole Diameter | 370mm / 14,57" |
| Mounting Depth | 208,5mm / 8,21" |
| Driver Displacement | 5 l / 1,32 Gal |
| Net Weight | 21,6 kg / 47,62 lbs |
Dual 1.5 Ohm ~
| General feature | |
|---|---|
| Power Handling (RMS) | 2500 W |
| VC diameter / material | 3,2" flat aluminum |
| VC wire insulation | Polyimide |
| Frame material | Aluminum |
| Magnet size and q-ty | 220*27mm x 2 pcs / 8,66*1,06" x 2 pcs |
| Spider diameter and q-ty | 230mm x 5pcs / 9,06" x 5pcs |
| Cone material | Paper with glass fiber |
| Dust cap material | Carbon (real) |
| Parameters | |
| DC Resistance (Re) | 1,5+1,5 Ω |
| Free Air Resonance (Fs) Hz | 31,7 |
| Moving Mass (Mms) g | 388 |
| BL Tm | 22,3 |
| Total Speaker “Q” (Qts) | 0,43 |
| Electrical Q (Qes) | 0,47 |
| Mechanical Q (Qms) | 5,28 |
| Equivalent Compliance (Vas) L | 70,8 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm | 34 |
| Sensitivity (1 W / 1 m) dB | 88,8 |
| Effective Piston Area (Sd) cm² | 845 |
| Physical Specifications | |
| Overall Diameter | 397mm / 15,63" |
| Mounting Hole Diameter | 370mm / 14,57" |
| Mounting Depth | 208,5mm / 8,21" |
| Driver Displacement | 5 l / 1,32 Gal |
| Net Weight | 21,6 kg / 47,62 lbs |
