| Nominal Diameter | 6"x9" (152 x 228 mm) |
| Nominal impedance | 4 Ohm |

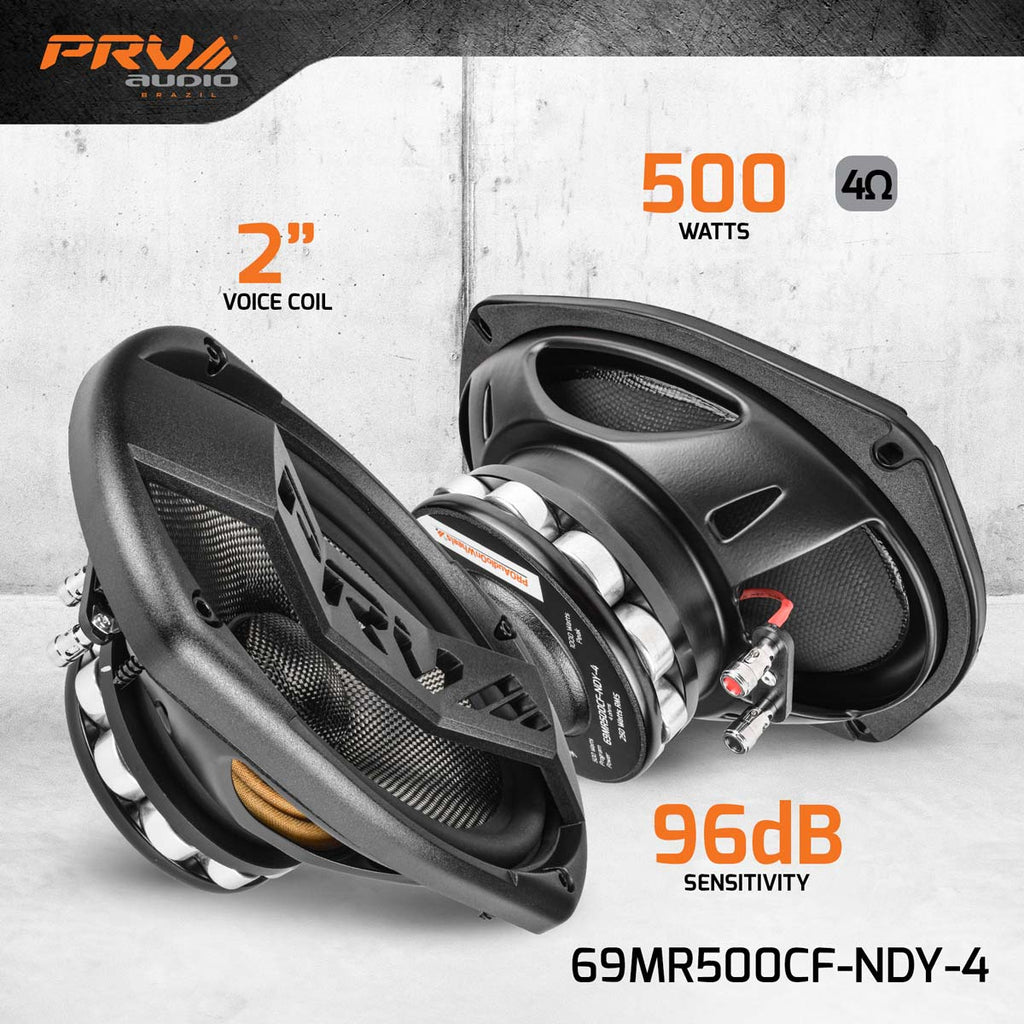

| Continuous Program Power | 500 Watts RMS |
| Sensitivity 2.00V at 1m | 96 dB |
| Recommended High Pass Crossover** **For Full Power Handling | 110 Hz* *12db Per Octave Crossover |
| Frequency Response | 100 - 13,000 Hz |
| Voice Coil Diameter | 2" (50.8 mm) |
| Voice Coil Wire | CCAW |
| Former Material | Kapton |
| Frame Material | Stamped Steel |
| Equivalent Volume | Vas | 8.95 l |
| Excursion (mathematical)*** | Xmax | 3.25 mm |
| Free Air Resonance | Fs | 91.0 Hz |
| Mechanical Factor | Qms | 15.81 |
| Electrical Factor | Qes | 0.36 |
| Total Factor | Qts | 0.35 |
| Cone Area | Sd | 216 cm² |
| Mechanical Mass | Mms | 22.34 g |
| Bl Factor | Bl | 10.92 Tm |
| Dc Resistance | Re | 3.4 Ohms |
| Inductance | Le | 0.05 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 20.54 g |
| Mechanical Compliance | Cms | 0.136 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

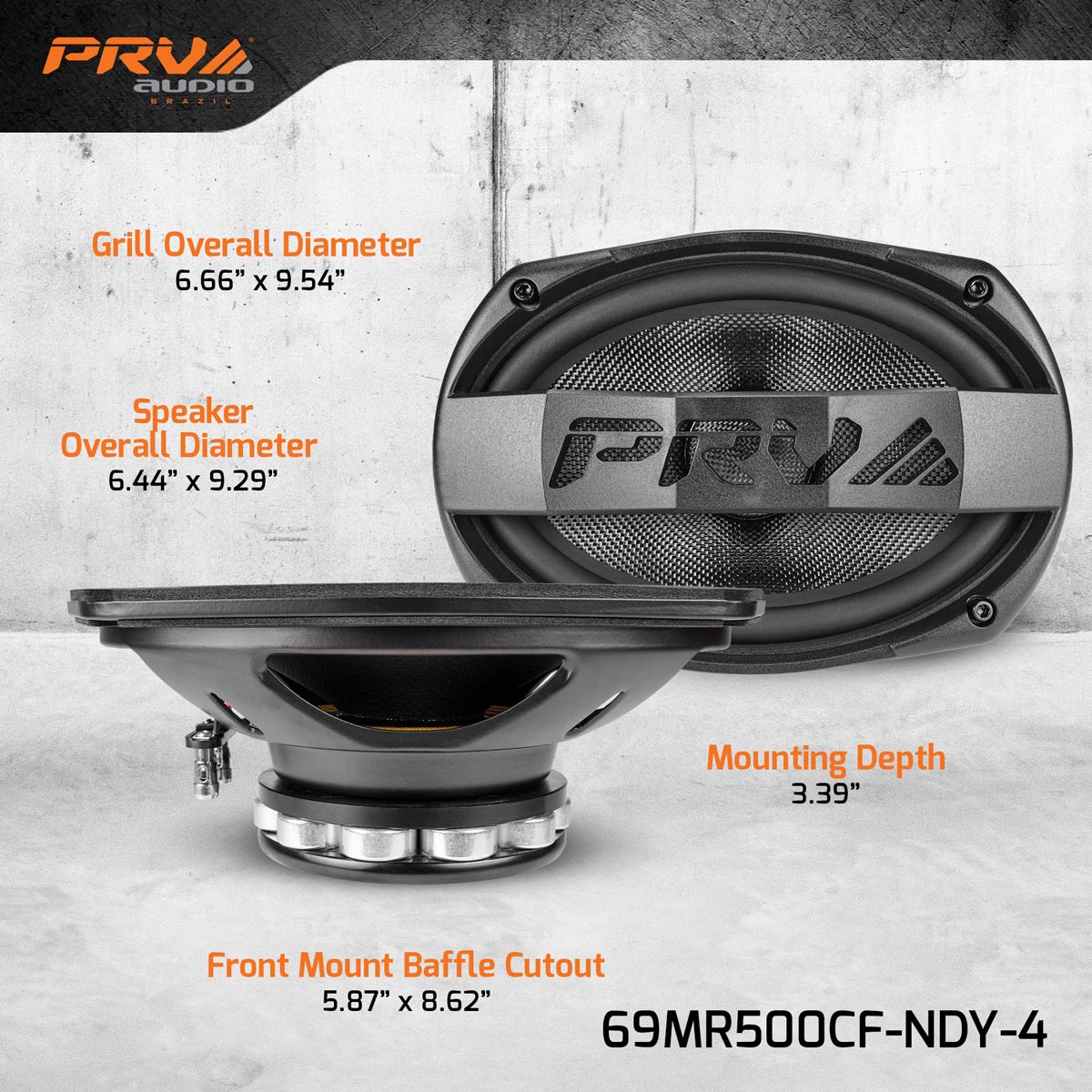

| Overall Diameter | 6.44”x9.29" (163.5x236 mm) |
| Front Mount Baffle Cutout | 5.87”x8.62 (149x219 mm) |
| Mounting Depth | 3.39” (86 mm) |
| Overall Depth | 3.74” (95 mm) |
| Net Weight | 3.86 Lbs (1.75 kg) |
| Shipping Weight | 9.70 Lbs (4.4 kg) |
| Carton Dimensions W x L x H | 15.3” x 10.8” x 5.31” (390 x 275 x 135 mm) |
