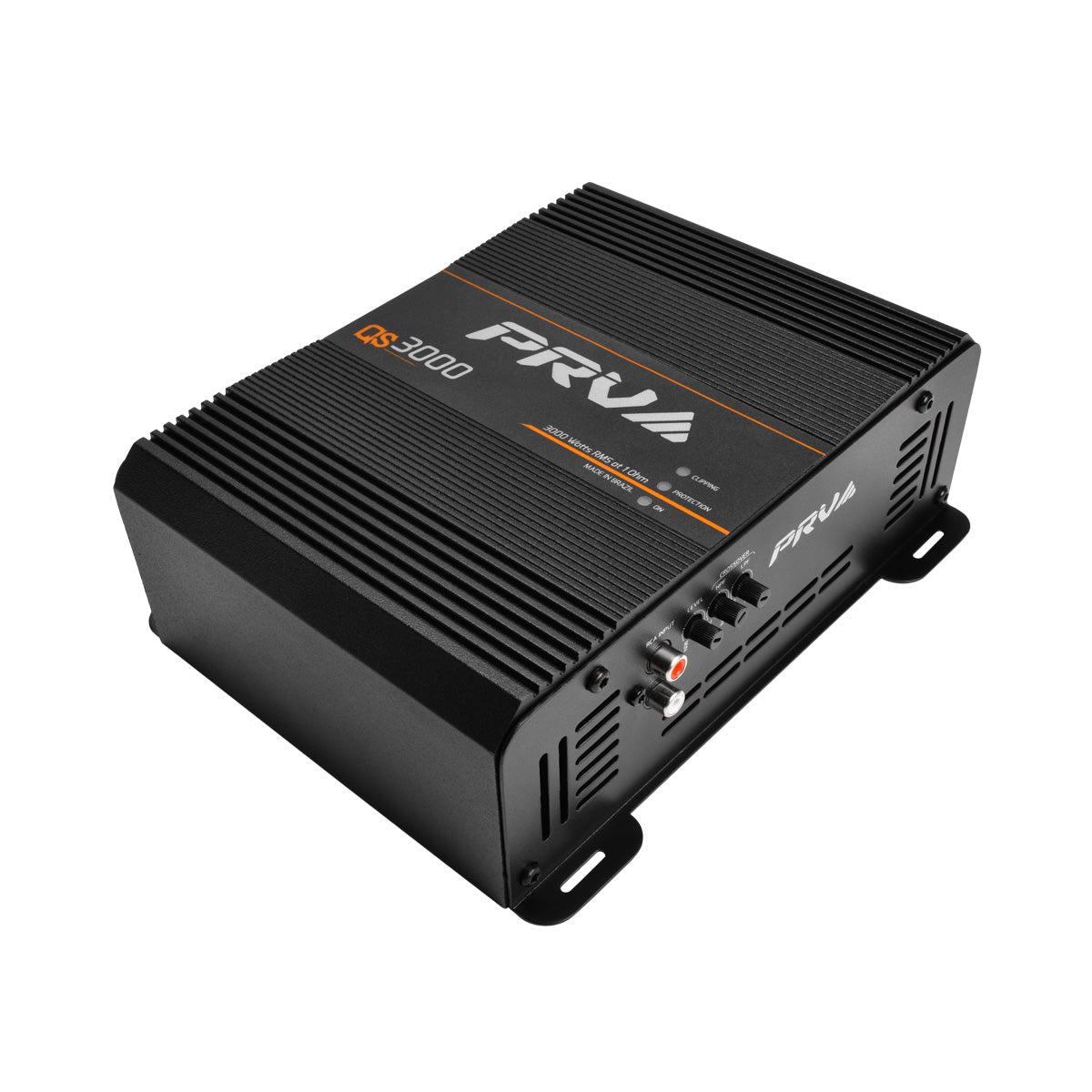

PRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-Ohm
PRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-Ohm
PRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-Ohm
PRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-Ohm
PRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-Ohm
PRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-OhmPRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-OhmPRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-OhmPRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-OhmPRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-Ohm

PRV Audio QS3000 3000W RMS Class D Monoblock Full Range Amplifier 1-Ohm

Price:
$199.91
Stock:
Sold out

Moon Points Earn 199 Moon Points when you buy this item.

Description

QS Series amplifiers are all about efficient design capable of full-range frequency response at a great price!

The QS3000 features a regulated power supply that is able to constantly deliver power and provides an unsurpassed efficiency rate of 80–90% in a small aluminum heatsink.


QS3000 1Ω
  • 3000 watts TRUE RMS certified at full range output Digital Class D Brazilian Technology
  • 1 Channel car audio amplifier stable at 1 Ohm gives you the benefit of wiring multiple speakers and dividing the power.
  • Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicle’s electrical system!
  • A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle: 7.30″ Wide x 8.66″ Length x 3.00″ Height
  • 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.
Channels 1 Channel
Rated RMS Power at 14.0 V at 1 Ohm 3000 Watts
Rated RMS Power at 14.0 V at 2 Ohm 2100 Watts



GENERAL SPECIFICATIONS

Impedance 1 Ohm
Channels 1 Channel
Rated RMS Power at 14.0 V at 1 Ohm 3000 Watts
Rated RMS Power at 14.0 V at 2 Ohms 2100 Watts
Average Efficiency 76%
Operating Voltage 9 to 16 Volts
Musical Current Draw 155 A
Minimum Power Wire Input (OFC) 4 Gauge
Protection Fuse or Circuit Breaker 150 Amps
Minimum Speaker Wire Output 14 Gauge
Frequency Response(-3dB) 20 – 20,000 Hz
Min. Input Sensitivity for Max. Output 200 mV
Signal Input 1 Pair RCA
Signal to Noise >90 dB
Protection System Low & High Supply Voltage / Shortage on Output / Low Impedance on Output
Heat Sink Type Heavy Duty Cast Aluminum
Dimensions ( W x D x H ) 7.30″ x 8.66″ x 3.00″
Weight 5.10 Lbs



PRV Audio QS3000 1Ω Manual
