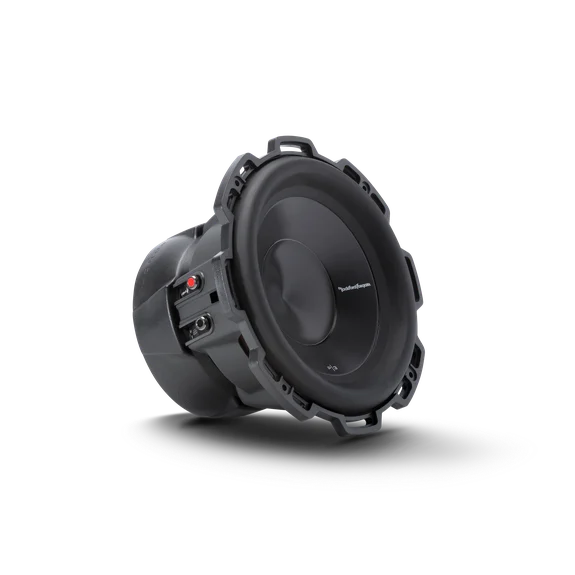

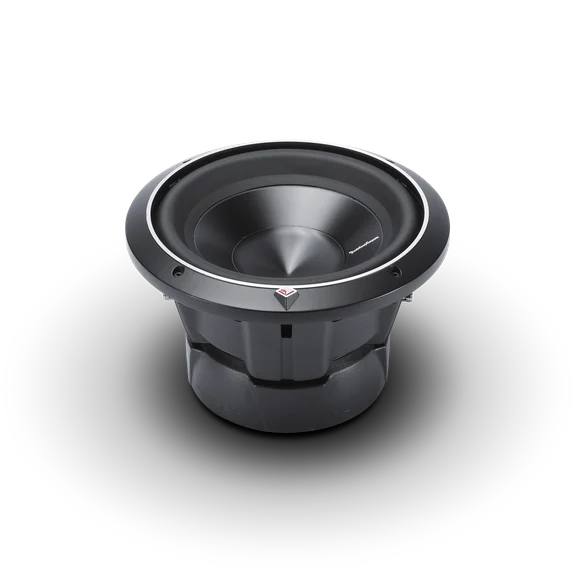

Rockford Fosgate P3D4-10 10" 600W RMS Subwoofer DVC 4-Ohm

Key Features:

• 10″ subwoofer with dual 4-ohm voice coils
• anodized aluminum cone with Santoprene surround
• hybrid StampCast basket provides strength while minimizing weight and resonance
• Vertical Attach Surround Technique (VAST™) increases cone area
• power range: 250-500 watts RMS (1000 watts peak power)
• frequency response: 28-250 Hz
• sensitivity: 82 dB
• top-mount depth: 6-3/16″
• sealed box volume: 0.5-0.75 cubic feet
• ported box volume: 1.4 cubic feet
• grille not included
• warranty: 1 year



Features & specs

Size	10 -inch
Impedance	2 ohms
Cone Material	Anodized Aluminum
Surround Material	Santoprene
Ideal Sealed Box Volume (cubic feet)	0.59
Ideal Ported Box Volume (cubic feet)	1.4
Port diameter (inches)	4
Port length (inches)	14
Free-Air	No
Dual Voice Coil	Yes
Sensitivity	82 dB at 1 watt
Frequency Response	28 – 250 Hz
Max RMS Power Handling	500
Peak Power Handling (Watts)	1000
Top Mount Depth (inches)	6 3/16
Bottom Mount Depth (inches)	N/A
Cutout Diameter or Length (inches)	9
Vas (liters)	27
Fs (Hz)	28
Qts	0.56
Xmax (millimeters)	13.9
