Description
FEATURES

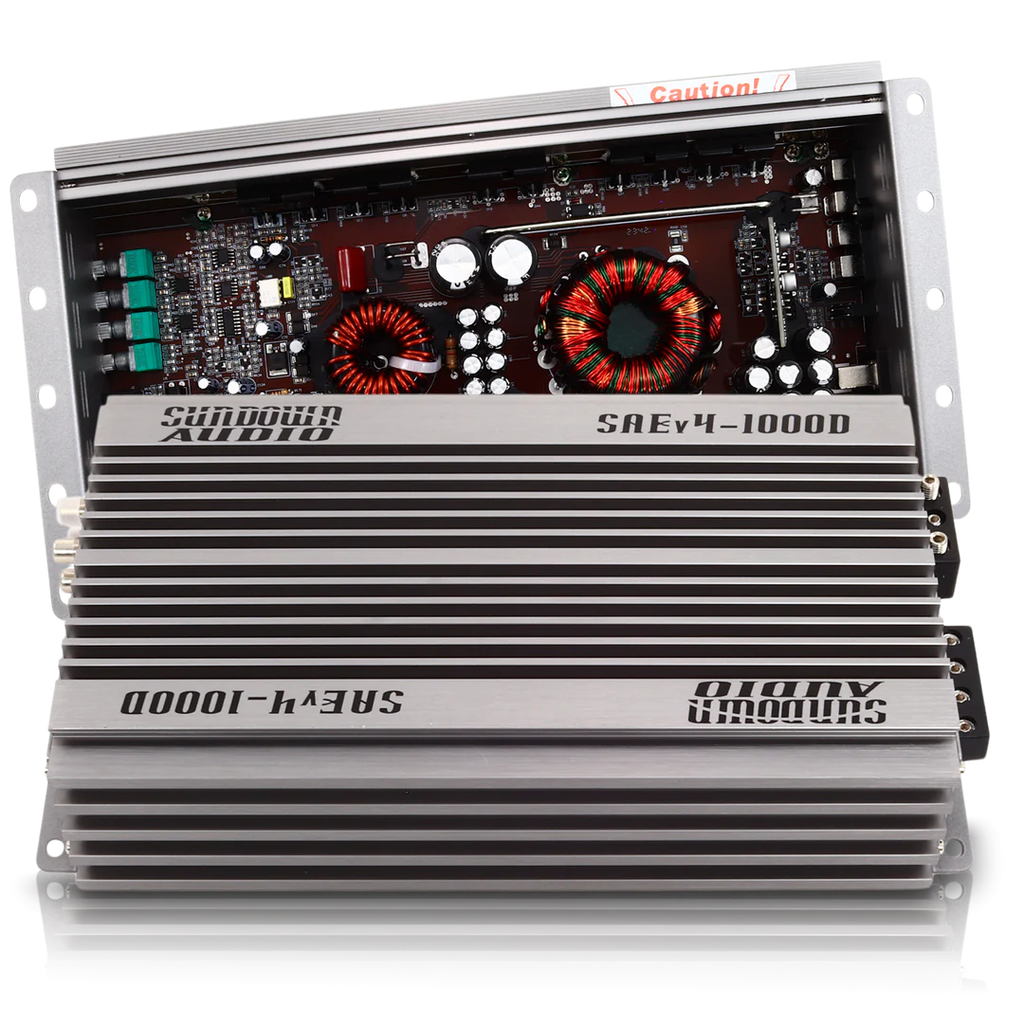

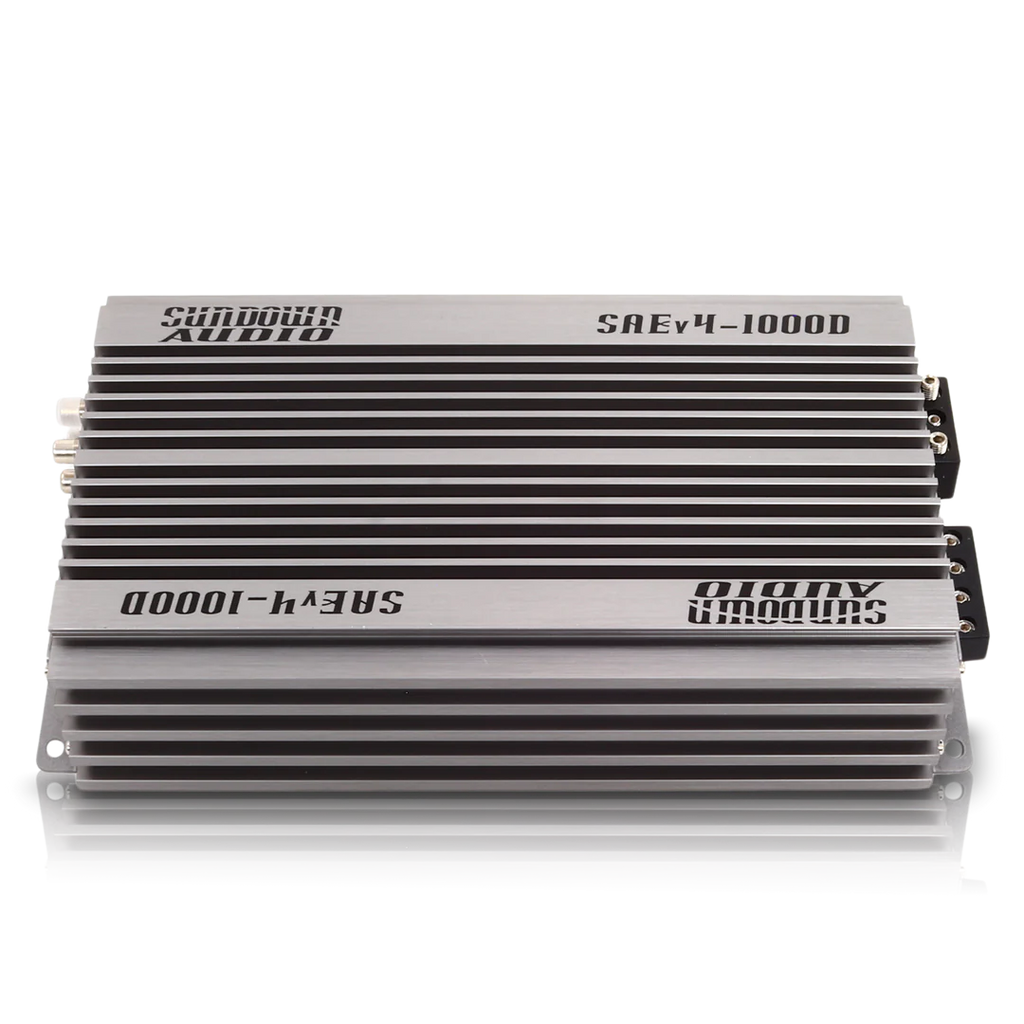

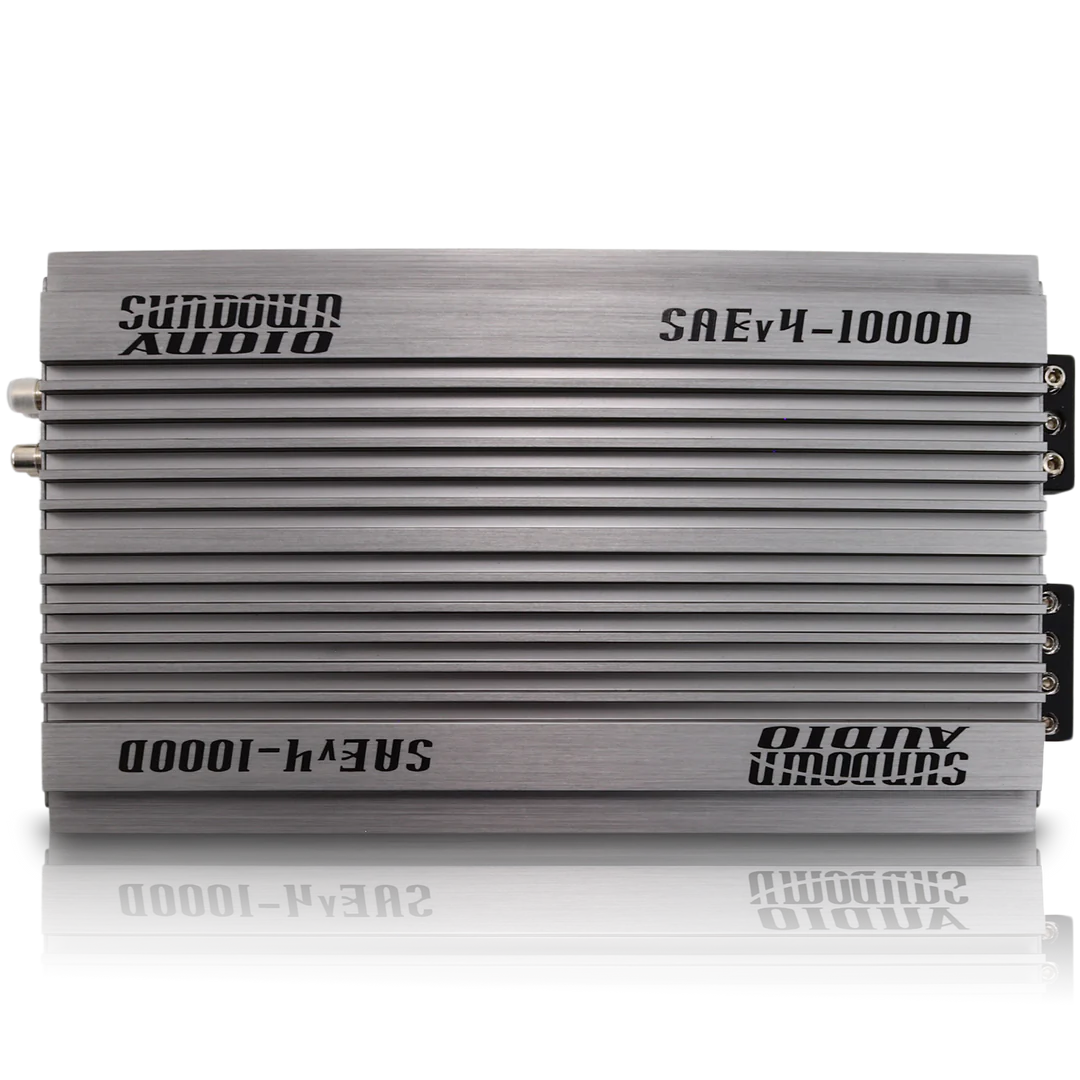

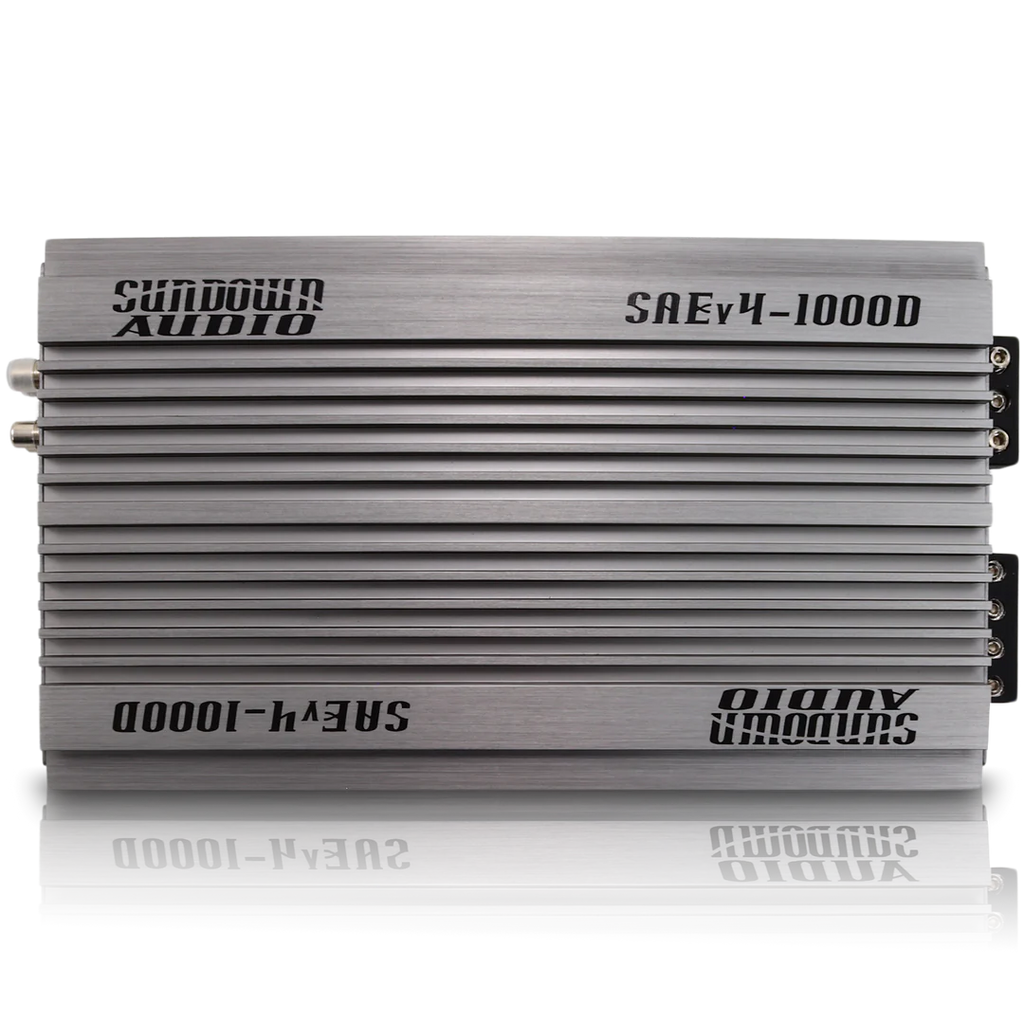

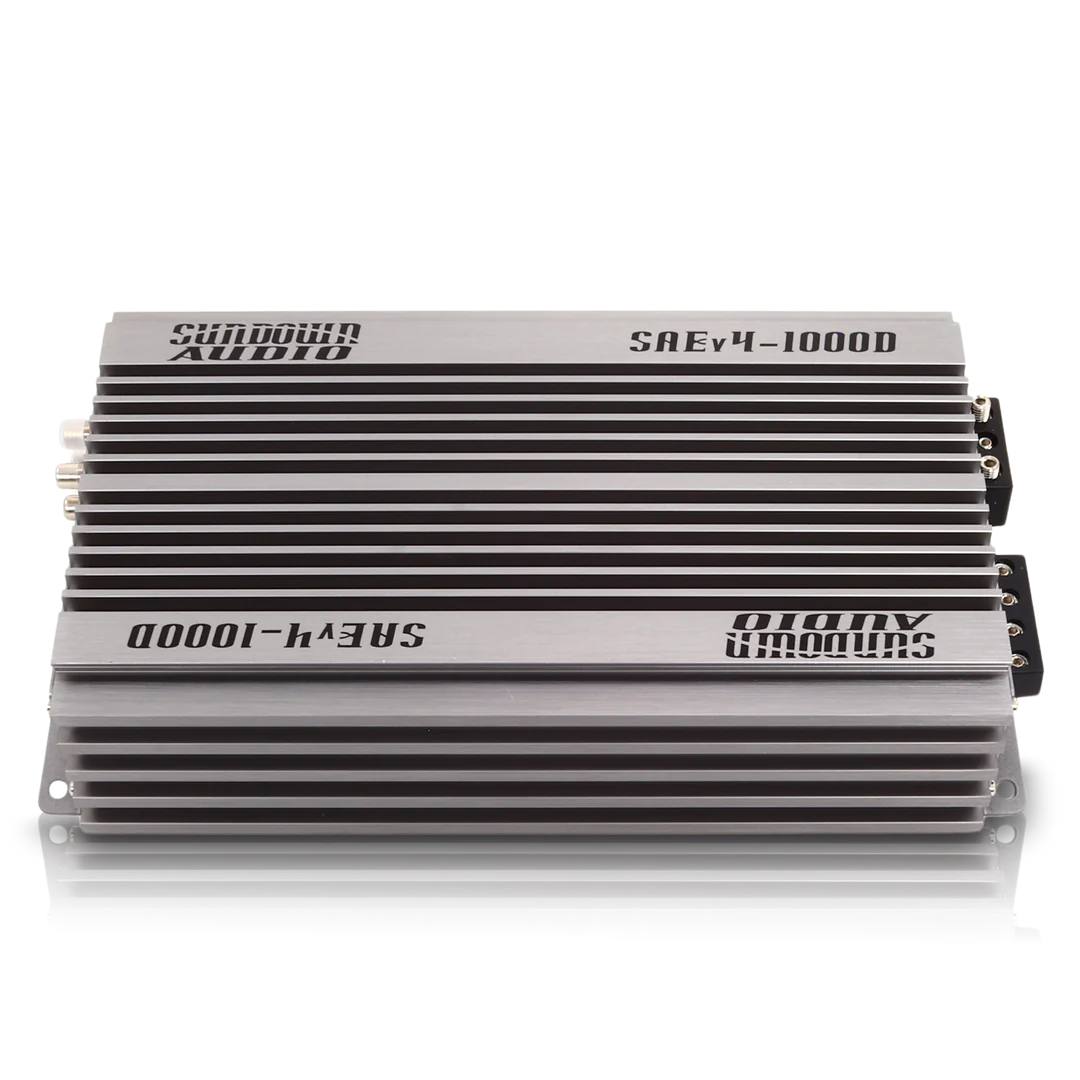

- Digital Class-D Mono Block Amplifier

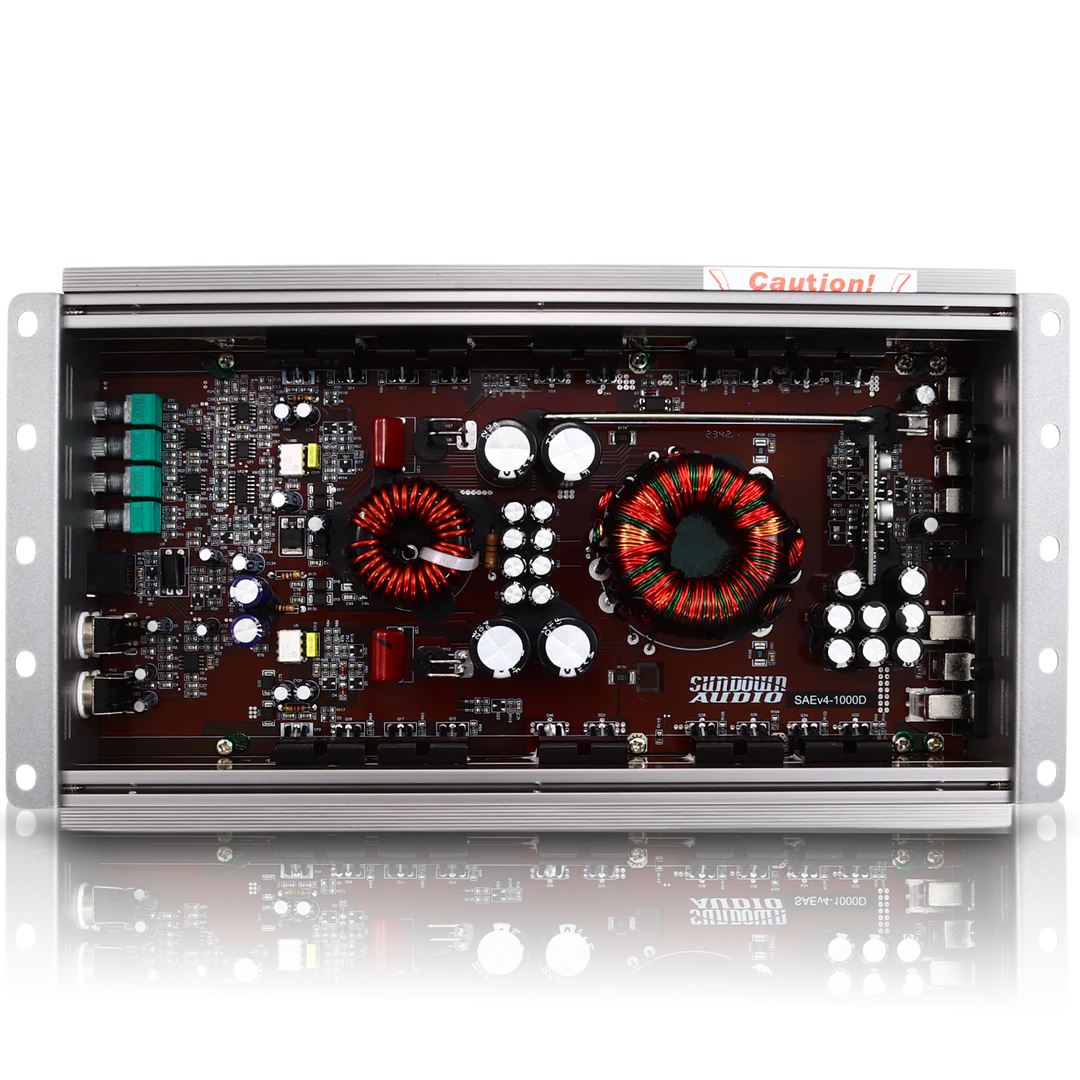

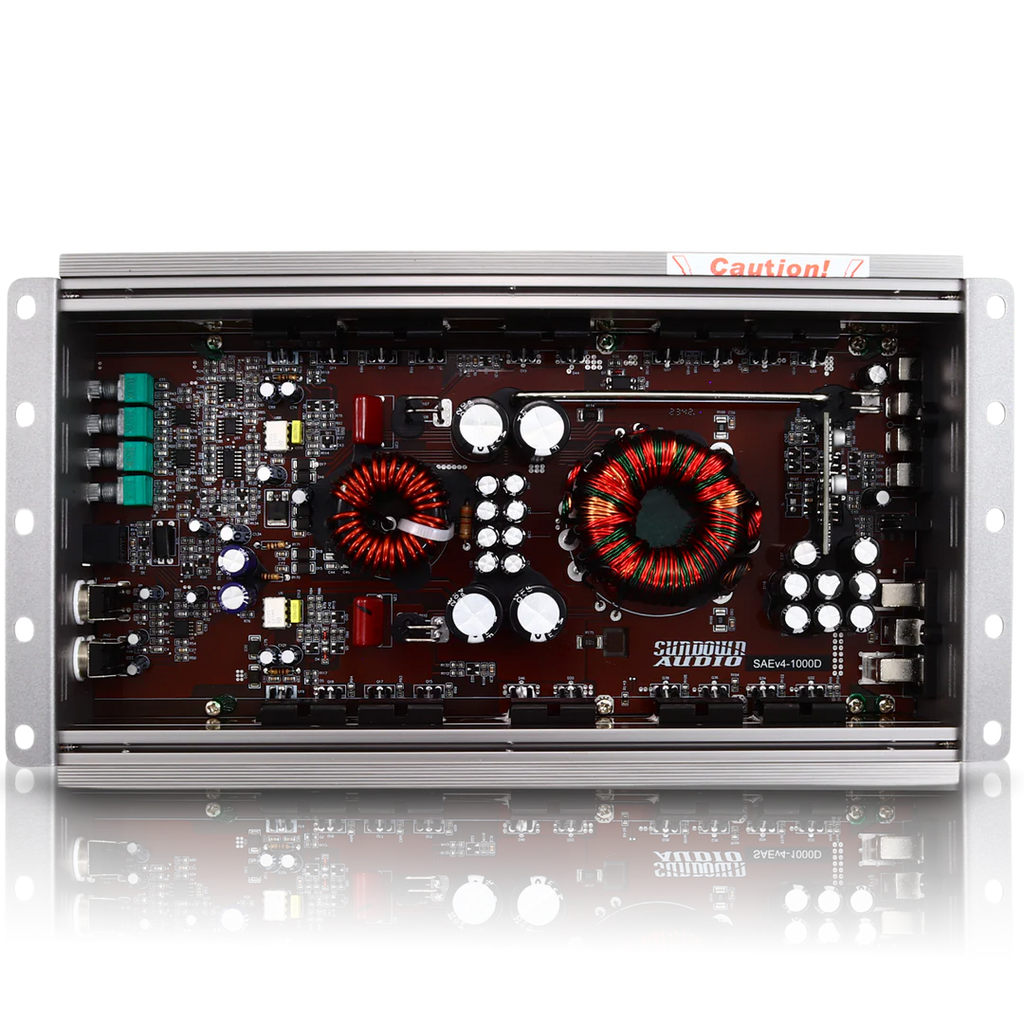

- Dual MOS-FET PWM Power Supply
- 1 Ohm Stable Load
- 12 dB/Octave - Variable Low Pass Filter
- 12 dB/Octave - Variable Subsonic Filter
- 4 Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset)

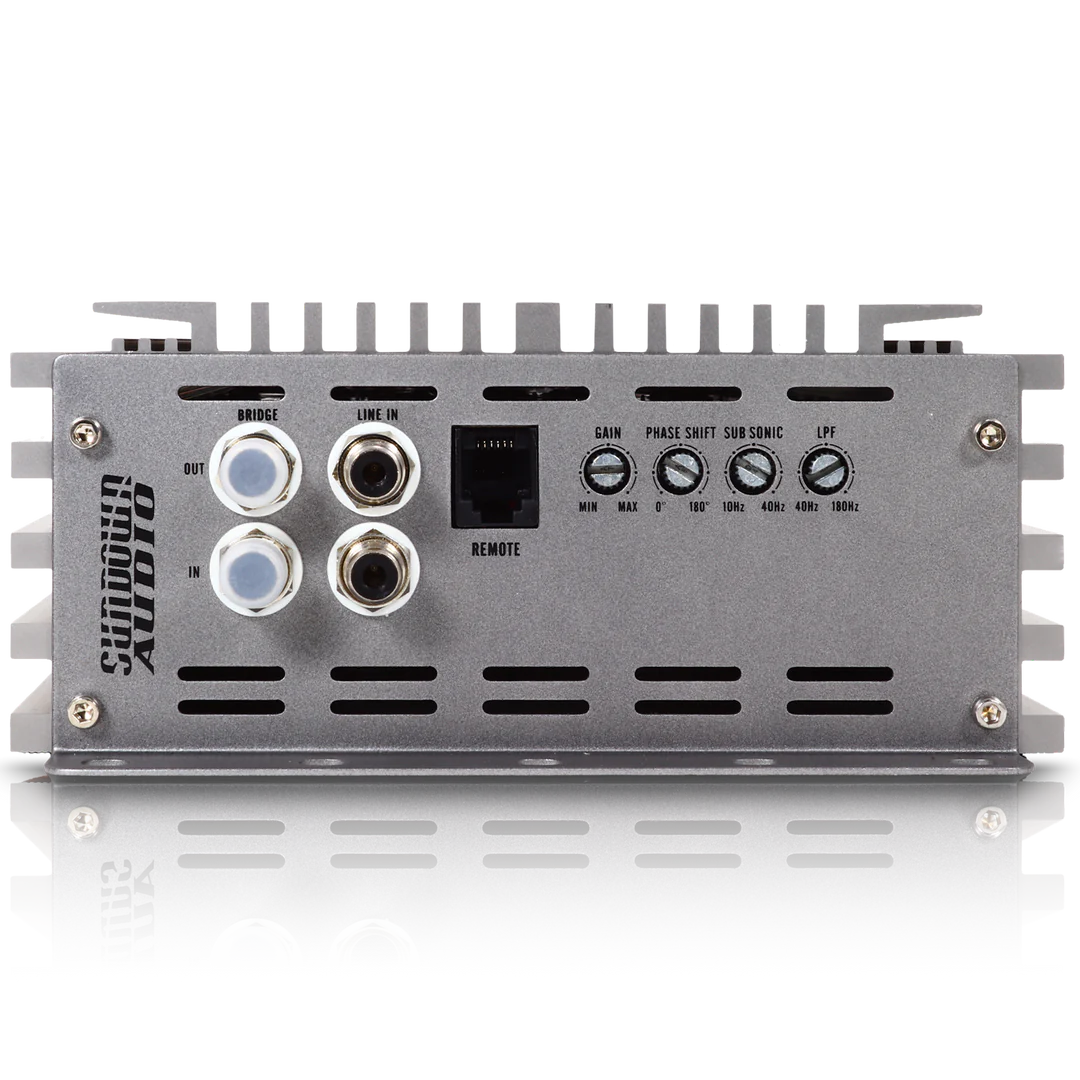

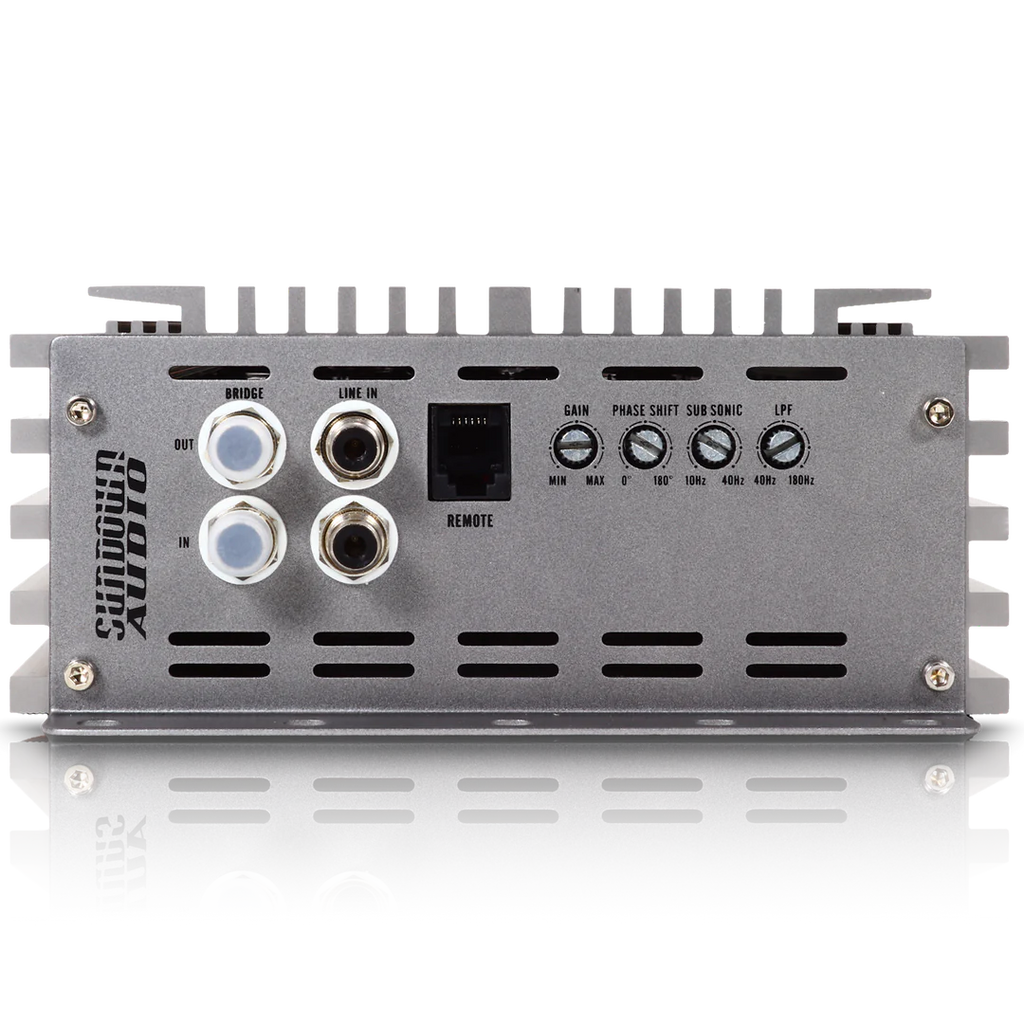

- Wired Remote Control
SPECIFICATIONS
- Input Sensitivity 6V Max
- 1000 x 1 @ 1 ohms RMS
- 650 x 1 @ 2 ohms RMS
- 375 x 1 @ 4 ohms RMS
- 1 OHM Stable
- Variable Low Pass Filter : 40HZ - 180HZ
- -12dB/8 Variable Crossover Slope (LPF)
- Signal / Noise Ratio : 92DB
- Operation Voltage : DC 10.5V - 15.5V Power Input
- Recommended Fuse : 100 Amps
- Dimensions : 12.48” L x 6.3” W x 2.75” H
