- 1,300 x 1 @ 4 ohms RMS bridged
- 650 x 2 @ 2 ohms RMS
- 400 x 2 @ 4 ohms RMS
- 2-channel full-range amplifier: 10Hz – 25 kHz
- Variable 12dB subsonic filter: 10HZ - 500HZ
- Variable 12dB high & low pass filters: 50HZ - 500HZ ( 500HZ - 5KHZ at x10 )

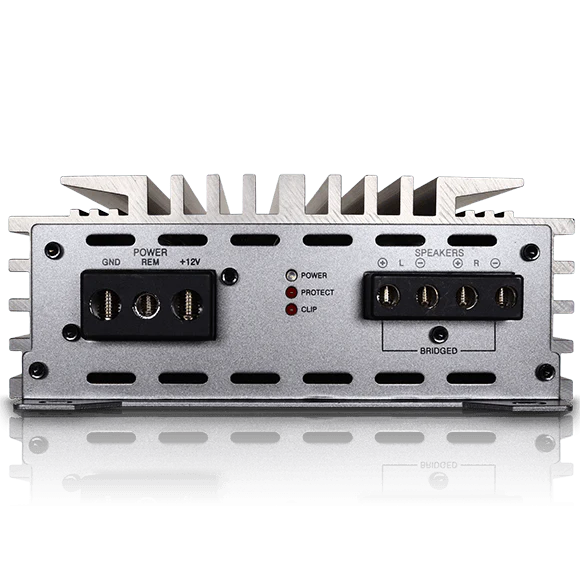

- Power, clipping & protection indicators included
- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Optional wired remote control displays voltage, temperature, and clipping display
Producing optimum power at realistic voltages (the 12s, rather than needing 14+ volts), the SALT – Sundown Audio Low-Voltage Technology – is Sundown’s answer! SALT amplifiers represent the pinnacle of Korean Class-D amplifier technology. Whether you are a world-class SPL competitor or a hardcore sound quality fan, the SALT series will be right at home in your system.
Product Manual
Specifications
- Input Sensitivity : 6V - 0.2V

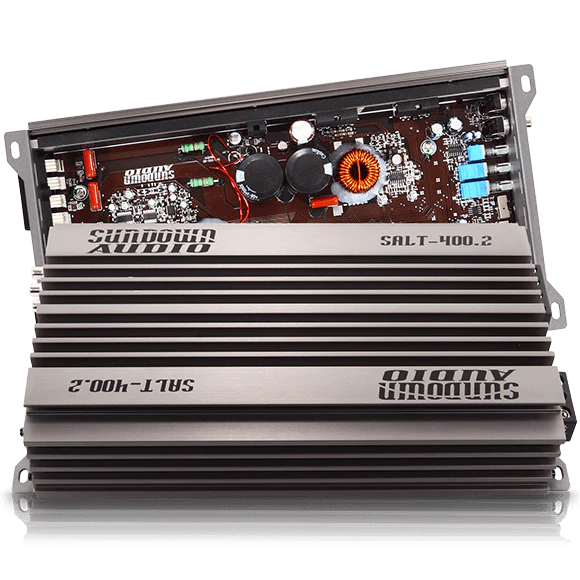

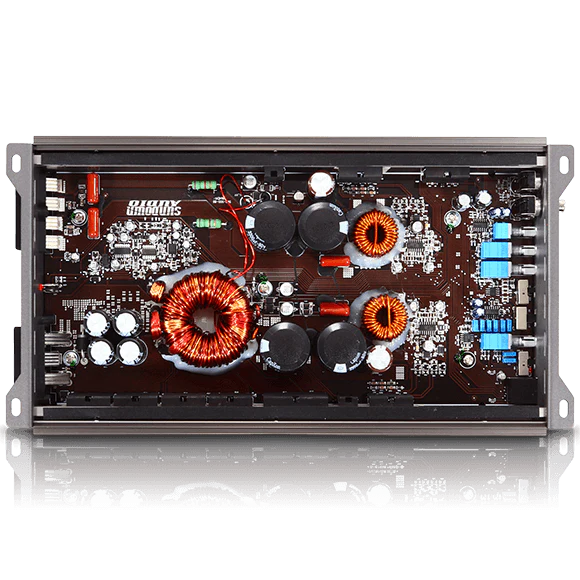

- Double Sided Through Hole Epoxy PCB

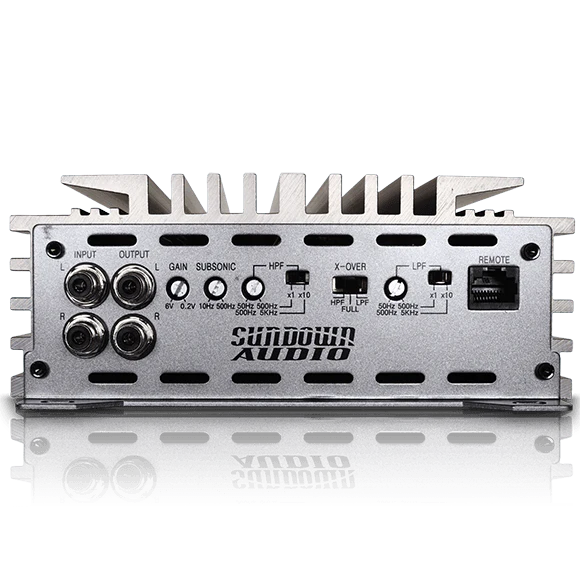

- Variable Subsonic Crossover Filter : 10HZ - 500HZ
- Variable High Pass Filter : 50HZ - 500HZ ( 500HZ - 5KHZ at x10 )
- Variable Low Pass Filter : 50HZ - 500HZ ( 500Hz - 5KHZ at x10 )
- X1, X10 Crossover Multiply
- Efficiency : 75% 4OHM, at 100HZ
- Signal / Noise Ratio : 105DB <
- Damping Factor : 400 <
- Frequency Response : 10 Hz – 25khz
- 12DB/ OCT Variable Crossover Slope (HPF/LPF)
- 12DB/ OCT Variable Subsonic Crossover Slope
- Tested Voltage & THD : 12.8V & Less Than 1% THD
- Operation Voltage : DC 9V - 15.5V Power Input
- Recommended Fuse : 100 Amps
- Dimensions : 11.82” L x 6.85” W x 2.66” H
