Description
-
Specifications
- NUMBER OF CHANNELS : 1 CH
- MAX OUTPUT POWER : 14.4VDC - 1 OHM :1750W RMS
- INPUT SENSITIVITY : 200MV
- SIGNAL TO NOISE RATIO 108 DB
- FREQUENCY RESPONSE: 10HZ 20KHZ (-3DB)

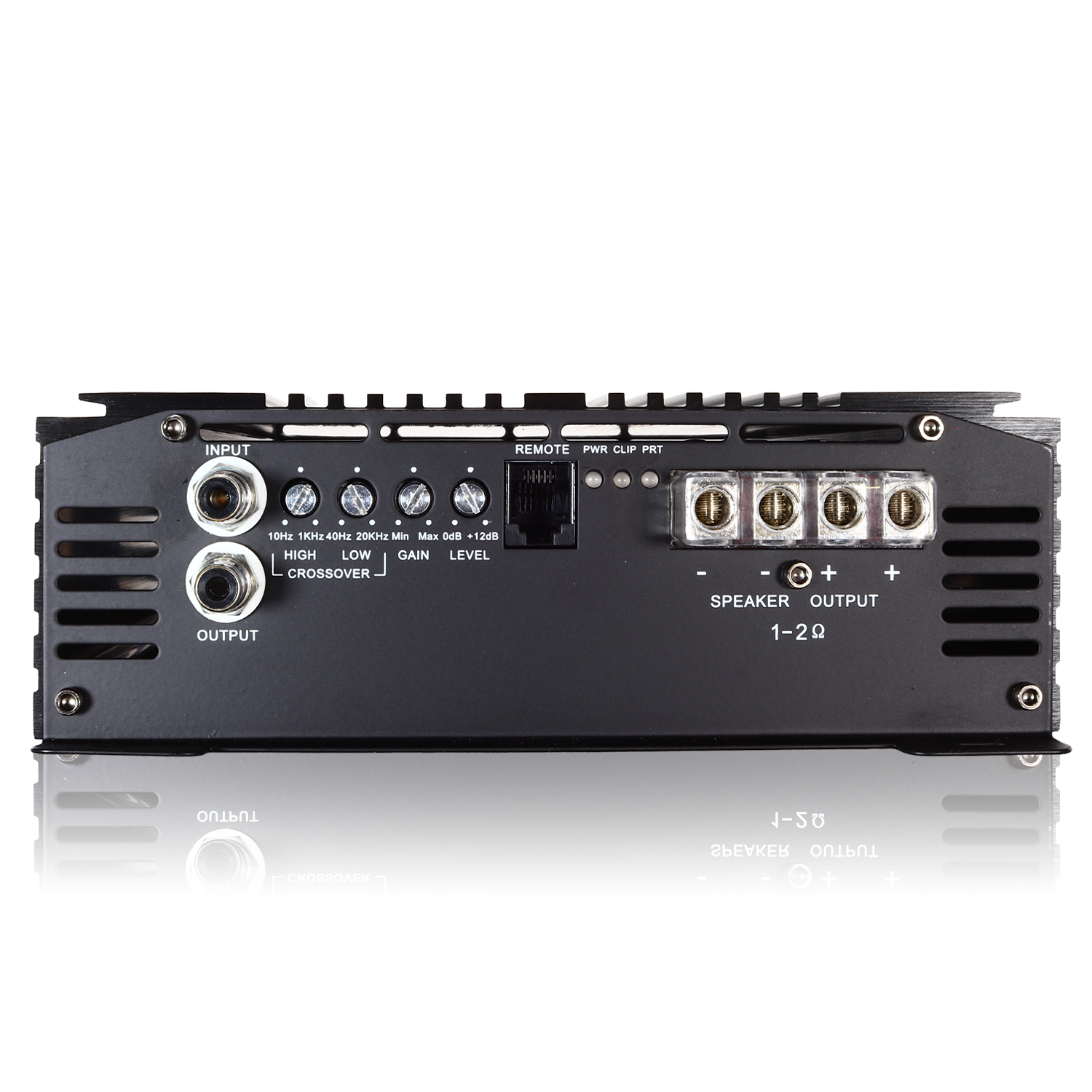

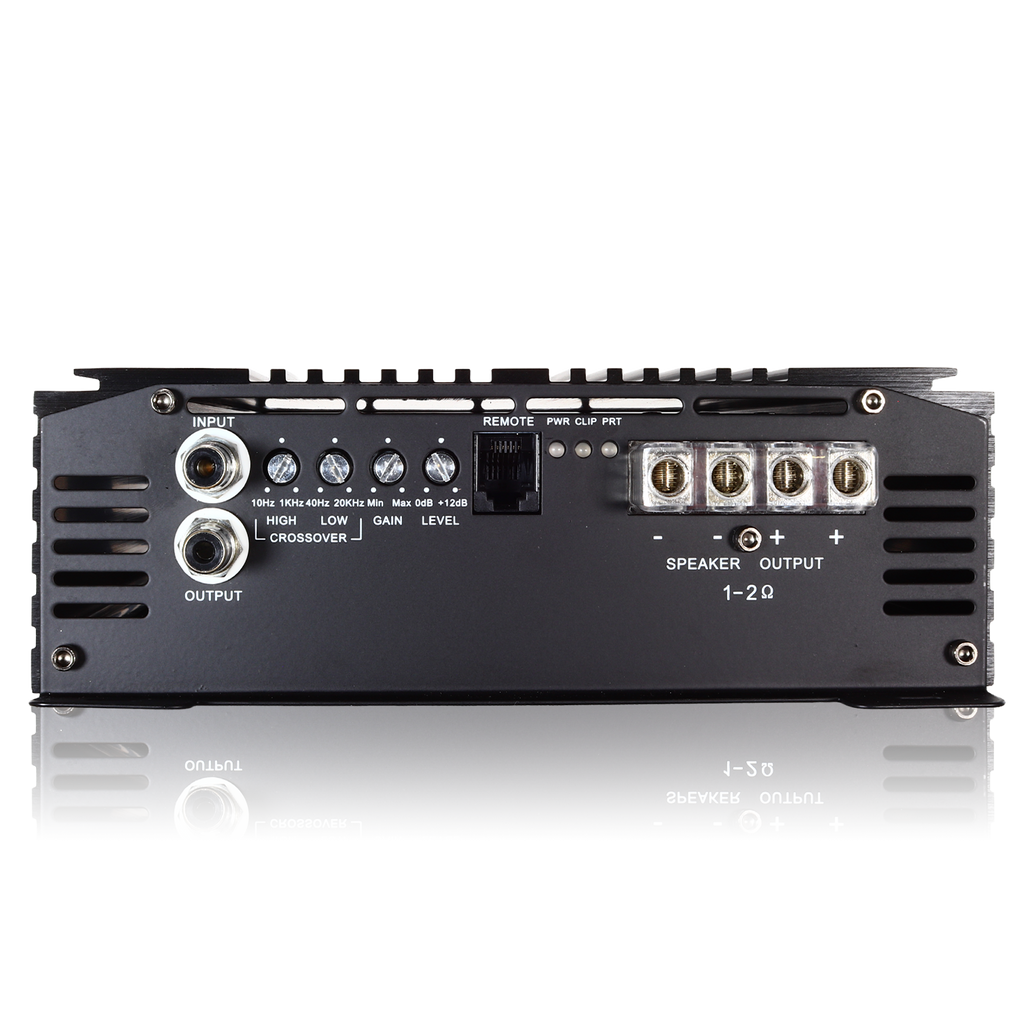

- CROSSOVER :
- HPF: 10 TO 1KHZ (-12DB/8) VARIABLE
- LPF: 40HZ TO 20KHZ (-12DB/8) VARIABLE

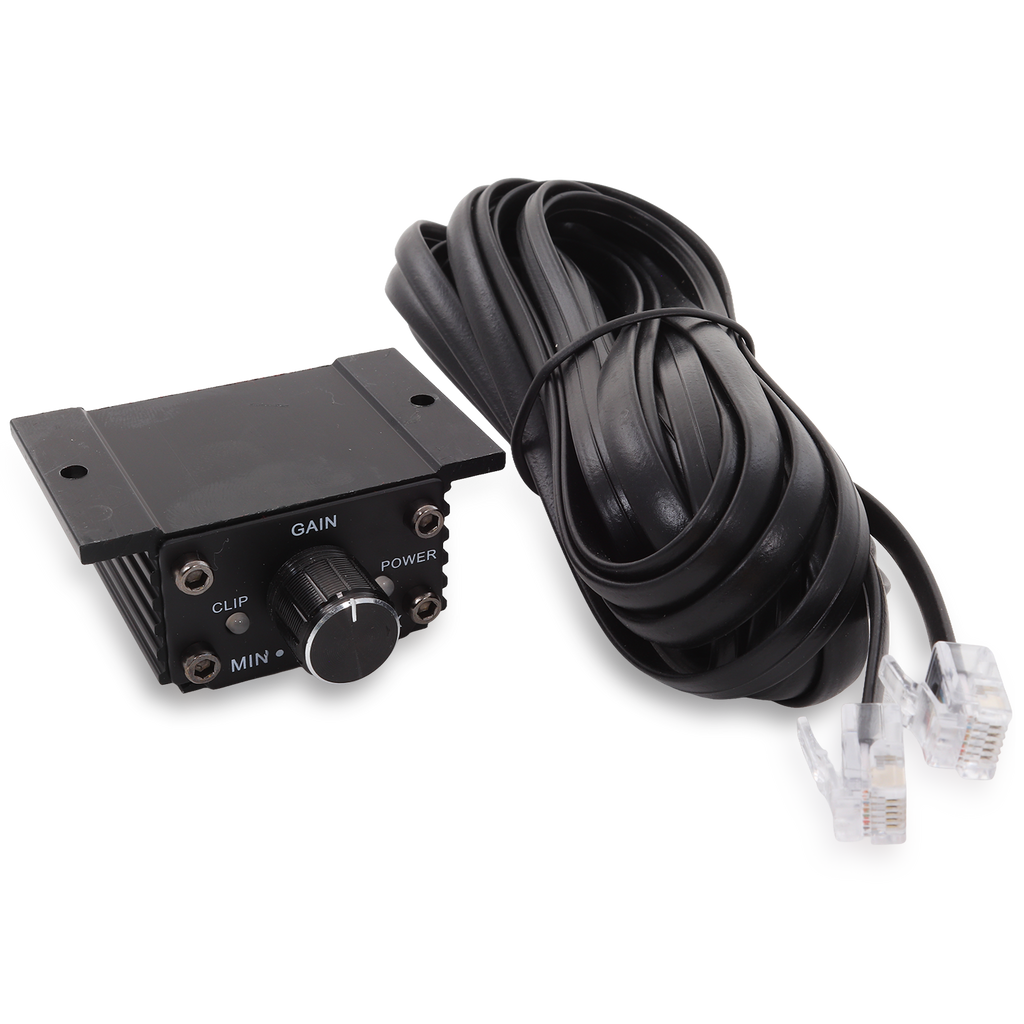

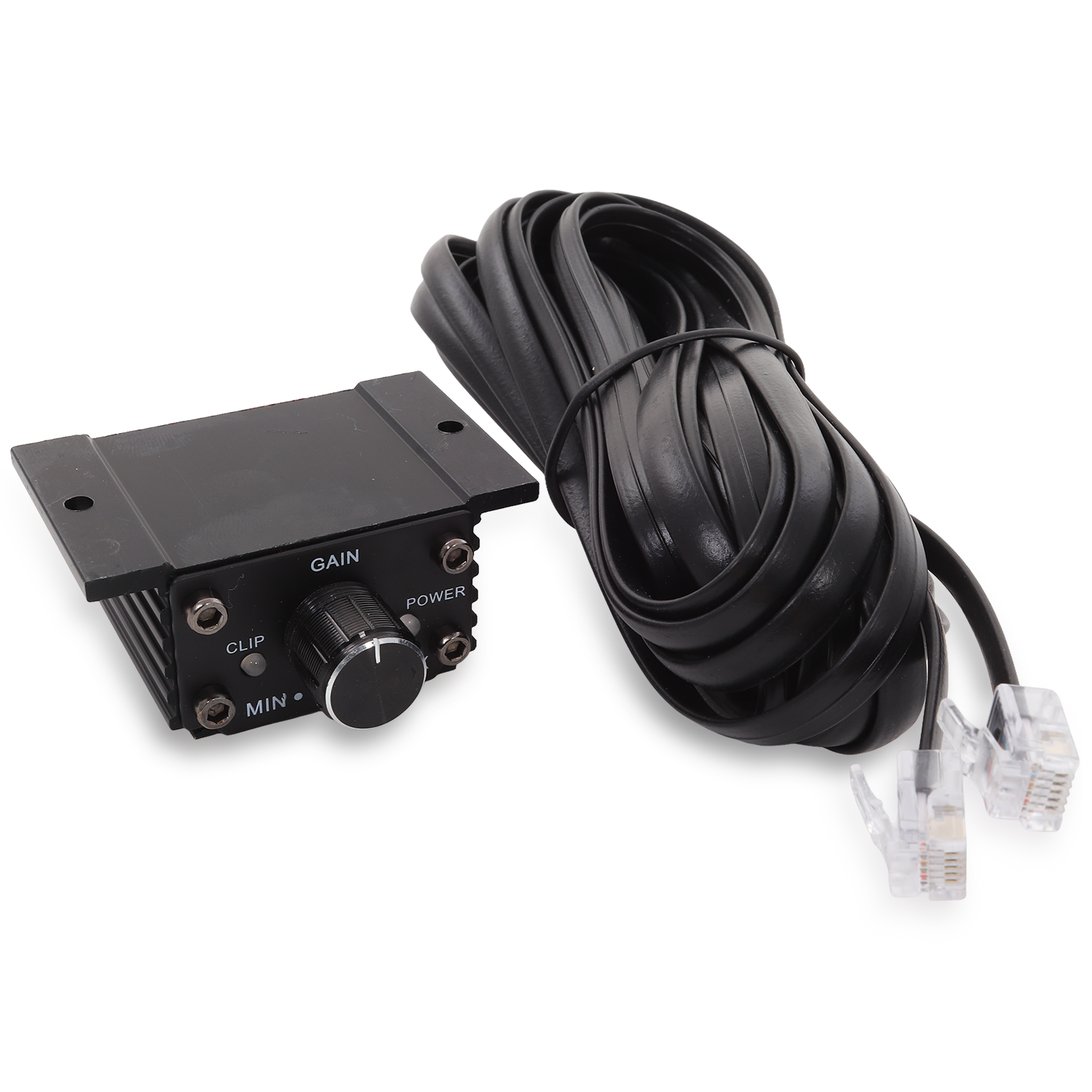

- BASS BOOST : 0 TO 12DB (50HZ)

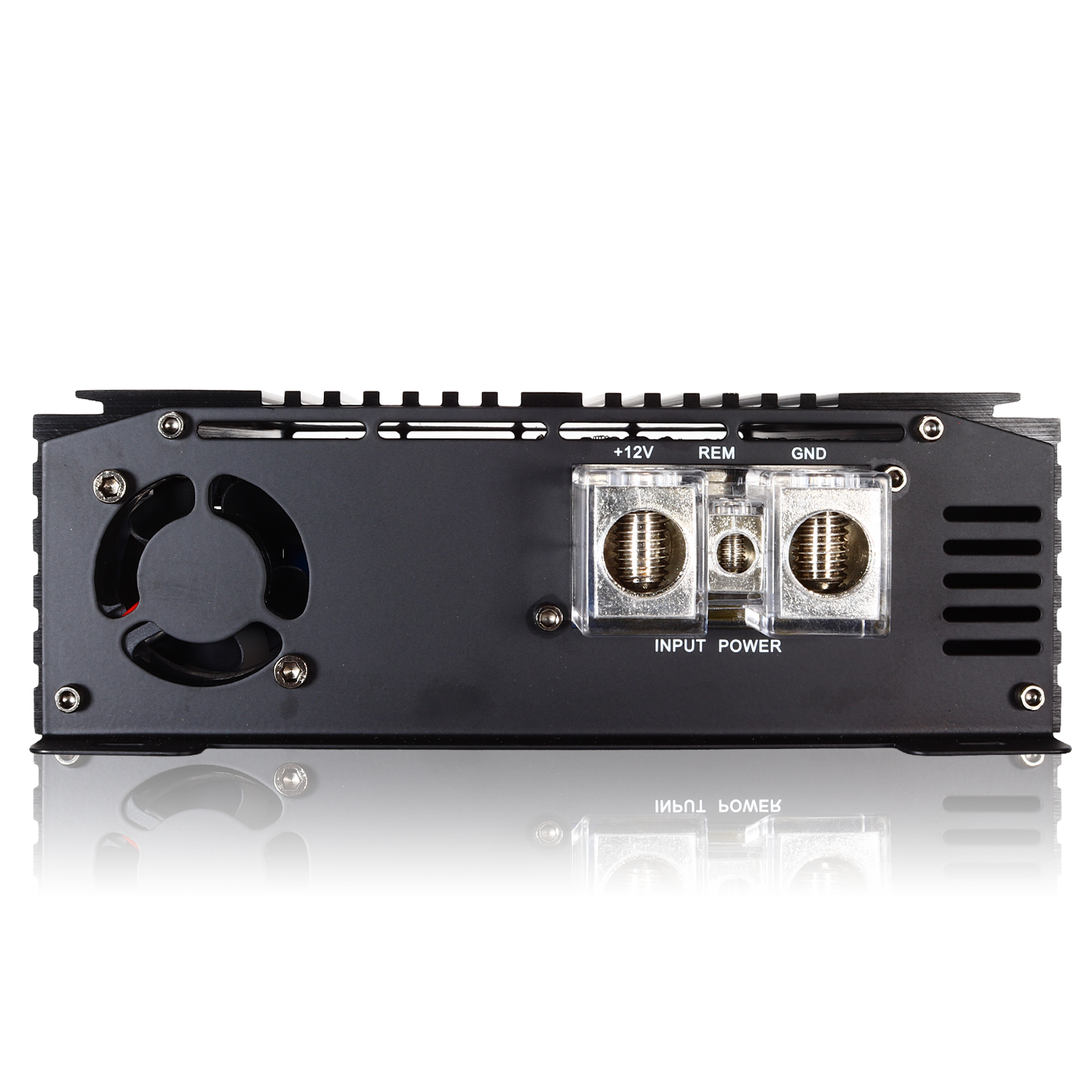

- THERMAL MANAGMENT ; SMART COOLER ( FAN POWERED BY TEMPERATURE OR AUDIO, WITH 3 SPEEDS)
- INPUT IMPEDANCE: 56K OHMS
- PROTECTION SYSTEM ; OUTPUT SHORT / HIGH /LOW SUPPLY VOLTAGE / THERMAL PROTECTION
- MINIMUM SUPPLY VOLTAGE : 9VDC
- MAXIUM SUPPLY VOLTAGE : 16VDC
