Description
- Power Handling: 200 Watts RMS
- Impedance: 4 or 8-ohm SVC
- Vented cast frame
- 2.5-inch voice coil
- X-Max: 9mm
- Carbon fiber cone
- Excellent for Mid-bass
- High strength ferrite motor
- Dual shorting rings for smooth response
- Mounting depth : 4"
- Rear Vented

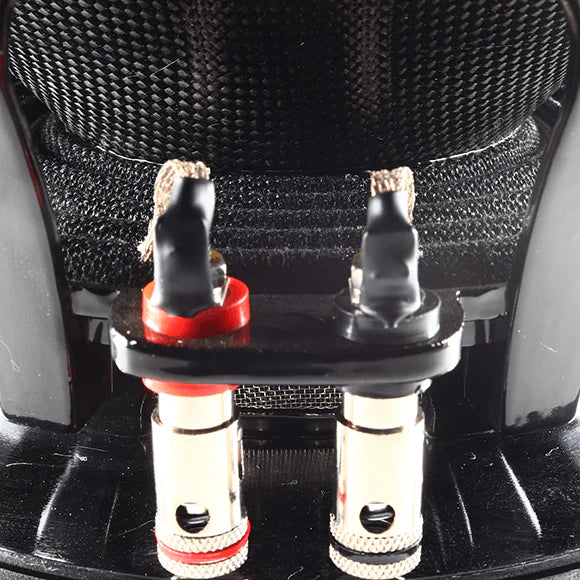

- Spring Loaded Terminals

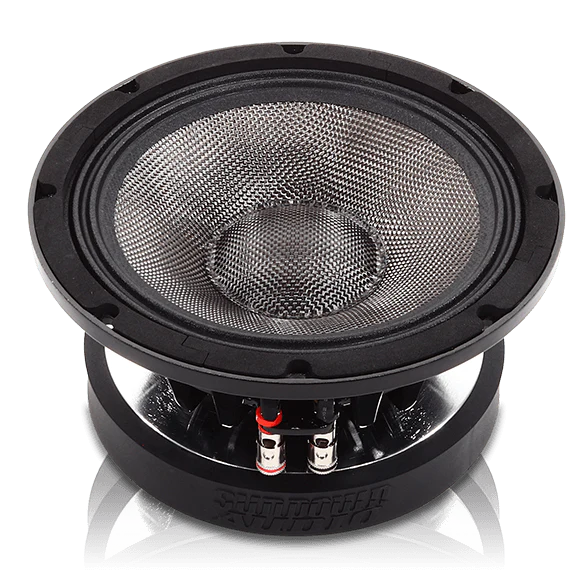

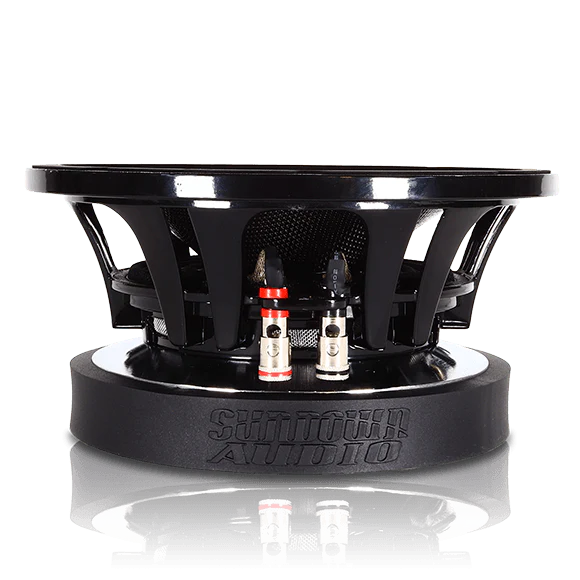

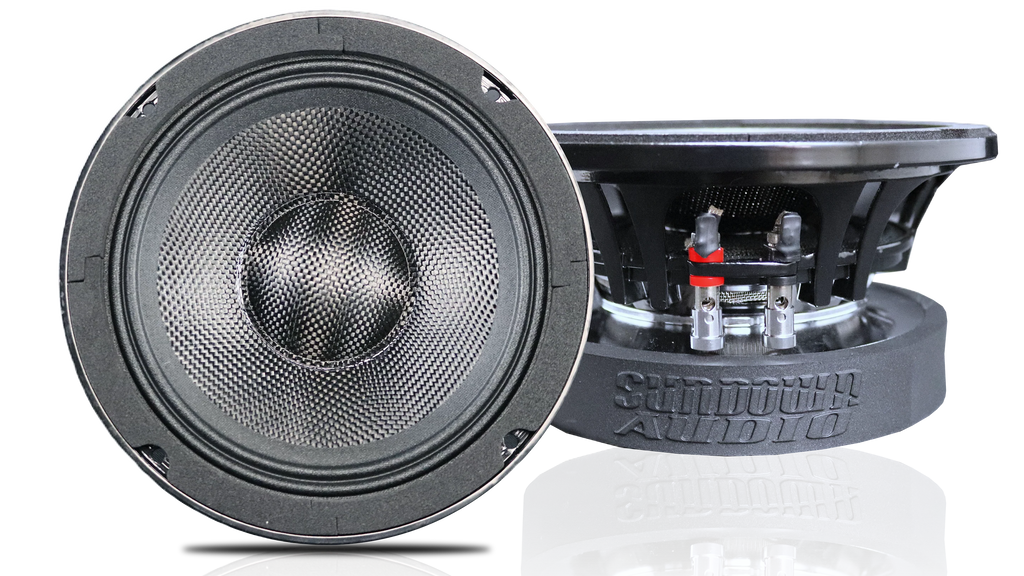

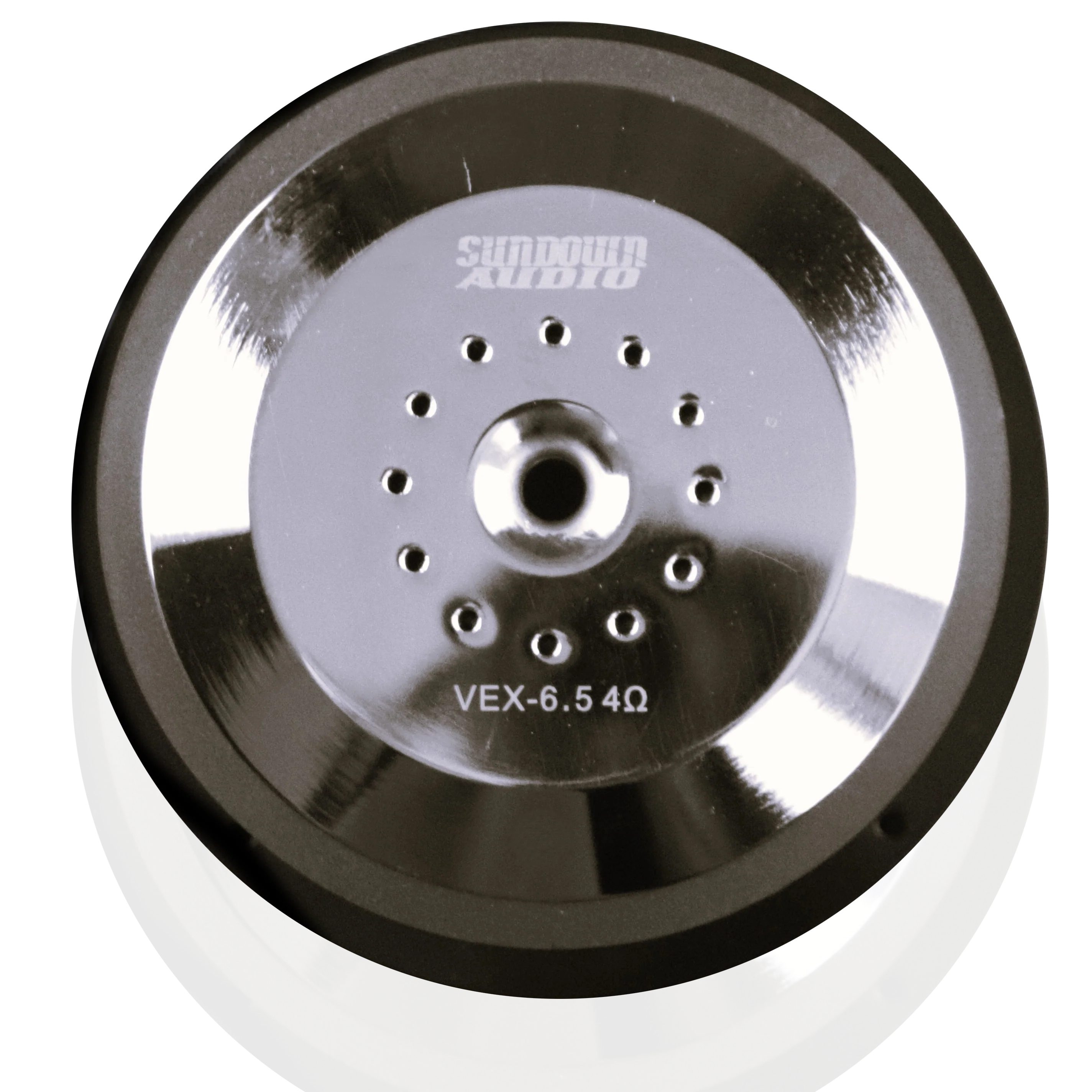

With an enormous 2.5” voice coil and a super-efficient cooling system, the VEX handles 200 watts of power with ease. We went with real carbon-fiber cone to handle high SPL systems without breakup, and achieved a 94dB sensitivity by combining a large diameter, high strength ferrite motor with a neodymium pole-cap magnet! A sturdy cast-aluminum frame features extensive spider cavity vents to further increase thermal power handling. The Sundown Audio VEX is one of the loudest, best sounding high-efficiency midrange drivers in existence.
Specifications
|
T/S SPECS |
VEX-6 S4 OHM |
|
RE (Ohms) |
3.95 |
|
FS (Hz) |
118.43 |
|
VAS (L) |
3.02 |
|
Qes |
0.3 |
|
Qms |
3.6 |
|
Qts |
0.28 |
|
Sens (1w/1m) |
94 dB |
